Mishimoto Radiator MMRADNEO01

Brand: Mishimoto

0 reviews

Have a product question? Ask us
Part Number: MMRAD-NEO-01
Part Location: U.S.
Availability: *Special Order
Delivery: Up to 2 Weeks
If purchased before 12:00 EDT - estimated delivery by June 25

Retail: $354.89

Price: $337.99

You Save: $16.90

Color

Silver

Core Depth (IN)

1.42 Inch

Core Height (IN)

25.12 Inch

Core Length (IN)

13.78 Inch

Core Material

Aluminum

Core Rows

Two Tube

Flow Direction

Down Flow

Includes Fittings

Includes Mounting Hardware

Inlet Hose Location

Top Left

Inlet Size (IN)

1-1/4 Inch

Share this page

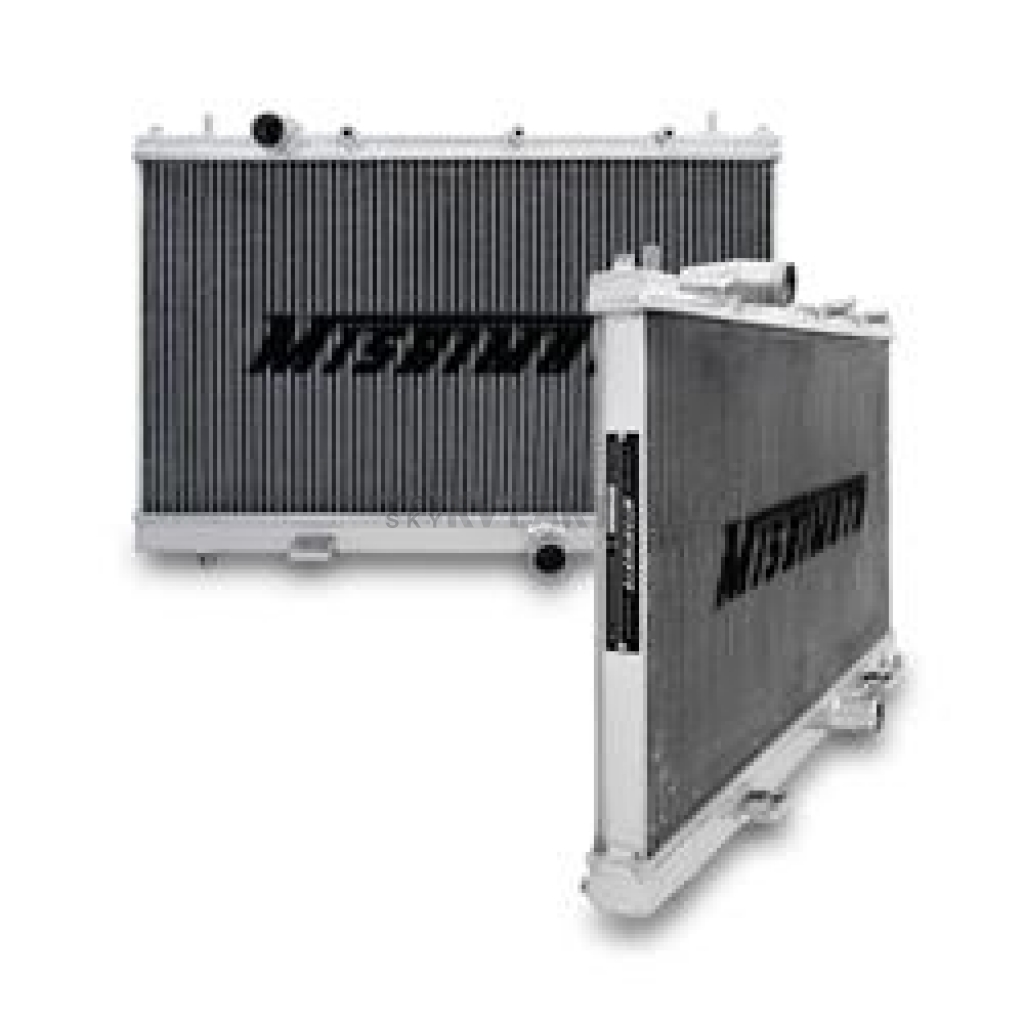

Mishimoto Radiator

Radiator; 26 Inch Length x 18.3 Inch Height x 1.92 Inch Depth Overall Dimension; 13.78 Inch Length x 25.12 Inch Height x 1.42 Inch Depth Core Dimension; Dual Core Rows; Downflow; Aluminum Core; 1-1/4 Inch Inlet x 1.4 Inch Outlet; Single; With Magnetic Drain Plug

MPN: MMRADNEO01

The Mishimoto performance aluminum radiator is the ideal upgrade to the stock Neon radiator especially for those looking to enhance the overall performance and lifetime of their engine. With a direct OEM fit installation is effortless, no cutting or modification is required. All Mishimoto Dodge Neon radiators are designed and engineered to maximize cooling efficiency and most importantly protect your from overheating. As with all our aluminum radiators, this radiator is protected by the Mishimoto Lifetime Warranty.Mishimoto provides free replacement for accidental damages, basically if you are in an accident and your mishimoto part is damaged, they will replace it free of charge when you provide pictures and a police report.

Flow Direction: Down Flow

Overall Length (IN): 26 Inch

Overall Height (IN): 18.3 Inch

Overall Depth (IN): 1.92 Inch

Core Rows: Two Tube

Core Length (IN): 13.78 Inch

Core Height (IN): 25.12 Inch

Core Depth (IN): 1.42 Inch

Core Material: Aluminum

Inlet Hose Location: Top Left

Inlet Size (IN): 1-1/4 Inch

Outlet Hose Location: Bottom Right

Outlet Size (IN): 1.4 Inch

Color: Silver

Tank Material: Aluminum

With Radiator Cap: No

With Transmission Cooler: No

With Engine Oil Cooler: No

Includes Fittings: Yes

Includes Mounting Hardware: No

Please refer the Technical Bulletins attached to the Product Manual tab

Features

Full Aluminum Construction Including Durable, Tig-welded End Tanks
Features A Two-row, Efficient Brazed Aluminum Core
Increased Fluid Capacity And Optimal Heat Dissipation
Perfect For Use On The Street, Strip, Or Track
Efficient Temperature Regulation For Both Stock And Modified Vehicles
Direct Fit
Free Replacement For Accidental Damages
Limited Lifetime Warranty

Specifications of Mishimoto Radiator MMRADNEO01
Color	Silver
Core Depth (IN)	1.42 Inch
Core Height (IN)	25.12 Inch
Core Length (IN)	13.78 Inch
Core Material	Aluminum
Core Rows	Two Tube
Flow Direction	Down Flow
Includes Fittings	Yes
Includes Mounting Hardware	No
Inlet Hose Location	Top Left
Inlet Size (IN)	1-1/4 Inch
Outlet Hose Location	Bottom Right
Outlet Size (IN)	1.4 Inch
Overall Depth (IN)	1.92 Inch
Overall Height (IN)	18.3 Inch
Overall Length (IN)	26 Inch
Tank Material	Aluminum
With Engine Oil Cooler	No
With Radiator Cap	No
With Transmission Cooler	No
