Mishimoto Radiator MMRADK20EK

Brand: Mishimoto

0 reviews

Have a product question? Ask us
Part Number: MMRAD-K20-EK
Part Location: U.S.
Availability: *Special Order
Delivery: Up to 2 Weeks
If purchased before 12:00 EDT - estimated delivery by June 25

Retail: $449.39

Price: $427.99

You Save: $21.40

Color

Silver

Core Depth (IN)

1.57 Inch

Core Height (IN)

12.85 Inch

Core Length (IN)

14.96 Inch

Core Material

Aluminum

Core Rows

Flow Direction

Down Flow

Includes Fittings

Includes Mounting Hardware

Inlet Hose Location

Top Left

Inlet Size (IN)

1-1/4 Inch

Share this page

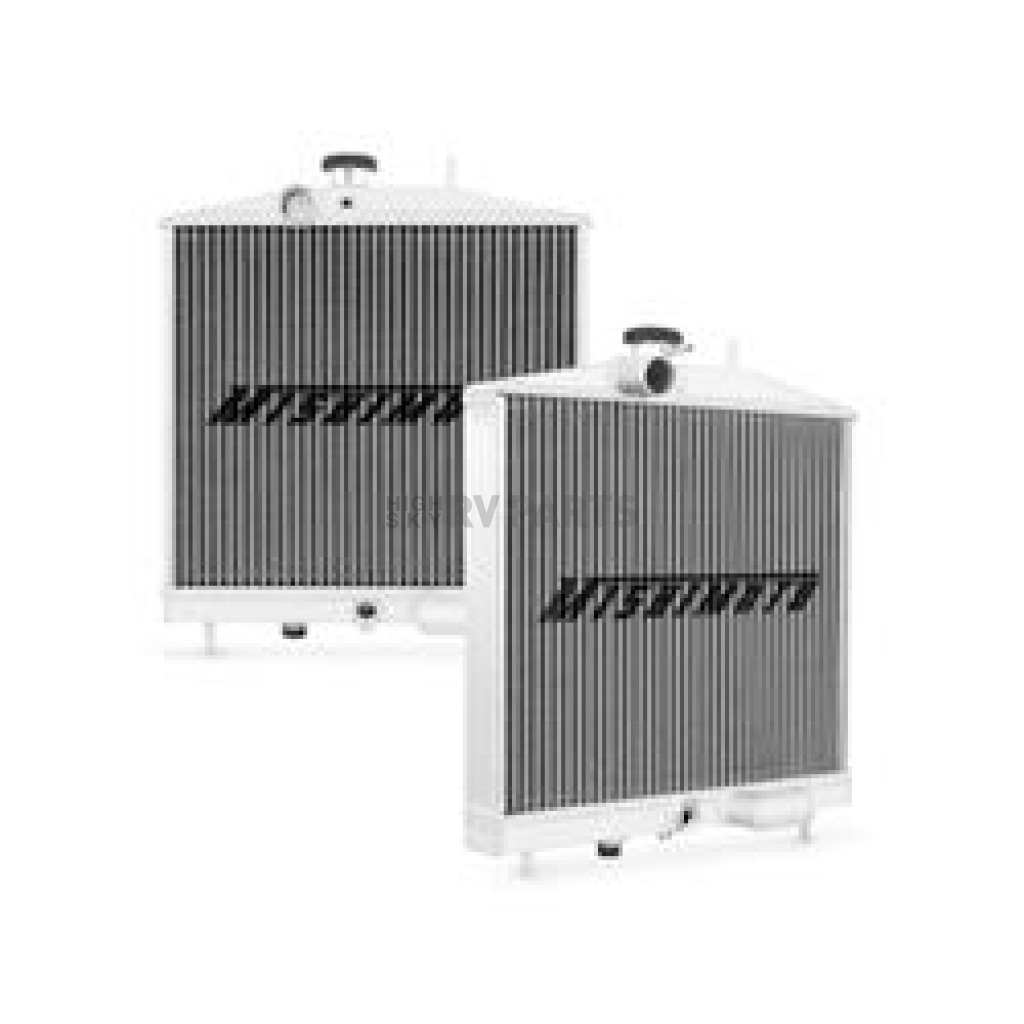

Mishimoto Radiator

Radiator; 15.12 Inch Length x 17.99 Inch Height x 4.02 Inch Depth Overall Dimension; 14.96 Inch Length x 12.85 Inch Height x 1.57 Inch Depth Core Dimension; Dual Core Rows; Downflow; Aluminum Core; 1-1/4 Inch Inlet X 1-1/4 Inch Outlet; Single; With Radiator Cap/ Magnetic Drain Plug

MPN: MMRADK20EK

Every Mishimoto race aluminum radiator is designed and engineered to maximize cooling efficiency, boost engine functions, and most importantly, protect your car from overheating on and off the track. Lightweight, made from 100 Percent brazed aluminum, and cast end tanks TIG-welded for increased durability, Mishimoto race radiators will enhance the overall performance of your engine.Mishimoto provides free replacement for accidental damages, basically if you are in an accident and your mishimoto part is damaged, they will replace it free of charge when you provide pictures and a police report.

Flow Direction: Down Flow

Overall Length (IN): 15.12 Inch

Overall Height (IN): 17.99 Inch

Overall Depth (IN): 4.02 Inch

Core Rows: Dual

Core Length (IN): 14.96 Inch

Core Height (IN): 12.85 Inch

Core Depth (IN): 1.57 Inch

Core Material: Aluminum

Inlet Hose Location: Top Left

Inlet Size (IN): 1-1/4 Inch

Outlet Hose Location: Bottom Right

Outlet Size (IN): 1-1/4 Inch

Color: Silver

Tank Material: Aluminum

With Radiator Cap: Yes

With Transmission Cooler: No

With Engine Oil Cooler: No

Includes Fittings: Yes

Includes Mounting Hardware: Yes

Please refer the Technical Bulletins attached to the Product Manual tab

Features

Lightweight And 100 Percent Aluminum Construction With Durable, Tig-welded End Tanks
Substantial Fluid Capacity And Optimal Heat Dissipation
Provides Efficient Heat Exchange For Naturally Aspirated And Forced Induction Vehicles
High-pressure Radiator Cap Which Effectively Raises The Boiling Point Of Engine Coolant, Providing A Safer And More Efficient System
Free Replacement For Accidental Damages
Limited Lifetime Warranty

Specifications of Mishimoto Radiator MMRADK20EK
Color	Silver
Core Depth (IN)	1.57 Inch
Core Height (IN)	12.85 Inch
Core Length (IN)	14.96 Inch
Core Material	Aluminum
Core Rows	Dual
Flow Direction	Down Flow
Includes Fittings	Yes
Includes Mounting Hardware	Yes
Inlet Hose Location	Top Left
Inlet Size (IN)	1-1/4 Inch
Outlet Hose Location	Bottom Right
Outlet Size (IN)	1-1/4 Inch
Overall Depth (IN)	4.02 Inch
Overall Height (IN)	17.99 Inch
Overall Length (IN)	15.12 Inch
Tank Material	Aluminum
With Engine Oil Cooler	No
With Radiator Cap	Yes
With Transmission Cooler	No
