Mishimoto Radiator MMRADK20EG

Brand: Mishimoto

0 reviews

Have a product question? Ask us
Part Number: MMRAD-K20-EG
Part Location: U.S.
Availability: *Special Order
Delivery: Up to 2 Weeks
If purchased before 12:00 EDT - estimated delivery by June 25

Retail: $449.39

Price: $427.99

You Save: $21.40

Color

Silver

Core Depth (IN)

1.57 Inch

Core Height (IN)

14.88 Inch

Core Length (IN)

11.61 Inch

Core Material

Aluminum

Core Rows

Two Tube

Flow Direction

Down Flow

Includes Fittings

Includes Mounting Hardware

Inlet Hose Location

Top Center

Inlet Size (IN)

1-1/4 Inch

Share this page

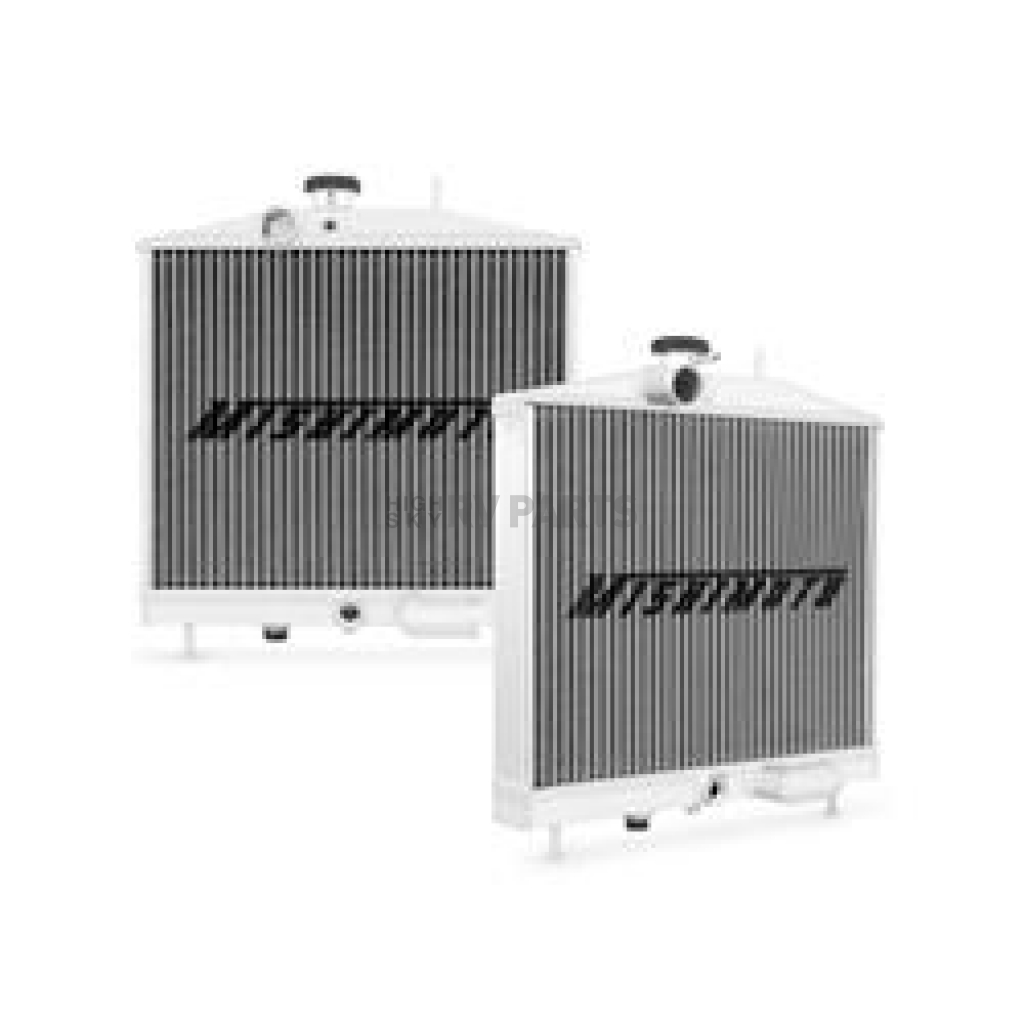

Mishimoto Radiator

Radiator; 15.04 Inch Length x 16.73 Inch Height x 4.02 Inch Depth Overall Dimension; 11.61 Inch Length x 14.88 Inch Height x 1.57 Inch Depth Core Dimension; Dual Core Rows; Downflow; Aluminum Core; 1-1/4 Inch Inlet x 1-1/4 Inch Outlet; Single; With Magnetic Drain Plug/ Radiator Cap

MPN: MMRADK20EG

Mishimoto is proud to release a brand new radiator for EG chassis Civics with K-Series engine swaps. Our half size radiator is designed specifically for your swapped vehicle with high performance driving in mind. This radiator is a direct drop in unit that does not require any trimming, drilling or mount alterations. The Mishimoto radiator will simplify a cooling solution for your K-swap and includes ports for the fan switch and coolant temperature sensor. This radiator, paired with our K-Series Swap Silicone Radiator Hose Kit, is the perfect cooling solution for your boosted or N/A K-Swap. This aluminum radiator, like all Mishimoto radiators, comes with a 1.3 Bar high-pressure radiator cap and is backed by our unparalleled Mishimoto Lifetime Warranty.Mishimoto provides free replacement for accidental damages, basically if you are in an accident and your mishimoto part is damaged, they will replace it free of charge when you provide pictures and a police report.

Flow Direction: Down Flow

Overall Length (IN): 15.04 Inch

Overall Height (IN): 16.73 Inch

Overall Depth (IN): 4.02 Inch

Core Rows: Two Tube

Core Length (IN): 11.61 Inch

Core Height (IN): 14.88 Inch

Core Depth (IN): 1.57 Inch

Core Material: Aluminum

Inlet Hose Location: Top Center

Inlet Size (IN): 1-1/4 Inch

Outlet Hose Location: Bottom Top

Outlet Size (IN): 1-1/4 Inch

Color: Silver

Tank Material: Aluminum

With Radiator Cap: Yes

With Transmission Cooler: No

With Engine Oil Cooler: No

Includes Fittings: Yes

Includes Mounting Hardware: No

Please refer the Technical Bulletins attached to the Product Manual tab

Features

Provides A Bolt-in Cooling Solution, Simplifying The Engine Swap Process
Full Aluminum Construction With Durable, Tig-welded End Tanks
Features A Two-row, Efficient Brazed Aluminum Core
Substantial Fluid Capacity And Optimal Heat Dissipation
Provides Efficient Heat Exchange For Naturally Aspirated And Forced Induction Vehicles
Free Replacement For Accidental Damages
Limited Lifetime Warranty

Specifications of Mishimoto Radiator MMRADK20EG
Color	Silver
Core Depth (IN)	1.57 Inch
Core Height (IN)	14.88 Inch
Core Length (IN)	11.61 Inch
Core Material	Aluminum
Core Rows	Two Tube
Flow Direction	Down Flow
Includes Fittings	Yes
Includes Mounting Hardware	No
Inlet Hose Location	Top Center
Inlet Size (IN)	1-1/4 Inch
Outlet Hose Location	Bottom Top
Outlet Size (IN)	1-1/4 Inch
Overall Depth (IN)	4.02 Inch
Overall Height (IN)	16.73 Inch
Overall Length (IN)	15.04 Inch
Tank Material	Aluminum
With Engine Oil Cooler	No
With Radiator Cap	Yes
With Transmission Cooler	No
