Mishimoto Radiator MMRADFXT04

Brand: Mishimoto

0 reviews

Have a product question? Ask us
Part Number: MMRAD-FXT-04
Part Location: U.S.
Availability: *Special Order
Delivery: Up to 2 Weeks
If purchased before 12:00 EDT - estimated delivery by June 25

Retail: $494.54

Price: $470.99

You Save: $23.55

Color

Silver

Core Depth (IN)

1.65 Inch

Core Height (IN)

14.1 Inch

Core Length (IN)

27 Inch

Core Material

Aluminum

Core Rows

Two Tube

Finish

Flow Direction

Down Flow

Includes Fittings

Includes Mounting Hardware

Inlet Hose Location

Top Right

Share this page

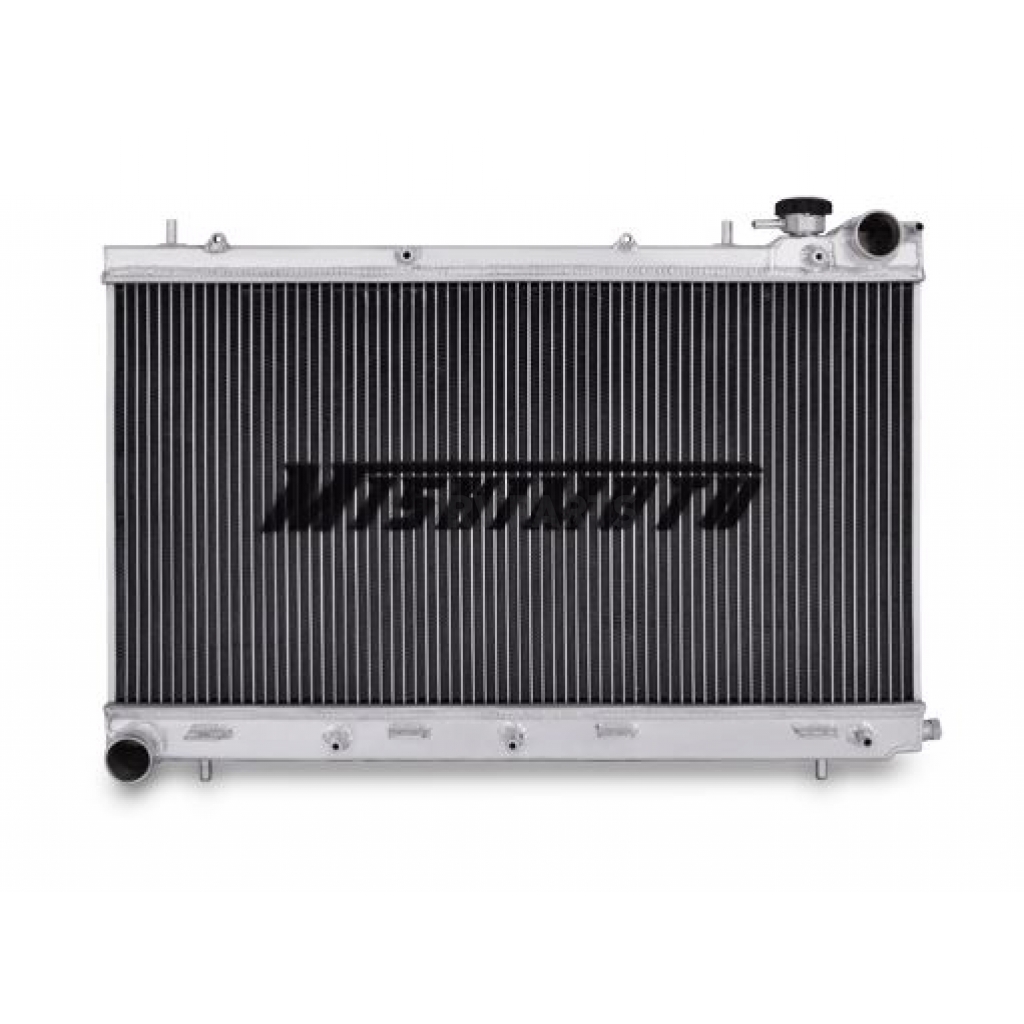

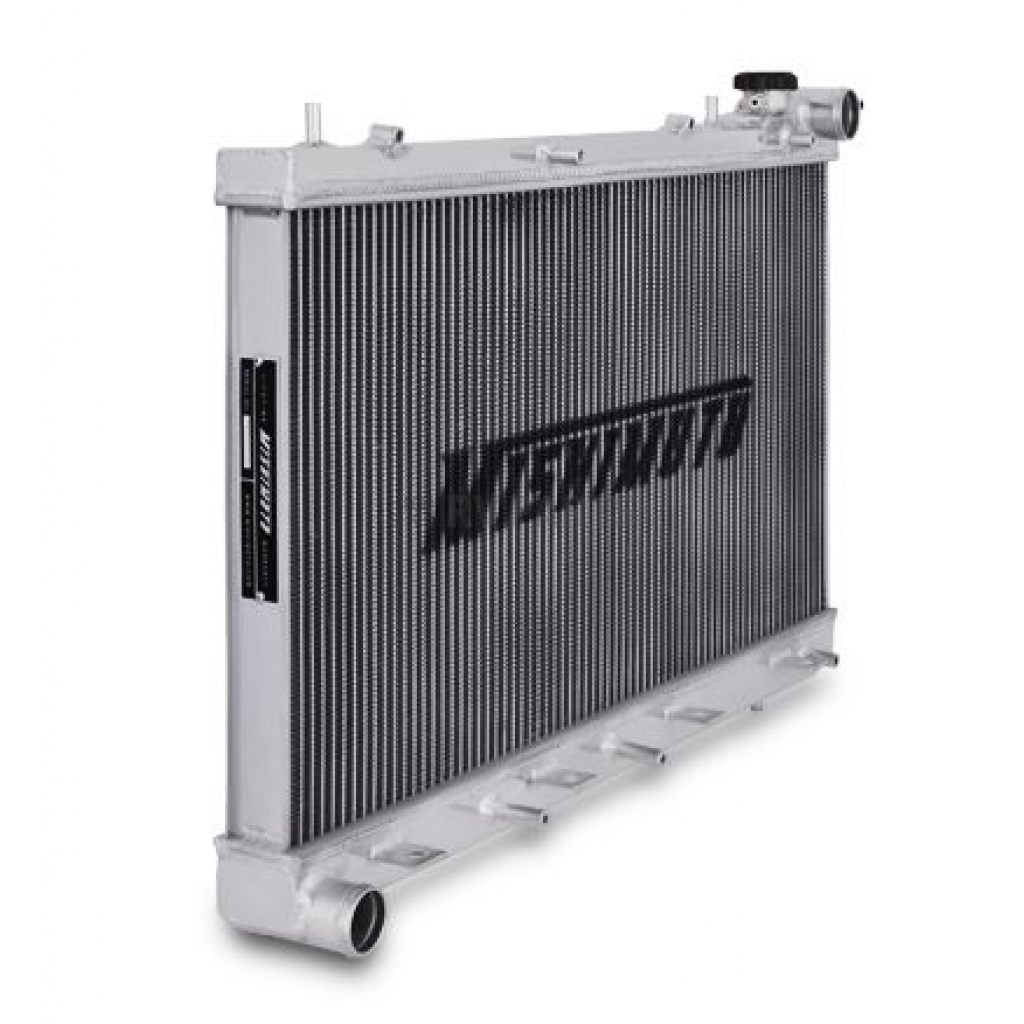

Mishimoto Radiator

Radiator; 27.7 Inch Length x 17.4 Inch Height x 2.2 Inch Depth Overall Dimension; 27 Inch Length x 14.1 Inch Height x 1.65 Inch Depth Core Dimension; Dual Core Rows; Downflow; Aluminum Core; 1.57 Inch Inlet x 1.57 Inch Outlet; Single; With Magnetic Drain Plug/ Radiator Cap/ NPT Overflow Plug/ Filler Neck

MPN: MMRADFXT04

By replacing your current Forester XT radiator with a Mishimoto performance aluminum radiator, you will notice a cooler more efficient running engine. The Mishimoto radiator for the Subaru Forester XT Turbo is made with a lightweight two row core made of 100 Percent brazed aluminum and polished aluminum tank end tanks. Installing a direct OEM fit Mishimoto radiator is effortless with no cutting or additional modifications required. Like all our aluminum radiators, this product comes with the unparalleled Mishimoto Lifetime Warranty.Mishimoto provides free replacement for accidental damages, basically if you are in an accident and your mishimoto part is damaged, they will replace it free of charge when you provide pictures and a police report.

Flow Direction: Down Flow

Overall Length (IN): 27.7 Inch

Overall Height (IN): 17.4 Inch

Overall Depth (IN): 2.2 Inch

Core Rows: Two Tube

Core Length (IN): 27 Inch

Core Height (IN): 14.1 Inch

Core Depth (IN): 1.65 Inch

Core Material: Aluminum

Inlet Hose Location: Top Right

Inlet Size (IN): 1.57 Inch

Outlet Hose Location: Bottom Left

Outlet Size (IN): 1.57 Inch

Finish: Raw

Color: Silver

Tank Material: Aluminum

With Radiator Cap: Yes

With Transmission Cooler: No

With Engine Oil Cooler: No

Includes Fittings: Yes

Includes Mounting Hardware: No

Please refer the Technical Bulletins attached to the Product Manual tab

Features

Full Aluminum Construction With Durable, Tig-welded End Tanks
Features A Two-row, Efficient Brazed Aluminum Core, Providing Ideal Fluid Temperature Reduction
Increased Fluid Capacity And Superior Heat Dissipation
Perfect Upgrade To The Failure Prone Stock Plastic End Tank Radiator
Ideal For Use On The Street, Track, Or Rallycross Course
Direct Fit
Free Replacement For Accidental Damages
Limited Lifetime Warranty

Specifications of Mishimoto Radiator MMRADFXT04
Color	Silver
Core Depth (IN)	1.65 Inch
Core Height (IN)	14.1 Inch
Core Length (IN)	27 Inch
Core Material	Aluminum
Core Rows	Two Tube
Finish	Raw
Flow Direction	Down Flow
Includes Fittings	Yes
Includes Mounting Hardware	No
Inlet Hose Location	Top Right
Inlet Size (IN)	1.57 Inch
Outlet Hose Location	Bottom Left
Outlet Size (IN)	1.57 Inch
Overall Depth (IN)	2.2 Inch
Overall Height (IN)	17.4 Inch
Overall Length (IN)	27.7 Inch
Tank Material	Aluminum
With Engine Oil Cooler	No
With Radiator Cap	Yes
With Transmission Cooler	No
