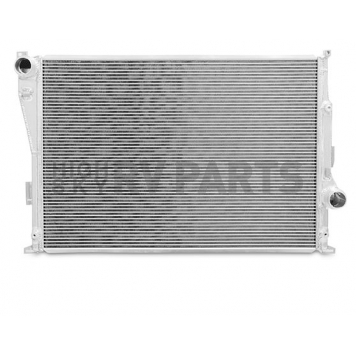

Mishimoto Radiator MMRADE4601

Brand: Mishimoto

0 reviews

Have a product question? Ask us
Part Number: MMRAD-E46-01
Part Location: U.S.
Availability: *Special Order
Delivery: Up to 2 Weeks
If purchased before 12:00 EDT - estimated delivery by June 25

Retail: $892.49

Price: $849.99

You Save: $42.50

Color

Silver

Core Depth (IN)

1.9 Inch

Core Height (IN)

22.83 Inch

Core Length (IN)

16.14 Inch

Core Material

Aluminum

Core Rows

Two Tube

Finish

Brushed

Flow Direction

Cross Flow

Includes Fittings

Includes Mounting Hardware

Inlet Hose Location

Top Left

Share this page

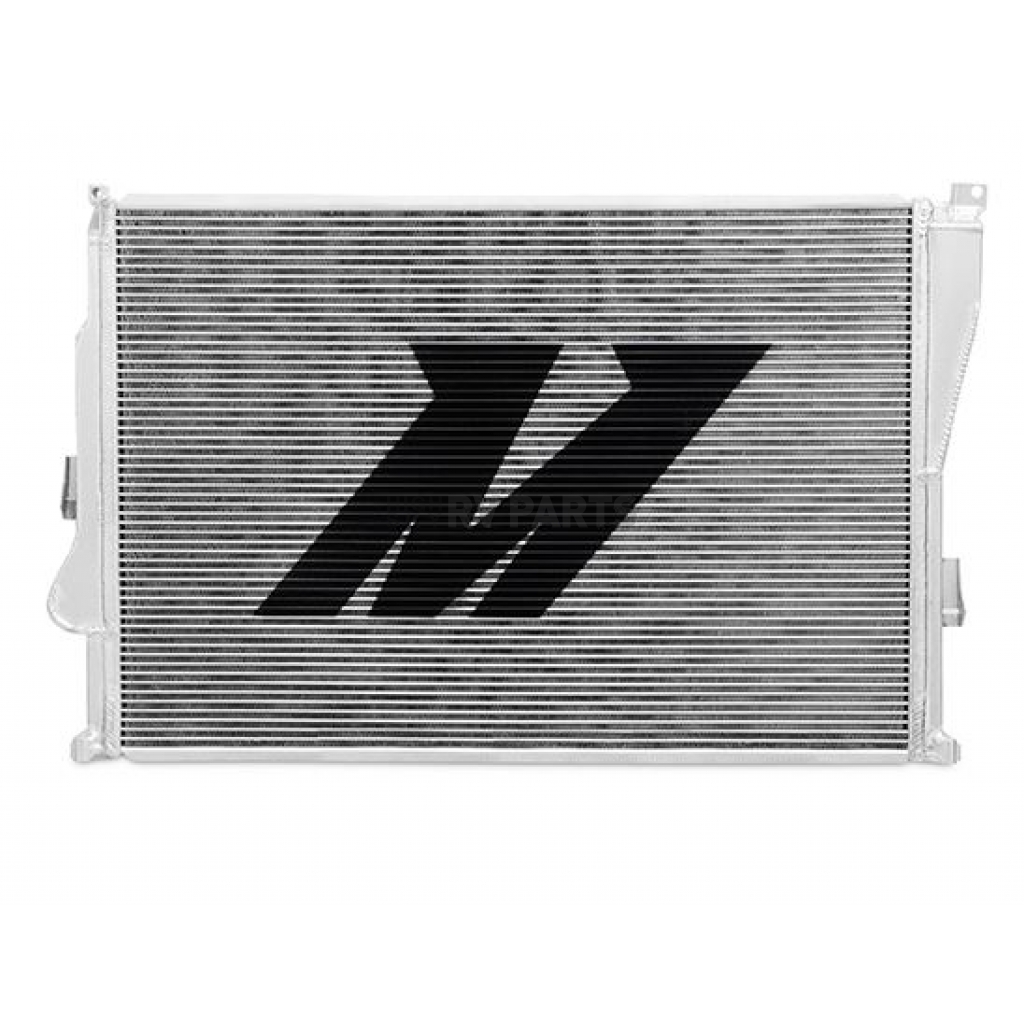

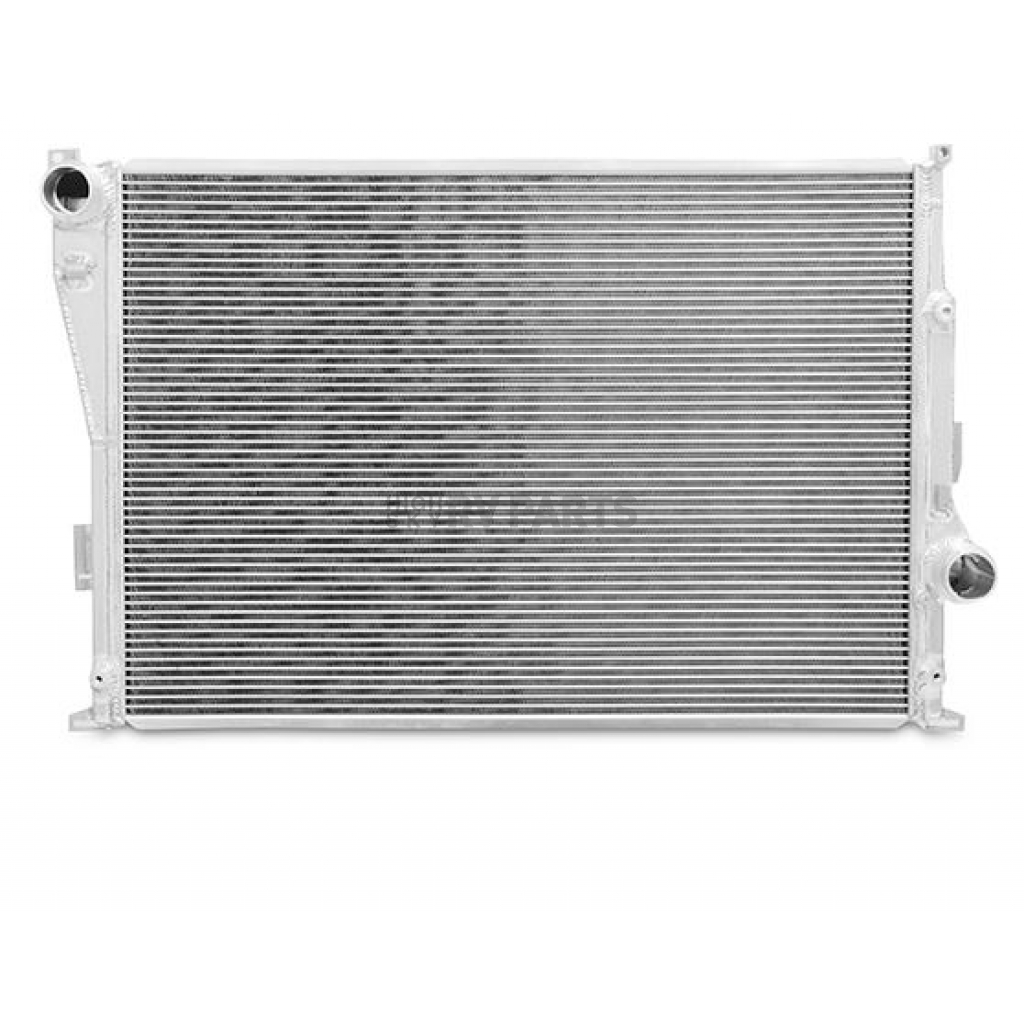

Mishimoto Radiator

Radiator; 17 Inch Length x 27.4 Inch Height x 4.4 Inch Depth Overall Dimension; 16.14 Inch Length x 22.83 Inch Height x 1.9 Inch Depth Core Dimension; Dual Core Rows; Crossflow; Aluminum Core With TIG Welded End Tanks; Single; With Fan Tool/ One NPT Plug/ Five Flange Hex Bolts

MPN: MMRADE4601

The S54 is an incredible feat of engineering. Smooth power delivery, individual throttle bodies, and redline makes for an unforgettable driving experience. As with any BMW, maintenance is key to extending the life of your vehicle and ensuring that you’re getting a driving experience rivaled by very few other vehicles on the road. As many of these vehicles see frequent track time, the team at Mishimoto felt a need to develop a performance aluminum radiator that would not only provide improved durability, but also deliver the efficiency needed for track driving. Our team of engineers developed an extremely dense core on this E46 M3 radiator, that provides a greater number of coolant tubes and a very dense fin composition. This allows for more heat-transfer contact points which results in greater heat exchange and improved efficiency. Additionally, this dense core provides a 32 Percent increase in coolant surface area, a 15 Percent increase in air surface area, and a 25 Percent increase in coolant capacity. All these factors contribute to lower temperatures and greater heat rejection, ideal for those in warm climates and track use. This E46 M3 radiator is designed as a complete bolt-in fit, requiring no modification for fitment with the stock fan and shrouding. Our BMW radiator end tanks are constructed from high-quality aluminum TIG-welded to a 100 Percent brazed aluminum core. Not only does this aid in heat transfer, but it also provides the reliability needed for years of service.Mishimoto provides free replacement for accidental damages, basically if you are in an accident and your mishimoto part is damaged, they will replace it free of charge when you provide pictures and a police report.

Flow Direction: Cross Flow

Overall Length (IN): 17 Inch

Overall Height (IN): 27.4 Inch

Overall Depth (IN): 4.4 Inch

Core Rows: Two Tube

Core Length (IN): 16.14 Inch

Core Height (IN): 22.83 Inch

Core Depth (IN): 1.9 Inch

Core Material: Aluminum

Inlet Hose Location: Top Left

Outlet Hose Location: Bottom Right

Finish: Brushed

Color: Silver

Tank Material: Aluminum

With Radiator Cap: No

With Transmission Cooler: No

With Engine Oil Cooler: No

Includes Fittings: Yes

Includes Mounting Hardware: Yes

Please refer the Technical Bulletins attached to the Product Manual tab

Features

Fully Brazed Aluminum Core With Tig-welded End Tanks
Precision Designed Cnc-machined Quick-disconnect Fittings Mate Perfectly With Stock Hoses
Track-tested Design
32 Percent Increase In Coolant Surface Area
25 Percent Increase In Coolant Capacity
Direct Fit
Free Replacement For Accidental Damages
Limited Lifetime Warranty

Specifications of Mishimoto Radiator MMRADE4601
Color	Silver
Core Depth (IN)	1.9 Inch
Core Height (IN)	22.83 Inch
Core Length (IN)	16.14 Inch
Core Material	Aluminum
Core Rows	Two Tube
Finish	Brushed
Flow Direction	Cross Flow
Includes Fittings	Yes
Includes Mounting Hardware	Yes
Inlet Hose Location	Top Left
Outlet Hose Location	Bottom Right
Overall Depth (IN)	4.4 Inch
Overall Height (IN)	27.4 Inch
Overall Length (IN)	17 Inch
Tank Material	Aluminum
With Engine Oil Cooler	No
With Radiator Cap	No
With Transmission Cooler	No
