Mishimoto Radiator MMBF2D002

Brand: Mishimoto

0 reviews

Have a product question? Ask us
Part Number: MMB-F2D-002
Part Location: U.S.
Availability: *Special Order
Delivery: Up to 2 Weeks
If purchased before 12:00 EDT - estimated delivery by June 23

Retail: $2,925.29

Price: $2,785.99

You Save: $139.30

Core Depth (IN)

2.76 Inch

Core Height (IN)

37.01 Inch

Core Length (IN)

27.8 Inch

Core Material

Aluminum

Core Rows

Flow Direction

Crossflow

Includes Fittings

Includes Mounting Hardware

With Radiator Cap

Share this page

Mishimoto Radiator

Radiator; Heavy-Duty Protection Bundle Kit; 27.48 Inch Length x 37.01 Inch Height x 2.76 Inch Depth Core Dimension; Dual Core Rows; Crossflow; Aluminum Core; With Magnetic Drain Plug/ Two Rubber Mounting Pegs/ Eight Bolts/ Radiator Upper Support Bar/ Two Mounting Brackets/ Two Rubber Hood Stops/ Four High And Low Temperature Thermostats/ Two Thermostat O-Ring/ Three Silicone Hoses/ Four CNC Aluminum Couplers/ Four Stainless Steel Spring Clips/ One Aluminum Tube Joiner/ Six Worm-Gear Clamps/ Eight Rubber O-Rings/ One Reservoir Cap

MPN: MMBF2D002

Flow Direction: Crossflow

Core Rows: Dual

Core Length (IN): 27.8 Inch

Core Height (IN): 37.01 Inch

Core Depth (IN): 2.76 Inch

Core Material: Aluminum

With Radiator Cap: Yes

Includes Fittings: Yes

Includes Mounting Hardware: Yes

Features

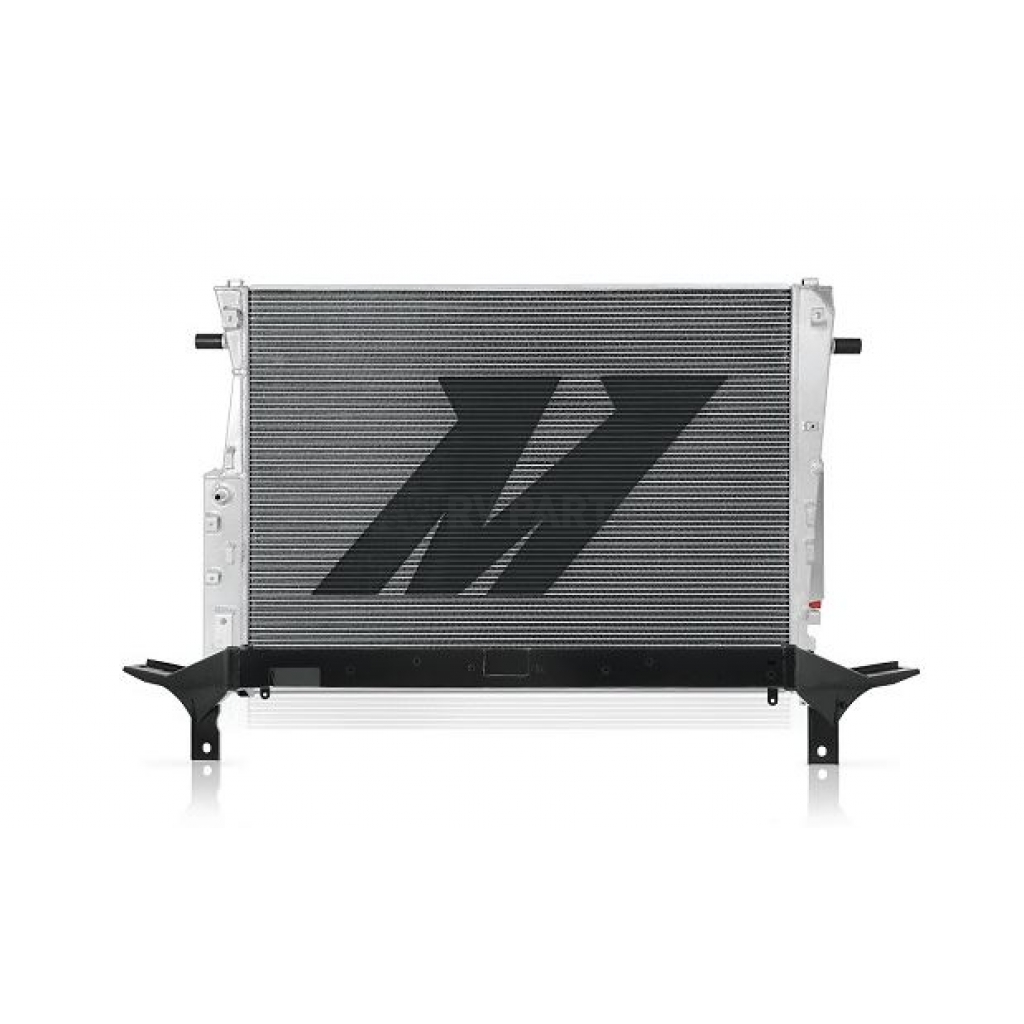

Upper Support Bar Provides Improved Rigidity To Minimize Front End Flex
Aluminum Radiator Incorporates Internally Strutted Tubes In The Top And Bottom 8 Rows For Increased Strength Against High Pressure And Temperature
Coolant Hoses Are Constructed From Five Layers Of Heat-Resistant Fibers And Silicone And Come Pre-Assembled With CNC-Machined Couplers
High-Temp And Low-Temp Thermostats Allow You To Tailor The Cooling System For Cold Or Hot Environments
1.1 Bar (16 PSI) Overflow Reservoir Cap Raises The Boiling Point Of Engine Coolant To Provide A Safer And More Efficient Cooling System
Direct Fit For 2008 To 2010 Ford 6.4 Liter Power Stroke
Limited Lifetime Warranty

Specifications of Mishimoto Radiator MMBF2D002
Core Depth (IN)	2.76 Inch
Core Height (IN)	37.01 Inch
Core Length (IN)	27.8 Inch
Core Material	Aluminum
Core Rows	Dual
Flow Direction	Crossflow
Includes Fittings	Yes
Includes Mounting Hardware	Yes
With Radiator Cap	Yes
