Mishimoto Radiator And Cooling Fan Assembly MMCPKGCK63

Brand: Mishimoto
0 reviews
  • Have a product question? Ask us
  • Part Number: MMCPKG-CK-63
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 06
Retail: $762.29
Price: $725.99
You Save: $36.30
Core Depth (IN)
2 Inch
Core Height (IN)
17.4 Inch
Core Length (IN)
22.8 Inch
Flow Direction
Down Flow
Inlet Size (IN)
1-3/4 Inch
Number Of Rows
3
Outlet Size (IN)
1-3/4 Inch
Overall Depth (IN)
4-1/2 Inch
Overall Height (IN)
23 Inch
Overall Length (IN)
25.2 Inch
Radiator Color
Silver
Share this page

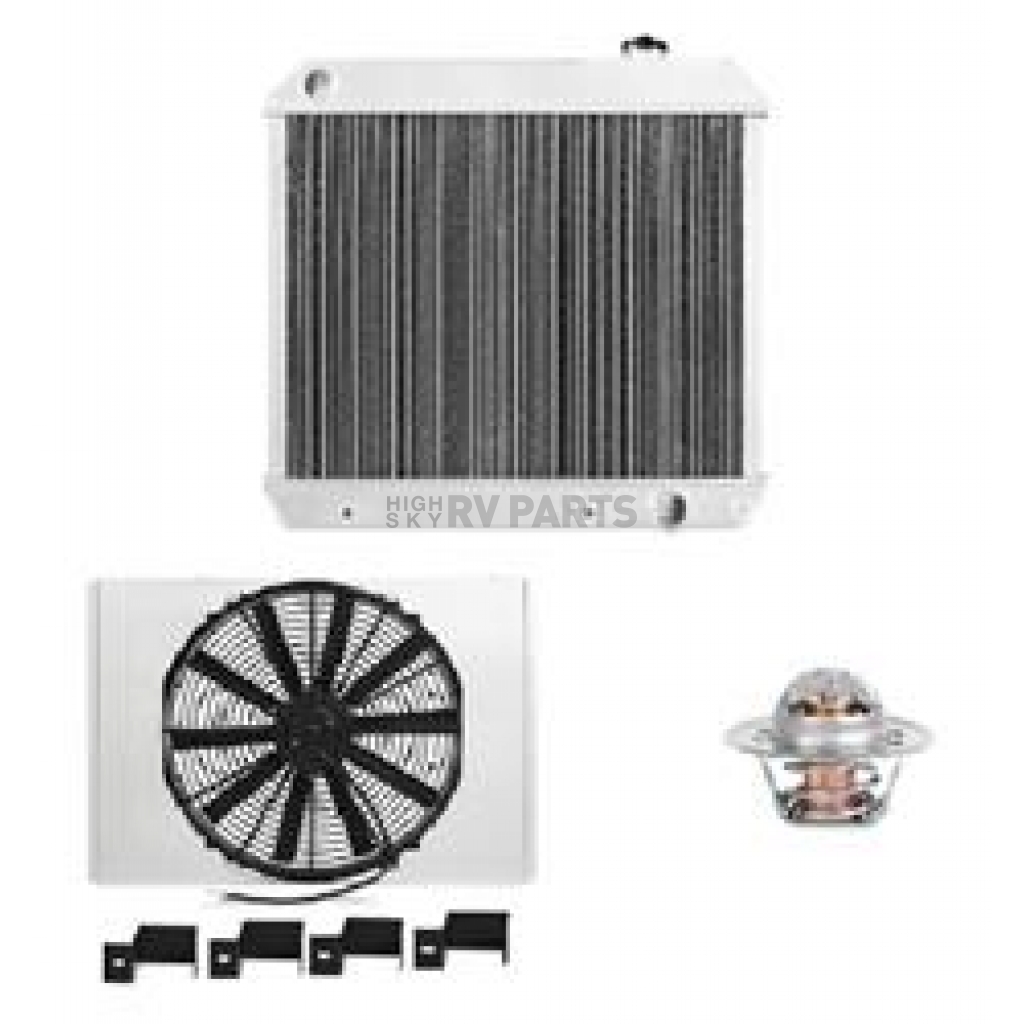

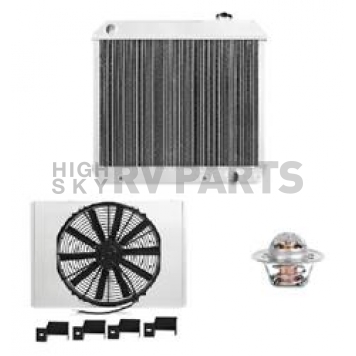

Mishimoto Radiator And Cooling Fan Assembly

Radiator And Cooling Fan Assembly; 25.2 Inch Length x 23 Inch Height x 4-1/2 Inch Depth Overall Dimension; 22.8 Inch Length x 17.4 Inch Height x 2 Inch Depth Core Dimension; Three Core Rows; Downflow; Aluminum Radiator; 1-3/4 Inch Inlet X 1-3/4 Inch Outlet; With Transmission Cooler; Single Electric 10 Blade Fan Up to 1850 CFM (Cubic Feet Per Minute); Thermostatic Control; With Radiator Filler Neck

MPN: MMCPKGCK63

Mishimoto’s C/K Truck Cooling Package combines the best Mishimoto products into one, easy to order package. The combination of Mishimoto’s radiator, fan shroud, and thermostat create a high performance cooling system for your classic vehicle that will never let you down. Whether your C/K Truck is used as a weekend cruiser or a drag strip monster, Mishimoto’s classic cooling package will provide the ultimate coolant system upgrade.Mishimoto provides free replacement for accidental damages, basically if you are in an accident and your mishimoto part is damaged, they will replace it free of charge when you provide pictures and a police report.
Flow Direction: Down Flow
Overall Length (IN): 25.2 Inch
Overall Height (IN): 23 Inch
Overall Depth (IN): 4-1/2 Inch
Number Of Rows: 3
Core Length (IN): 22.8 Inch
Core Height (IN): 17.4 Inch
Core Depth (IN): 2 Inch
Inlet Size (IN): 1-3/4 Inch
Outlet Size (IN): 1-3/4 Inch
Radiator Color: Silver
Radiator Material: Aluminum
With Transmission Cooler: Yes

Please refer the Technical Bulletins attached to the Product Manual tab

Features

  • All-aluminum Fan Shroud And Radiator Construction Increases Heat And Pressure Tolerance
  • 3-row Brazed Aluminum Radiator Core
  • Billet Aluminum Radiator Fill Neck
  • Fan Shroud Replaces Failure-prone Stock Mechanical Fan
  • Thermostat Opens At Lower Temperature (180 Degree Fahrenheit) Than Standard Thermostats, Allowing Coolant To Flow Through The Engine Sooner, Reducing Engine Temperatures
  • Thermostat Is Digitally Calibrated For Precise, Consistent Operation
  • Free Replacement For Accidental Damages
  • Limited Lifetime Warranty
Specifications of Mishimoto Radiator And Cooling Fan Assembly MMCPKGCK63
Core Depth (IN) 2 Inch
Core Height (IN) 17.4 Inch
Core Length (IN) 22.8 Inch
Flow Direction Down Flow
Inlet Size (IN) 1-3/4 Inch
Number Of Rows 3
Outlet Size (IN) 1-3/4 Inch
Overall Depth (IN) 4-1/2 Inch
Overall Height (IN) 23 Inch
Overall Length (IN) 25.2 Inch
Radiator Color Silver
Radiator Material Aluminum
With Transmission Cooler Yes

1963 Chevrolet C10 Pickup
1964 Chevrolet C10 Pickup
1965 Chevrolet C10 Pickup
1966 Chevrolet C10 Pickup

1963 Chevrolet C20 Pickup
1964 Chevrolet C20 Pickup
1965 Chevrolet C20 Pickup
1966 Chevrolet C20 Pickup

1963 Chevrolet K10 Pickup
1964 Chevrolet K10 Pickup
1965 Chevrolet K10 Pickup
1966 Chevrolet K10 Pickup

1963 Chevrolet K20 Pickup
1964 Chevrolet K20 Pickup
1965 Chevrolet K20 Pickup
1966 Chevrolet K20 Pickup

1961 Pontiac Bonneville
1962 Pontiac Bonneville
1963 Pontiac Bonneville
1964 Pontiac Bonneville

1961 Pontiac Catalina
1962 Pontiac Catalina
1963 Pontiac Catalina
1964 Pontiac Catalina

1962 Pontiac Grand Prix
1963 Pontiac Grand Prix
1964 Pontiac Grand Prix
1965 Pontiac Grand Prix
1966 Pontiac Grand Prix

1961 Pontiac Star Chief
1962 Pontiac Star Chief
1963 Pontiac Star Chief
1964 Pontiac Star Chief
