Mishimoto Radiator And Cooling Fan Assembly MMCPKGCHE6

Brand: Mishimoto
0 reviews
  • Have a product question? Ask us
  • Part Number: MMCPKG-CHE-68
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 06
Retail: $811.64
Price: $772.99
You Save: $38.65
Core Depth (IN)
2.2 Inch
Core Height (IN)
28.2 Inch
Core Length (IN)
16.9 Inch
Flow Direction
Cross Flow
Inlet Hose Location
Upper driver side
Inlet Size (IN)
1-1/2 Inch
Number Of Rows
3
Outlet Hose Location
Lower passenger side
Outlet Size (IN)
1.6 Inch
Overall Depth (IN)
4.6 Inch
Overall Height (IN)
33.7 Inch
Share this page

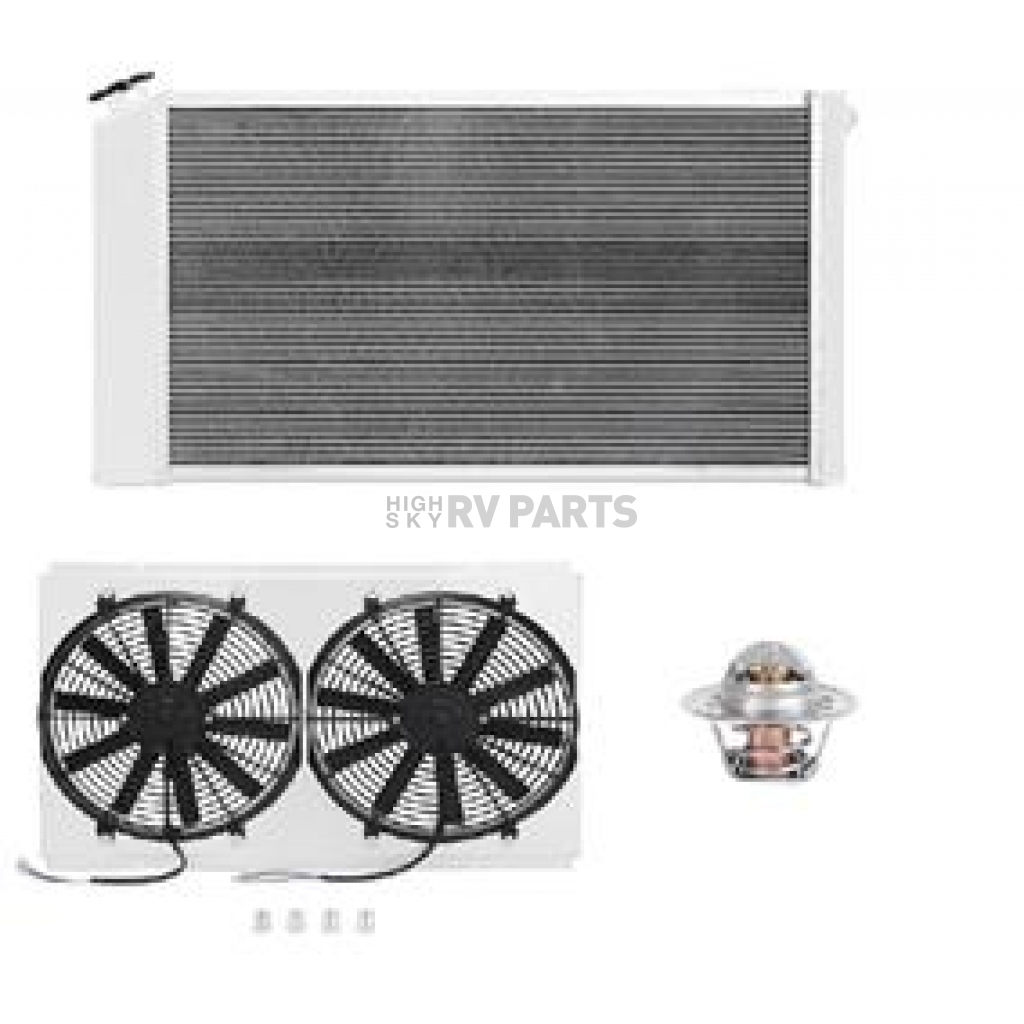

Mishimoto Radiator And Cooling Fan Assembly

Radiator And Cooling Fan Assembly; 18.9 Inch Length x 33.7 Inch Height x 4.6 Inch Depth Overall Dimension; 16.9 Inch Length x 28.2 Inch Height x 2.2 Inch Depth Core Dimension; Three Core Rows; Crossflow; Aluminum Radiator; 1-1/2 Inch Inlet X 1.6 Inch Outlet; With Transmission Cooler; Dual Electric 10 Blade Fan Up to 2600 CFM (Cubic Feet Per Minute); Thermostatic Control; With Radiator Filler Neck

MPN: MMCPKGCHE6

Mishimoto’s C/K Truck Cooling Package combines the best Mishimoto products into one. The combination of Mishimoto’s radiator, fan shroud, and thermostat create a high performance cooling system for your classic vehicle that will never let you down. Whether your C/K Truck is used as a weekend cruiser or a drag strip monster, Mishimoto’s classic cooling package will provide the ultimate coolant system upgrade.Mishimoto provides free replacement for accidental damages, basically if you are in an accident and your mishimoto part is damaged, they will replace it free of charge when you provide pictures and a police report.
Flow Direction: Cross Flow
Overall Length (IN): 18.9 Inch
Overall Height (IN): 33.7 Inch
Overall Depth (IN): 4.6 Inch
Number Of Rows: 3
Core Length (IN): 16.9 Inch
Core Height (IN): 28.2 Inch
Core Depth (IN): 2.2 Inch
Inlet Hose Location: Upper driver side
Inlet Size (IN): 1-1/2 Inch
Outlet Hose Location: Lower passenger side
Outlet Size (IN): 1.6 Inch
Radiator Finish: Natural
Radiator Color: Silver
Radiator Material: Aluminum
With Transmission Cooler: Yes
With Engine Oil Cooler: No

Please refer the Technical Bulletins attached to the Product Manual tab

Features

  • All-aluminum Fan Shroud And Radiator Construction Increases Heat And Pressure Tolerance
  • 3-row Brazed Aluminum Radiator Core
  • Billet Aluminum Radiator Fill Neck
  • Fan Shroud Replaces Failure-prone Stock Mechanical Fan
  • Thermostat Opens At Lower Temperature (180 Degree Fahrenheit) Than Standard Thermostats, Allowing Coolant To Flow Through The Engine Sooner, Reducing Engine Temperatures
  • Thermostat Is Digitally Calibrated For Precise, Consistent Operation
  • Free Replacement For Accidental Damages
  • Limited Lifetime Warranty
Specifications of Mishimoto Radiator And Cooling Fan Assembly MMCPKGCHE6
Core Depth (IN) 2.2 Inch
Core Height (IN) 28.2 Inch
Core Length (IN) 16.9 Inch
Flow Direction Cross Flow
Inlet Hose Location Upper driver side
Inlet Size (IN) 1-1/2 Inch
Number Of Rows 3
Outlet Hose Location Lower passenger side
Outlet Size (IN) 1.6 Inch
Overall Depth (IN) 4.6 Inch
Overall Height (IN) 33.7 Inch
Overall Length (IN) 18.9 Inch
Radiator Color Silver
Radiator Finish Natural
Radiator Material Aluminum
With Engine Oil Cooler No
With Transmission Cooler Yes

1981 Chevrolet C10
1982 Chevrolet C10
1983 Chevrolet C10
1984 Chevrolet C10
1985 Chevrolet C10
1986 Chevrolet C10

1981 Chevrolet C10 Suburban
1982 Chevrolet C10 Suburban
1983 Chevrolet C10 Suburban
1984 Chevrolet C10 Suburban
1985 Chevrolet C10 Suburban
1986 Chevrolet C10 Suburban

1981 Chevrolet C20
1982 Chevrolet C20
1983 Chevrolet C20
1984 Chevrolet C20
1985 Chevrolet C20
1986 Chevrolet C20

1981 Chevrolet C20 Suburban
1982 Chevrolet C20 Suburban
1983 Chevrolet C20 Suburban
1984 Chevrolet C20 Suburban
1985 Chevrolet C20 Suburban
1986 Chevrolet C20 Suburban

1981 Chevrolet C30
1982 Chevrolet C30
1983 Chevrolet C30
1984 Chevrolet C30
1985 Chevrolet C30
1986 Chevrolet C30

1968 Chevrolet Chevelle

1970 Chevrolet Chevelle
1971 Chevrolet Chevelle
1972 Chevrolet Chevelle

1975 Chevrolet El Camino
1976 Chevrolet El Camino
1977 Chevrolet El Camino

1975 Chevrolet Monte Carlo
1976 Chevrolet Monte Carlo
1977 Chevrolet Monte Carlo
