Mishimoto Radiator And Cooling Fan Assembly MCPKGMUS67

Brand: Mishimoto

0 reviews

Have a product question? Ask us
Part Number: MMCPKG-MUS-67
Part Location: U.S.
Availability: *Special Order
Delivery: Up to 2 Weeks
If purchased before 12:00 EDT - estimated delivery by July 06

Retail: $874.64

Price: $832.99

You Save: $41.65

Core Depth (IN)

2.45 Inch

Core Height (IN)

16.16 Inch

Core Length (IN)

19.6 Inch

Flow Direction

Down Flow

Inlet Size (IN)

1-1/2 Inch

Number Of Rows

Outlet Size (IN)

1-3/4 Inch

Overall Depth (IN)

5.4 Inch

Overall Height (IN)

21 Inch

Overall Length (IN)

22-1/2 Inch

Radiator Color

Silver

Share this page

Mishimoto Radiator And Cooling Fan Assembly

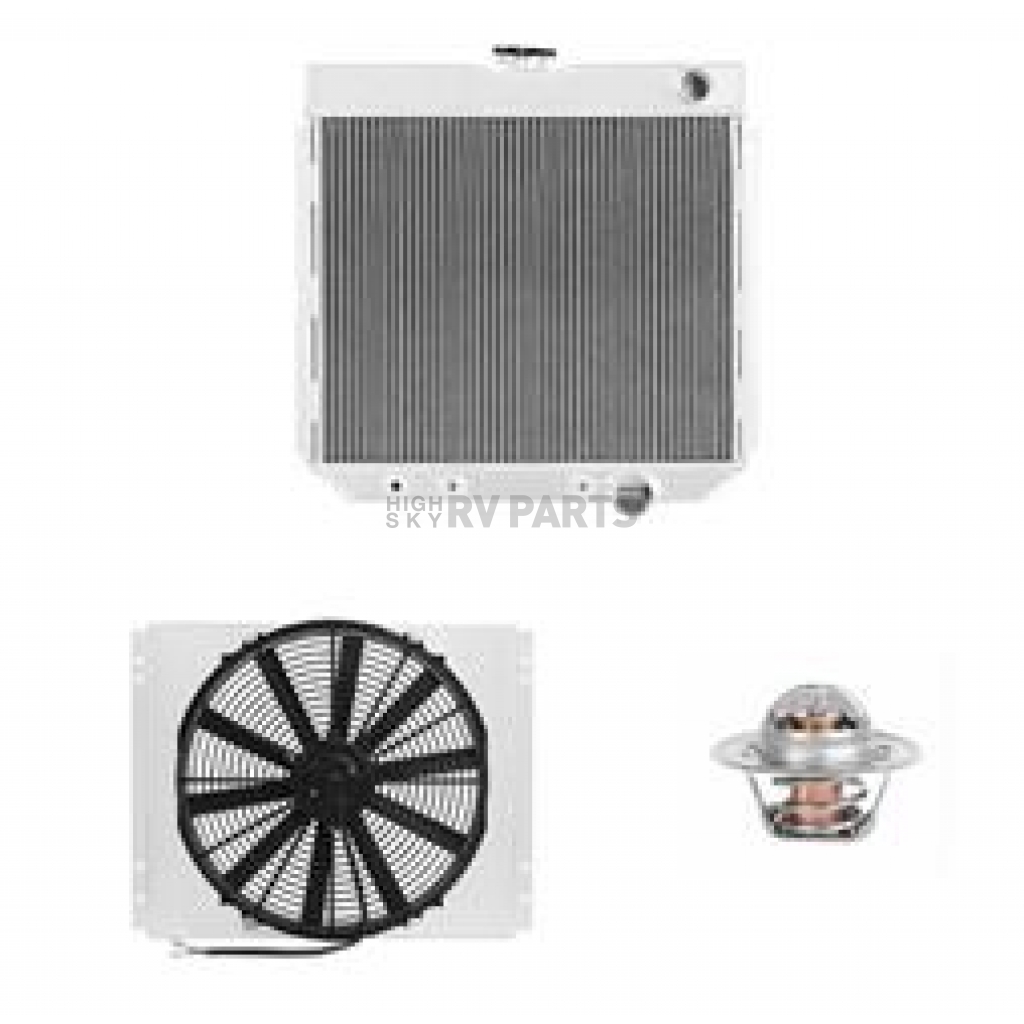

Radiator And Cooling Fan Assembly; 22-1/2 Inch Length x 21 Inch Height x 5.4 Inch Depth Overall Dimension; 19.6 Length x 16.16 Inch Height x 2.45 Inch Depth Core Dimension; Three Core Rows; Downflow; Aluminum Radiator; 1-1/2 Inch Inlet X 1-3/4 Inch Outlet; With Transmission Cooler; Single Electric 10 Blade Fan Up to 1850 CFM (Cubic Feet Per Minute); Thermostatic Control; With Radiator Filler Neck

MPN: MCPKGMUS67

Mishimoto’s Ford Mustang Cooling Package combines the best Mishimoto products into one. The combination of Mishimoto’s radiator, fan shroud, and thermostat create a high performance cooling system for your classic vehicle that will never let you down. Whether your Mustang is used as a weekend cruiser or a drag strip monster, Mishimoto’s classic cooling package will provide the ultimate coolant system upgrade.Mishimoto provides free replacement for accidental damages, basically if you are in an accident and your mishimoto part is damaged, they will replace it free of charge when you provide pictures and a police report.

Flow Direction: Down Flow

Overall Length (IN): 22-1/2 Inch

Overall Height (IN): 21 Inch

Overall Depth (IN): 5.4 Inch

Number Of Rows: 3

Core Length (IN): 19.6 Inch

Core Height (IN): 16.16 Inch

Core Depth (IN): 2.45 Inch

Inlet Size (IN): 1-1/2 Inch

Outlet Size (IN): 1-3/4 Inch

Radiator Color: Silver

Radiator Material: Aluminum

With Transmission Cooler: Yes

Please refer the Technical Bulletins attached to the Product Manual tab

Features

All-aluminum Fan Shroud And Radiator Construction Increases Heat And Pressure Tolerance
3-row Brazed Aluminum Radiator Core
Billet Aluminum Radiator Fill Neck
Fan Shroud Replaces Failure-prone Stock Mechanical Fan
Thermostat Opens At Lower Temperature (180 Degree Fahrenheit) Than Standard Thermostats, Allowing Coolant To Flow Through The Engine Sooner, Reducing Engine Temperatures
Thermostat Is Digitally Calibrated For Precise, Consistent Operation
Free Replacement For Accidental Damages
Limited Lifetime Warranty

Specifications of Mishimoto Radiator And Cooling Fan Assembly MCPKGMUS67
Core Depth (IN)	2.45 Inch
Core Height (IN)	16.16 Inch
Core Length (IN)	19.6 Inch
Flow Direction	Down Flow
Inlet Size (IN)	1-1/2 Inch
Number Of Rows	3
Outlet Size (IN)	1-3/4 Inch
Overall Depth (IN)	5.4 Inch
Overall Height (IN)	21 Inch
Overall Length (IN)	22-1/2 Inch
Radiator Color	Silver
Radiator Material	Aluminum
With Transmission Cooler	Yes
