Mishimoto Radiator ADWRAV887X

Brand: Mishimoto
0 reviews
  • Have a product question? Ask us
  • Part Number: MMRAD-WRAV8-87X
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 17
Retail: $522.89
Price: $497.99
You Save: $24.90
Color
Silver
Core Depth (IN)
2 Inch
Core Height (IN)
17-1/2 Inch
Core Length (IN)
18.2 Inch
Core Material
Aluminum
Core Rows
Three
Finish
Polished
Flow Direction
Cross Flow
Includes Fittings
Yes
Includes Mounting Hardware
Yes
Inlet Hose Location
Top Left
Share this page

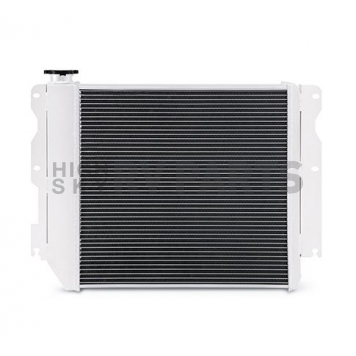

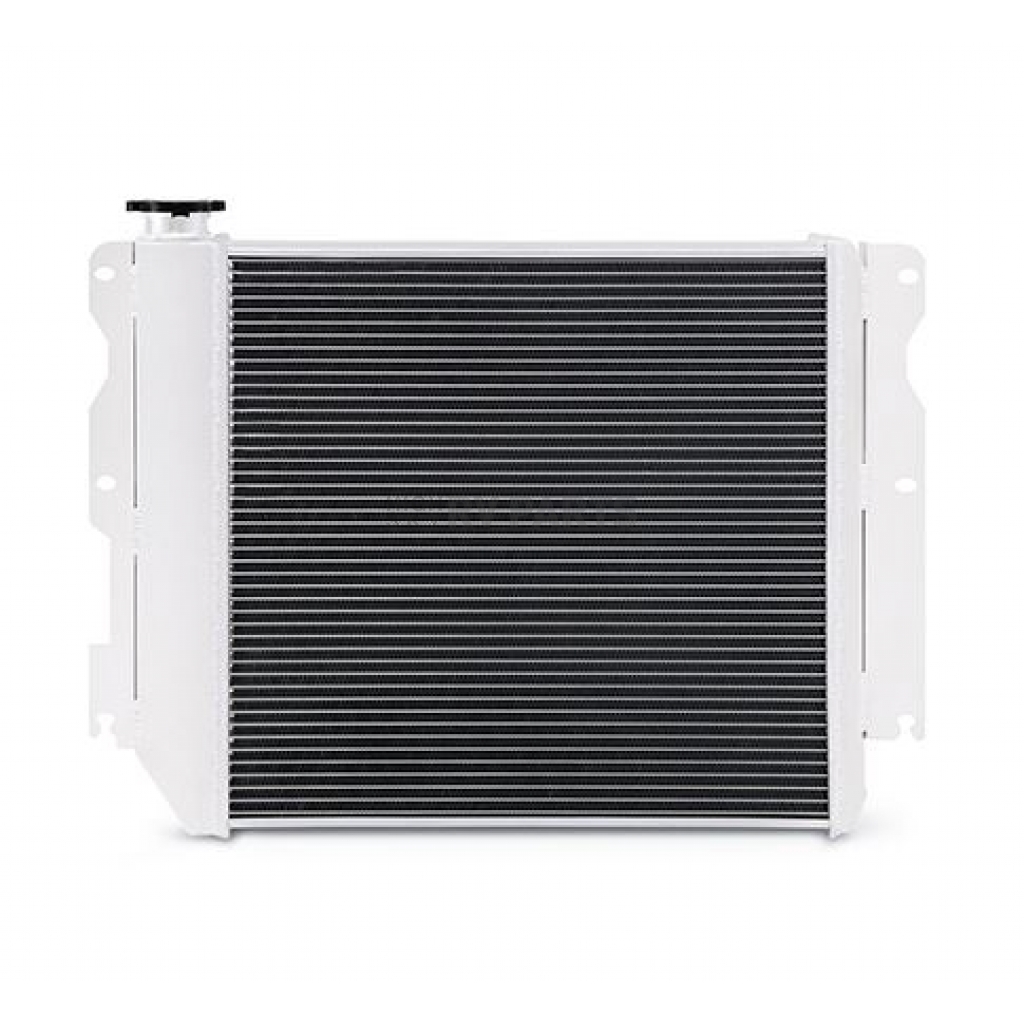

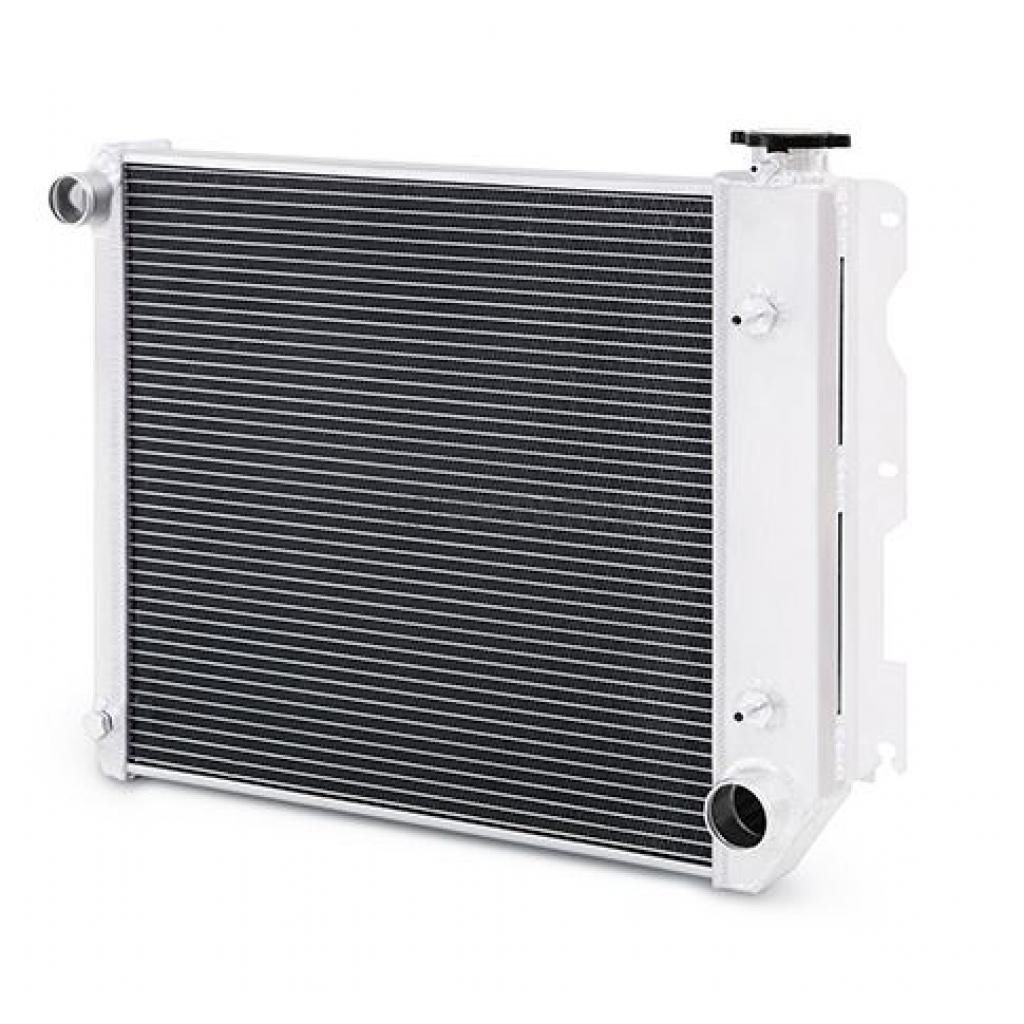

Mishimoto Radiator

Radiator; 25-1/2 Inch Length x 17.2 Inch Height x 3.9 Inch Depth Overall Dimension; 18.2 Inch Length x 17-1/2 Inch Height x 2 Inch Depth Core Dimension; Three Core Rows; Crossflow; Aluminum Core; 1-1/2 Inch Inlet X 1.8 Inch Outlet; With Transmission Cooler; Single; With Radiator Cap/ Magnetic Drain Plug/ Filler Neck

MPN: ADWRAV887X

The Mishimoto Jeep Wrangler with a Chevy V8 Engine Swap X-Line Aluminum Radiator is manufactured using durable aircraft-quality aluminum end tanks, precision TIG-welded to an efficient brazed aluminum core. The inlet and outlets provide precise leak-free connections.Mishimoto provides free replacement for accidental damages, basically if you are in an accident and your mishimoto part is damaged, they will replace it free of charge when you provide pictures and a police report.
Flow Direction: Cross Flow
Overall Length (IN): 25-1/2 Inch
Overall Height (IN): 17.2 Inch
Overall Depth (IN): 3.9 Inch
Core Rows: Three
Core Length (IN): 18.2 Inch
Core Height (IN): 17-1/2 Inch
Core Depth (IN): 2 Inch
Core Material: Aluminum
Inlet Hose Location: Top Left
Inlet Size (IN): 1-1/2 Inch
Outlet Hose Location: Bottom Right
Outlet Size (IN): 1.8 Inch
Finish: Polished
Color: Silver
Tank Material: Aluminum
With Radiator Cap: Yes
With Transmission Cooler: Yes
With Engine Oil Cooler: No
Includes Fittings: Yes
Includes Mounting Hardware: Yes

Please refer the Technical Bulletins attached to the Product Manual tab

Features

  • All-aluminum Construction With Durable, Tig-welded End Tanks
  • Features An Internal Transmission Cooler To Provide Optimal Fluid Temperatures For Automatic Transmissions
  • 3-row Brazed Aluminum Core
  • Increased Coolant Capacity And Superior Heat Dissipation
  • Billet Aluminum Fill Neck
  • Free Replacement For Accidental Damages
  • Limited Lifetime Warranty
Specifications of Mishimoto Radiator ADWRAV887X
Color Silver
Core Depth (IN) 2 Inch
Core Height (IN) 17-1/2 Inch
Core Length (IN) 18.2 Inch
Core Material Aluminum
Core Rows Three
Finish Polished
Flow Direction Cross Flow
Includes Fittings Yes
Includes Mounting Hardware Yes
Inlet Hose Location Top Left
Inlet Size (IN) 1-1/2 Inch
Outlet Hose Location Bottom Right
Outlet Size (IN) 1.8 Inch
Overall Depth (IN) 3.9 Inch
Overall Height (IN) 17.2 Inch
Overall Length (IN) 25-1/2 Inch
Tank Material Aluminum
With Engine Oil Cooler No
With Radiator Cap Yes
With Transmission Cooler Yes

1997 Jeep Wrangler TJ
1998 Jeep Wrangler TJ
1999 Jeep Wrangler TJ
2000 Jeep Wrangler TJ
2001 Jeep Wrangler TJ
2002 Jeep Wrangler TJ
2003 Jeep Wrangler TJ
2004 Jeep Wrangler TJ

1987 Jeep Wrangler YJ
1988 Jeep Wrangler YJ
1989 Jeep Wrangler YJ
1990 Jeep Wrangler YJ
1991 Jeep Wrangler YJ
1992 Jeep Wrangler YJ
1993 Jeep Wrangler YJ
1994 Jeep Wrangler YJ
1995 Jeep Wrangler YJ
