Mishimoto Intercooler - MMINT-DMAX-06KBK
Color
Black
Construction
Bar/Plate
Core Depth (IN)
2.76 Inch
Core Height (IN)
19.84 Inch
Core Width (IN)
37.2 Inch
Inlet Size (IN)
3 Inch
Inlet/Outlet Neck Location
Offset
Material
Aluminum
Outlet Size (IN)
3 Inch
Overall Depth (IN)
9.1 Inch
Overall Height (IN)
23.4 Inch
Share this page

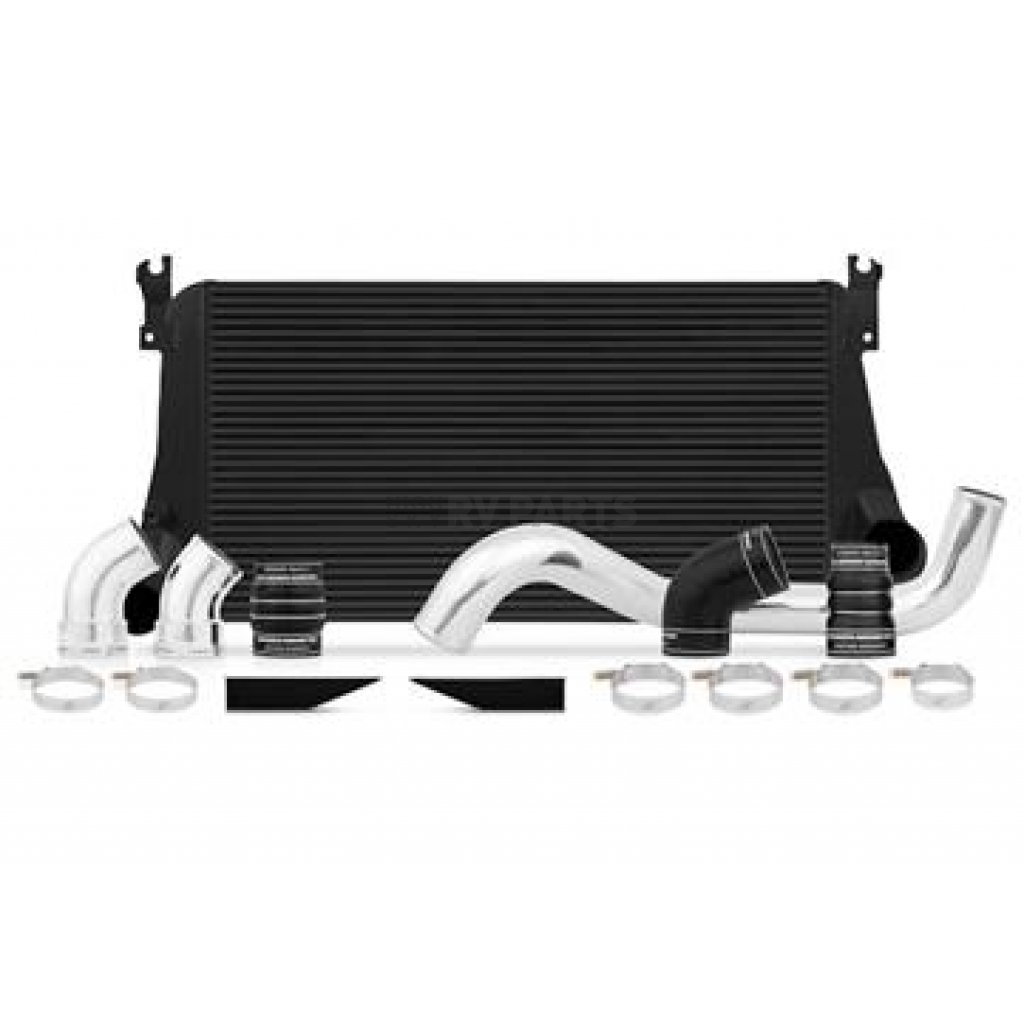

Mishimoto Intercooler
Intercooler; Air To Air; 46 Inch Width x 23.4 Inch Height x 9.1 Inch Thick Overall Dimension; 37.2 Inch Width x 19.84 Inch Height x 2.76 Inch Thick Core Dimension; 3 Inch Inlet; 3 Inch Outlet; Black; With Two Lower AC Condenser Brackets/ Two Spacers/ One Bolt And Washer/ Three Intercooler Pipes/ Three Silicone Boots/ Six T-Bolt Clamps/ Two Mishimoto M Logo Badges
MPN: TDMAX06KBK
Mishimoto is expanding their line of Duramax performance parts! Fed up with high EGTs and an intercooler setup that isn't keeping up with the demands of your Duramax? The solution is finally here with the Mishimoto 2006 to 2010 Chevrolet/GMC 6.6 Liter Duramax intercooler kit! The Mishimoto intercooler piping is the first key component; our engineers have maximized airflow by eliminating restrictive bends, allowing for a smooth and unimpeded airflow. The piping is constructed of mandrel bent aluminum polished to a flawless finish. Mishimoto DuraCore™ technology is the synthetic material that comprises the innermost layer of all Mishimoto silicone diesel boots.¾ Compared to normal silicone, DuraCore™ provides superior resistance to heat, pressure, fuel, and oil. This effectively increases the life of our boots by preventing leaks and blowouts. This package is rounded out with the Mishimoto intercooler that features cast aluminum end tanks and a bar-and-plate core, all designed to provide cool, dense air to your engine. The Mishimoto Duramax intercooler features a core volume significantly greater than the factory cooler, allowing for cooler intake temperatures, lower EGTs, and increased boost pressure tolerance. All the components in this kit are engineered to last, just like your truck. The mishimoto 6.6L Duramax intercooler kit is offered in either black or silver, and like all of our Duramax performance parts, comes with Mishimoto Lifetime Warranty.Mishimoto provides free replacement for accidental damages, basically if you are in an accident and your mishimoto part is damaged, they will replace it free of charge when you provide pictures and a police report.
Type: Air To Air
Overall Width (IN): 46 Inch
Overall Height (IN): 23.4 Inch
Overall Depth (IN): 9.1 Inch
Construction: Bar/Plate
Inlet Size (IN): 3 Inch
Outlet Size (IN): 3 Inch
Core Width (IN): 37.2 Inch
Core Height (IN): 19.84 Inch
Core Depth (IN): 2.76 Inch
Inlet/Outlet Neck Location: Offset
Color: Black
Material: Aluminum
Please refer the Technical Bulletins attached to the Product Manual tab
Features
- Features Cast Aluminum End Tanks And A Bar-and-plate Core
- Reduces Turbo Stress And Extends Life
- Mandrel-bent Aluminum Polished Pipes Eliminate Restrictive Bends
- Direct Fit
- Free Replacement For Accidental Damages
- Limited Lifetime Warranty
Specifications of Mishimoto Intercooler - MMINT-DMAX-06KBK | |
Color | Black |
Construction | Bar/Plate |
Core Depth (IN) | 2.76 Inch |
Core Height (IN) | 19.84 Inch |
Core Width (IN) | 37.2 Inch |
Inlet Size (IN) | 3 Inch |
Inlet/Outlet Neck Location | Offset |
Material | Aluminum |
Outlet Size (IN) | 3 Inch |
Overall Depth (IN) | 9.1 Inch |
Overall Height (IN) | 23.4 Inch |
Overall Width (IN) | 46 Inch |
Type | Air To Air |
2006-2010 Chevrolet Silverado 2500 HD
2006 Chevrolet Silverado 2500 HD
2007 Chevrolet Silverado 2500 HD
2008 Chevrolet Silverado 2500 HD
2009 Chevrolet Silverado 2500 HD
2010 Chevrolet Silverado 2500 HD
2007 Chevrolet Silverado 2500 HD
2008 Chevrolet Silverado 2500 HD
2009 Chevrolet Silverado 2500 HD
2010 Chevrolet Silverado 2500 HD
2007-2007 Chevrolet Silverado 2500 HD Classic
2007 Chevrolet Silverado 2500 HD Classic
2007-2010 Chevrolet Silverado 3500 HD
2007 Chevrolet Silverado 3500 HD
2008 Chevrolet Silverado 3500 HD
2009 Chevrolet Silverado 3500 HD
2010 Chevrolet Silverado 3500 HD
2008 Chevrolet Silverado 3500 HD
2009 Chevrolet Silverado 3500 HD
2010 Chevrolet Silverado 3500 HD
2006 GMC Sierra 2500 HD
2007 GMC Sierra 2500 HD
2008 GMC Sierra 2500 HD
2009 GMC Sierra 2500 HD
2010 GMC Sierra 2500 HD
2007 GMC Sierra 2500 HD
2008 GMC Sierra 2500 HD
2009 GMC Sierra 2500 HD
2010 GMC Sierra 2500 HD
2007-2007 GMC Sierra 2500 HD Classic
2007 GMC Sierra 2500 HD Classic
2007 GMC Sierra 3500 HD
2008 GMC Sierra 3500 HD
2009 GMC Sierra 3500 HD
2010 GMC Sierra 3500 HD
2008 GMC Sierra 3500 HD
2009 GMC Sierra 3500 HD
2010 GMC Sierra 3500 HD
No questions found. Be the first?
Reviews for Mishimoto Intercooler - MMINT-DMAX-06KBK(0)
There are no reviews for this product.
