Mishimoto Intercooler - MMINT-EVO-01KSL
Color
Silver
Construction
Bar/Plate
Core Depth (IN)
3-1/2 Inch
Core Height (IN)
11.65 Inch
Core Width (IN)
22 Inch
Finish
Powder Coated
Inlet Size (IN)
2-3/8 Inch
Inlet/Outlet Neck Location
Offset
Material
Aluminum
Maximum Horsepower (HP)
600 Horsepower
Outlet Size (IN)
2-3/8 Inch
Share this page
Mishimoto Intercooler

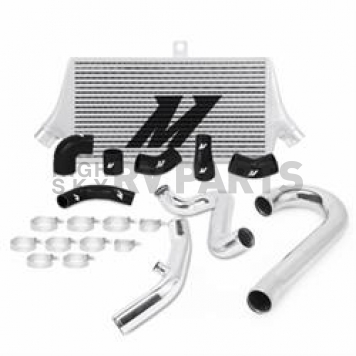

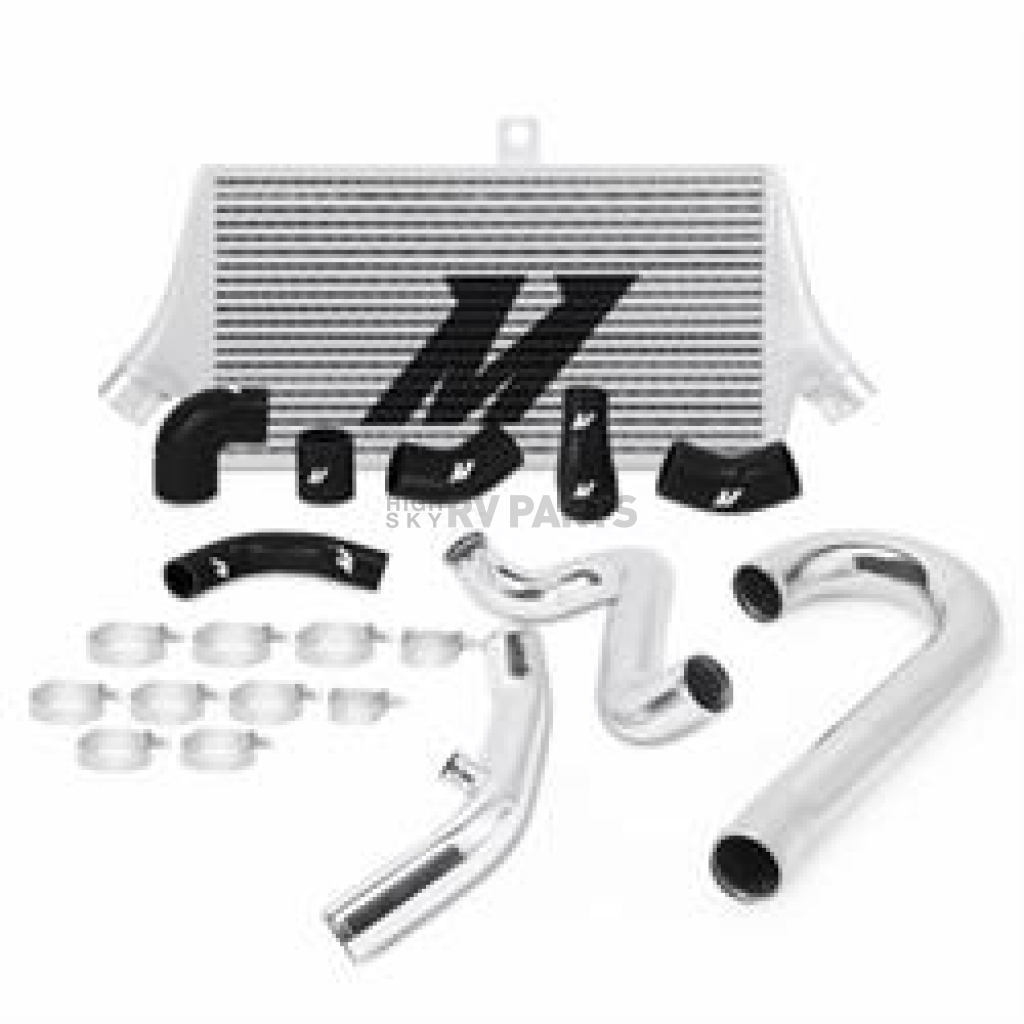

Intercooler; Air To Air; Maximum 600 Wheel Horsepower; 31-1/2 Inch Width x 14-1/2 Inch Height x 5-3/4 Inch Thick Overall Dimension; 22 Inch Width x 11.65 Inch Height x 3-1/2 Inch Thick Core Dimension; 2-3/8 Inch Inlet Inner Diameter And 2-1/2 Inch Inlet Outer Diameter; 2-3/8 Inch Outlet Inner Diameter And 2-1/2 Inch Outlet Outer Diameter; Silver; With Two Upper Intercooler Pipes/ One Lower Intercooler Pipe/ Three Upper Pipe Couplers/ Two Lower Pipe Couplers/ Ten T-bolt Clamps
MPN: NTEVO01KSL
Put an end to high AITs with the Mishimoto Mitsubishi Lancer Evolution 7/8/9 Race Intercooler! This Evo intercooler was precision engineered specifically for the Lancer Evolution and is a completely bolt-in upgrade. The intercooler utilizes a large, 3.5 Inch thick bar-and-plate core which has been designed with a strategic core composition to provide optimal reductions in intake temperatures and minimal pressure loss. Not only was this Evo intercooler designed with power and efficiency in mind, but our engineers also crafted smooth cast end tanks to promote proper air dispersion through the core, improved airflow, and exceptional durability. Air intake temperatures play a huge role in power output, tuning, and performance. Whether you are taking your Evo through a rally stage or making a pass at the strip, lower temperatures will be extremely beneficial. This intercooler is available with a Sleek Silver or Stealth Black powder-coated finish for enhanced durability and protection against road debris. As with all our products, the Mishimoto Evolution Race Intercooler includes the Mishimoto Lifetime Warranty.Mishimoto provides free replacement for accidental damages, basically if you are in an accident and your mishimoto part is damaged, they will replace it free of charge when you provide pictures and a police report.
Type: Air To Air
Maximum Horsepower (HP): 600 Horsepower
Overall Width (IN): 31-1/2 Inch
Overall Height (IN): 14-1/2 Inch
Overall Depth (IN): 5-3/4 Inch
Construction: Bar/Plate
Inlet Size (IN): 2-3/8 Inch
Outlet Size (IN): 2-3/8 Inch
Core Width (IN): 22 Inch
Core Height (IN): 11.65 Inch
Core Depth (IN): 3-1/2 Inch
Inlet/Outlet Neck Location: Offset
Finish: Powder Coated
Color: Silver
Material: Aluminum
Please refer the Technical Bulletins attached to the Product Manual tab
Features
- Large Thick Bar-and-plate Core With Strategic Core Composition Provides Optimal Cooling And Minimal Pressure Loss
- Provides Efficient Intake Temperature Reduction For Vehicles
- All-aluminum Cast End Tanks Provide Improved Airflow, Superior Air Dispersion Through The Core, And Exceptional Strength
- Available With A Sleek Silver Or Stealth Black Powder-coated Finish For Enhanced Durability And Protection Against Road Debris
- Direct Fit
- Free Replacement For Accidental Damages
- Limited Lifetime Warranty
Specifications of Mishimoto Intercooler - MMINT-EVO-01KSL | |
Color | Silver |
Construction | Bar/Plate |
Core Depth (IN) | 3-1/2 Inch |
Core Height (IN) | 11.65 Inch |
Core Width (IN) | 22 Inch |
Finish | Powder Coated |
Inlet Size (IN) | 2-3/8 Inch |
Inlet/Outlet Neck Location | Offset |
Material | Aluminum |
Maximum Horsepower (HP) | 600 Horsepower |
Outlet Size (IN) | 2-3/8 Inch |
Overall Depth (IN) | 5-3/4 Inch |
Overall Height (IN) | 14-1/2 Inch |
Overall Width (IN) | 31-1/2 Inch |
Type | Air To Air |
2003 Mitsubishi Lancer
2004 Mitsubishi Lancer
2005 Mitsubishi Lancer
2006 Mitsubishi Lancer
2004 Mitsubishi Lancer
2005 Mitsubishi Lancer
2006 Mitsubishi Lancer
