Mishimoto Intercooler - MMINT-STI-15G

Brand: Mishimoto

0 reviews

Have a product question? Ask us
Part Number: MMINT-STI-15G
Part Location: U.S.
Availability: *Special Order
Delivery: Up to 2 Weeks
If purchased before 12:00 EDT - estimated delivery by July 18

Retail: $1,772.39

Price: $1,687.99

You Save: $84.40

Color

Construction

Bar And Plate

Core Depth (IN)

3-1/2 Inch

Core Height (IN)

8.05 Inch

Core Width (IN)

28 Inch

Finish

Polished Pipe

Inlet Size (IN)

2-3/4 Inch

Material

Aluminum

Maximum Horsepower (HP)

600 Horsepower

Outlet Size (IN)

2-3/4 Inch

Overall Depth (IN)

5.4 Inch

Share this page

Mishimoto Intercooler

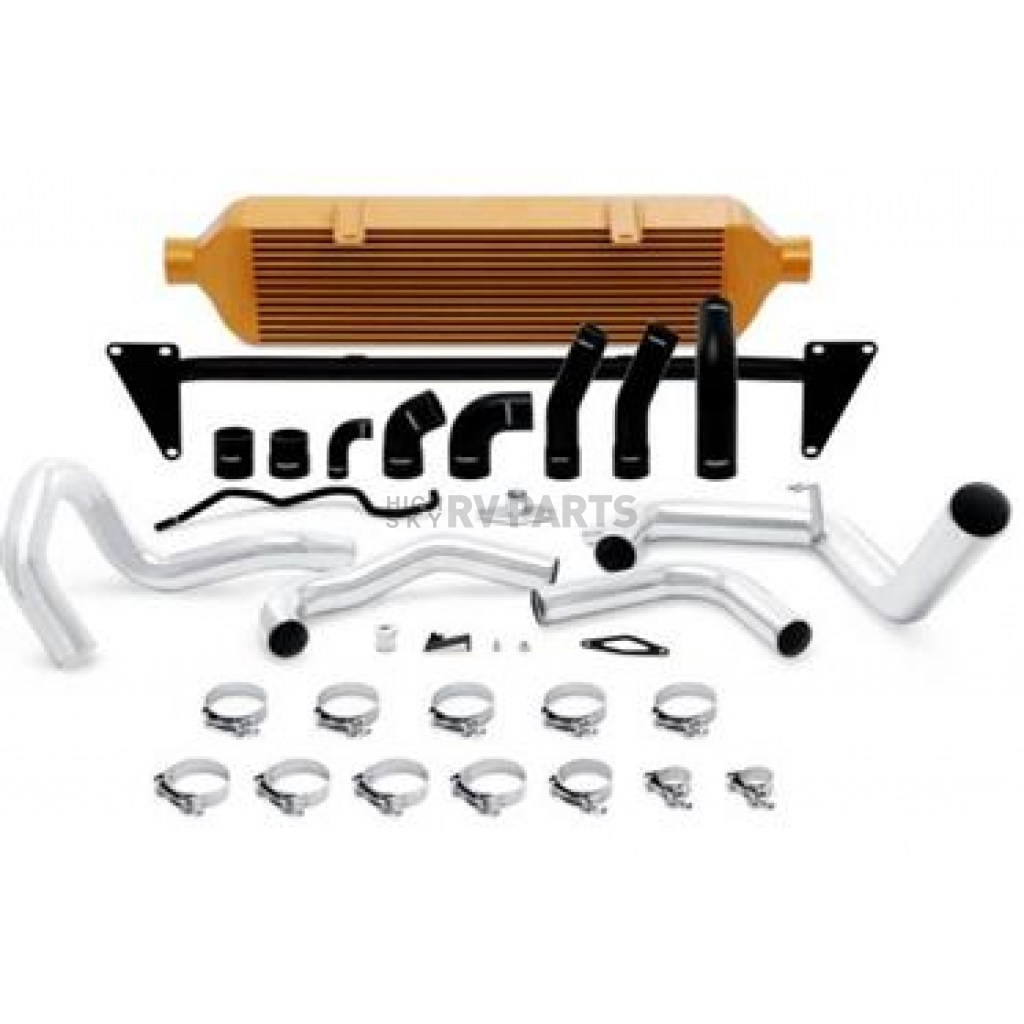

Intercooler; Air To Air; Maximum 600 Wheel Horsepower; 37.7 Inch Width x 8.6 Inch Height x 5.4 Inch Thick Overall Dimension; 28 Inch Width x 8.05 Inch Height x 3-1/2 Inch Thick Core Dimension; 2-3/4 Inch Inlet; 2-3/4 Inch Outlet; Bar-and-Plate Intercooler; With One Steel Crash Bar/ Four Intercooler Pipes/ One BPV Flange Adapter/ Two Turbo To Hot Pipe Couplers/ One Silicone Transition Hose/ One Transition Coupler/ One Straight Coupler/ Two Intercooler to Pipe Hoses/ One BPV Recirculation Hose/ Fourteen T-Bolt Clamps/ One Bypass Valve Gasket/ Two Thermal Wrap/ One Sound Symposer Plug

MPN: MINTSTI15G

Designed for applications that demand the greatest airflow and cooling capabilities, the Mishimoto STI Front-Mount Intercooler Kit will provide your WRX STI with the ability to make the most Horsepower and Torque possible. This STI intercooler kit was designed with the same intercooler as our WRX front-mount intercooler kit. Smooth cast end tanks make for uninterrupted airflow through the cooler. This results in an intercooler that provides the best airflow and cooling capabilities without excessive pressure drops. Your fully built rally car will have no problem keeping a dense, cold, intake charge with this highly engineered STI intercooler kit. The Mishimoto STI front-mount intercooler kit features mandrel-bent aluminum piping for optimum airflow. The STI front-mount intercooler pipe routing maintains your factory fog lights, so you can see on those dark, foggy rally stages. No cutting of the front bumper or other modifications are required with the application-specific crash bar that positions the intercooler perfectly in the lower grill of the front bumper where it will receive optimal airflow. And who doesn’t want an upgraded turbo? Did I hear a blow-off valve on your car? The STI front-mount kit has that covered too. The piping works with the stock bypass valve or aftermarket blow-off valves.Mishimoto provides free replacement for accidental damages, basically if you are in an accident and your mishimoto part is damaged, they will replace it free of charge when you provide pictures and a police report.

Type: Air To Air

Maximum Horsepower (HP): 600 Horsepower

Overall Width (IN): 37.7 Inch

Overall Height (IN): 8.6 Inch

Overall Depth (IN): 5.4 Inch

Construction: Bar And Plate

Inlet Size (IN): 2-3/4 Inch

Outlet Size (IN): 2-3/4 Inch

Core Width (IN): 28 Inch

Core Height (IN): 8.05 Inch

Core Depth (IN): 3-1/2 Inch

Finish: Polished Pipe

Color: Gold

Material: Aluminum

Please refer the Technical Bulletins attached to the Product Manual tab

Features

Direct Fit
Optimized Design For Maximum Flow
No Modification To Front Bumper And Retains Stock Fog Lights
Optimal Core Design For Maximum Cooling Efficiency With Minimal Pressure Drop
Works With Stock Bypass Valve Or Aftermarket Blow-off Valve
Free Replacement For Accidental Damages
Limited Lifetime Warranty

Specifications of Mishimoto Intercooler - MMINT-STI-15G
Color	Gold
Construction	Bar And Plate
Core Depth (IN)	3-1/2 Inch
Core Height (IN)	8.05 Inch
Core Width (IN)	28 Inch
Finish	Polished Pipe
Inlet Size (IN)	2-3/4 Inch
Material	Aluminum
Maximum Horsepower (HP)	600 Horsepower
Outlet Size (IN)	2-3/4 Inch
Overall Depth (IN)	5.4 Inch
Overall Height (IN)	8.6 Inch
Overall Width (IN)	37.7 Inch
Type	Air To Air
