Mishimoto Catch Can - MMBCC-MUS4-15PBE

Brand: Mishimoto

0 reviews

Have a product question? Ask us
Part Number: MMBCC-MUS4-15PBE
Part Location: U.S.
Availability: *Special Order
Delivery: Up to 2 Weeks
If purchased before 12:00 EDT - estimated delivery by July 16

Retail: $282.44

Price: $268.99

You Save: $13.45

Capacity

2 Ounce

Color

Black

Diameter (IN)

2-1/2 Inch

Function

Storing Excess Oil

Height (IN)

3-4/5 Inch

Inlet Attachment

Female Threads

Inlet Quantity

Inlet Size (IN)

3/8 Inch NPT

Material

Aluminum

Outlet Attachment

Female Threads

Outlet Quantity

Share this page

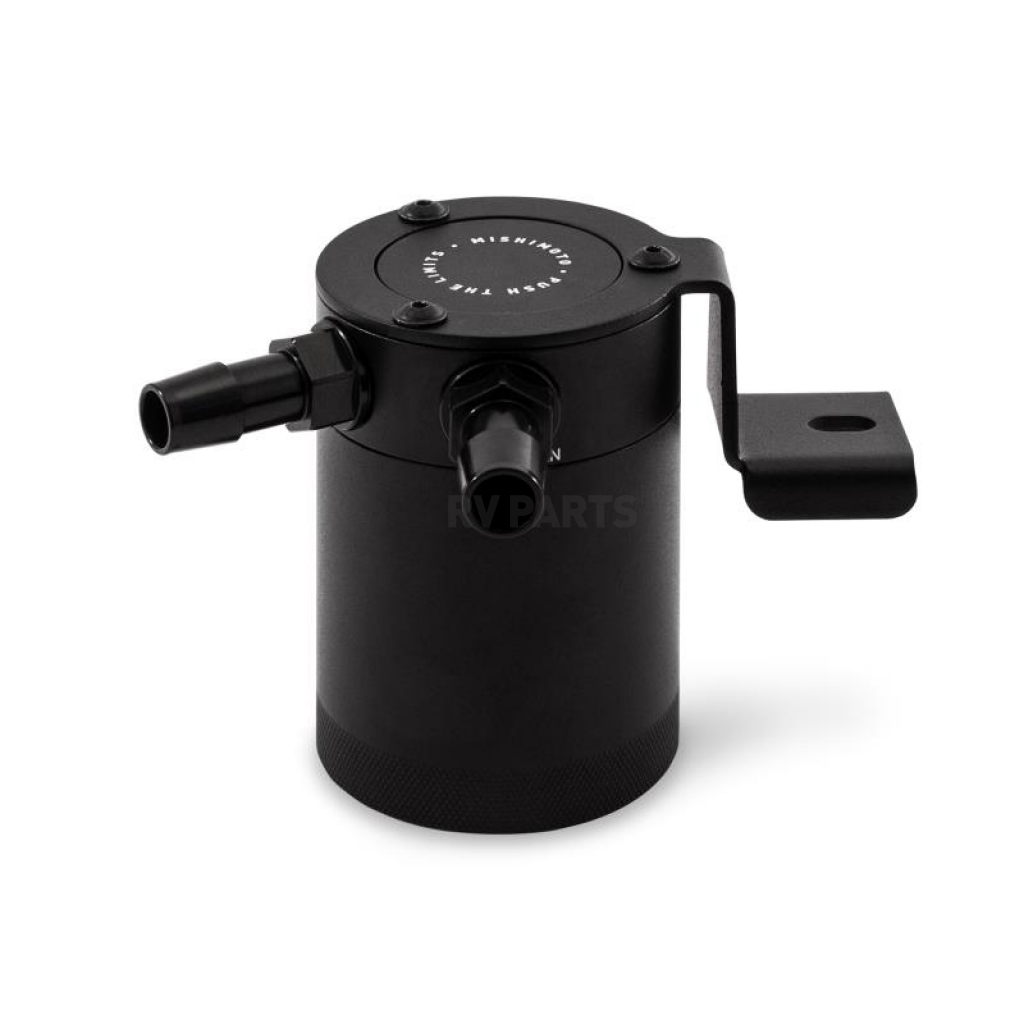

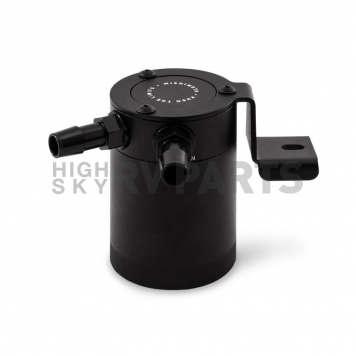

Mishimoto Catch Can

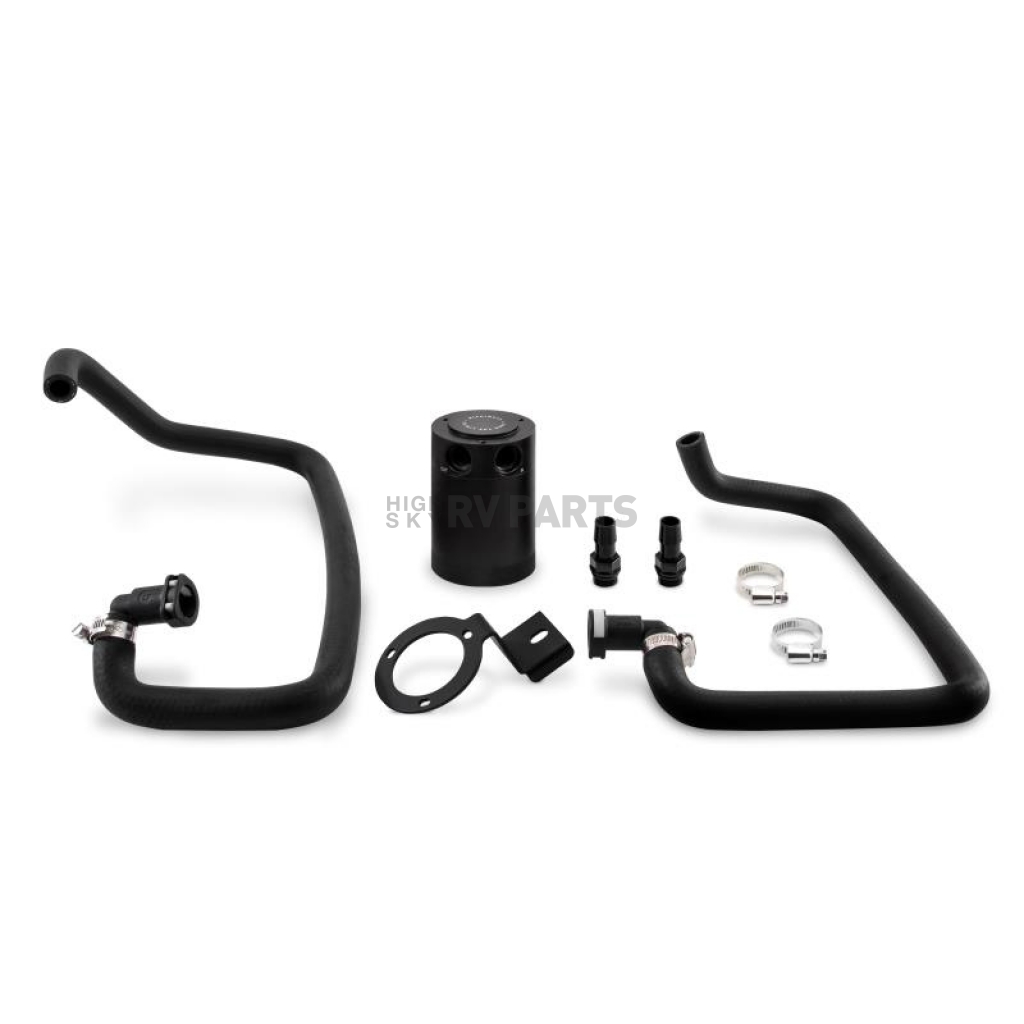

Catch Can; For Storing Excess Oil; 2 Fluid Ounce Capacity; Aluminum; With One Application Specific Mounting Bracket/ Two Direct Fit Silicone Hoses With Quick Disconnect Fittings/ Two Plastic Barbed Fittings/ Two Worm Gear Clamps/ Air Diverter/ Internal Baffle And Rod/ 3/8 Inch NPT Plug/ Large O-Ring/ Mounting Hardware

MPN: CMUS415PBE

The Mishimoto Mustang EcoBoost catch can kit uses the patent pending Mishimoto 2-Port Compact Baffled Oil Catch Can equipped with a 50 Micron bronze filter and internal baffle to better separate the oil from the PCV vapors. Our catch cans are different from most air-oil-separator (AOS) systems on a few levels. First, our catch cans are not heated. This means that all of the blow-by is able to condense in the can, including low-octane oil vapors and contaminated fuel vapors. Most AOS systems also drain the blow-by back into the oil pan, while our catch cans trap the blow-by and keep it out of the engine permanently. If you’ve seen what we’ve seen in the bottom of our catch cans, you won’t want that draining back into your oil either.

Function: Storing Excess Oil

Diameter (IN): 2-1/2 Inch

Height (IN): 3-4/5 Inch

Capacity: 2 Ounce

Inlet Quantity: One

Inlet Attachment: Female Threads

Inlet Size (IN): 3/8 Inch NPT

Outlet Quantity: One

Outlet Attachment: Female Threads

Outlet Size (IN): 3/8 Inch NPT

Color: Black

Material: Aluminum

With Tubing: Yes

Features

Helps Maintain Proper Octane Levels To Reduce Potential Detonation; Helps Reduce Carbon Buildup On Intake Valves
Internal Air Diverter Increases Air Turbulence To Improve Oil Separation
Catch Can Has A 3 Ounce Capacity For Longer Serving Intervals
Defends Intake System And Essential Engine Components From Oil Blow-By
Patent Pending Billet 6061 Aluminum Can Sealed With Viton™ O-Rings

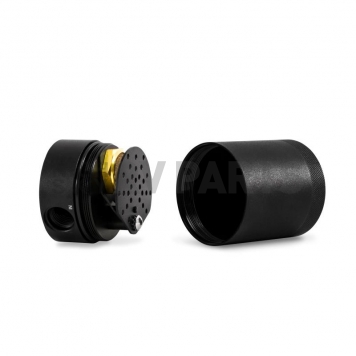

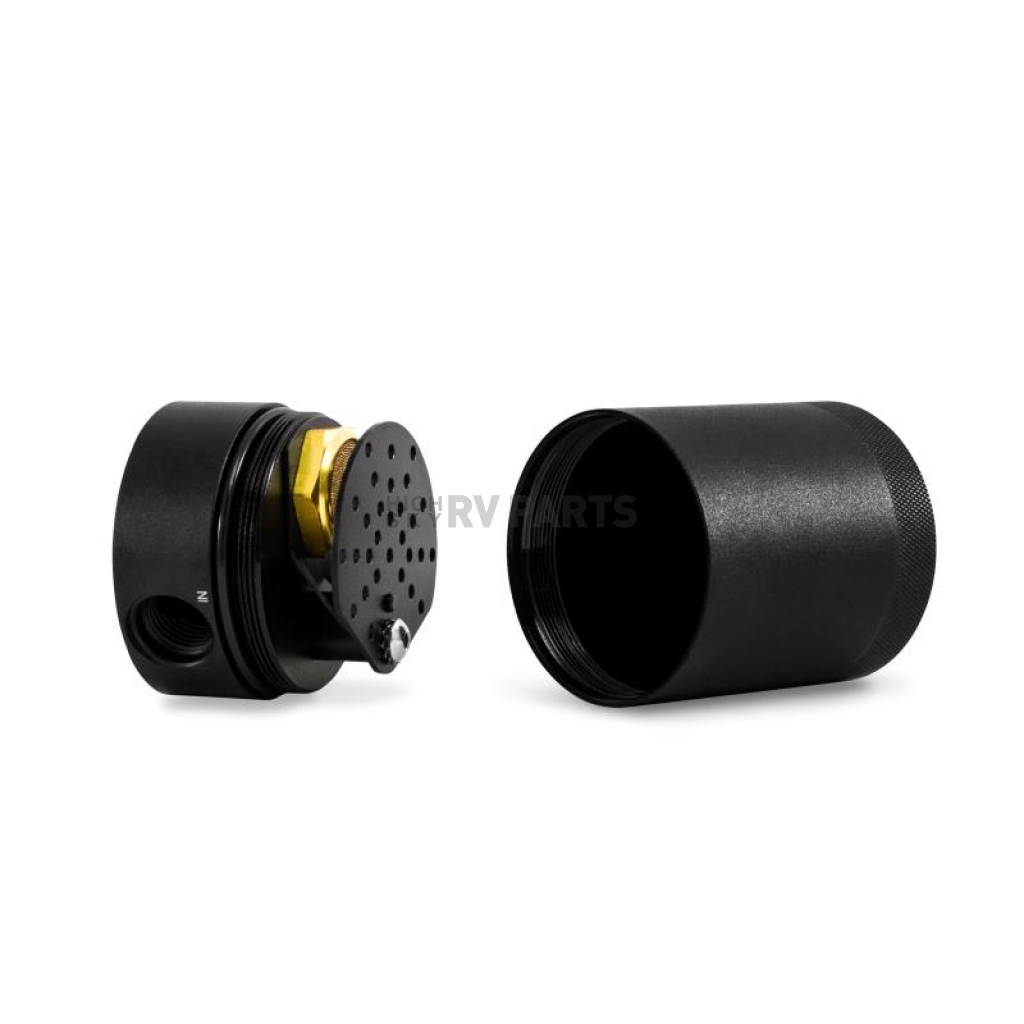

Filter And Can Are Fully Serviceable
CNC-Machined Aluminum Barbed Fittings Ensure A Sturdy Connection Between Lines And Can
Single Can Mounts In Line With The PCV System To Separate Oil From Air Using A 50 Micron Bronze Filter
Installs In Under 30 Minutes
Limited Lifetime Warranty

Specifications of Mishimoto Catch Can - MMBCC-MUS4-15PBE
Capacity	2 Ounce
Color	Black
Diameter (IN)	2-1/2 Inch
Function	Storing Excess Oil
Height (IN)	3-4/5 Inch
Inlet Attachment	Female Threads
Inlet Quantity	One
Inlet Size (IN)	3/8 Inch NPT
Material	Aluminum
Outlet Attachment	Female Threads
Outlet Quantity	One
Outlet Size (IN)	3/8 Inch NPT
With Tubing	Yes
