Mishimoto Catch Can - MMBCC-CSS-10APBE

Brand: Mishimoto

0 reviews

Have a product question? Ask us
Part Number: MMBCC-CSS-10APBE
Part Location: U.S.
Availability: *Special Order
Delivery: Up to 2 Weeks
If purchased before 12:00 EDT - estimated delivery by July 16

Retail: $270.89

Price: $257.99

You Save: $12.90

Capacity

3 Ounce

Color

Black

Finish

Anodized

Function

Storing Excess Oil

Inlet Attachment

Hose Barb

Inlet Quantity

Inlet Size (IN)

1/2 Inch

Material

Aluminum

Outlet Attachment

Hose Barb

Outlet Quantity

Outlet Size (IN)

1/2 Inch

Share this page

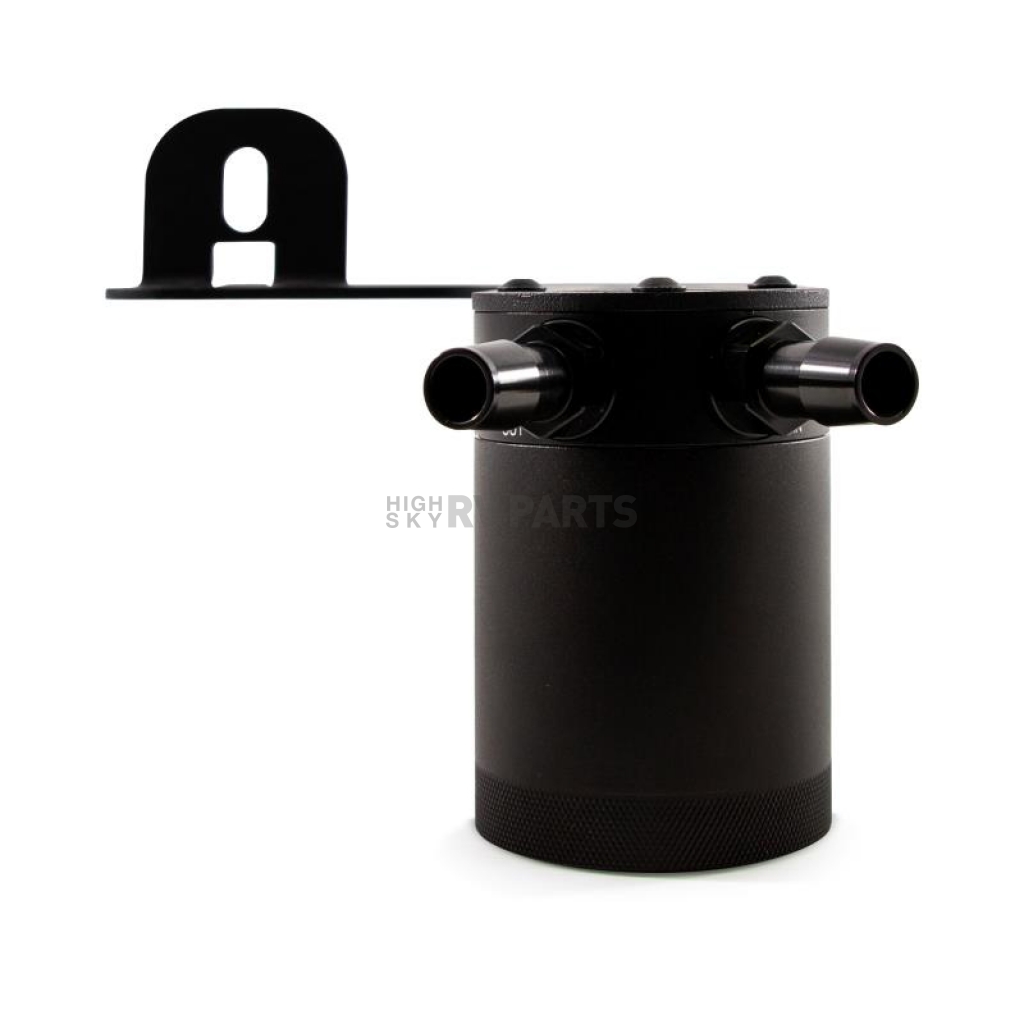

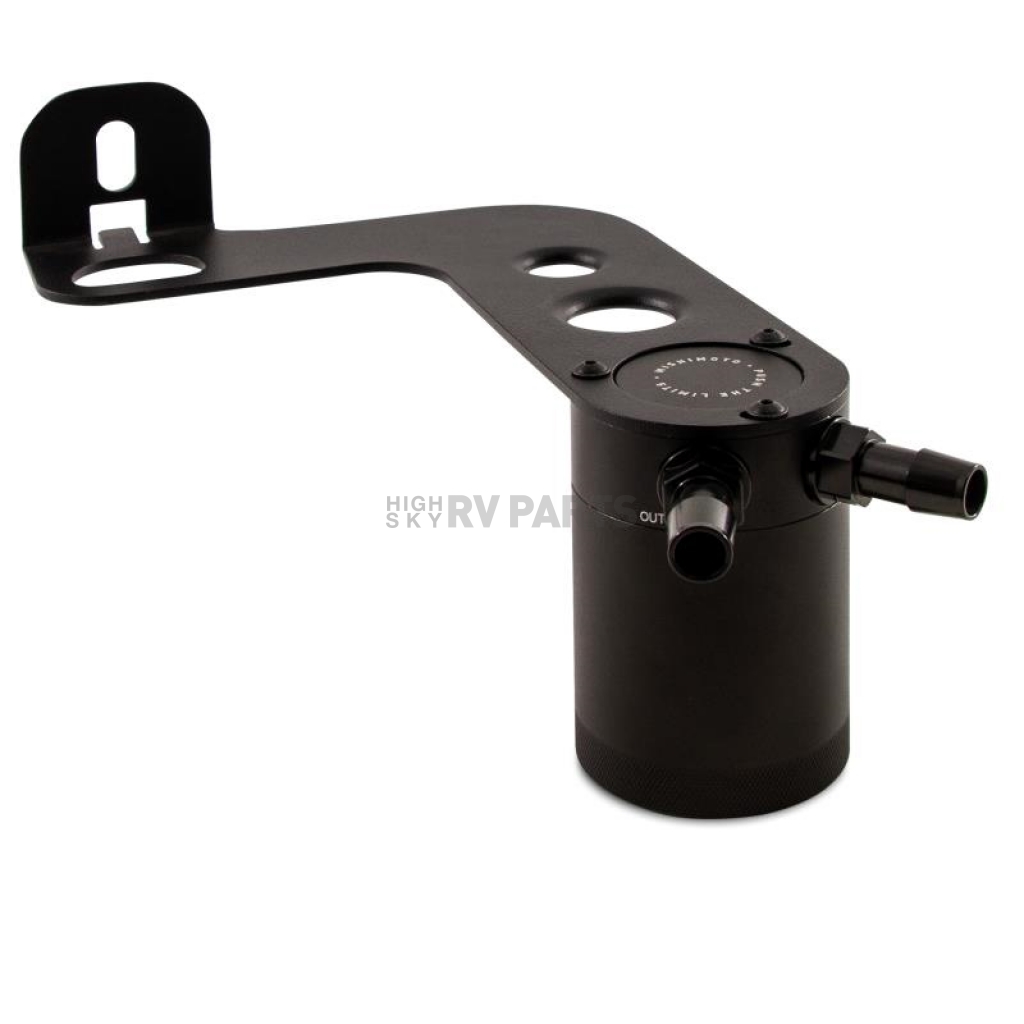

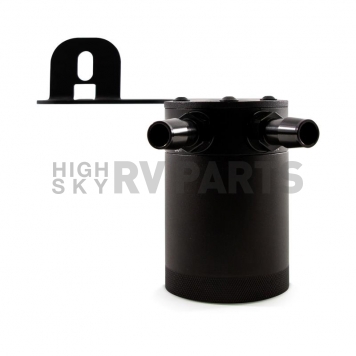

Mishimoto Catch Can

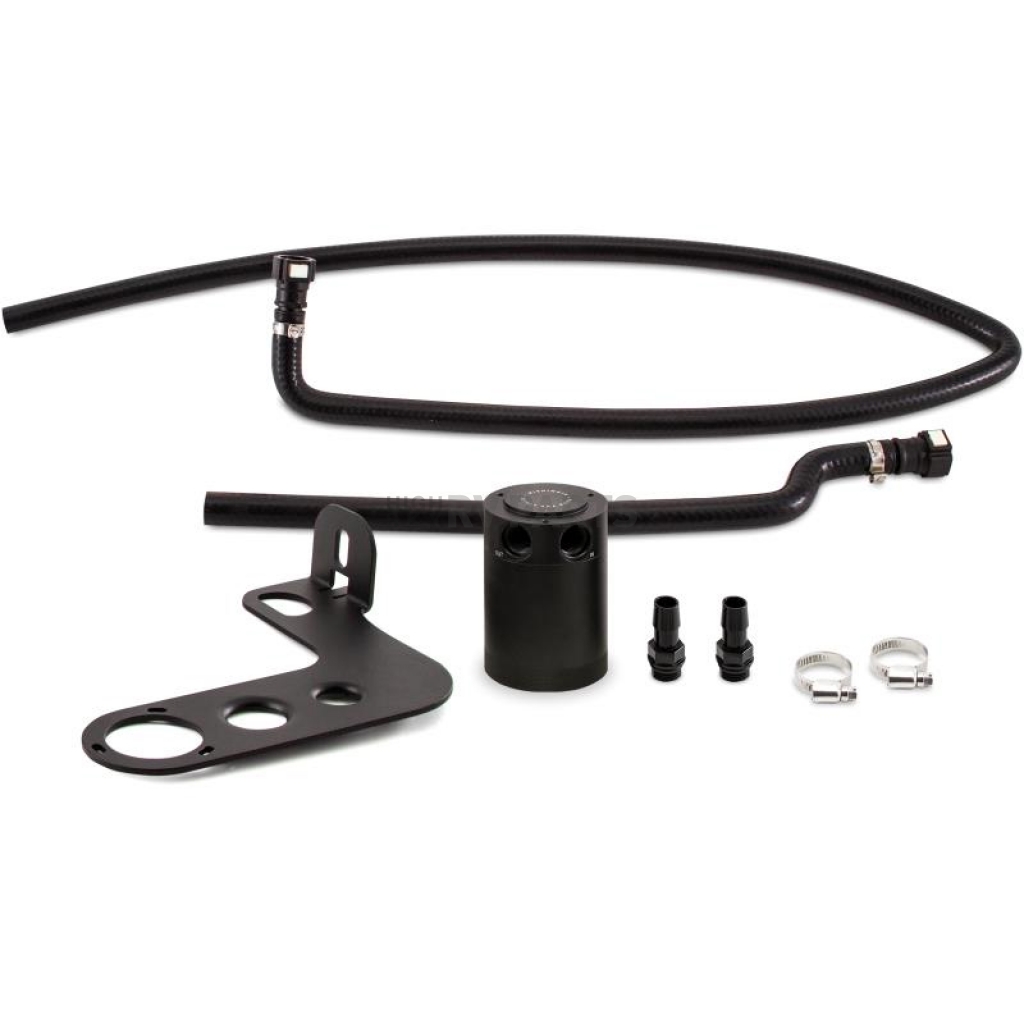

Catch Can; For Storing Excess Oil; Direct Fit For 2010-2015 Chevrolet Camaro SS; PCV Side; 3 Ounce Capacity; Aluminum Barbed Fittings; Black; Aluminum; With Compact Baffled Oil Catch Can/ Application-Specific Mounting Bracket/ Two Direct-Fit Hoses/ Two 3/8 Inch Aluminum Barbed Fittings/ Four Worm Gear Clamps/ Mounting Hardware

MPN: CCSS10APBE

Our complete kit utilizes a pair of our tried and true 6061 aluminum compact catch cans that mount in line with the VQ37VHR’s dual PCV system using an application-specific mounting bracket. It’s more of what’s on the inside that counts for these catch cans, however. Our compact oil catch cans come equipped with a highly engineered baffle designed to condense oil droplets and fuel vapors to be collected in the bottom of the can. We’ve also incorporated internal air diverters to ensure a smooth and consistent flow of your PCV pressure. As an added line of defense, each one of our catch cans has a 50-Micron bronze filter installed to trap any potential rogue oil droplets from escaping into the return line. Our catch cans are different from most air-oil-separator (AOS) systems on a few levels. First, our catch cans are not heated. This means that all of the blow-by is able to condense in the can, including low-octane oil vapors and contaminated fuel vapors. Most AOS systems also drain the blow-by back into the oil pan, while our catch cans trap the blow-by and keep it out of the engine permanently. If you’ve seen what we’ve seen in the bottom of our catch cans, you won’t want that draining back into your oil either.

Function: Storing Excess Oil

Capacity: 3 Ounce

Inlet Quantity: 1

Inlet Attachment: Hose Barb

Inlet Size (IN): 1/2 Inch

Outlet Quantity: One

Outlet Attachment: Hose Barb

Outlet Size (IN): 1/2 Inch

Finish: Anodized

Color: Black

Material: Aluminum

With Tubing: Yes

Features

Billet 6061 Aluminum Cans Sealed With Viton™ O-Rings
Defends Intake System And Essential Engine Components From Oil Blow-By
Helps Reduce Carbon Build-Up On Intake Valves
Catch Cans Have A 7.5 Ounce Capacity For Longer Servicing Intervals
Internal Air Diverter Increases Air Turbulence To Improve Oil Separation
Helps Maintain Proper Octane Levels To Reduce Potential Detonation
CNC-Machined Aluminum Barbed Fittings Ensure A Sturdy Connection Between Lines And Can
Mounts In Line With The PCV System To Separate Oil From Air Using A 50 Micron Bronze Filter
Limited Lifetime Warranty

Specifications of Mishimoto Catch Can - MMBCC-CSS-10APBE
Capacity	3 Ounce
Color	Black
Finish	Anodized
Function	Storing Excess Oil
Inlet Attachment	Hose Barb
Inlet Quantity	1
Inlet Size (IN)	1/2 Inch
Material	Aluminum
Outlet Attachment	Hose Barb
Outlet Quantity	One
Outlet Size (IN)	1/2 Inch
With Tubing	Yes
