Mishimoto Catch Can - MMBCC-CSS-10PBE

Brand: Mishimoto

0 reviews

Have a product question? Ask us
Part Number: MMBCC-CSS-10PBE
Part Location: U.S.
Availability: 1 In Stock
Delivery: Ships Out in 1 - 2 Business Days
If purchased before 12:00 EDT - estimated delivery by July 04

Retail: $256.19

Price: $243.99

You Save: $12.20

Capacity

3 Ounce

Color

Black

Finish

Anodized

Function

Storing Excess Oil

Inlet Attachment

Female Threads

Inlet Size (IN)

1/2 Inch

Material

Aluminum

Outlet Attachment

Female Quick-Connect

Outlet Size (IN)

1/2 Inch

With Tubing

Share this page

Mishimoto Catch Can

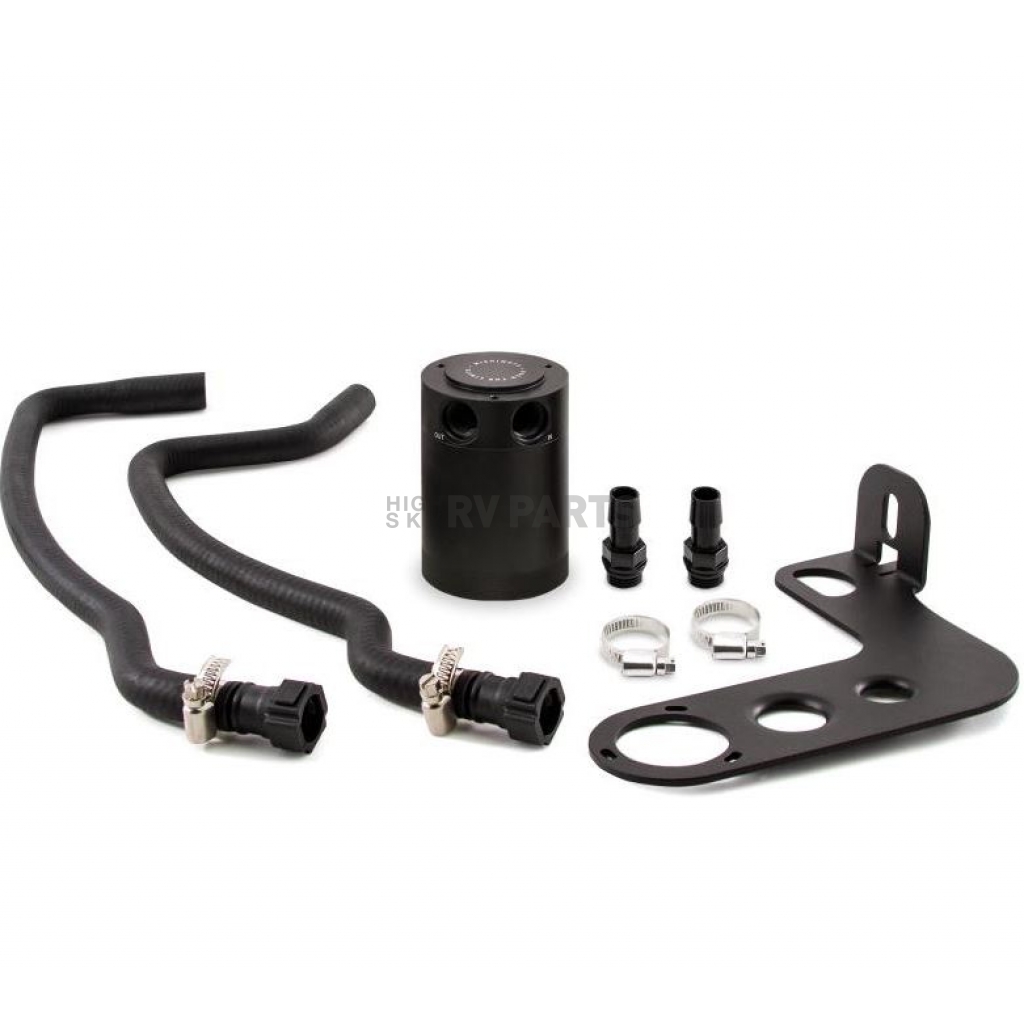

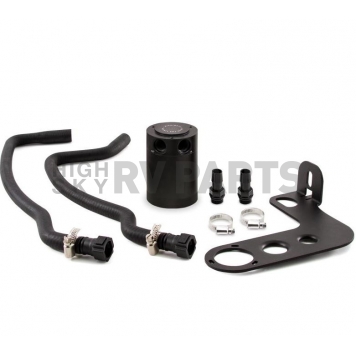

Catch Can; For Storing Excess Oil; With 1/2 Inch Inlet And 1/2 Inch Outlet Port; 3 Ounce Capacity; Aluminum; With One Application-Specific Mounting Bracket/ Two Direct-Fit Hoses With Pre-Installed Factory Quick-Disconnect Fittings/ Two 1/2 Inch Aluminum Barbed Fittings/ Two Worm Gear Clamps/ Mounting Hardware

MPN: CCCSS10PBE

The LS3 engines fitted to the 5th Gen Camaro SS generate an impressive 400+ Horsepower from their eight cylinders. But those eight cylinders produce something a little less impressive: blow-by. Oil, fuel, and other by-products of combustion squeeze their way past piston rings with each stroke. Left unchecked, that blow-by can work its way into your Camaro’s intake and rob the engine of Power and Efficiency. Our catch cans feature air diverters and an internal baffle to help slow incoming air, condensing oil and fuel vapors. To further prevent any blow-by from escaping, the catch can outlet employs a 50-Micron bronze filter. This kit will ensure that blow-by vapors never make their way back into your intake. The catch can mounts to your Camaro via a bracket that has been custom designed to fit without any drilling or cutting. Direct-fit lines, complete with quick-disconnect fittings, mate our can to your factory Chevrolet PCV system for an easy and seamless install. Our catch cans are different from most air-oil-separator (AOS) systems on a few levels. First, our catch cans are not heated. This means that all of the blow-by is able to condense in the can, including low-octane oil vapors and contaminated fuel vapors. Most AOS systems also drain the blow-by back into the oil pan, while our catch cans trap the blow-by and keep it out of the engine permanently.

Function: Storing Excess Oil

Capacity: 3 Ounce

Inlet Attachment: Female Threads

Inlet Size (IN): 1/2 Inch

Outlet Attachment: Female Quick-Connect

Outlet Size (IN): 1/2 Inch

Finish: Anodized

Color: Black

Material: Aluminum

With Tubing: Yes

Features

Patent Pending Billet 6061 Aluminum Can Sealed With Viton™ O-Rings
Defends Intake System And Essential Engine Components From Oil Blow-By
Catch Cans Have A 3 Ounce Capacity For Longer Servicing Intervals
Internal Air Diverter Increases Air Turbulence To Improve Oil Separation
Helps Maintain Proper Octane Levels To Reduce Potential Detonation; Filter And Can Are Fully Serviceable
CNC-Machined Aluminum Barbed Fittings Ensure A Sturdy Connection Between Lines And Can

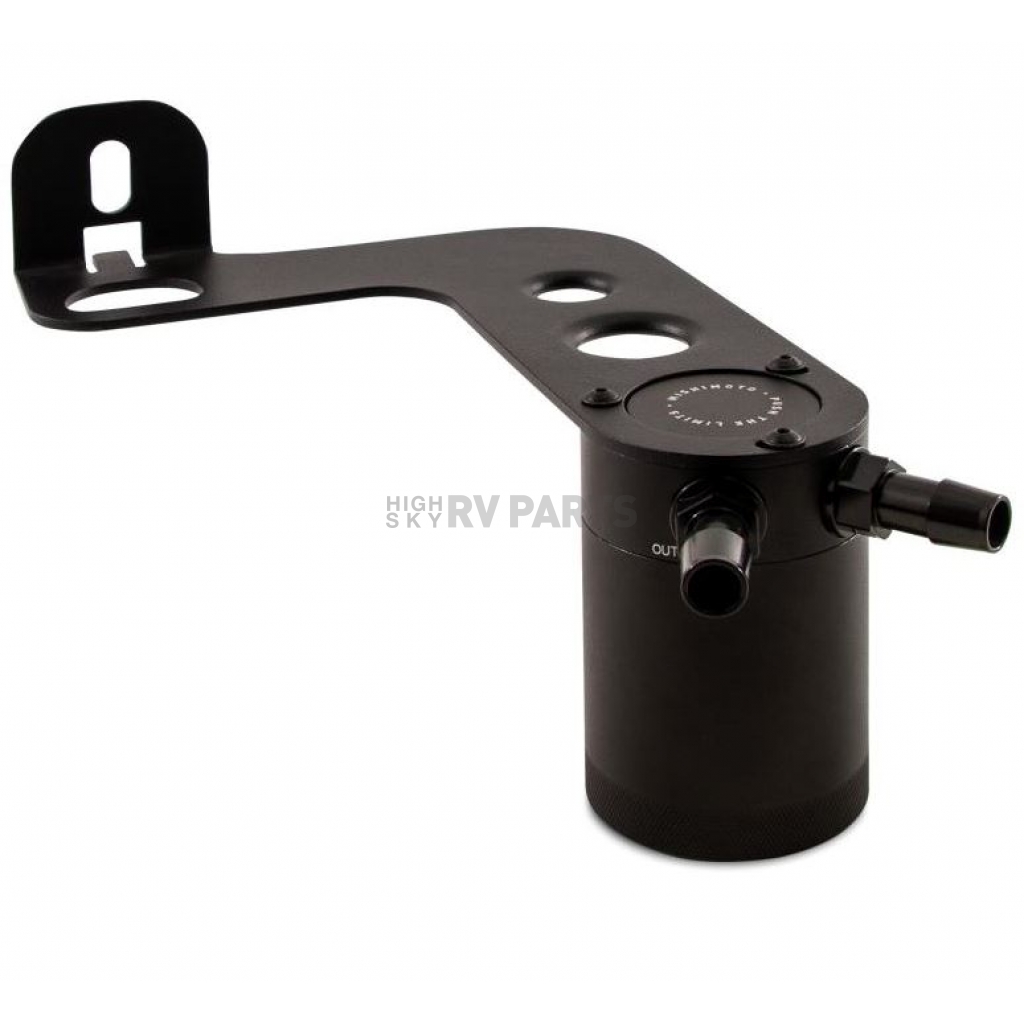

Robust, Application-Specific Bracket Mounts The Can In A Serviceable Location Away From Most Intake And Supercharger Kits

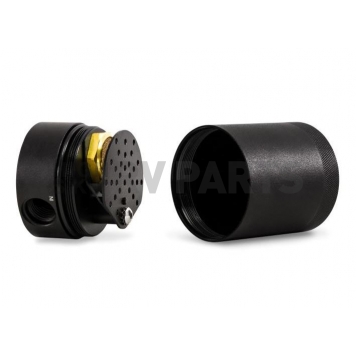

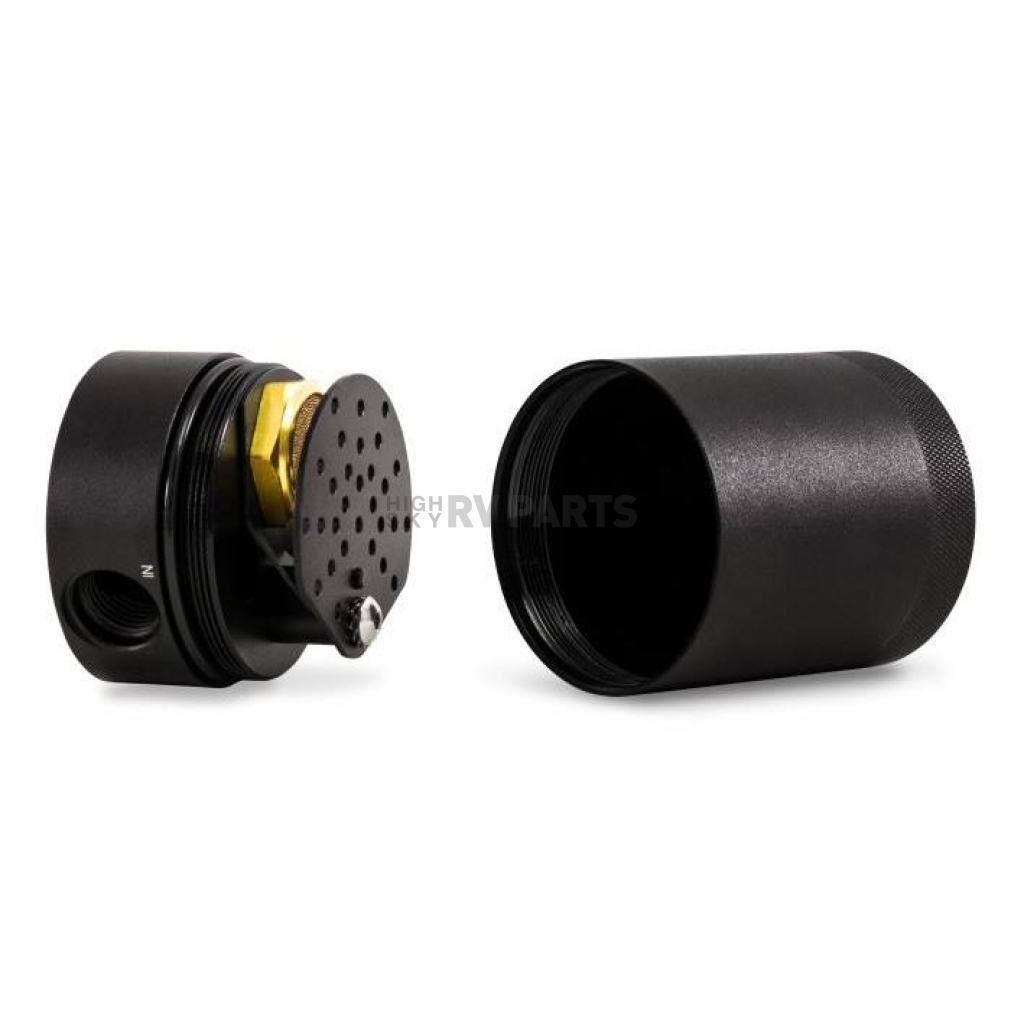

Single Can Mounts In Line With The PCV System To Separate Oil From Air Using A 50-Micron Bronze Filter
Installs In Under 30 Minutes
Limited Lifetime Warranty

Specifications of Mishimoto Catch Can - MMBCC-CSS-10PBE
Capacity	3 Ounce
Color	Black
Finish	Anodized
Function	Storing Excess Oil
Inlet Attachment	Female Threads
Inlet Size (IN)	1/2 Inch
Material	Aluminum
Outlet Attachment	Female Quick-Connect
Outlet Size (IN)	1/2 Inch
With Tubing	Yes
