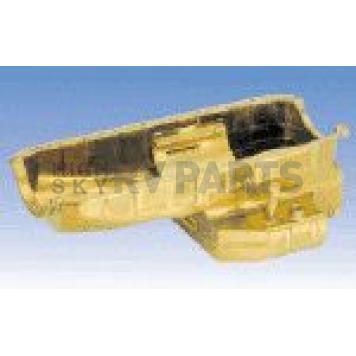

Milodon Oil Pan - 31554

Brand: Milodon
0 reviews
  • Have a product question? Ask us
  • Part Number: 31554
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 21
Retail: $914.54
Price: $870.99
You Save: $43.55
Baffled
Yes
Capacity
9 Quarts
Color
Gold
Depth (IN)
7-1/4 Inch
Dipstick Provision
Yes
Drain Plug Thread Size
1/2 Inch-20
Finish
Irridated
Includes Crank Scraper
No
Includes Pickup
Yes
Includes Windage Tray
No
Kicked Out
Yes
Share this page

Milodon Oil Pan

Oil Pan; Circle Track; For Use With Big Block Chevy Engines Designed For Dirt Or Asphalt Modified Cars; 9 Quarts; With Windage Tray; Rear Sump Location; 7-1/4 Inch Deep Sump; With Baffle; Gold Iridited; Steel

MPN: 31554

Designed for Dirt or Asphalt Modifieds. The highly effective trap door system and the quick release windage tray assembly that is fastened into the pan provide 100 Percent oil control at all times Accepts stock large dial flywheels. A sealed, dirt proof, screw in style dipstick and temperature sender Bung are welded into the pan. With most Aluminum rods, this pan will fit up to a 4-1/2 Inch stroke without modification.
Finish: Irridated
Color: Gold
Material: Steel
Capacity: 9 Quarts
Depth (IN): 7-1/4 Inch
Drain Plug Thread Size: 1/2 Inch-20
Sump Position: Rear
Sump Style: Wet
Baffled: Yes
Dipstick Provision: Yes
Kicked Out: Yes
Kicked Out Position: Driver And Passenger Side
Rear Main Seal Style: 2-Piece
Stroker Clearance: Yes
Includes Pickup: Yes
Includes Crank Scraper: No
Includes Windage Tray: No

Features

  • Consistent Oil Pressure And Increased Horsepower
  • Designed For Dirt Or Asphalt Modifieds
  • The Highly Effective Trap Door System And The Quick Release Windage Tray Assembly That Is Fastened Into The Pan Provide 100 Percent Oil Control At All Times
  • Accepts Stock Large Diameter Flywheels
  • Limited 180 Day Warranty
Specifications of Milodon Oil Pan - 31554
Baffled Yes
Capacity 9 Quarts
Color Gold
Depth (IN) 7-1/4 Inch
Dipstick Provision Yes
Drain Plug Thread Size 1/2 Inch-20
Finish Irridated
Includes Crank Scraper No
Includes Pickup Yes
Includes Windage Tray No
Kicked Out Yes
Kicked Out Position Driver And Passenger Side
Material Steel
Rear Main Seal Style 2-Piece
Stroker Clearance Yes
Sump Position Rear
Sump Style Wet

1900 Chevrolet Big Block 1965-1990 Gen IV

1900 Chevrolet Big Block 1991-1995 Gen V
