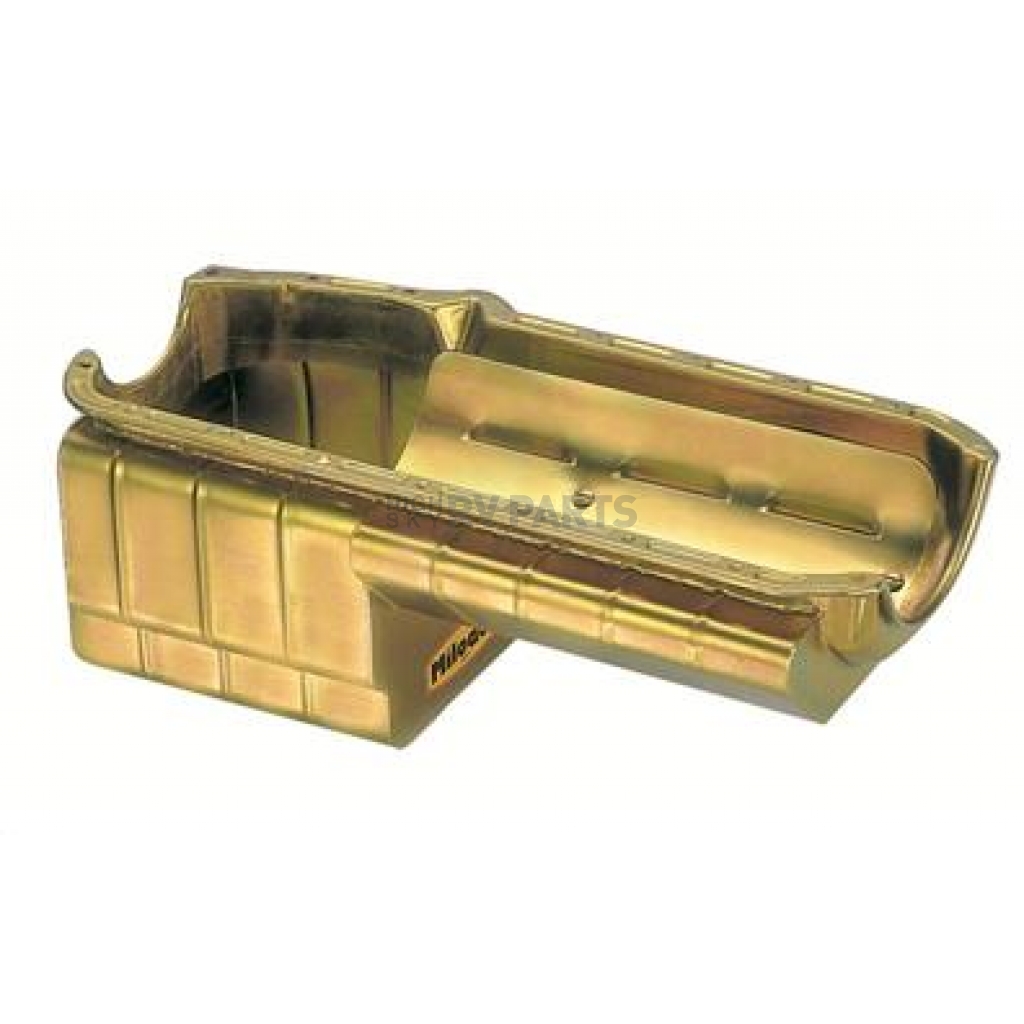

Milodon Oil Pan - 31169
Baffled
Yes
Capacity
5 Quart
Color
Gold
Depth (IN)
8-1/2 Inch
Dipstick Location
Right Hand
Dipstick Provision
Yes
Finish
Irridated
Includes Crank Scraper
No
Includes Pickup
No
Includes Windage Tray
Yes
Kicked Out
Yes
Share this page
Milodon Oil Pan
Oil Pan; Drag Racing; For Use With Small Dart SHP Small Block Chevrolet Engines With Up To 4 Inch Stroke With Steel Carillo or Eagle Style Rods; Drag Race; 5 Quarts; With Windage Tray; For Use With Right Hand Dipstick; Full Kickout Rear Wet Sump; 8-1/2 Inch Deep Sump; With Baffle; Gold Iridited; Steel; Requires Oil Pump (See Required Parts); Requires Oil Pump Pickup (See Required Parts)
MPN: 31169
Milodon oil pans are designed to provide optimum performance for a specific applications. That's why Milodon makes over 150 different models. Drag racing oil pans assure an ample supply of lubricant under rapid acceleration, while providing optimum power; circle track oil pans are engineered to cope with the centrifugal effects of hard turns. Off-road oil pans are built to deliver lubrication on all kinds of radical terrain while marine oil pans are designed to provide an ample supply of oil and reduced oil temperatures. Important features include oil control to allow good oil supply and maximum power, an increased sump capacity to assure an ample supply of lubricant at lower oil temperatures, plus design considerations such as required ground and component clearance.
Recommended Use: Drag Racing
Finish: Irridated
Color: Gold
Material: Steel
Capacity: 5 Quart
Depth (IN): 8-1/2 Inch
Sump Position: Rear
Sump Style: Wet
Baffled: Yes
Dipstick Provision: Yes
Dipstick Location: Right Hand
Kicked Out: Yes
Kicked Out Position: Rear
Rear Main Seal Style: 2 Piece
Includes Pickup: No
Includes Crank Scraper: No
Includes Windage Tray: Yes
Features
- This Horsepower Style Pan Incorporates Lightweight, Steel Construction With A Full Kick-Out And Full-Length Louvered Tray Assembly Which Gives Maximum Horsepower Output
- High Strength Magnetic Drain Plug Included
- Limited 180 Day Warranty
| Specifications of Milodon Oil Pan - 31169 | |
| Baffled | Yes |
| Capacity | 5 Quart |
| Color | Gold |
| Depth (IN) | 8-1/2 Inch |
| Dipstick Location | Right Hand |
| Dipstick Provision | Yes |
| Finish | Irridated |
| Includes Crank Scraper | No |
| Includes Pickup | No |
| Includes Windage Tray | Yes |
| Kicked Out | Yes |
| Kicked Out Position | Rear |
| Material | Steel |
| Rear Main Seal Style | 2 Piece |
| Recommended Use | Drag Racing |
| Sump Position | Rear |
| Sump Style | Wet |
