Milodon Oil Pan - 30936
Baffled
Yes
Capacity
7 Quart
Color
Gold
Depth (IN)
7-3/4 Inch
Dipstick Location
No Dipstick
Dipstick Provision
No
Drain Plug Thread Size
1/2 Inch-20
Finish
Irridated
Includes Crank Scraper
No
Includes Pickup
No
Includes Windage Tray
No
Share this page

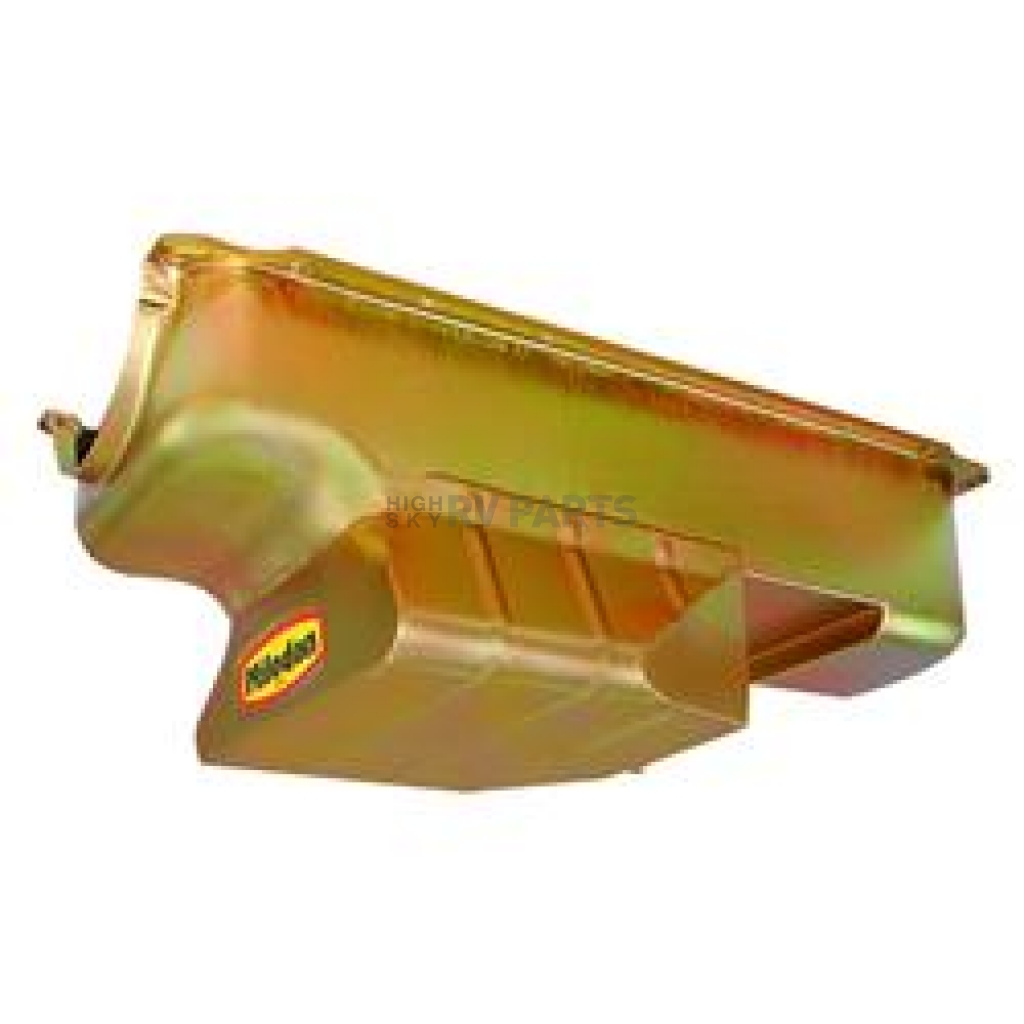

Milodon Oil Pan
Oil Pan; Street and Strip; For Use With 340 Cubic Inch Chrysler Engines; Drag Race/ Street; 7 Quarts; Without Windage Tray; Center Wet Sump; 7-3/4 Inch Deep Sump; With Baffle; Gold Iridited; Steel; Requires Oil Pump (See Required Parts); Requires Oil Pump Pickup (See Required Parts)
MPN: 30936
Milodon oil pans are designed to provide optimum performance for a specific applications. That's why Milodon makes over 150 different models. Street and Strip oil pans require more oil capacity for higher performance and RPM than when stock yet still need adequate ground clearance. While doing this they must clear crossmembers, steering, exhaust and headers and bigger crank and rods. Milodon understands what performance street and racing engines require...Quality and Performance.
Recommended Use: Street/ Strip
Finish: Irridated
Color: Gold
Material: Steel
Capacity: 7 Quart
Depth (IN): 7-3/4 Inch
Drain Plug Thread Size: 1/2 Inch-20
Sump Position: Center
Sump Style: Wet
Baffled: Yes
Dipstick Provision: No
Dipstick Location: No Dipstick
Kicked Out: Yes
Kicked Out Position: Driver And Passenger Side
Rear Main Seal Style: 2-Piece
Stroker Clearance: Yes
Includes Pickup: No
Includes Crank Scraper: No
Includes Windage Tray: No
Features
- Increased Oil Capacity
- Highly Efficient Horizontal Baffles Are Used For Oil Control While The Sump Rear Features Added Large Tube Header Clearance
- Magnetic Drain Plug Included
- Limited 180 Day Warranty
Specifications of Milodon Oil Pan - 30936 | |
Baffled | Yes |
Capacity | 7 Quart |
Color | Gold |
Depth (IN) | 7-3/4 Inch |
Dipstick Location | No Dipstick |
Dipstick Provision | No |
Drain Plug Thread Size | 1/2 Inch-20 |
Finish | Irridated |
Includes Crank Scraper | No |
Includes Pickup | No |
Includes Windage Tray | No |
Kicked Out | Yes |
Kicked Out Position | Driver And Passenger Side |
Material | Steel |
Rear Main Seal Style | 2-Piece |
Recommended Use | Street/ Strip |
Stroker Clearance | Yes |
Sump Position | Center |
Sump Style | Wet |
1900 Chrysler 273-360 LA
1970 Dodge Challenger
1971 Dodge Challenger
1972 Dodge Challenger
1973 Dodge Challenger
1971 Dodge Challenger
1972 Dodge Challenger
1973 Dodge Challenger
1970 Dodge Charger
1971 Dodge Charger
1972 Dodge Charger
1973 Dodge Charger
1971 Dodge Charger
1972 Dodge Charger
1973 Dodge Charger
1970 Dodge Coronet
1971 Dodge Coronet
1972 Dodge Coronet
1973 Dodge Coronet
1971 Dodge Coronet
1972 Dodge Coronet
1973 Dodge Coronet
1968 Dodge Dart
1969 Dodge Dart
1970 Dodge Dart
1971 Dodge Dart
1972 Dodge Dart
1973 Dodge Dart
1969 Dodge Dart
1970 Dodge Dart
1971 Dodge Dart
1972 Dodge Dart
1973 Dodge Dart
1972 Dodge Polara
1973 Dodge Polara
1973 Dodge Polara
1968 Plymouth Barracuda
1969 Plymouth Barracuda
1970 Plymouth Barracuda
1971 Plymouth Barracuda
1972 Plymouth Barracuda
1973 Plymouth Barracuda
1969 Plymouth Barracuda
1970 Plymouth Barracuda
1971 Plymouth Barracuda
1972 Plymouth Barracuda
1973 Plymouth Barracuda
1971 Plymouth Belvedere
1970 Plymouth Cuda
1971 Plymouth Cuda
1972 Plymouth Cuda
1973 Plymouth Cuda
1971 Plymouth Cuda
1972 Plymouth Cuda
1973 Plymouth Cuda
1970 Plymouth Duster
1971 Plymouth Duster
1972 Plymouth Duster
1973 Plymouth Duster
1971 Plymouth Duster
1972 Plymouth Duster
1973 Plymouth Duster
1968-1968 Plymouth Road Runner
1968 Plymouth Road Runner
1971-1973 Plymouth Road Runner
1971 Plymouth Road Runner
1972 Plymouth Road Runner
1973 Plymouth Road Runner
1972 Plymouth Road Runner
1973 Plymouth Road Runner
1968 Plymouth Satellite
1969 Plymouth Satellite
1970 Plymouth Satellite
1971 Plymouth Satellite
1972 Plymouth Satellite
1973 Plymouth Satellite
1969 Plymouth Satellite
1970 Plymouth Satellite
1971 Plymouth Satellite
1972 Plymouth Satellite
1973 Plymouth Satellite
1968 Plymouth Valiant
1969 Plymouth Valiant
1970 Plymouth Valiant
1971 Plymouth Valiant
1972 Plymouth Valiant
1973 Plymouth Valiant
1969 Plymouth Valiant
1970 Plymouth Valiant
1971 Plymouth Valiant
1972 Plymouth Valiant
1973 Plymouth Valiant
