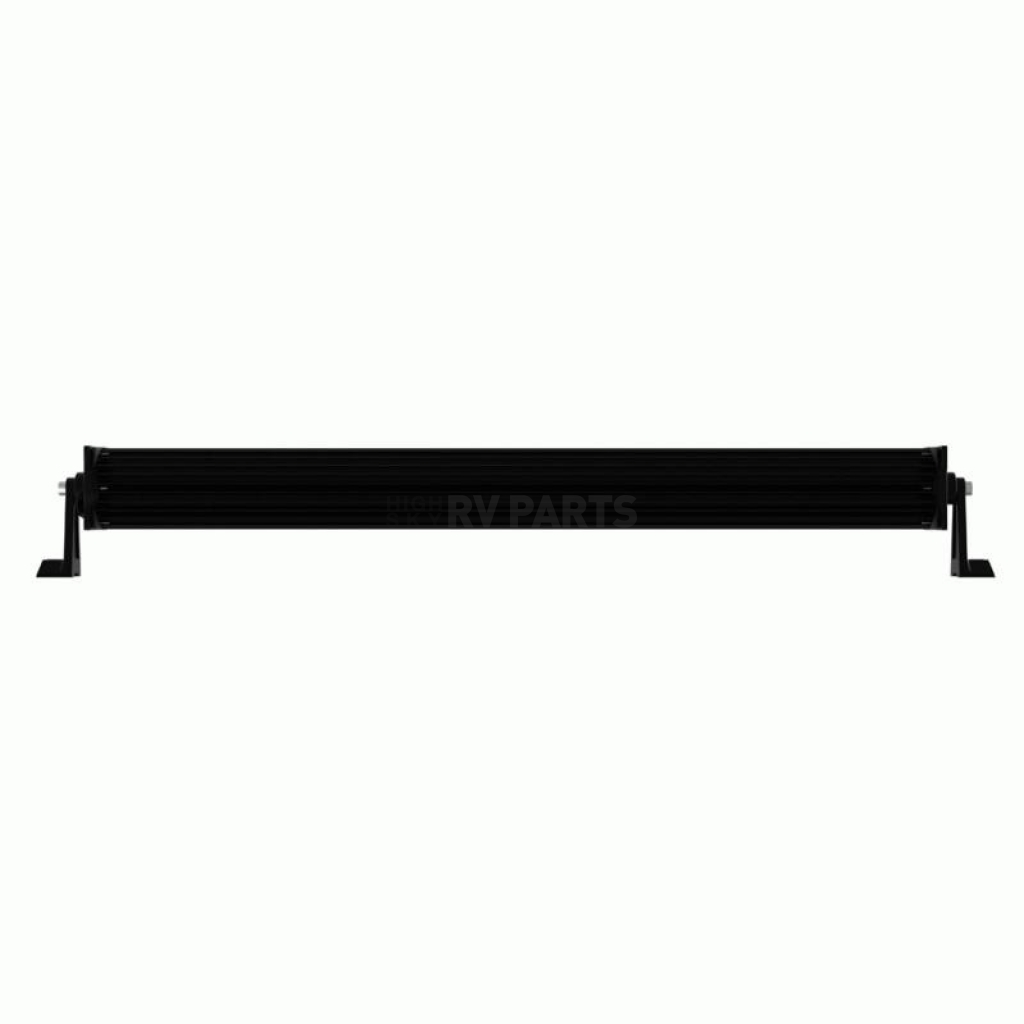

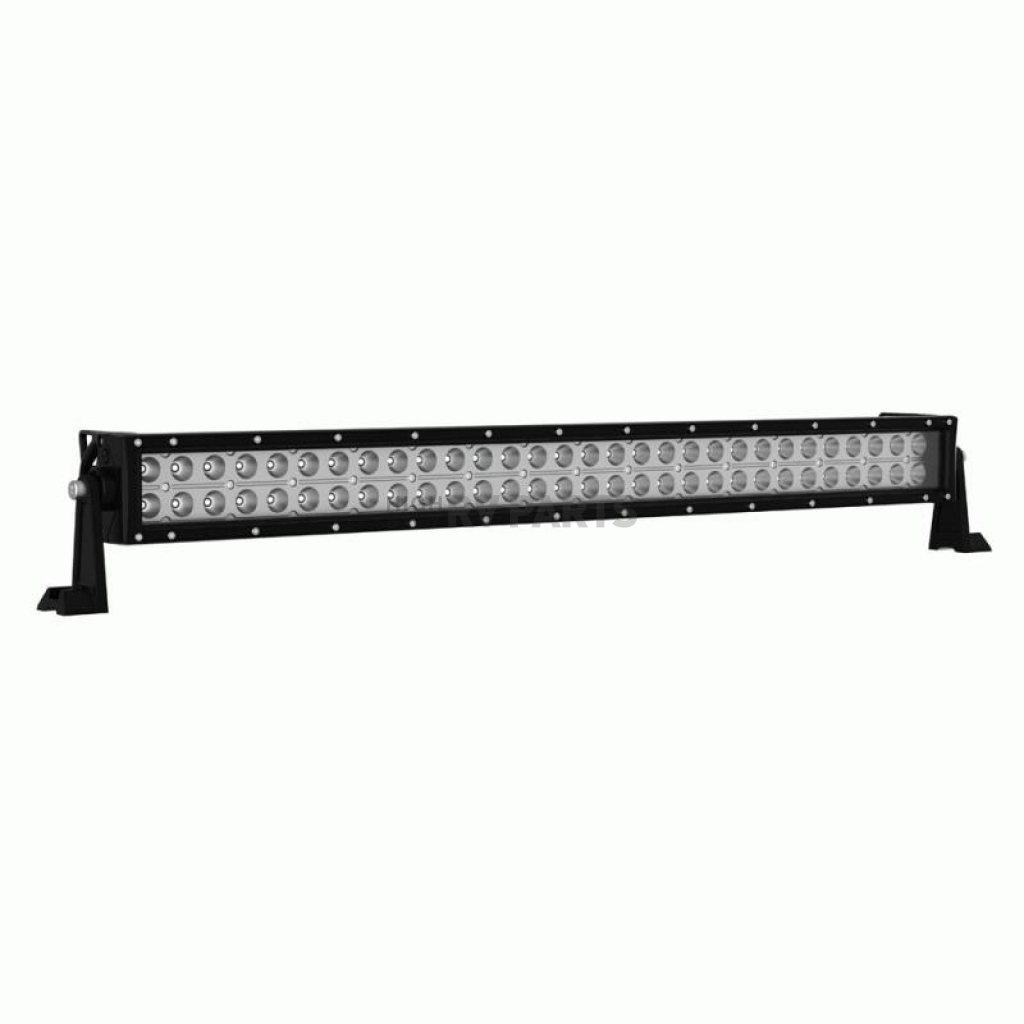

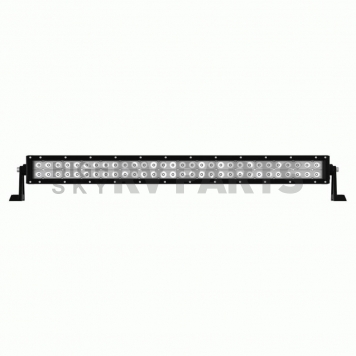

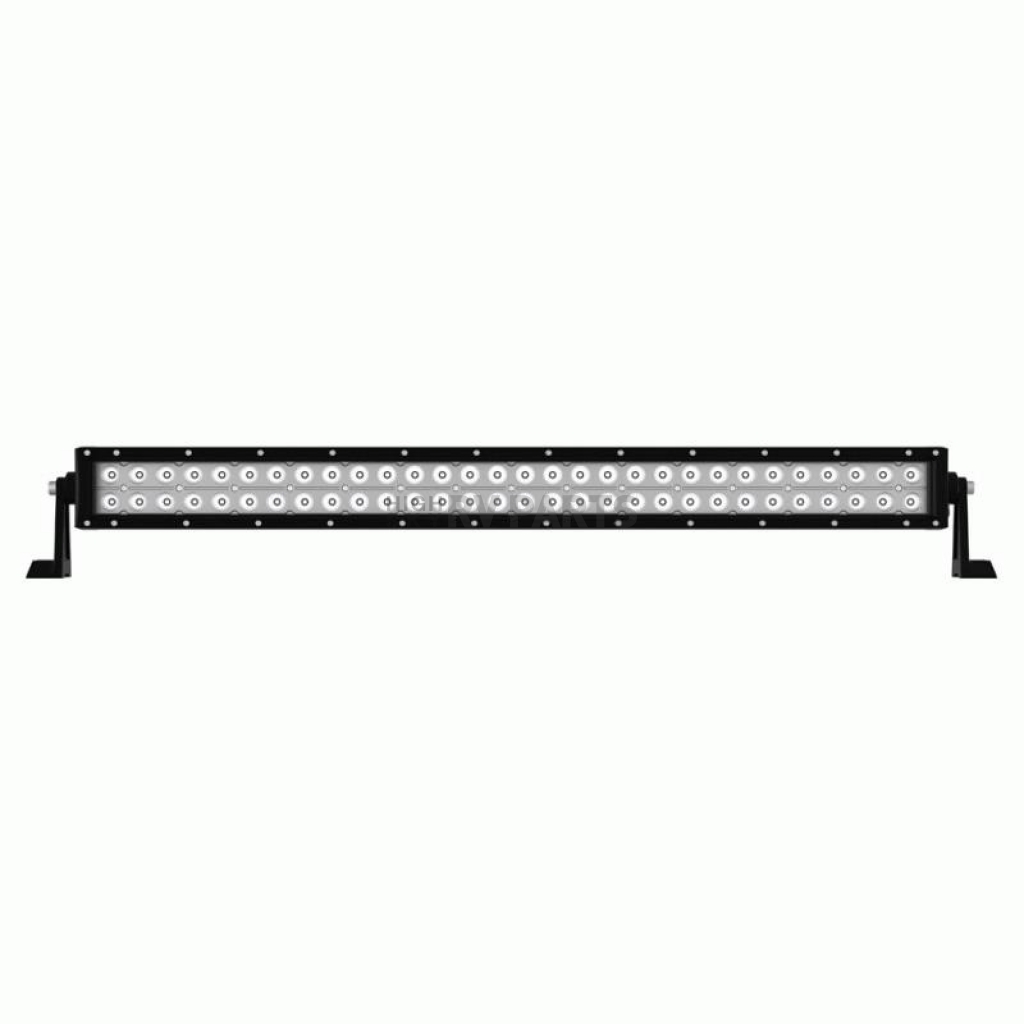

Metra Electronics Light Bar LED 32 Inch Straight - DL-DR32
Beam Angle (Deg)
90 Degree Flood/ 8 Degree Spot
Beam Type
Combination Flood And Spot Beam
Connection Type
Plug And Play Wiring Harness
Estimated Install Time (Hours)
1.5
Height (IN)
3.43 Inch
Housing Color
Black
Housing Material
Aluminum
Includes Light Cover
No
Length (IN)
32 Inch
Lens Material
Polycarbonate
Mounting Style
Bolt-On
Share this page
Metra Electronics Light Bar - LED
Light Bar - LED; Dual Row Style; 32 Inch Length; 180 Watt; 13.1 AMP At 13.8 Volts; 90 Degree Flood Beam And 8 Degree Spot Beam; 10800 Raw Lumens; Clear Polycarbonate Lens; Aluminum Black Housing; Single
MPN: DLDR32
These have a military breather port that allows moisture to escape and eliminate fogging. The combination beam pattern and dual-row LEDs provide extra illumination and lighting coverage for off-road use.
Smart Technology Compatible: Not Compatible With Smart Technology
Beam Type: Combination Flood And Spot Beam
Beam Angle (Deg): 90 Degree Flood/ 8 Degree Spot
Type: Straight
Number Of Rows: Double
Wattage: 180 Watt
Voltage Rating: 10 To 30 Volt

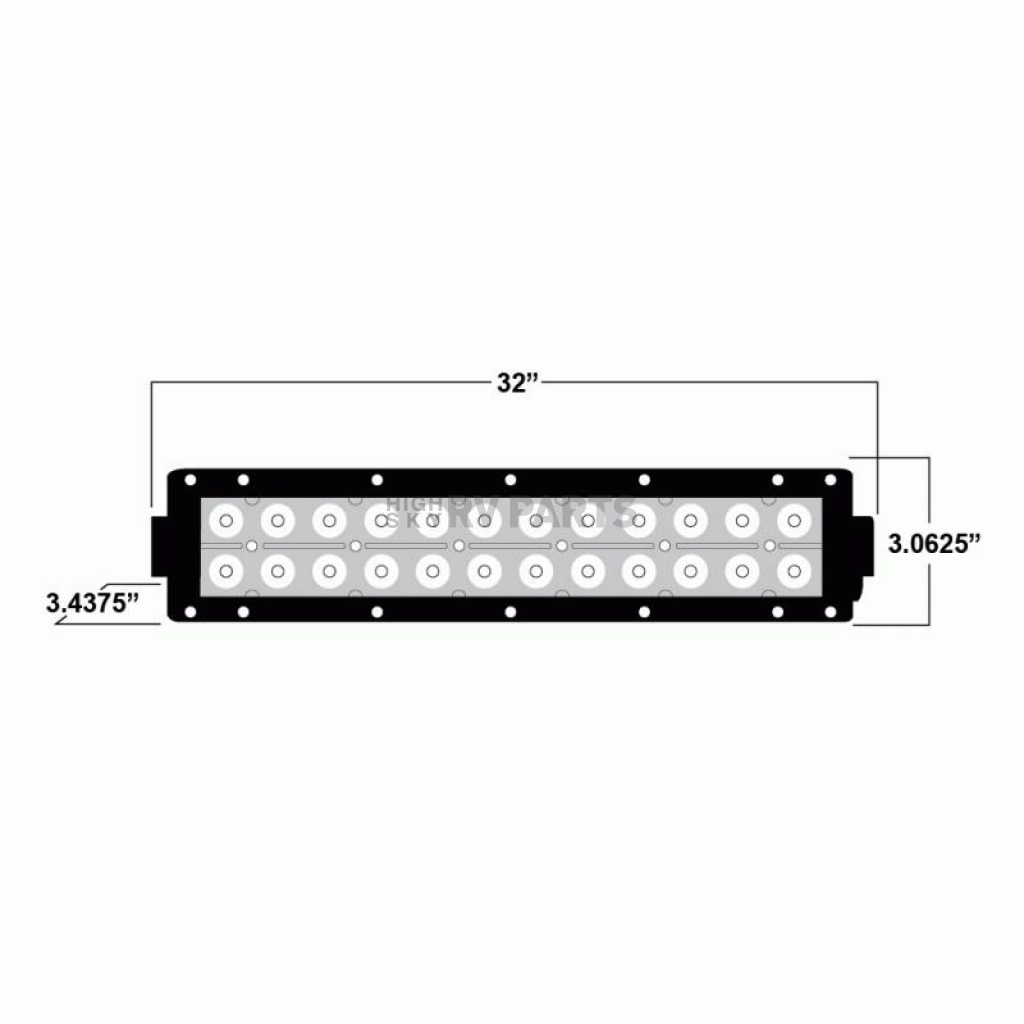

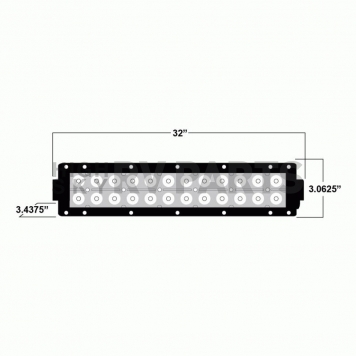

Length (IN): 32 Inch
Width (IN): 3.43 Inch
Height (IN): 3.43 Inch
Lens Material: Polycarbonate
Housing Color: Black
Housing Material: Aluminum
Mounting Style: Bolt-On
Connection Type: Plug And Play Wiring Harness
Includes Light Cover: No
Estimated Install Time (Hours): 1.5
Features
- IP Rating: IP67
- Die-Cast Aluminum Housing Material
- Integrated-Epoxy Encapsulated
- Operating Temperature: -40 Degree Fahrenheit To +140 Degree Fahrenheit
- Polycarbonate Lens
- Military Breather Membrane
- Reverse Polarity Protection
- Limited Lifetime Warranty
Specifications of Metra Electronics Light Bar LED 32 Inch Straight - DL-DR32 | |
Beam Angle (Deg) | 90 Degree Flood/ 8 Degree Spot |
Beam Type | Combination Flood And Spot Beam |
Connection Type | Plug And Play Wiring Harness |
Estimated Install Time (Hours) | 1.5 |
Height (IN) | 3.43 Inch |
Housing Color | Black |
Housing Material | Aluminum |
Includes Light Cover | No |
Length (IN) | 32 Inch |
Lens Material | Polycarbonate |
Mounting Style | Bolt-On |
Number Of Rows | Double |
Smart Technology Compatible | Not Compatible With Smart Technology |
Type | Straight |
Voltage Rating | 10 To 30 Volt |
Wattage | 180 Watt |
Width (IN) | 3.43 Inch |
