Manley Performance Valve Spring Locator - 42331-16

Brand: Manley Performance

Have a product question? Ask us
Part Number: 42331-16
Part Location: U.S.
Availability: 3 In Stock
Delivery: Ships Out in 1 - 2 Business Days
If purchased before 12:00 EDT - estimated delivery by May 27

Retail: $110.24

Price: $104.99

You Save: $5.25

Inner Spring Diameter (IN)

0.57 Inch

Locating Shoulder Type

Outside Diameter Locator

Material

Steel

Quantity

Set Of 16

Thickness (IN)

0.62 Inch

Share this page

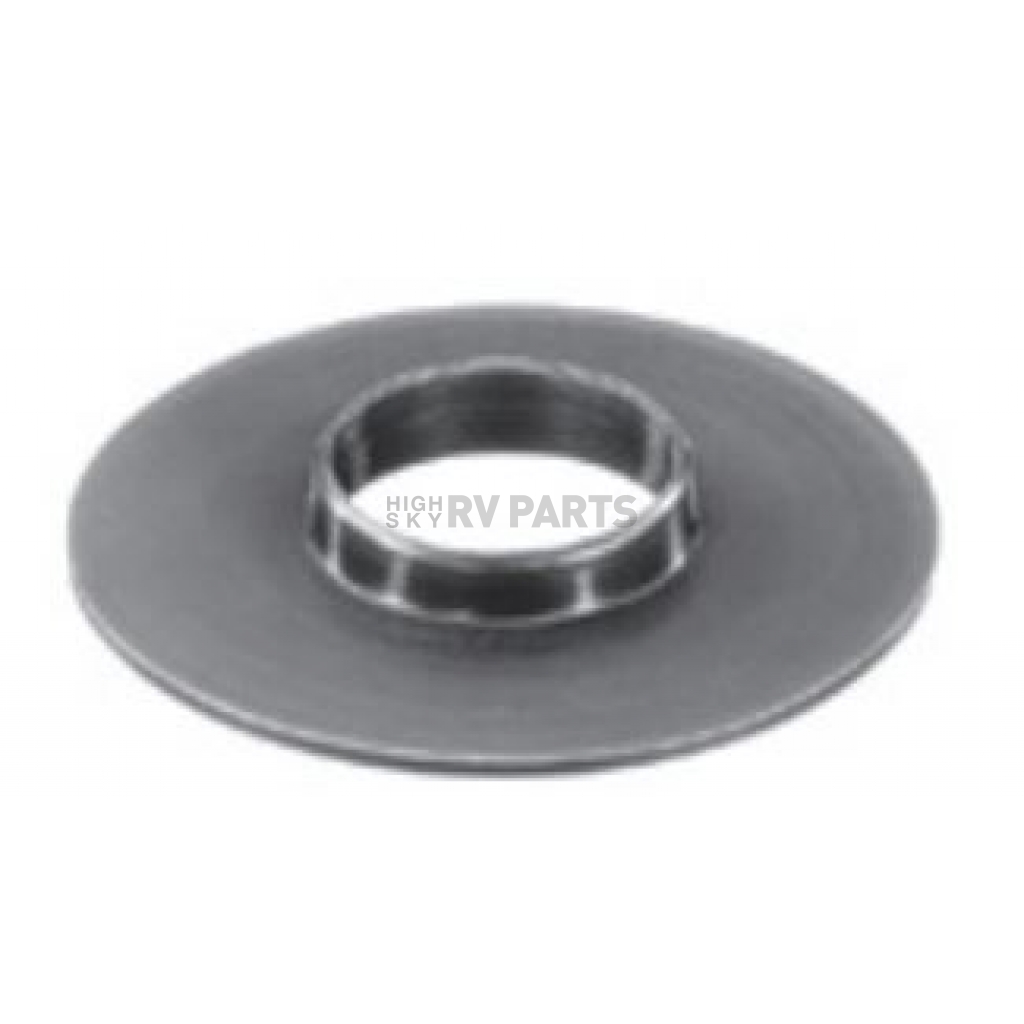

Manley Performance Valve Spring Locator

Valve Spring Locator; 1.53 Inch Outside Diameter Locator; 0.57 Inch Inside Diameter of Spring; 0.62 Inch Thick; Steel; Set of 16

MPN: 4233116

Each design minimizes stress to ensure long service life with high lift camshafts. Retainers are manufactured in our own double spindle CNC machines to exacting tolerances and precise installed height specifications. Locators are manufactured in our own CNC lathes. Heat treated and black oxided after machining. Valve locks are manufactured in our own Swiss turning centers with rigid control over the all-important angle to ensure precise mating with the retainer.

Locating Shoulder Type: Outside Diameter Locator

Inner Spring Diameter (IN): 0.57 Inch

Thickness (IN): 0.62 Inch

Material: Steel

Quantity: Set Of 16

Features

Spring Locators Are CNC Machined From High Quality 8620 Material
Yield An Excellent Surface Finish While Maintaining A Tight Tolerance Of ± .002 Inch
Heat Treated And Black Oxide Finished
No Supplier Warranty

Specifications of Manley Performance Valve Spring Locator - 42331-16
Inner Spring Diameter (IN)	0.57 Inch
Locating Shoulder Type	Outside Diameter Locator
Material	Steel
Quantity	Set Of 16
Thickness (IN)	0.62 Inch
