Manley Performance Valve Spring - 221456-16

Brand: Manley Performance

0 reviews

Have a product question? Ask us
Part Number: 221456-16
Part Location: U.S.
Availability: *Special Order
Delivery: Up to 2 Weeks
If purchased before 12:00 EDT - estimated delivery by July 18

Retail: $1,079.39

Price: $1,027.99

You Save: $51.40

Coil Bind Height (IN)

1.13 Inch

Engine Compatibility

Universal

Finish

Chrome Plated

Includes Damper

Inside Diameter Of Inner Spring (IN)

0.71 Inch

Installed Height (IN)

2.1 Inch

Material

Silicone Steel

Outside Diameter Of Outer Spring (IN)

1-1/2 Inch

Quantity

Set Of 16

Spring Rate

800 Pounds Per Inch

Share this page

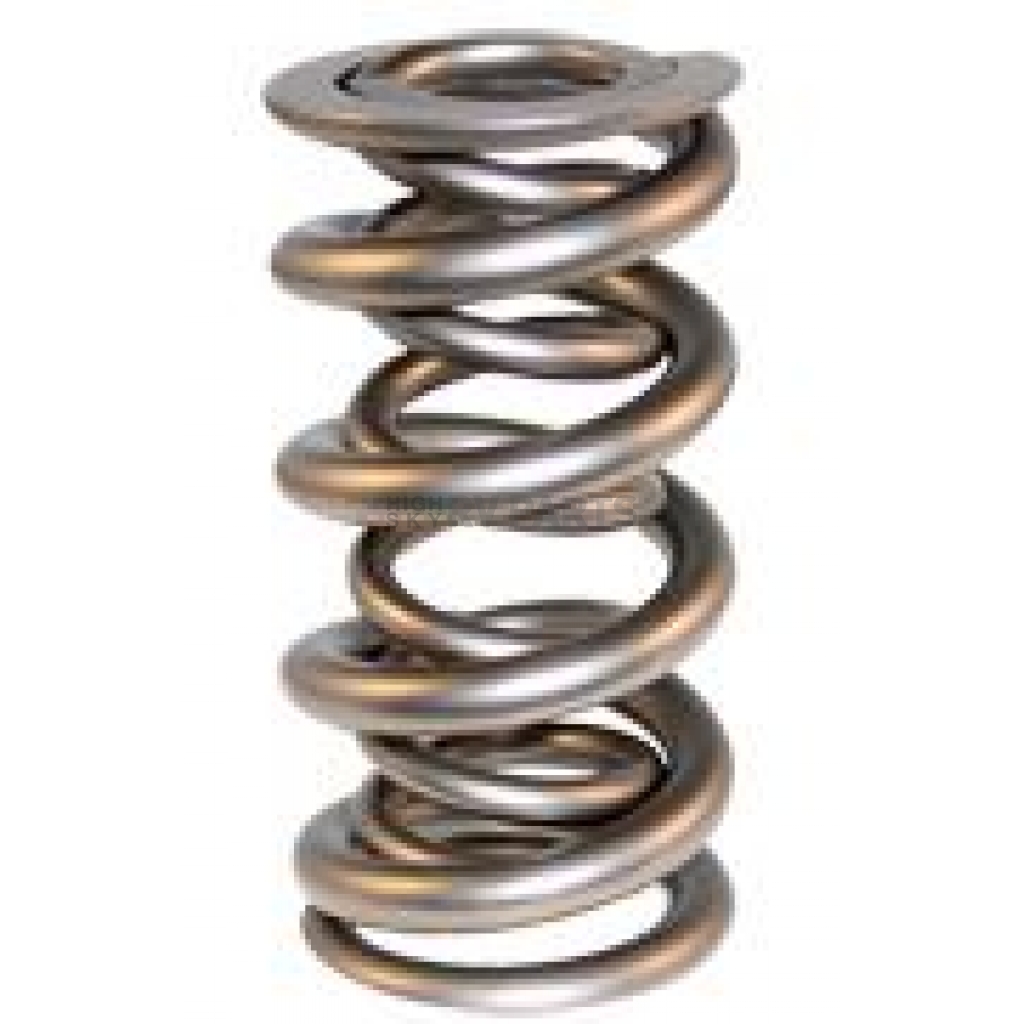

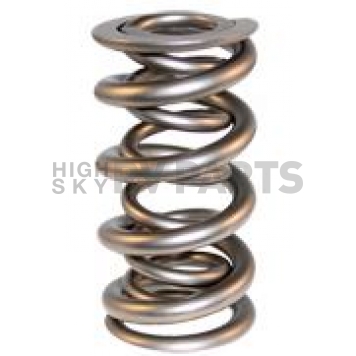

Manley Performance Valve Spring

Valve Spring; Nextek; Universal; Double Spring; Without Damper; 1.500 Inch Outside Diameter/ 0.710 Inside Diameter; 800 Pounds Per Inch Spring Rate; 2.10 Inch Installed Height; Set Of 16

MPN: 22145616

Manley Performance has brought its trademarked NexTek® valve spring technology to the Chevy LS, Ford Modular, and Chrysler SB HEMI markets. Manufactured from "super clean" Hi-tensile strength chrome silicon steel alloy, these springs offer winning performance, long term reliability and the ultimate value. Our proprietary multi-step heat-treating combined with our shot peening process minimizes load loss and offers superior fatigue life. Computer-aided modeling of application specific designs has enabled us to bring the very best springs to these niche markets. We've utilized ovate wire extensively with many conical designs to render the lightest, highest quality, most reliable springs available today; as well as adding a special polishing feature that helps further improve the fatigue life of the part.

Engine Compatibility: Universal

Type: Dual

Finish: Chrome Plated

Material: Silicone Steel

Includes Damper: No

Installed Height (IN): 2.1 Inch

Coil Bind Height (IN): 1.13 Inch

Inside Diameter Of Inner Spring (IN): 0.71 Inch

Outside Diameter Of Outer Spring (IN): 1-1/2 Inch

Spring Rate: 800 Pounds Per Inch

Quantity: Set Of 16

Features

Smaller Diameter, Lightweight Dual Design Allows Engine To Rev Higher With Improved Valve Train Control
Accepts Smaller, Lighter Retainers Which Also Promotes Higher Revs
Ultra Clean, High Tensile Strength Material
Super Finished Multi-Step Surface Enhancement Significantly Improves Fatigue Strength
Ideal Loads For Multiple Applications With Minimal Load Loss
Limited 90 Warranty

Specifications of Manley Performance Valve Spring - 221456-16
Coil Bind Height (IN)	1.13 Inch
Engine Compatibility	Universal
Finish	Chrome Plated
Includes Damper	No
Inside Diameter Of Inner Spring (IN)	0.71 Inch
Installed Height (IN)	2.1 Inch
Material	Silicone Steel
Outside Diameter Of Outer Spring (IN)	1-1/2 Inch
Quantity	Set Of 16
Spring Rate	800 Pounds Per Inch
Type	Dual
