Manley Performance Valve Spring - 221438-16

Brand: Manley Performance

0 reviews

Have a product question? Ask us
Part Number: 221438-16
Part Location: U.S.
Availability: *Special Order
Delivery: Up to 2 Weeks
If purchased before 12:00 EDT - estimated delivery by July 18

Retail: $505.04

Price: $480.99

You Save: $24.05

Coil Bind Height (IN)

1.1 Inch

Engine Compatibility

GM LS Series

Finish

Chrome Plated

Includes Damper

Inside Diameter Of Inner Spring (IN)

0.65 Inch

Inside Diameter Of Outer Spring (IN)

0.885 Inch

Installed Height (IN)

1.8 Inch

Material

Silicone Steel

Outside Diameter Of Outer Spring (IN)

1.076 Inch

Quantity

Set Of 16

Spring Rate

353 Pounds Per Inch

Share this page

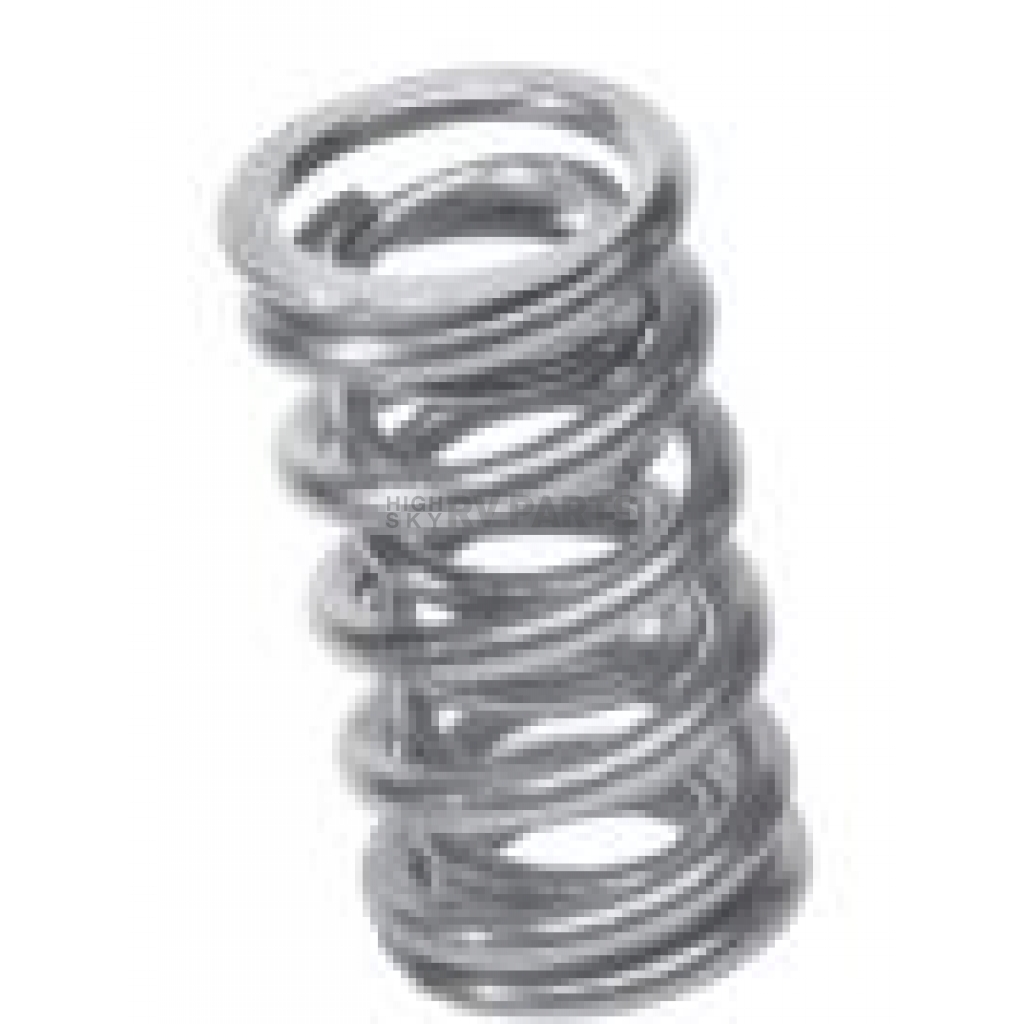

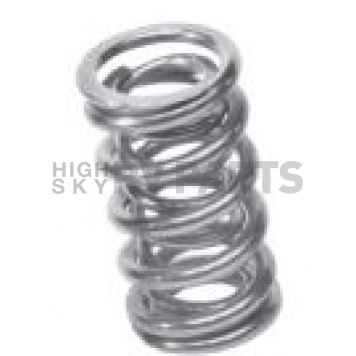

Manley Performance Valve Spring

Valve Spring; Nextek; For Use With GM LS Series Engines; Chrome Silicon Steel; Beehive Spring; Without Damper; 1.076 Inch Top and 1.311 Inch Bottom Outside Diameter/ 0.650 Inch Top and 0.885 Inch Bottom Inside Diameter; 353 Pounds Per Inch Spring Rate; 1.80 Inch Installed Height; Set Of 16

MPN: 22143816

Manley Performance has brought its trademarked NexTek® valve spring technology to the Chevy LS, Ford Modular, and Chrysler SB HEMI markets. Manufactured from "super clean" Hi-tensile strength chrome silicon steel alloy, these springs offer winning performance, long term reliability and the ultimate value. Our proprietary multi-step heat-treating combined with our shot peening process minimizes load loss and offers superior fatigue life. Computer-aided modeling of application specific designs has enabled us to bring the very best springs to these niche markets. We've utilized ovate wire extensively with many conical designs to render the lightest, highest quality, most reliable springs available today; as well as adding a special polishing feature that helps further improve the fatigue life of the part.

Engine Compatibility: GM LS Series

Type: Beehive

Finish: Chrome Plated

Material: Silicone Steel

Includes Damper: No

Installed Height (IN): 1.8 Inch

Coil Bind Height (IN): 1.1 Inch

Inside Diameter Of Inner Spring (IN): 0.65 Inch

Inside Diameter Of Outer Spring (IN): 0.885 Inch

Outside Diameter Of Outer Spring (IN): 1.076 Inch

Spring Rate: 353 Pounds Per Inch

Quantity: Set Of 16

Features

Specially Processed Premium-Grade Chrome Silicon That Is Virtually Free Of Impurities Or Surface Irregularities
Manufactured From "Super Clean" Hi-Tensile Strength Chrome Silicon Steel Alloy
Offer Winning Performance, Long Term Reliability And The Ultimate Value
Proprietary Multi-Step Heat-Treating Combined With Our Shot Peening Process Minimizes Load Loss And Offers Superior Fatigue Life
Utilized Ovate Wire Extensively With Many Conical Designs To Render The Lightest, Highest Quality, Most Reliable Springs
Special Polishing Feature That Helps Further Improve The Fatigue Life Of The Part
Limited 90 Day Warranty

Specifications of Manley Performance Valve Spring - 221438-16
Coil Bind Height (IN)	1.1 Inch
Engine Compatibility	GM LS Series
Finish	Chrome Plated
Includes Damper	No
Inside Diameter Of Inner Spring (IN)	0.65 Inch
Inside Diameter Of Outer Spring (IN)	0.885 Inch
Installed Height (IN)	1.8 Inch
Material	Silicone Steel
Outside Diameter Of Outer Spring (IN)	1.076 Inch
Quantity	Set Of 16
Spring Rate	353 Pounds Per Inch
Type	Beehive
