Mahle/ Clevite Connecting Rod Bearing - CB-78P-10
Chamfered
No
Compatibility
Continental 2.0L/ 2.3L/ 2.7L/ 2.8L/ 3.0L/ 3.3L/ 3.4L/ 3.5L/ 3.6L Engines
Material
Steel Backed With Copper-Lead Alloy
Quantity
Single
Type
0.01 Inch Undersized
Share this page

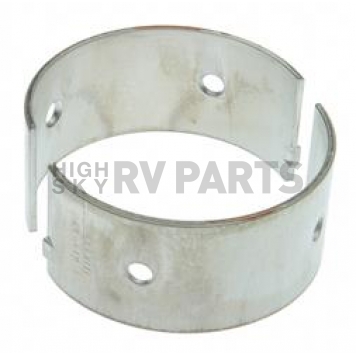

Mahle/ Clevite Connecting Rod Bearing
Connecting Rod Bearing; Standard; For Use With Continental 2.0L/ 2.3L/ 2.7L/ 2.8L/ 3.0L/ 3.3L/ 3.4L/ 3.5L/ 3.6L Engines; 0.010 Inch Undersized; Tri-Metal; Single
MPN: CB78P10
These are not to be confused with the standard passenger car and light truck parts for the same retention applications which also have a "P" suffix letter. These high performance parts have unique core part numbers different from the standard parts for the same application. P series parts are the oldest series of Clevite high performance bearings. The rod bearings in this series typically have the greatest amount of eccentricity. Most rod bearings are available either with or without dowel holes for use in aluminum rods. Most P series main sets are full grooved to maximize oil flow to the rod bearings. Both rods and mains have high crush for maximum retention, and a reduced overlay thickness to prevent overlay fatigue, sometimes referred to as hen tracking. Rod bearings use a hardened steel back for added strength and resistance to fretting. Extra clearance rod bearings are available for 0.001 Inch additional clearance and select fitting. Use the P series rods where extremely high RPM's cause severe rod bore close-in. This is typically indicated by nearly full parting line to parting line shaft contact with bearings having less eccentricity. Use P series mains where higher eccentricity is desired to narrow bearing contact patterns and to provide increased oiling to rod bearings. Rod bearing oil starvation is typically indicated by polishing and smearing of the bearing surface, possibly accompanied by discoloration predominantly concentrated at the axial center of the bearings.
Compatibility: Continental 2.0L/ 2.3L/ 2.7L/ 2.8L/ 3.0L/ 3.3L/ 3.4L/ 3.5L/ 3.6L Engines
Type: 0.01 Inch Undersized
Material: Steel Backed With Copper-Lead Alloy
Chamfered: No
Quantity: Single
Features
- High Eccentricity Accommodates Rod Bore Distortion
- Hardened Steel Backing For Added Strength And Resistance To Fretting
- Can Be Used Where Extremely High RPM's Cause Severe Rod Bore Close-In
- Strong, Extra-Thin Overlay To Withstand High Loading And Resist Flaking
- Grooved Lower Mains Maintain 360 Degree Oiling
- High Crush For Better Seating And Retention
- Limited 2 Year Or 200,000 Mile Or 7,200 Hour Warranty
| Specifications of Mahle/ Clevite Connecting Rod Bearing - CB-78P-10 | |
| Chamfered | No |
| Compatibility | Continental 2.0L/ 2.3L/ 2.7L/ 2.8L/ 3.0L/ 3.3L/ 3.4L/ 3.5L/ 3.6L Engines |
| Material | Steel Backed With Copper-Lead Alloy |
| Quantity | Single |
| Type | 0.01 Inch Undersized |
