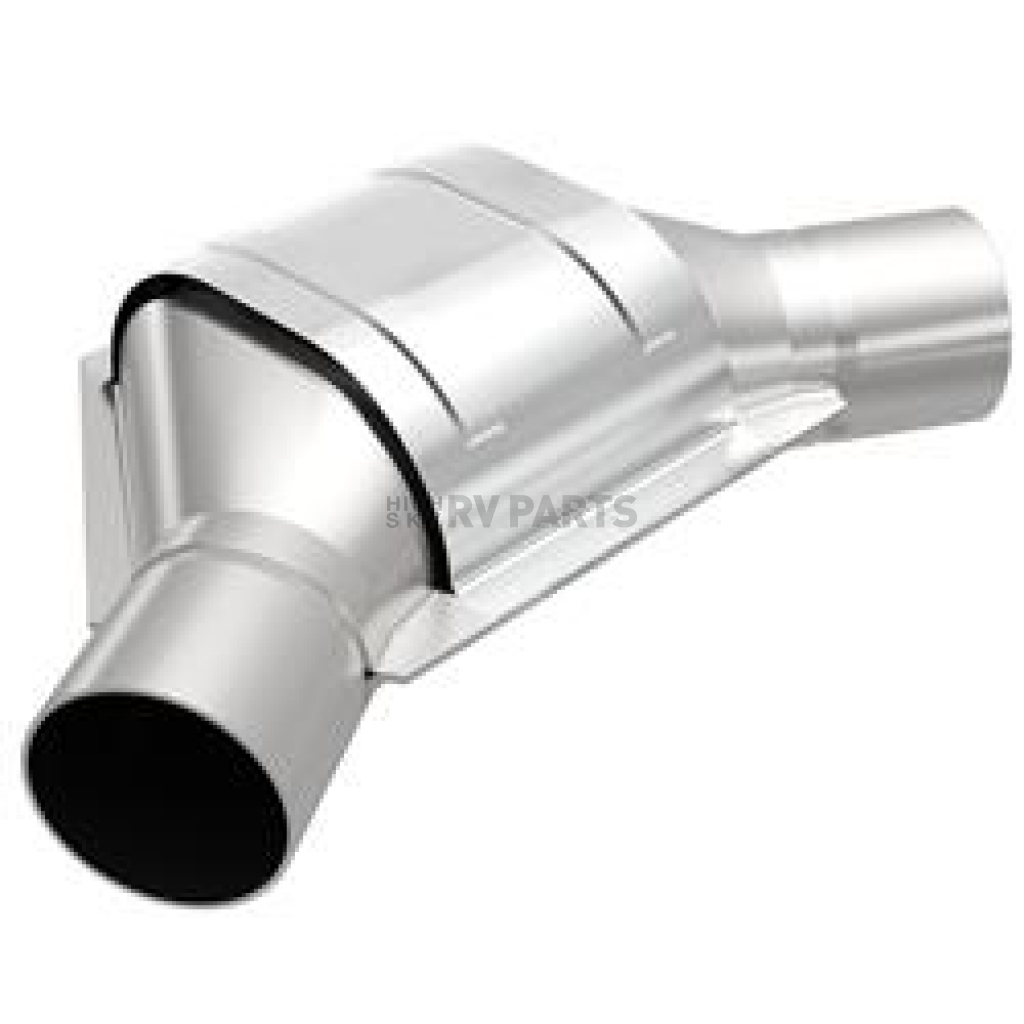

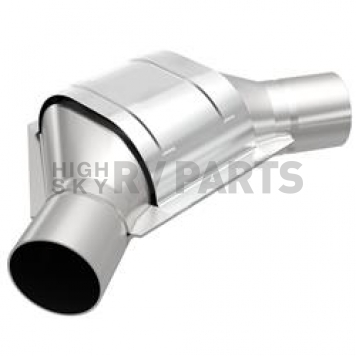

Magnaflow Universal 48 State Catalytic Converter - 51184
Air Tube
Yes
Body Length (IN)
9-1/4 Inch
California Legal
No
Case Material
Stainless Steel
Estimated Install Time (Hours)
1.5
Heat Shield
Yes
Inlet Attachment
Slip-Fit
Inlet Size
2 Inch
Outlet Attachment
Slip-Fit
Outlet Size
2 Inch
Overall Length (IN)
11-1/2 Inch
Share this page
Magnaflow 48 State Converter Catalytic Converter
Catalytic Converter; Universal 48 State; 6 Inch Wide Stainless Steel Case; Single 2 Inch Angled Offset Slip Fit Inlet; Single 2 Inch angled Offset Slip Fit Outlet; 9-1/4 Inch Body/ 11-1/2 Inch Overall Length; Not For Sale Or Use In The State Of California
MPN: 51184
Compare MagnaFlow’s catalytic converters with any other manufacturer and you’ll see why MagnaFlow has become a leader in the manufacturing of exhaust components. Others may employ one or two of the following features, but only MagnaFlow puts them all together to create a catalytic converter that exceeds basic need and function. Our years of research and development have resulted in many unique features that are exclusive to MagnaFlow. We combine efficient manufacturing techniques and state-of-the-art industrial design to produce an end process and product that sets, rather than meets, the highest standards of product performance and efficiency in the industry.
California Legal: No
Case Material: Stainless Steel
Inlet Size: 2 Inch
Inlet Attachment: Slip-Fit
Outlet Size: 2 Inch
Outlet Attachment: Slip-Fit
Shape: Oval
Body Length (IN): 9-1/4 Inch
Overall Length (IN): 11-1/2 Inch
Substrate Material: Ceramic
Heat Shield: Yes
Air Tube: Yes
Estimated Install Time (Hours): 1.5
Features
- MagnaFlow Converters Have A Ribbed Body That Minimizes Expansion & Distortion When The Converter Heats Up And MagnaFlow Converters Are Seam Welded Close To The Converter Body For A Strong, Tight Bond
- MagnaFlow Converters Have A 1/2 Inch Lap-Joint Where The Necks Meet The Body. The Neck Does Not Extend Into The Converter Body Where It Could Hamper Exhaust Flow
- Separate Dies On Different Sized Inlets. We Don’t Skimp By Putting Larger Neck Sizes On Smaller Bodies. This Would Reduce The Flow Of The Converter And Performance Of Our Product
- MagnaFlow Uses A Monolithic Honeycomb Catalyst. The Ceramic Is Designed For Maximum Flow And Surface Area. The Coating Method Is Strictly Controlled To Maintain Exact Specifications
- MagnaFlow Uses A Heavier Gauge Stainless Steel, Tip To Tip. Others Use Mixed Weights And Materials
- MagnaFlow Uses An Aluminized Or Stainless OEM-Style Ribbed Heat Shield That Creates A Rigid Wall Of Protection Against Heat And Adds To The Structural Stability Of The Converter
- MagnaFlow Installs A Factory Capped, 90 Degree Air Tube On “With Air” Converters. This Saves Time During Installation
- Limited 5 Year Or 50,000 Mile Warranty
Specifications of Magnaflow Universal 48 State Catalytic Converter - 51184 | |
Air Tube | Yes |
Body Length (IN) | 9-1/4 Inch |
California Legal | No |
Case Material | Stainless Steel |
Estimated Install Time (Hours) | 1.5 |
Heat Shield | Yes |
Inlet Attachment | Slip-Fit |
Inlet Size | 2 Inch |
Outlet Attachment | Slip-Fit |
Outlet Size | 2 Inch |
Overall Length (IN) | 11-1/2 Inch |
Shape | Oval |
Substrate Material | Ceramic |
1999 Subaru Forester
2000 Subaru Forester
2001 Subaru Forester
2002 Subaru Forester
2003 Subaru Forester
2004 Subaru Forester
2000 Subaru Forester
2001 Subaru Forester
2002 Subaru Forester
2003 Subaru Forester
2004 Subaru Forester
1996 Subaru Impreza
1997 Subaru Impreza
1998 Subaru Impreza
1999 Subaru Impreza
2000 Subaru Impreza
2001 Subaru Impreza
2002 Subaru Impreza
2003 Subaru Impreza
1997 Subaru Impreza
1998 Subaru Impreza
1999 Subaru Impreza
2000 Subaru Impreza
2001 Subaru Impreza
2002 Subaru Impreza
2003 Subaru Impreza
1996 Subaru Legacy
1997 Subaru Legacy
1998 Subaru Legacy
1999 Subaru Legacy
2000 Subaru Legacy
2001 Subaru Legacy
2002 Subaru Legacy
2003 Subaru Legacy
1997 Subaru Legacy
1998 Subaru Legacy
1999 Subaru Legacy
2000 Subaru Legacy
2001 Subaru Legacy
2002 Subaru Legacy
2003 Subaru Legacy
2000 Subaru Outback
2001 Subaru Outback
2002 Subaru Outback
2003 Subaru Outback
2004 Subaru Outback
2001 Subaru Outback
2002 Subaru Outback
2003 Subaru Outback
2004 Subaru Outback
