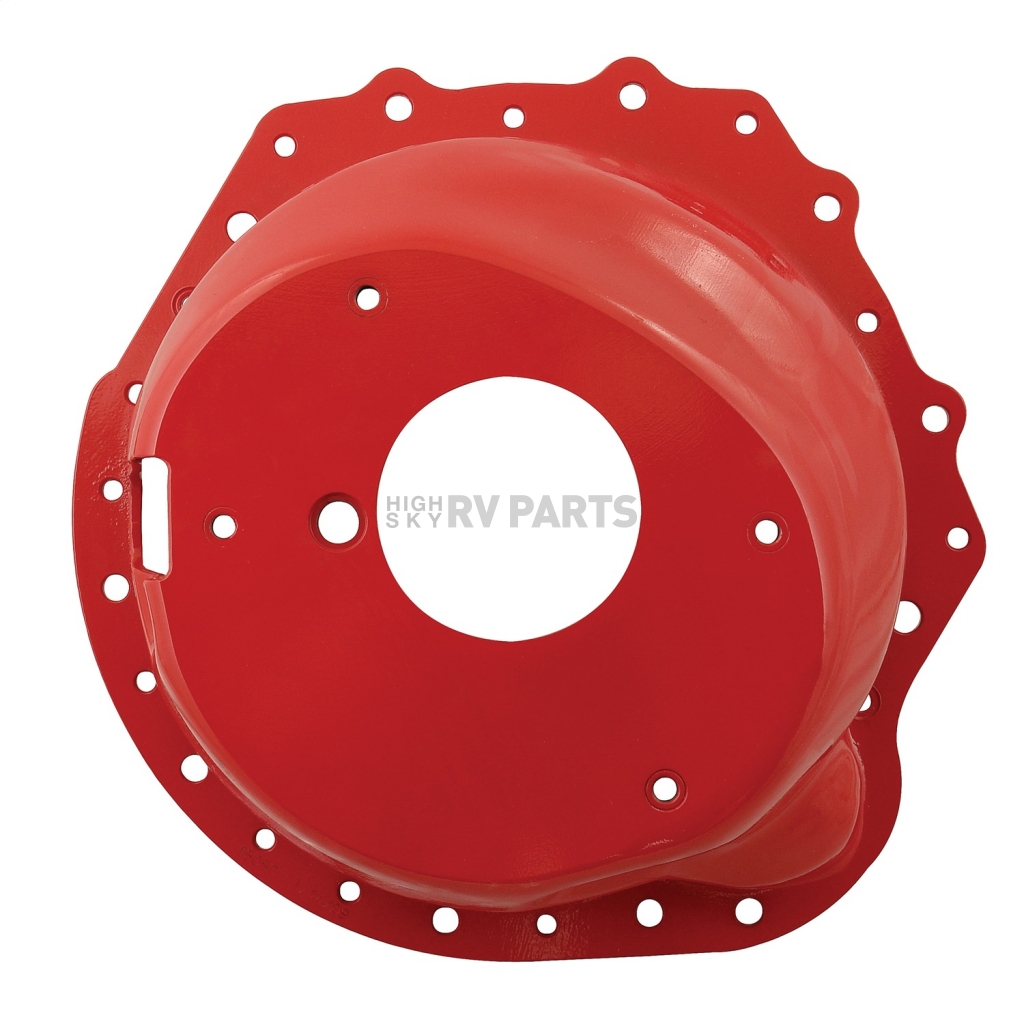

Lakewood Manual Trans Bellhousing 15050

Authorized Dealer
Brand: Lakewood Lakewood
0 reviews
  • Have a product question? Ask us
  • Part Number: 15050
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by June 18
Retail: $1,130.84
Price: $1,076.99
You Save: $53.85
Bellhousing Height
 6.45 Inch
Clutch Diameter
 11 Inch
Clutch Operation
 Mechanical Linkage
Compatibility
 Muncie/ Saginaw/ Borgwarner T10/ Tremec TKO Transmission
Flywheel Tooth Count
 153/ 164
Includes Motor Safety Plate
 Yes
Includes Mounting Hardware
 Yes
Material
 Steel
Safety Rating
 SFI 6.1
Starter Type
 OEM Starter/ Aftermarket Mini Starter
Transmission Bore Diameter
 4.684 Inch
Share this page

Manual Trans Bellhousing; Chevrolet 265 - 400/ 396 - 502/ 90 Degree V6; Muncie/ Saginaw/ Borgwarner T10/ Tremec TKO Transmission; 6.45 Inch Height/ 4.684 Inch Transmission Bore; Mechanical Linkage Clutch Operation; 11 Inch Diameter Clutch; For Use With 153/ 164 Tooth Flywheel; SFI 6.1 Certified; Uses OEM Starter/ Aftermarket Mini Starter; 39 Pounds Steel; With Safety Plate And Grade 8 Hardware

MPN: 15050

A S.F.I. approved safety bell housing is required for vehicles running 11.49 seconds or quicker in quarter mile competition. Lakewood industries has been providing racers a safer solution to weak cast bellhousings for over 40 years. Lakewood bellhousings are built in the USA from high strength; hydro formed, and stress relieved steel to ensure uniform wall thickness. They are precision machined and blanchard ground to tight tolerances for maximum bolt and bore alignment. All Lakewood safety bellhousings are heat treated for added strength and certified to SFI 6.1W specifications. Inspection windows can be installed by contacting our technical services department.

Compatibility: Muncie/ Saginaw/ Borgwarner T10/ Tremec TKO Transmission
Transmission Bore Diameter: 4.684 Inch
Bellhousing Height: 6.45 Inch
Clutch Diameter: 11 Inch
Clutch Operation: Mechanical Linkage
Flywheel Tooth Count: 153/ 164
Safety Rating: SFI 6.1
Starter Type: OEM Starter/ Aftermarket Mini Starter
Weight (LB): 39 Pounds
Material: Steel
Includes Motor Safety Plate: Yes
Includes Mounting Hardware: Yes

Features

  • MIG Welded Thread Inserts For Transmission Mounting, Clutch Fork Pivot Ball, And Linkage Brackets Where Applicable
  • Durable Powder Coated Finish For Years Of Corrosion Free Service
  • Included Block Plate And Grade 8 Hardware
  • Approved By All Major Sanctioning Bodies
  • Direct Fit Engineering Ensures Easy To Install For Popular Passenger Cars
  • Limited 90 Day Warranty
Specifications of Lakewood Manual Trans Bellhousing 15050
Bellhousing Height  6.45 Inch
Clutch Diameter  11 Inch
Clutch Operation  Mechanical Linkage
Compatibility  Muncie/ Saginaw/ Borgwarner T10/ Tremec TKO Transmission
Flywheel Tooth Count  153/ 164
Includes Motor Safety Plate  Yes
Includes Mounting Hardware  Yes
Material  Steel
Safety Rating  SFI 6.1
Starter Type  OEM Starter/ Aftermarket Mini Starter
Transmission Bore Diameter  4.684 Inch
Weight (LB)  39 Pounds
