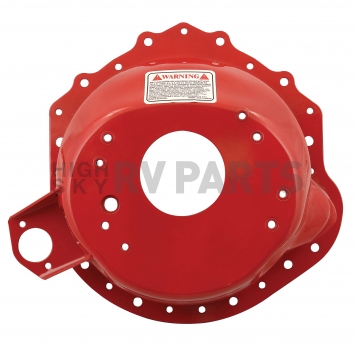

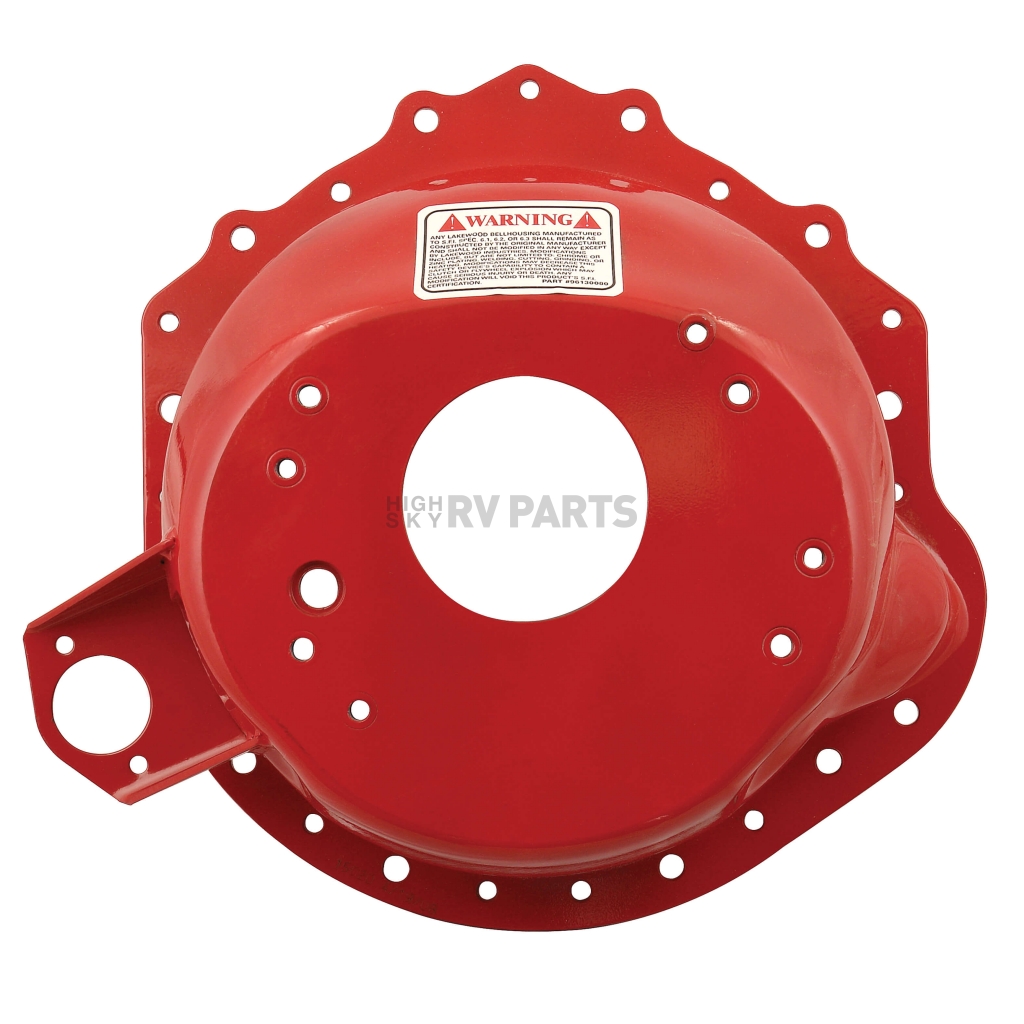

Lakewood Manual Trans Bellhousing 15020
Manual Trans Bellhousing; Chevrolet 265 - 400/ 396 - 502/ 90 Degree V6; Borgwarner T5/ Muncie/ Saginaw/ Borgwarner T10/ Tremec TKO Transmission; 6.45 Inch Height/ 4.684 Inch Transmission Bore; Mechanical/ Hydraulic Linkage Clutch Operation; 11 Inch Diameter Clutch; For Use With 153/ 164 Tooth Flywheel; SFI 6.1 Certified; Uses OEM Starter/ Aftermarket Mini Starter; 41 Pounds Steel; With Safety Plate And Grade 8 Hardware
MPN: 15020
A S.F.I. approved safety bell housing is required for vehicles running 11.49 seconds or quicker in quarter mile competition. Lakewood industries has been providing racers a safer solution to weak cast bellhousings for over 40 years. Lakewood bellhousings are built in the USA from high strength; hydro formed, and stress relieved steel to ensure uniform wall thickness. They are precision machined and blanchard ground to tight tolerances for maximum bolt and bore alignment. All Lakewood safety bellhousings are heat treated for added strength and certified to SFI 6.1W specifications. Inspection windows can be installed by contacting our technical services department.Features
- MIG Welded Thread Inserts For Transmission Mounting, Clutch Fork Pivot Ball, And Linkage Brackets Where Applicable
- Durable Powder Coated Finish For Years Of Corrosion Free Service
- Included Block Plate And Grade 8 Hardware
- Approved By All Major Sanctioning Bodies
- Direct Fit Engineering Ensures Easy To Install For Popular Passenger Cars
- Limited 90 Day Warranty
Specifications of Lakewood Manual Trans Bellhousing 15020 | |
Bellhousing Height | 6.45 Inch |
Clutch Diameter | 11 Inch |
Clutch Operation | Mechanical/ Hydraulic Linkage |
Compatibility | Borgwarner T5/ Muncie/ Saginaw/ Borgwarner T10/ Tremec TKO Transmission |
Flywheel Tooth Count | 153/ 164 |
Includes Motor Safety Plate | Yes |
Includes Mounting Hardware | Yes |
Material | Steel |
Safety Rating | SFI 6.1 |
Starter Type | OEM Starter/ Aftermarket Mini Starter |
Transmission Bore Diameter | 4.684 Inch |
Weight (LB) | 41 Pounds |
1985 Chevrolet Camaro
1986 Chevrolet Camaro
1987 Chevrolet Camaro
1988 Chevrolet Camaro
1989 Chevrolet Camaro
1990 Chevrolet Camaro
1991 Chevrolet Camaro
1992 Chevrolet Camaro
1985 Pontiac Firebird
1986 Pontiac Firebird
1987 Pontiac Firebird
