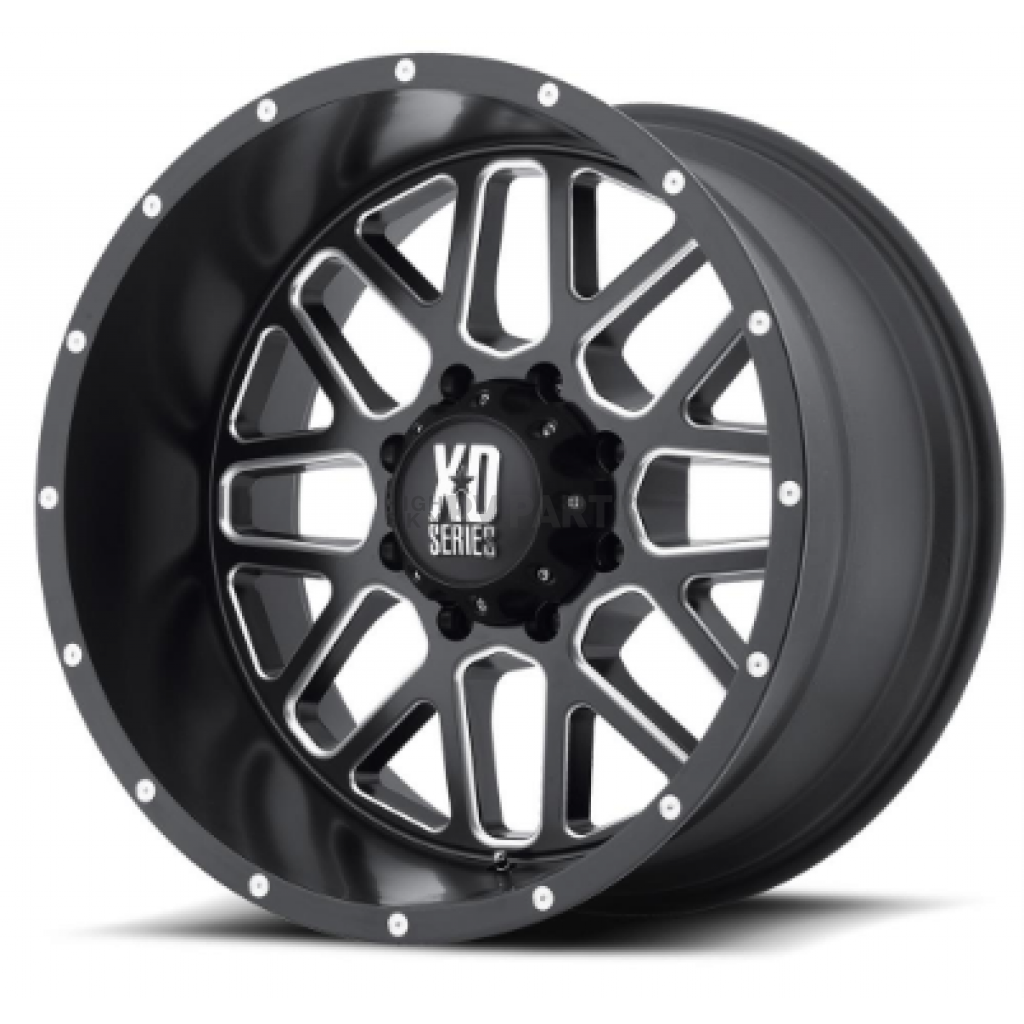

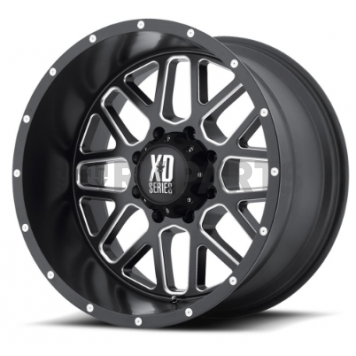

KMC Wheel 20 Diameter Aluminum Black - XD82029050900
Backspacing
5.00
Basic Design
8 Spoke
Bolt Pattern Inch
Not Applicable
Bolt Pattern Millimeter
Not Applicable
Center Bore
78.30
Center Cap
See Replacement Items
Center Cap Design
XD Series Logo
Color
Black With Natural Accents
Compatible With TPMS (Tire Pressure Monitoring Sys
Yes
Construction
One Piece Cast
Diameter
20
Share this page
KMC Wheels Wheel
Wheel; XD820 Grenade; 20 Inch Diameter x 9 Inch Width; 5 x 127 Millimeter/ 5 x 5 Inch Bolt Pattern; 0 Millimeter Offset; 5.00 Inch Backspacing; 60 Degree Conical Seat Lug; 78.30 Millimeter Center Bore; 8 Spoke; 1 Piece Cast Aluminum Construction; Satin Black With Milled Accents; 2500 Pound Load Capacity; Compatible With TPMS (Tire Pressure Monitoring System); 40 Inch Max Tire Diameter; With XD Series Logo Center Cap; Single
MPN: XD82029050900
GRENADE Wheels by XD Series®. XD Series wheels are legends in off-roading. Their style and performance have made them favorites for off-road racers, rock crawlers and mudders alike. The designs are race-proven and feature an unmatched combination of light weight and durability.
Bolt Pattern Inch: Not Applicable
Bolt Pattern Millimeter: Not Applicable
Diameter: 20
Width: 9
Offset: 0
Backspacing: 5.00
Finish: Satin With Milled Accents
Color: Black With Natural Accents
Material: Aluminum
Bolt Pattern Inch: 5x5.00
Bolt Pattern Inch: Not Applicable
Bolt Pattern Millimeter: 5x127
Bolt Pattern Millimeter: Not Applicable
Lug Nut Seat Type: 60 Degree Conical
Center Cap: See Replacement Items
Center Bore: 78.30
Lug Nut Design: Acorn
Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
Basic Design: 8 Spoke
With Inserts: No
Load Capacity: 2500
Size: 20x9
Max Tire Diameter: 40
Center Cap Design: XD Series Logo
Finish Warranty: 1 Year
Structural Warranty: Lifetime
Quantity: Single
Construction: One Piece Cast
With Hub Centric Ring: No
Features
- Satin Black With Milled Accents
- 1-Piece Cast Aluminum Construction
- Compatible With TPMS (Tire Pressure Monitoring System)
- With XD Series Logo Center Cap
- Designs Are Race-Proven And Feature An Unmatched Combination Of Light Weight And Durability
- Limited Lifetime Structural Warranty And Limited 1 Year Finish Warranty
| Specifications of KMC Wheel 20 Diameter Aluminum Black - XD82029050900 | |
| Backspacing | 5.00 |
| Basic Design | 8 Spoke |
| Bolt Pattern Inch | Not Applicable |
| Bolt Pattern Millimeter | Not Applicable |
| Center Bore | 78.30 |
| Center Cap | See Replacement Items |
| Center Cap Design | XD Series Logo |
| Color | Black With Natural Accents |
| Compatible With TPMS (Tire Pressure Monitoring Sys | Yes |
| Construction | One Piece Cast |
| Diameter | 20 |
| Finish | Satin With Milled Accents |
| Finish Warranty | 1 Year |
| Load Capacity | 2500 |
| Lug Nut Design | Acorn |
| Lug Nut Seat Type | 60 Degree Conical |
| Material | Aluminum |
| Max Tire Diameter | 40 |
| Offset | 0 |
| Quantity | Single |
| Size | 20x9 |
| Structural Warranty | Lifetime |
| Width | 9 |
| With Hub Centric Ring | No |
| With Inserts | No |
