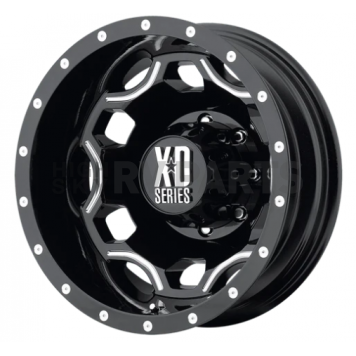

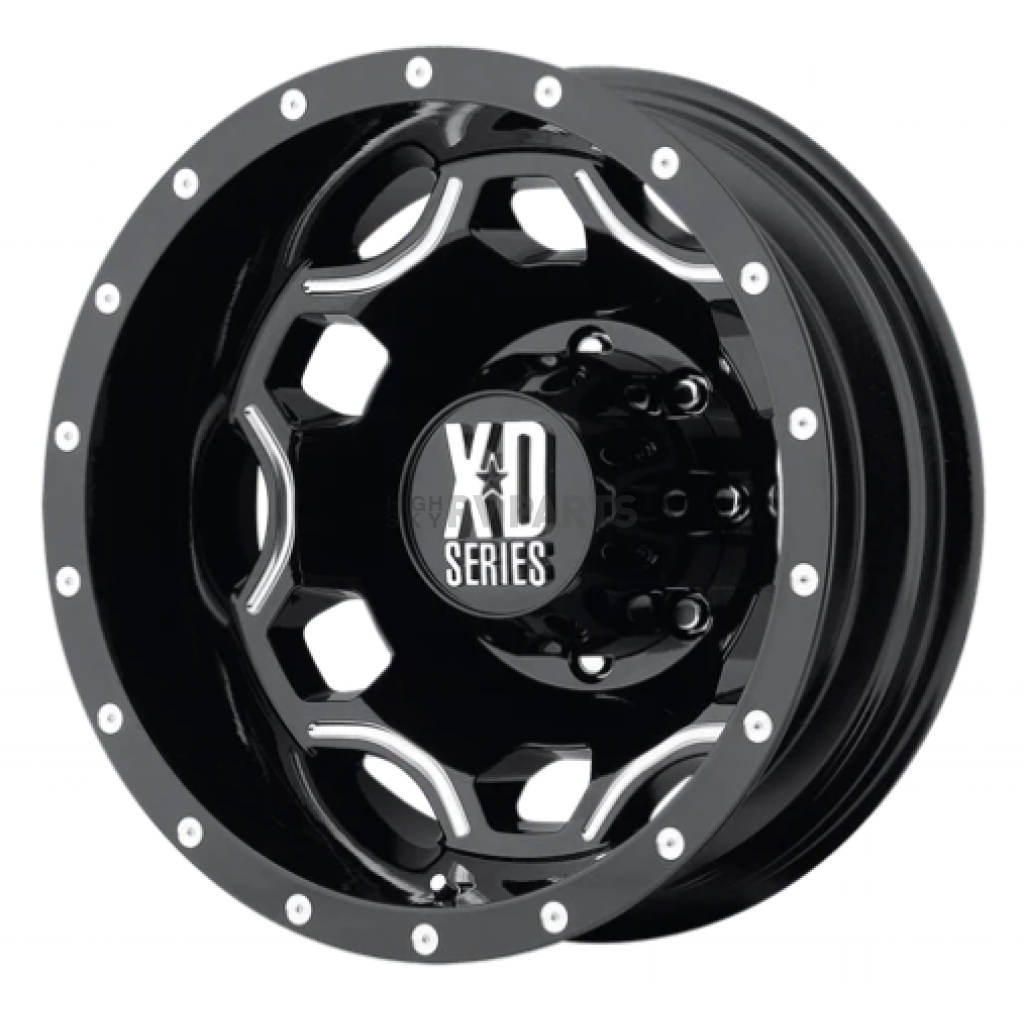

KMC Wheel 17 Inch Diameter 111 Offset Aluminum Black Single - XD81476089399
Brand:
Fulton Trailer
Fulton Trailer- Have a product question? Ask us
- Part Number: XD81476089399
- Part Location: U.S.
- Availability: Discontinued
Backspacing
7.87
Basic Design
6 Spoke
Bolt Pattern Inch
Not Applicable
Bolt Pattern Millimeter
Not Applicable
Center Bore
154.30
Center Cap
See Replacement Items
Center Cap Design
XD Series Logo
Color
Black With Natural Accents
Compatible With TPMS (Tire Pressure Monitoring Sys
Yes
Construction
One Piece Cast
Diameter
17
Share this page
KMC Wheels Wheel
Wheel; Crux XD814; 17 Inch Diameter x 6 Inch Width; 8 x 210 Millimeter/ 8 x 8.27 Inch Bolt Pattern; 111 Millimeter Offset; 7.87 Inch Backspacing; 60 Degree Conical Seat Lug; 154.30 Millimeter Center Bore; 6 Spoke; 1 Piece Cast Aluminum Construction; Gloss Black With Machined Accents; 3200 Pound Load Capacity; Compatible With TPMS (Tire Pressure Monitoring System); 31.8 Inch Max Tire Diameter; With XD Series Logo Center Cap; Single
MPN: XD81476089399
XD wheels rip through limits. They thrive on the dirt and chaos of extra-duty, off-road racing. They are built for those who need precise equipment for an imprecise environment. Light- weight, strong, and race-tested, these wheels are always looking to take on the next challenge.
Bolt Pattern Inch: Not Applicable
Bolt Pattern Millimeter: Not Applicable
Diameter: 17
Width: 6
Offset: 111
Backspacing: 7.87
Finish: Gloss With Machined Accents
Color: Black With Natural Accents
Material: Aluminum
Bolt Pattern Inch: 8x8.27
Bolt Pattern Inch: Not Applicable
Bolt Pattern Millimeter: 8x210
Bolt Pattern Millimeter: Not Applicable
Lug Nut Seat Type: 60 Degree Conical
Center Cap: See Replacement Items
Center Bore: 154.30
Lug Nut Design: Acorn Duplex
Compatible With TPMS (Tire Pressure Monitoring Sys: Yes
Basic Design: 6 Spoke
With Inserts: No
Load Capacity: 3200
Size: 17x6
Max Tire Diameter: 31.8
Center Cap Design: XD Series Logo
Finish Warranty: 1 Year
Structural Warranty: Lifetime
Quantity: Single
Construction: One Piece Cast
With Hub Centric Ring: No
Features
- Gloss Black With Machined Accents
- 1-Piece Cast Aluminum Construction
- Compatible With TPMS (Tire Pressure Monitoring System)
- With XD Series Logo Center Cap
- Limited Lifetime Structural Warranty And Limited 1 Year Finish Warranty
| Specifications of KMC Wheel 17 Inch Diameter 111 Offset Aluminum Black Single - XD81476089399 | |
| Backspacing | 7.87 |
| Basic Design | 6 Spoke |
| Bolt Pattern Inch | Not Applicable |
| Bolt Pattern Millimeter | Not Applicable |
| Center Bore | 154.30 |
| Center Cap | See Replacement Items |
| Center Cap Design | XD Series Logo |
| Color | Black With Natural Accents |
| Compatible With TPMS (Tire Pressure Monitoring Sys | Yes |
| Construction | One Piece Cast |
| Diameter | 17 |
| Finish | Gloss With Machined Accents |
| Finish Warranty | 1 Year |
| Load Capacity | 3200 |
| Lug Nut Design | Acorn Duplex |
| Lug Nut Seat Type | 60 Degree Conical |
| Material | Aluminum |
| Max Tire Diameter | 31.8 |
| Offset | 111 |
| Quantity | Single |
| Size | 17x6 |
| Structural Warranty | Lifetime |
| Width | 6 |
| With Hub Centric Ring | No |
| With Inserts | No |
