Keeper Corporation Winch - 3000 Pound Electric - KT3000
Brake Type
Dynamic And Mechanical Braking
Color
Black
Drive Gear Type
Planetary
Drum Material
Steel
Electrical Control Type
Circuit Breaker Protected
Estimated Install Time (Hours)
2
Fairlead Type
Roller
Free Spooling
Yes
Gear Reduction Ratio
5.6673611111
Includes Mounting Hardware
Yes
Line Diameter (IN)
3/16 Inch
Share this page
Keeper Corporation Winch
Winch; TRAKKER ®; ATV/ UTV/ Trailer/ General Use Winch; 12 Volt DC; 3000 Pound Single Line Pull Capacity; 50 Feet Galvanized Wire Rope; Roller Fairlead; Handle Bar Mini Rocker Switch; 3 Stage Planetary Gear Drive
MPN: KT3000
In many applications, you’re dealing with a rolling load rather than pulling a dead weight. It is often said that one can probably push your vehicle but most can’t lift it. Therefore, you need to size the winch to the rolling load. Then you should select those winch features that you find most beneficial and that allow you to load the trailer safely by yourself.
Winch Rating: 3000 Pound
Recommended Use: ATV/ UTV
Type: Electric
Mount Type: Fixed Mount
Voltage: 12 Volt
Motor Horsepower: 1.45 Horsepower
Thermal Shutoff: No
Gear Reduction Ratio: 5.6673611111
Free Spooling: Yes
Operation Type: Power
Line Length (FT): 50 Feet
Line Material: Steel
Fairlead Type: Roller
Remote Type: Wired
Brake Type: Dynamic And Mechanical Braking
Includes Mounting Hardware: Yes
Color: Black
Mounting Pattern Size: 3 Inch Length X 4-7/8 Inch Width
Max Amp Draw: 190 Amp Draw At 3000 Pound
Line Speed At Max Pull: 5 Feet Per Minute At 3000 Pound
Electrical Control Type: Circuit Breaker Protected
Motor Type: Permanent Magnet
Drive Gear Type: Planetary
Line Diameter (IN): 3/16 Inch
Mounting Hole Quantity: 4
Drum Material: Steel
Estimated Install Time (Hours): 2
Features
- Power In And Out, Circuit Breaker Protected
- Freespool Clutch. 3 Stage Planetary Gear Box
- Mechanical And Dynamic Brake. Drum Centric Design
- All Metal Gear Train. Hand Held Remote Switch
- High Efficiency Low Amp Draw Motor
- Unique Mounting Bracket Allows For Removal And Use As Hand Held Remote

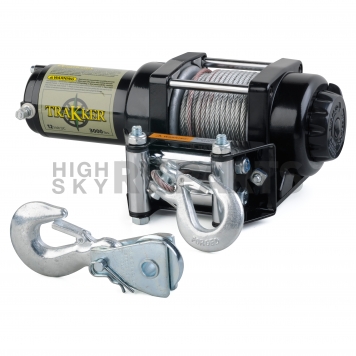

- Roller Fairlead, Load Doubling Pulley Block, Flat Bed Mounting Plate Included
- Limited Lifetime Warranty
| Specifications of Keeper Corporation Winch - 3000 Pound Electric - KT3000 | |
| Brake Type | Dynamic And Mechanical Braking |
| Color | Black |
| Drive Gear Type | Planetary |
| Drum Material | Steel |
| Electrical Control Type | Circuit Breaker Protected |
| Estimated Install Time (Hours) | 2 |
| Fairlead Type | Roller |
| Free Spooling | Yes |
| Gear Reduction Ratio | 5.6673611111 |
| Includes Mounting Hardware | Yes |
| Line Diameter (IN) | 3/16 Inch |
| Line Length (FT) | 50 Feet |
| Line Material | Steel |
| Line Speed At Max Pull | 5 Feet Per Minute At 3000 Pound |
| Max Amp Draw | 190 Amp Draw At 3000 Pound |
| Motor Horsepower | 1.45 Horsepower |
| Motor Type | Permanent Magnet |
| Mount Type | Fixed Mount |
| Mounting Hole Quantity | 4 |
| Mounting Pattern Size | 3 Inch Length X 4-7/8 Inch Width |
| Operation Type | Power |
| Recommended Use | ATV/ UTV |
| Remote Type | Wired |
| Thermal Shutoff | No |
| Type | Electric |
| Voltage | 12 Volt |
| Winch Rating | 3000 Pound |
