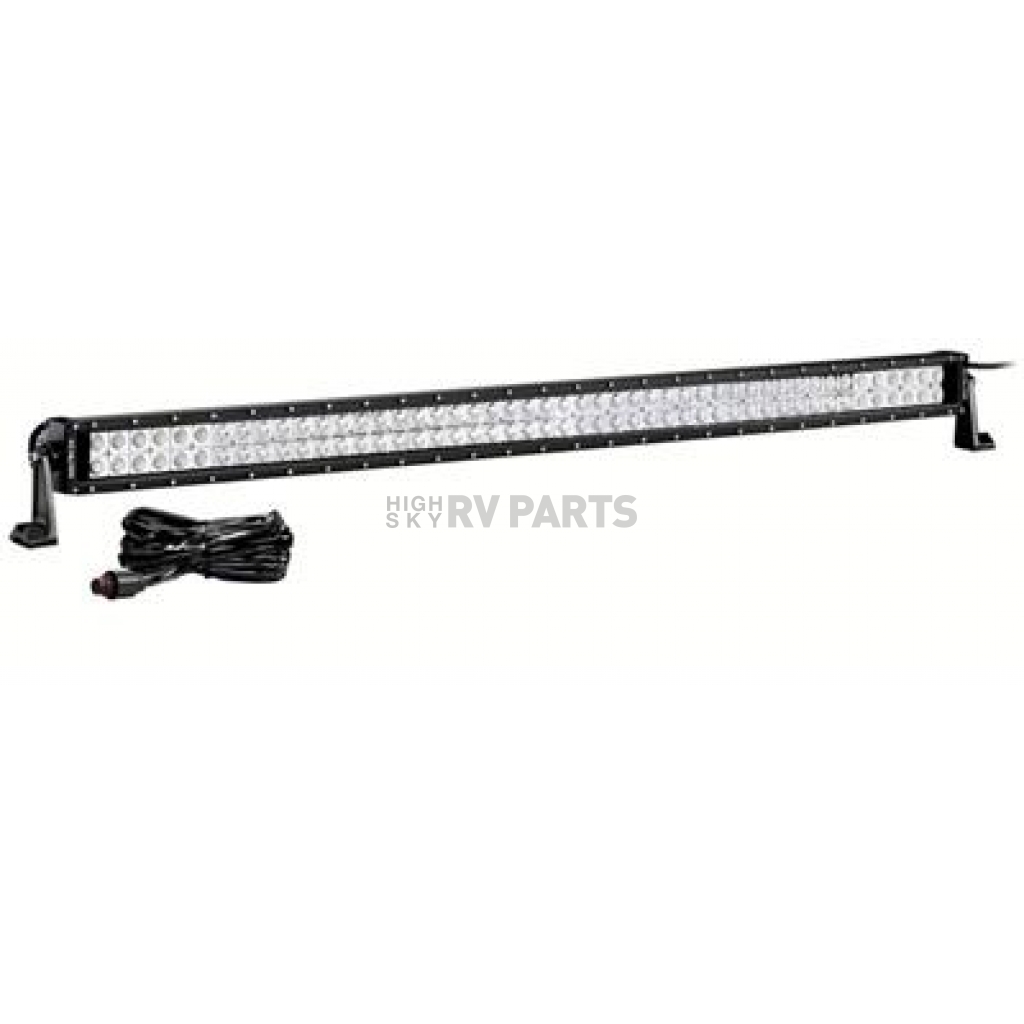

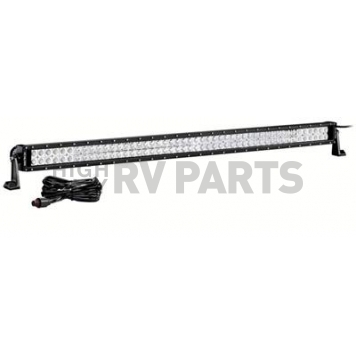

KC Hilites Light Bar LED 50 Inch - 338

Authorized Dealer
Brand: KC Hilites KC Hilites
0 reviews
  • Have a product question? Ask us
  • Part Number: 338
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by June 10
Retail: $1,015.34
Price: $966.99
You Save: $48.35
Ampere Rating At 12 Volts
19.75 Amp
Beam Angle (Deg)
12 Degree Spot/ 30 Degree Spread
Beam Type
Spot/ Spread Combo Beam
Connection Type
Plug And Play Wiring Harness
Estimated Install Time (Hours)
1.5
Height (IN)
3.09 Inch
Housing Color
Black
Housing Material
Aluminum
Includes Light Cover
Yes
Includes Mounting Hardware
No
Length (IN)
50 Inch
Share this page

KC Hilites Light Bar - LED

Light Bar - LED; C-Series; 50 Inch Length; 288 Watt; Spot/ Spread Combo Beam; 202000 Lumens; 96-LED Clear Bulb; Clear Lens; Extruded Aluminum Housing; Surface Mount/ 52.88 Inch Mounting Bolt To Mounting Bolt; With Wiring Harness And Waterproof Connectors; Requires Mounting Brackets To Fit Listed Vehicles

MPN: 338

KC HiLiTES C-Series LED Light Bars feature bright and efficient CREE LEDs with combo 8 Degree Spot and 90 Degree Spread reflectors. The C-Series uses an advanced dual row CREE LED design delivering up to 27,000 lumens of output with maximum power efficiency. Coming in various sizes KC HiLiTES C-Series LED Light bars are perfect for hood, front bumper, windshield and grille applications providing balanced and powerful light illumination.
Beam Type: Spot/ Spread Combo Beam
Beam Angle (Deg): 12 Degree Spot/ 30 Degree Spread
Type: Straight
Number of LEDs: 96
Number Of Rows: Double
Wattage: 288 Watt
Voltage Rating: 9 To 32 Volt
Ampere Rating At 12 Volts: 19.75 Amp
Length (IN): 50 Inch
Width (IN): 3.4 Inch
Height (IN): 3.09 Inch
Mounting Length (IN): 52.88 Inch
Light Color: Clear
Housing Color: Black
Housing Material: Aluminum
Mounting Style: Surface Mount
Connection Type: Plug And Play Wiring Harness
Includes Light Cover: Yes
Includes Mounting Hardware: No
Estimated Install Time (Hours): 1.5

Features

  • 6 Inch To 50 Inch C-SERIES LED Dual Row Light Bar
  • Precision Reflectors With Forward Facing LEDs
  • Extruded Aluminum Housings
  • Performance Output And Clarity: The C-Series Uses An Advanced Dual Row CREE LED Design Delivering Up To 27,000 Lumens Of Output With Maximum Power Efficiency
  • High Performance Meets Affordability: Features An Extruded Aluminum Housing, Aluminum Core PCBs With Thermal Management And Lexan Lenses
  • Combo Beam Pattern And Advantages: Features A Combo Beam With Perfectly Angled 8 Degree Spot And 90 Degree Spread Reflectors
  • Combo Beam Pattern And Advantages: For Maximum Forward Distance And Increased Peripheral Illumination Along Road Edges
  • Designed For Durability: Designed To Handle The Harshest Environments; Featuring A IP67 Rated Housing And GORE® Membranes, The C-Series Is Resistant To Moisture And Dust
  • Limited 23 Year Warranty
Specifications of KC Hilites Light Bar LED 50 Inch - 338
Ampere Rating At 12 Volts 19.75 Amp
Beam Angle (Deg) 12 Degree Spot/ 30 Degree Spread
Beam Type Spot/ Spread Combo Beam
Connection Type Plug And Play Wiring Harness
Estimated Install Time (Hours) 1.5
Height (IN) 3.09 Inch
Housing Color Black
Housing Material Aluminum
Includes Light Cover Yes
Includes Mounting Hardware No
Length (IN) 50 Inch
Light Color Clear
Mounting Length (IN) 52.88 Inch
Mounting Style Surface Mount
Number of LEDs 96
Number Of Rows Double
Type Straight
Voltage Rating 9 To 32 Volt
Wattage 288 Watt
Width (IN) 3.4 Inch

2007 Jeep Wrangler JK
2008 Jeep Wrangler JK
2009 Jeep Wrangler JK
2010 Jeep Wrangler JK
2011 Jeep Wrangler JK
2012 Jeep Wrangler JK
2013 Jeep Wrangler JK
2014 Jeep Wrangler JK
2015 Jeep Wrangler JK
2016 Jeep Wrangler JK
2017 Jeep Wrangler JK
2018 Jeep Wrangler JK
