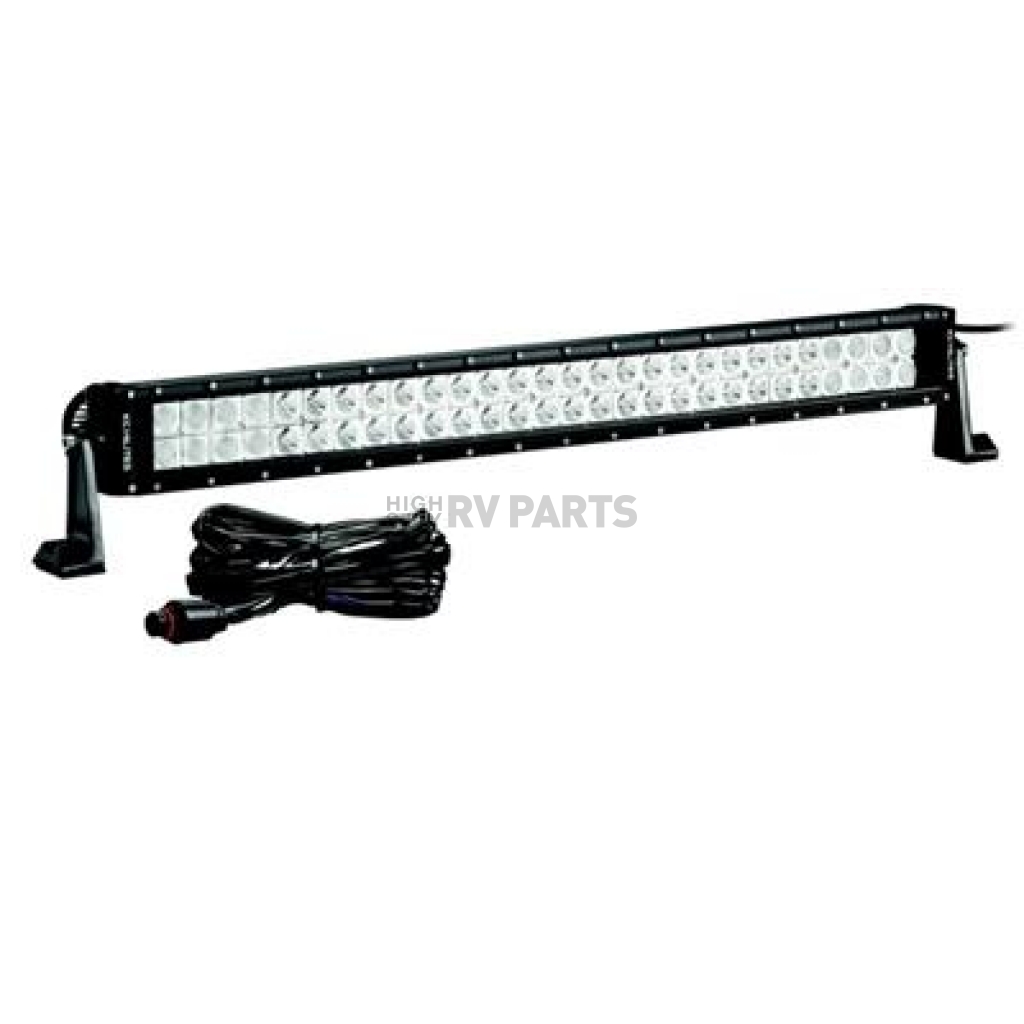

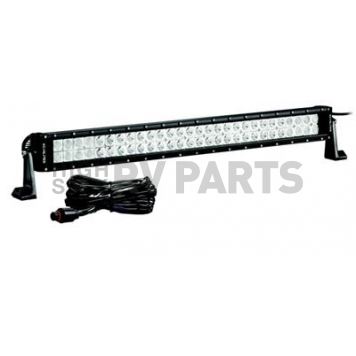

KC Hilites Light Bar LED 30 Inch - 336

Authorized Dealer
Brand: KC Hilites KC Hilites
0 reviews
  • Have a product question? Ask us
  • Part Number: 336
  • Part Location: U.S.
  • Availability: Out Of Stock
Retail: $542.84
Price: $516.99
You Save: $25.85
Ampere Rating At 12 Volts
3 Amp
Beam Angle (Deg)
12 Degree Spot/ 30 Degree Spread
Beam Type
Spot/ Spread Combo Beam
Connection Type
Plug And Play Wiring Harness
Estimated Install Time (Hours)
1.5
Height (IN)
3.09 Inch
Housing Color
Black
Housing Material
Aluminum
Includes Light Cover
Yes
Includes Mounting Hardware
No
Length (IN)
30 Inch
Share this page

KC Hilites Light Bar - LED

Light Bar - LED; C-Series; 30 Inch Length; 168 Watt; Spot/ Spread Combo Beam; 11800 Lumens; 56-LED Clear Bulb; Clear Lens; Extruded Aluminum Housing; Surface Mount/ 32.88 Inch Mounting Bolt To Mounting Bolt; With Wiring Harness And Waterproof Connectors; Requires Mounting Brackets To Fit Listed Vehicles

MPN: 336

KC C-Series Light Bars are an entry level offering that consists of a Compact Light and Light Bars rugged enough to carry the KC HiLiTES name. KC’s C-Series LED light bars are available in 10, 20, 30, 40 and 50 Inch models.
Beam Type: Spot/ Spread Combo Beam
Beam Angle (Deg): 12 Degree Spot/ 30 Degree Spread
Type: Straight
Number of LEDs: 56
Number Of Rows: Double
Wattage: 168 Watt
Voltage Rating: 9 To 32 Volt
Ampere Rating At 12 Volts: 3 Amp
Length (IN): 30 Inch
Width (IN): 3.4 Inch
Height (IN): 3.09 Inch
Mounting Length (IN): 32.88 Inch
Light Color: Clear
Housing Color: Black
Housing Material: Aluminum
Mounting Style: Surface Mount
Connection Type: Plug And Play Wiring Harness
Includes Light Cover: Yes
Includes Mounting Hardware: No
Estimated Install Time (Hours): 1.5

Features

  • Single Light With Wiring Harness
  • IP 67 Rated And Waterproof Connecters
  • Protected Against RFI / EMC Interference
  • On-Board Thermal Management
  • 50,000 Hours LED Life Span
  • Limited 23 Year Warranty
Specifications of KC Hilites Light Bar LED 30 Inch - 336
Ampere Rating At 12 Volts 3 Amp
Beam Angle (Deg) 12 Degree Spot/ 30 Degree Spread
Beam Type Spot/ Spread Combo Beam
Connection Type Plug And Play Wiring Harness
Estimated Install Time (Hours) 1.5
Height (IN) 3.09 Inch
Housing Color Black
Housing Material Aluminum
Includes Light Cover Yes
Includes Mounting Hardware No
Length (IN) 30 Inch
Light Color Clear
Mounting Length (IN) 32.88 Inch
Mounting Style Surface Mount
Number of LEDs 56
Number Of Rows Double
Type Straight
Voltage Rating 9 To 32 Volt
Wattage 168 Watt
Width (IN) 3.4 Inch

2007 Jeep Wrangler JK
2008 Jeep Wrangler JK
2009 Jeep Wrangler JK
2010 Jeep Wrangler JK
2011 Jeep Wrangler JK
2012 Jeep Wrangler JK
2013 Jeep Wrangler JK
2014 Jeep Wrangler JK
2015 Jeep Wrangler JK
2016 Jeep Wrangler JK
2017 Jeep Wrangler JK
2018 Jeep Wrangler JK
