JR Products DC Switches

Buy Now!


LED SIDE SLIDE DIMMER SWITCH

  • Great addition to LED interior or exterior lights
  • Control to output your LED lighting options for the perfect setting
  • Compact dimmer easily fits into current switch mounting areas
  • Simple 3 wire hook-ups for easy installation
  • Stylish design fits into any application
  • Can be wired into a 3-way switch application
  • 10A @ 12 VDC rating
  • Cutout: 1.625" x 1.75"
  • Switch: 2" x 2.875"

    • 05-12315 | Black, 1/pkg.
    05-12325 | White, 1/pkg.
    PUSH BUTTON ON/OFF SWITCH

  • Often used in roof vents and range hoods
  • Universal, with attached leads
  • Requires 3/8" round mounting hole
  • Mounting nut included
  • Patent #5,847,345
  • 90 day warranty from date of purchase

    • 13985 | 12V On/Off Switch, pkg.

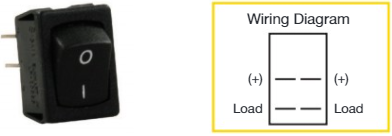

    MINI LABELED ON/OFF SWITCH

  • DPST, 20 Amp @ 125 VAC, 15 Amp @ 250 VAC, 40 Amp Peak/20 Amp continuous @ 12 VDC
  • UL/CUL/RoHS approved
  • Cutout: 0.756" x 0.508"
  • Switch: 0.745" x 0.500"

    • 13735 | Black, 1/pkg.

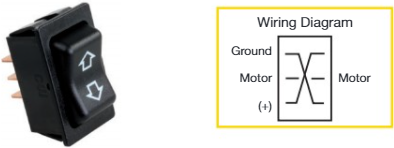

    MOMENTARY-ON/OFF/MOMENTARY-ON SWITCH

  • Type A
  • DPDT, 8 Amp @ 125 VAC, 1/2 H.P. @ 125-250 VAC, 9 Amp @ 14 VDC
  • UL/CSA approved
  • Cutout: 0.670" x 0.500"
  • Switch: 1.285" x 0.830"

    • 13005 | White, pkg.
    13015 | Brown, pkg.
    13025 | Black, pkg.

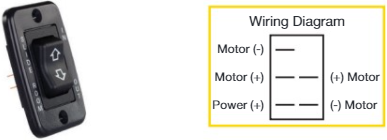

    MOMENTARY-ON/OFF/MOMENTARY-ON SWITCH

  • Type B
  • SPDT, 13 Amp @ 125 VAC, 10 Amp @ 250 VAC, 5 Amp @ 14 VDC
  • UL/CSA/RoHS approved
  • Cutout: 1.125" x 0.550"
  • Switch: 1.120" x 0.547"

    • 12675 | Black, 1/pkg.
    12685 | Ivory, 1/pkg.
    12695 | White, 1/pkg.

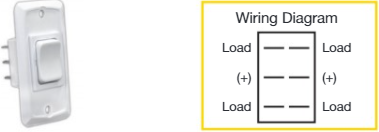

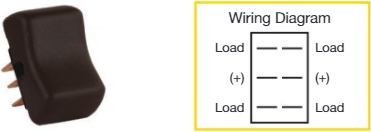

    MOMENTARY-ON/OFF/MOMENTARY-ON SWITCH

  • DPDT, 20 Amp @ 125 VAC, 15 Amp @ 250 VAC, 40 Amp @ 12 VDC
  • UL/CSA/VDE approved
  • Cutout: 1.25" x 0.84"
  • Switch: 2.75" x 1.80"

    • 12825 | Black, 1/pkg.
    12835 | White, 1/pkg.

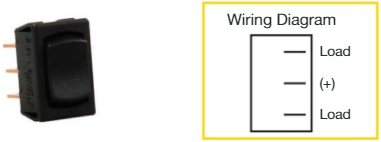

    MINI MOMENTARY-ON/OFF/MOMENTARY-ON SWITCH

  • SPDT 16 Amp @ 125 VAC, 1/3 H.P., 10 Amp @ 250 VAC, 1/2 H.P.
  • UL/CSA/RoHS approved
  • Cutout: 0.745" x 0.500"
  • Switch: 0.756" x 0.508"

    • 13725 | Black, 1/pkg.

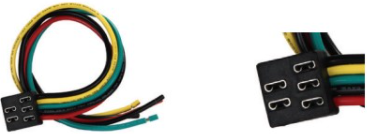

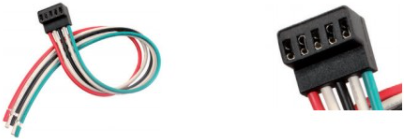

    SLIDE-OUT SWITCH WIRING HARNESS

  • Use with JRP P/N 12385 and 12395

    • 13975 | Wiring Harness, pkg.
    IN-LINE SWITCH WIRING HARNESS

  • Use with JRP P/N 13955

    • 13965 | Wiring Harness, pkg.
    IN-LINE SWITCH WIRING HARNESS

  • Use with JRP P/N 13925

    • 13945 | Wiring Harness, pkg.

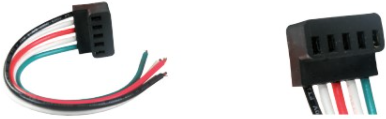

    2-ROW SLIDE-OUT SWITCH WIRING HARNESS

  • Used with JRP P/N 12075,12085,12095,12285, 12295, 12345, and 12355
  • Ratings: 40 Amp @ 12 VDC
  • Used to rewire 5-pin straight row switches

    • 13065 | Wiring Harness, pkg.
    5TH WHEEL/TONGUE JACK SWITCH

  • Mom-On/Off/Mom-On
  • 16 Amp @ 125 VAC(CSA), 15 Amp @ 125 VAC(UL), 10 Amp @ 250 VAC, 3/4 H.P. @ 250 VAC, 30 Amp @ 12 VDC
  • UL7CSA/CUL/IP55 RoHS approved
  • Cutout: 1.300" x 0.75"
  • Switch: 1.736" x 0.95"

    • 13635 | Black, pkg.

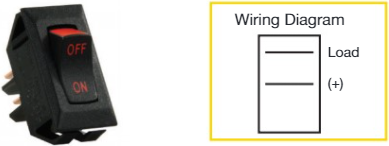

    LABELED ON/OFF SWITCH

  • Type B
  • SPST, 16 Amp @ 125 VAC, 12 Amp @ 250 VAC, 3/4 H.P. @ 125-250 VAC, 10 Amp @ 14 VDC
  • UL/CSA/VDE/RoHS approved
  • Cutout: 1.125" x 0.550"
  • Switch: 1.120" x 0.547"

    • 13655 | Black/Red Print, 1/pkg.

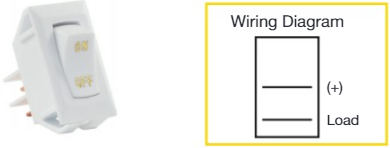

    LABELED ON/OFF SWITCH

  • Type B
  • SPST, 16 Amp @ 125 VAC, 12 Amp @ 250 VAC, 3/4 H.P. @ 125-250 VAC, 10 Amp @ 14 VDC
  • UL/CSA/VDE/RoHS approved
  • Cutout: 1.125" x 0.550"
  • Switch: 1.120" x 0.547"

    • 12581-5 | White, 5/bag
    12585 | White, 1/pkg.
    12591-5 | Black, 5/bag
    12595 | Black, 1/pkg.
    12605 | Brown, 1/pkg.
    12611-5 | Ivory, 5/bag
    12615 | Ivory, 1/pkg.

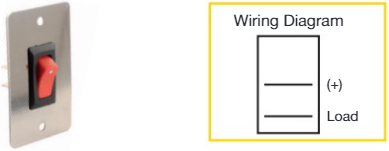

    ON/OFF SWITCH

  • Chrome face plate
  • SPST, 10 Amp @ 250 VAC, 15 Amp @ 125 VAC
  • UL/CSA/TUV/CQC approved
  • Cutout: 1.125" x 0.550"
  • Switch: 1.120" x 0.547"
  • Face Plate: 1.625" x 2.625"

    • 13885 | On/Off Switch, pkg.
    MINI MOMENTARY-ON/OFF/MOMENTARY-ON SWITCH

  • DPDT, 13 Amp @ 125 VAC, 10 Amp @ 250 VAC, 1/2 H.P. @ 125-250 VAC, 5 Amp @ 14 V (T)
  • UL/CSA/RoHS approved
  • Cutout: 0.745" x 0.500"
  • Switch: 0.756" x 0.508"

    • 13445 | Black, 1/pkg.
    FACE PLATE

  • Type B
  • Switch Cutout: 1.125" x 0.550"
  • Outside Dim: Single: 2.750" x 1.625"
  • Outside Dim: Double: 2.750" x 2.250"

    • 12841-5 | Single, White, 5/bag
    12845 | Single, White, 1 /pkg.
    12851-5 | Single, Black, 5/bag
    12855 | Single, Black, 1/pkg.
    12865 | Single, Brown, 1/pkg.
    12875 | Double, White, 1 /pkg.
    12885 | Double, Black, 1/pkg.
    SWITCH WALL SPACERS

  • Type B
  • Double has 3/8" deep spacer for thin wall applications

    • 13485 | Single, White, pkg.
    13495 | Single, Black, pkg.
    13515 | Double, White, pkg.
    13525 | Double, Black, pkg.
    SWITCH BASE & FACE PLATE

  • Type B
  • Allows more space for thin wall applications
  • Switch Cutout: 1.125" x 0.550"
  • Outside Dim: Single: 3.375" x 3.812"
  • Outside Dim: Double: 3.375" x 3.812"
  • Outside Dim: Triple: 3.750" x 4.875"

    • 13605 | Single, White, pkg.
    13615 | Double, White, pkg.
    13625 | Triple, White, pkg.
    SLIDE-OUT SWITCH

  • Use with JRP P/N 13971
  • 12V 40 Amp continuous
  • Cutout: 1.85" x 1.20"

    • 12385 | White, pkg.
    12395 | Black, pkg.

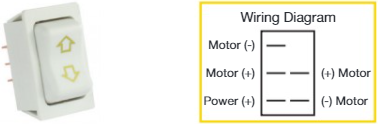

    SLIDE-OUT HIGH CURRENT MOTOR SWITCH

  • Mom-On/Off/Mom-On
  • Use with JRP P/N 13061
  • 12V 40 Amp continuous
  • Cutout: 1.85" x 1.20"

    • 12095 | White, pkg.
    12295 | Black, pkg.
    SLIDE-OUT SWITCH W/BEZEL

  • Mom-On/Off/Mom-On
  • Preprinted Slide Room plate
  • 12V 40 Amp continuous
  • Single Cutout: 1.85" x 1.20"

    • 12075 | Single Switch, White, pkg.
    12285 | Single Switch, Black, pkg.

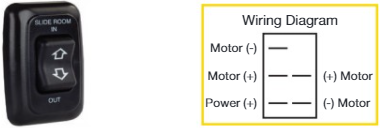

    LOW PROFILE SLIDE-OUT SWITCH W/BEZEL

  • Mom-On/Off/Mom-On
  • Use with wiring harness JRP P/N 13061
  • Preprinted slide room plate
  • 12 V 40 Amp continuous
  • Cutout: 1.67" x 0.95"
  • Switch: 2.87" x 1.87"

    • 12345 | White, pkg.
    12355 | Black, pkg.

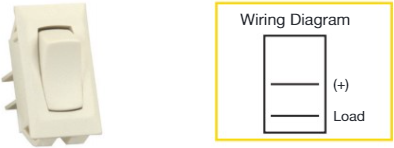

    ON/OFF SWITCH

  • Type B
  • SPST, 16 Amp @ 125 VAC, 12 Amp @ 250 VAC, 3/4 H.P. @ 125-250 VAC, 10 Amp @ 14 VDC
  • UL/CSA/VDE/RoHS approved
  • Cutout: 1.125" x 0.550"
  • Switch: 1.120" x 0.547"

    • 13391-5 | White, 5/bag
    13395 | White, 1/pkg.
    13401-5 | Black, 5/bag
    13405 | Black, 1/pkg.
    ON/OFF SWITCH WITH BEZEL

  • Type A
  • SPST, 16 Amp @ 125-250 VAC, 3/4 H.P. @ 125-250 VAC, 10 Amp @ 14 V (T), 3 Amp @ 125V(L)
  • UL/CSA/VDE approved
  • Cutout Dim: Single: 1.625" x 1.250"
  • Cutout Dim: Double: 1.625" x 2.437"
  • Cutout Dim: Triple: 1.625" x 3.625"
  • Cutout Dim: Quad: 1.625" x 4.813"

    • 12005 | Single Switch, White, pkg.
    12135 | Single Switch, Brown, pkg.
    12225 | Single Switch, Black, pkg.
    12015 | Double Switch, White, pkg.
    12145 | Double Switch, Brown, pkg.
    12235 | Double Switch, Black, pkg.
    12025 | Triple Switch, White, pkg.
    12155 | Triple Switch, Brown, pkg.
    12245 | Triple Switch, Black, pkg.
    12331 | Quad Switch, White, pkg.
    ON/OFF SWITCH

  • Type A
  • SPST, 16 Amp @ 125-250 VAC, 3/4 H.P. @ 125-250 VAC, 10 Amp @ 14 V (T), 3 Amp @ 125V(L)
  • UL/CSA/VDE approved
  • Cutout: 0.670" x 0.500"
  • Switch: 1.285" x 0.830"

    • 12035 | White, 1/pkg.
    12165 | Brown, 1/pkg.
    12255 | Black, 1/pkg.
    SWITCH BASE & FACE PLATE

  • Type A
  • Cutout Dim: Single: 1.625" x 1.250"
  • Cutout Dim: Double: 1.625" x 2.437"
  • Cutout Dim: Triple: 1.625" x 3.625"

    • 12115 | Double, White, pkg.
    12125 | Triple, White, pkg.
    12195 | Single, Brown, pkg.
    12205 | Double, Brown, pkg.
    12215 | Triple, Brown, pkg.
    12305 | Single, Black, pkg.
    12315 | Double, Black, pkg.
    12325 | Triple, Black, pkg.
    FURNITURE SWITCH FACE PLATE

  • Use with 12V Furniture Switch JRP P/N 13925
  • Measurement: 2.750" x 1.625"

    • 13935 | Black, pkg.
    IP66/206 SINGLE SWITCH PLATE

  • Type C
  • Fits all IP66/206 series switches
  • Constructed of durable plastic
  • Approved for exterior use
  • Outside Dim: 3.50" x 2.50"

    • 14035 | Polar, White, pkg.
    14045 | Black, pkg.
    GFCI ELECTRICAL OUTLET

  • 15 Amp @ 125 VAC
  • UL/cUL approved

    • 15005 | White, pkg.

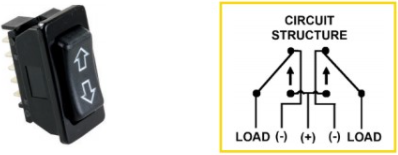

    IN-LINE FURNITURE SWITCH

  • Use with JRP P/N 13961
  • Used in recliners, beds, and various furniture applications
  • 12V 20 Amp
  • UL/CSA/VDE approved
  • NOT for use in high Amperage motors such as slide-out rooms or jacks
  • Cutout: 1.520" x 0.730"
  • Switch: 1.641" x 0.856"

    • 13955 | 12V Furniture Switch, pkg.

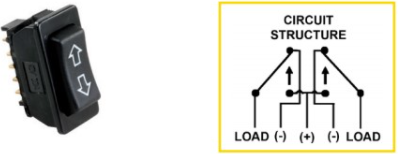

    12V FURNITURE SWITCH

  • DPDT, Mom-On/Off/Mom-On
  • Use with JRP P/N 13945 and 13931
  • 40 Amp 12 VDC Amp peak, 20 Amp 12 VDC continuous
  • Used for electric reclining chairs and sofas
  • NOT for use in high Amperage motors such as slide-out rooms or jacks
  • Cutout: 1.425" x 0.709"
  • Switch: 1.629" x 1.125"

    • 13925 | 12V Black, pkg.

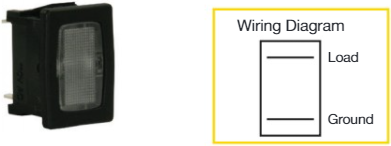

    RED LED INDICATOR LIGHT

  • Type A
  • Used with red snap in cover JRP P/N 13125
  • 16 Amp @ 125 VAC, 3/4 HP, 10 Amp @ 250 VAC 1/2 H.P., 10 Amp @ 12 VDC
  • UL/CSA/VDE approved
  • Cutout: 0.687" x 0.500"
  • Switch: 0.812" x 0.625"

    • 13115 | LED Indicator Light, pkg.
