JE Pistons Piston - 324009

Authorized Dealer
Brand: JE Pistons JE Pistons
0 reviews
  • Have a product question? Ask us
  • Part Number: 324009
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by June 06
Retail: $1,373.39
Price: $1,307.99
You Save: $65.40
Bore Size (IN)
4 Inch
Engine Compatibility
Chevy Small Block LS Series
Piston Type
Forged
Quantity
Set Of 8
Share this page

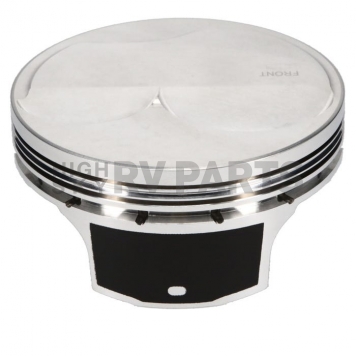

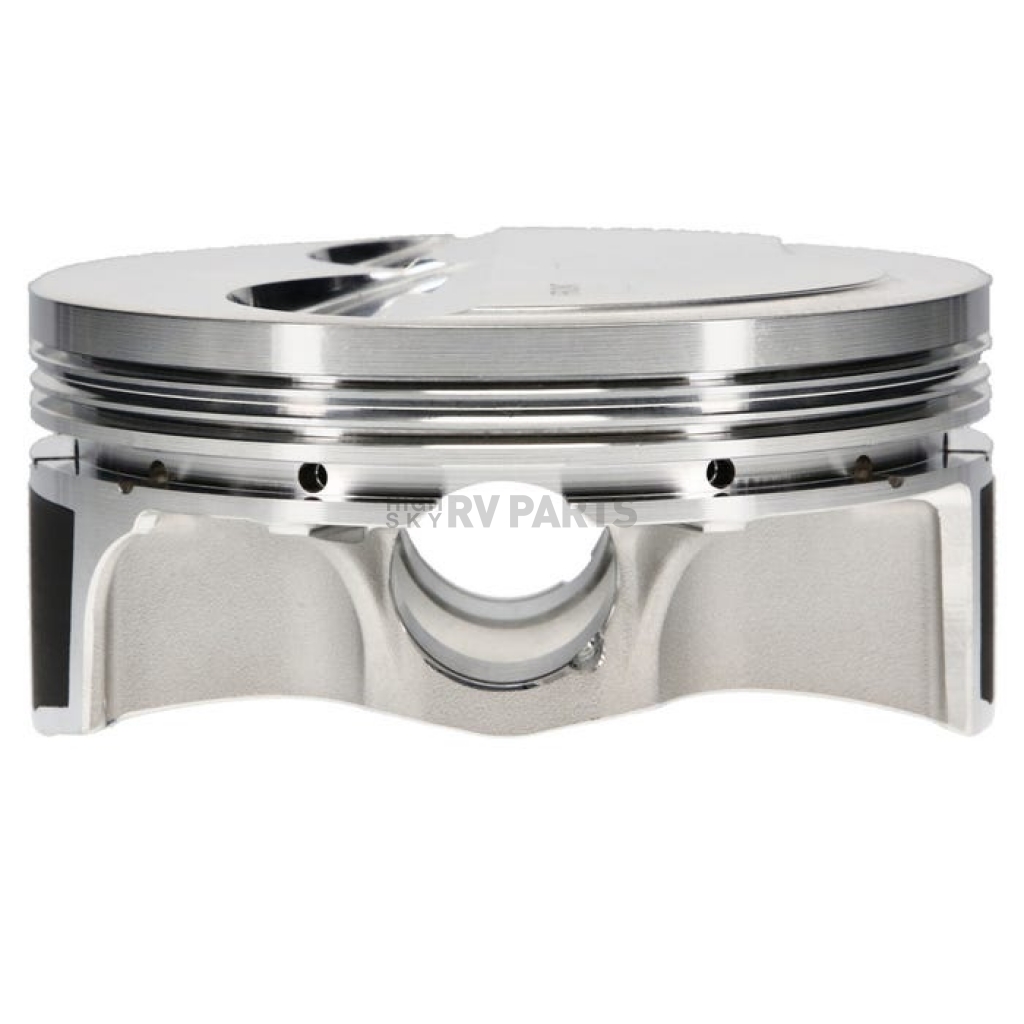

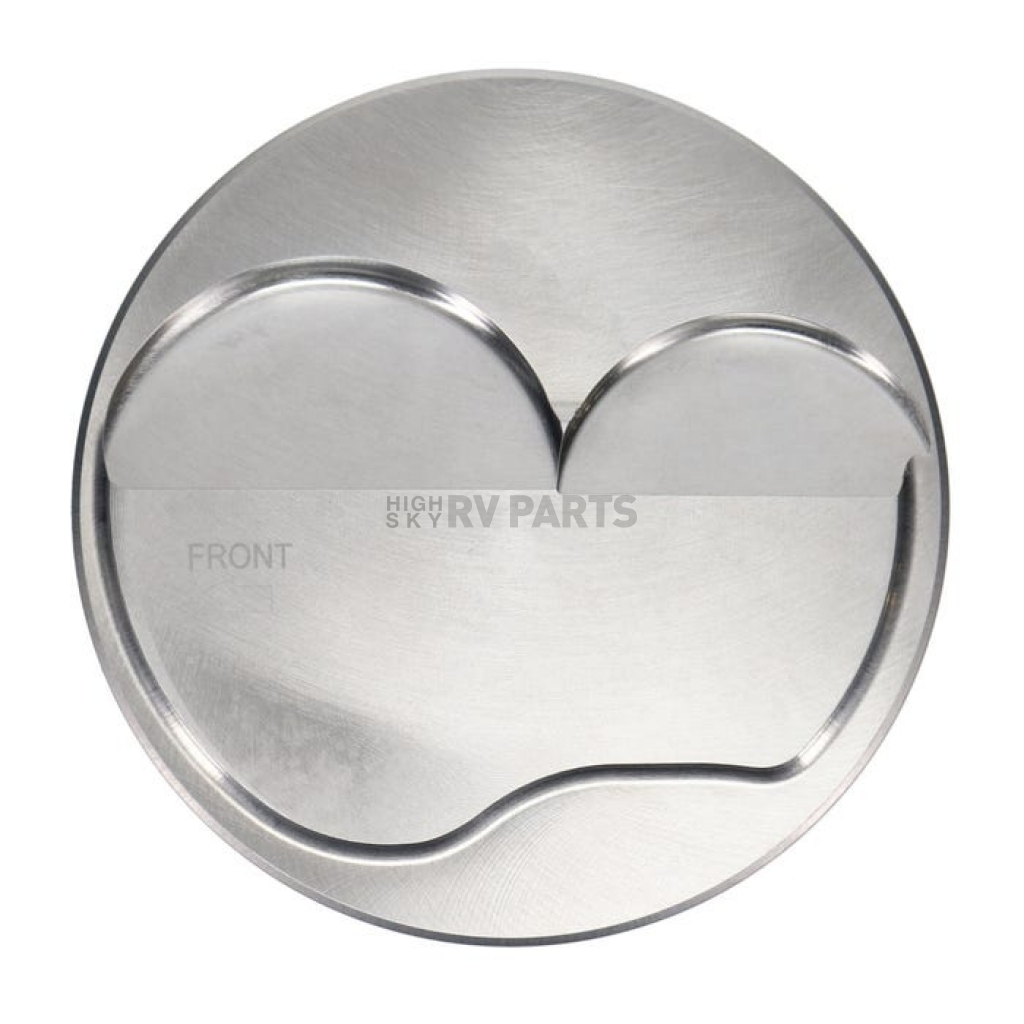

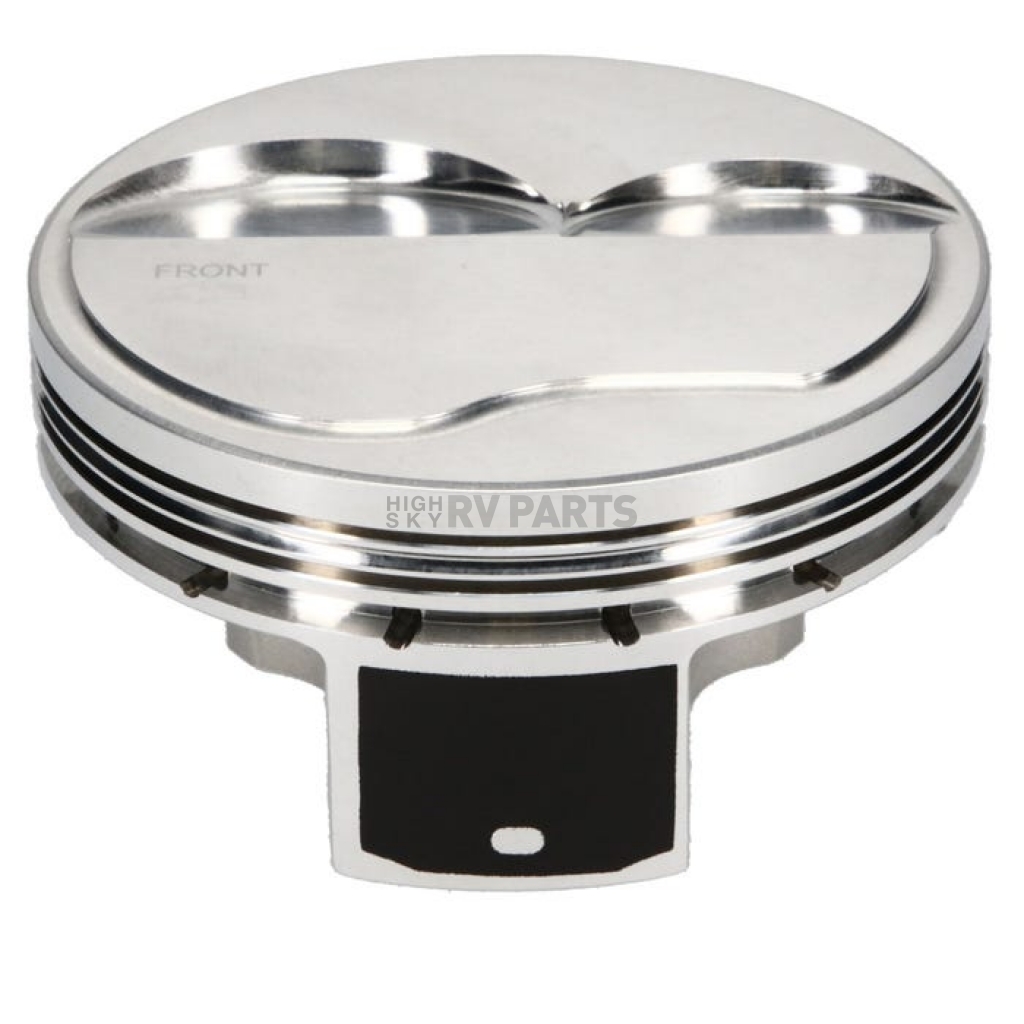

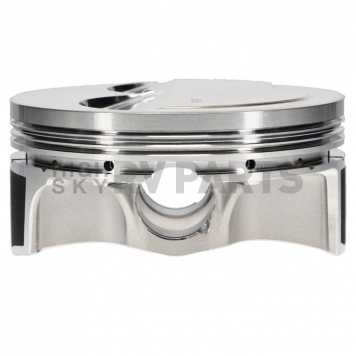

JE Pistons Piston

Piston; For Use With GM LS Engines; Forged; 4.00 Inch Bore; 3.900 Inch Stroke/ 6-1/8 Inch Rod Length; 1.165 Inch Compression Distance; 13.2:1 Compression Ratio With 64 CC Heads/ 12.5:1 Compression Ratio With 68 CC Heads/ 12.2:1 Compression Ratio With 70 CC Heads; 424 Grams; Set Of 8 Pistons

MPN: 324009

JE Pistons asymmetrical FSR (Forged Side Relief) piston line incorporates modern forging design with a larger skirt on the major thrust side and smaller, friction-reducing skirt on the minor thrust side. Combined with precision CNC machining, the result is a high-strength, lightweight piston that is extremely durable.
Engine Compatibility: Chevy Small Block LS Series
Piston Type: Forged
Compression Ratio: 13.2:1/ 12.5:1/ 12.2:1
Bore Size (IN): 4 Inch
Quantity: Set Of 8

Features

  • Forged Construction
  • No Supplier Warranty
Specifications of JE Pistons Piston - 324009
Bore Size (IN) 4 Inch
Engine Compatibility Chevy Small Block LS Series
Piston Type Forged
Quantity Set Of 8

2006 Cadillac CTS
2007 Cadillac CTS

2010 Chevrolet Camaro
2011 Chevrolet Camaro
2012 Chevrolet Camaro
2013 Chevrolet Camaro
2014 Chevrolet Camaro
2015 Chevrolet Camaro

2005 Chevrolet Corvette
2006 Chevrolet Corvette
2007 Chevrolet Corvette
2008 Chevrolet Corvette
2009 Chevrolet Corvette
2010 Chevrolet Corvette
2011 Chevrolet Corvette
2012 Chevrolet Corvette
2013 Chevrolet Corvette

2014 Chevrolet SS
2015 Chevrolet SS
2016 Chevrolet SS
2017 Chevrolet SS

2005 Chevrolet SSR
2006 Chevrolet SSR

2006 Chevrolet Trailblazer
2007 Chevrolet Trailblazer
2008 Chevrolet Trailblazer
2009 Chevrolet Trailblazer

2009 Pontiac G8

2005 Pontiac GTO
2006 Pontiac GTO

2008 Saab 9-7x
2009 Saab 9-7x
