JE Pistons Piston - 258220

Authorized Dealer
Brand: JE Pistons JE Pistons
0 reviews
  • Have a product question? Ask us
  • Part Number: 258220
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by June 06
Retail: $1,495.19
Price: $1,423.99
You Save: $71.20
Bore Size (IN)
4.6 Inch
Connecting Rod Material
No Connecting Rod
Dome Volume
40 Cubic Centimeter
Engine Compatibility
Chevy Big Block V8 427-454 Cubic Inch
Includes Piston Rings
No
Material
Aluminum Alloy
Oversized
0.134 Inch
Piston Type
Forged
Quantity
Set Of 8
Wrist Pin Style
Floating
Share this page

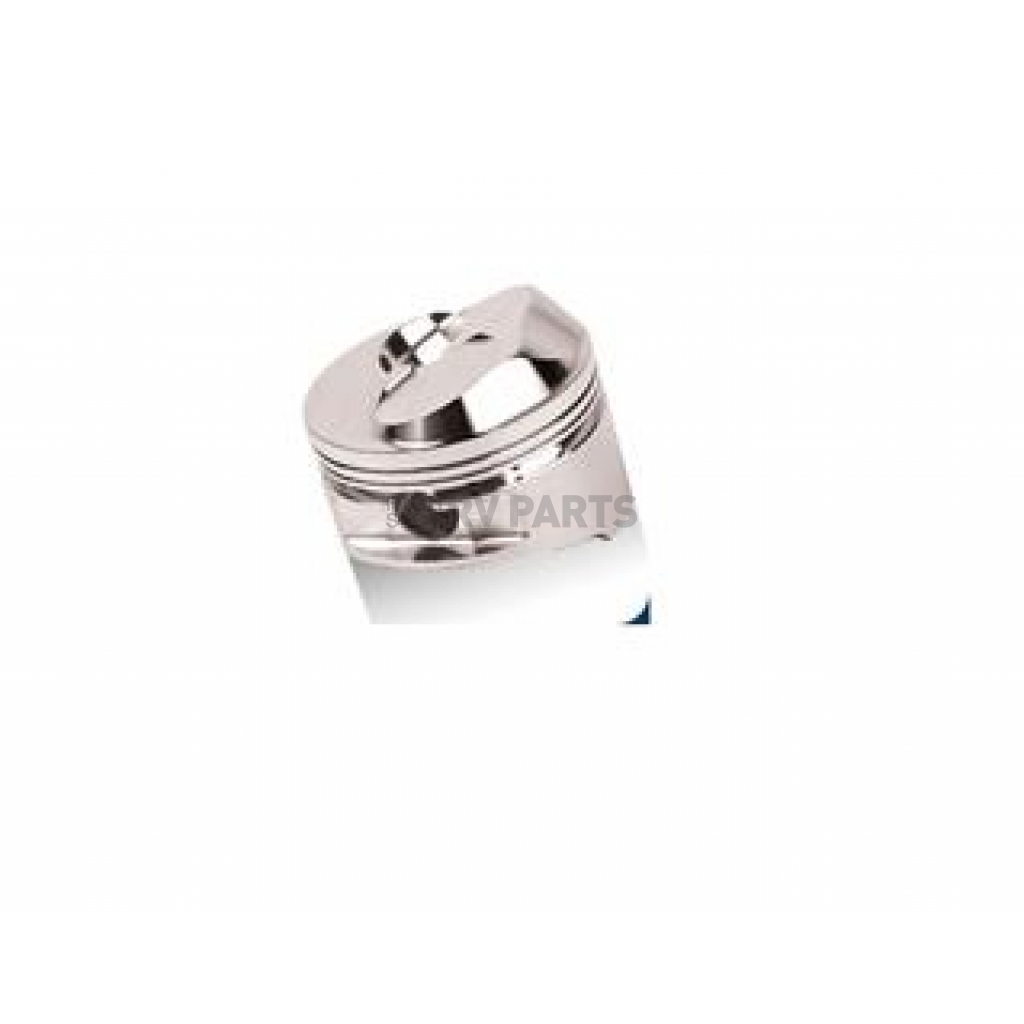

JE Pistons Piston

Piston; For Use With Big Block Chevy 565 Engines; Forged; 4.600 Inch Bore; 4.250 Inch Stroke/ 6.385 Inch Rod Length; 1.120 Inch Compression Distance; Dome Top/ 40 CC Volume; 15.3:1 Compression Ratio With 110 CC Heads/ 14.0:1 Compression Ratio With 118 CC Heads/ 13.2:1 Compression Ratio With 124 CC Heads; 599 Grams; Set Of 8 Pistons

MPN: 258220

JE Pistons is the leader in forged racing pistons. With 70-plus years of experience, in-house forging, and industry-leading technology, JE Pistons are designed to perform at the top levels of all forms of motorsports.
Engine Compatibility: Chevy Big Block V8 427-454 Cubic Inch
Piston Type: Forged
Dome Volume: 40 Cubic Centimeter
Compression Ratio: 15.3:1 With 110 CC/ 14.0:1 With 118 CC/ 13.2:1 With 124 CC Heads
Oversized: 0.134 Inch
Bore Size (IN): 4.6 Inch
Material: Aluminum Alloy
Connecting Rod Material: No Connecting Rod
Wrist Pin Style: Floating
Includes Piston Rings: No
Quantity: Set Of 8

Features

  • Excellent Choice For Drag Race Applications
  • Compression Height Figured Using 9.780 Inch Block Height With Zero Deck Clearance
  • Precision CNC Machined Ring Grooves
  • Limited 30 Day Warranty
Specifications of JE Pistons Piston - 258220
Bore Size (IN) 4.6 Inch
Connecting Rod Material No Connecting Rod
Dome Volume 40 Cubic Centimeter
Engine Compatibility Chevy Big Block V8 427-454 Cubic Inch
Includes Piston Rings No
Material Aluminum Alloy
Oversized 0.134 Inch
Piston Type Forged
Quantity Set Of 8
Wrist Pin Style Floating

1900 Chevrolet Big Block 1965-1990 Gen IV

1900 Chevrolet Big Block 1991-1995 Gen V
