JE Pistons Piston - 257943
JE Pistons Piston

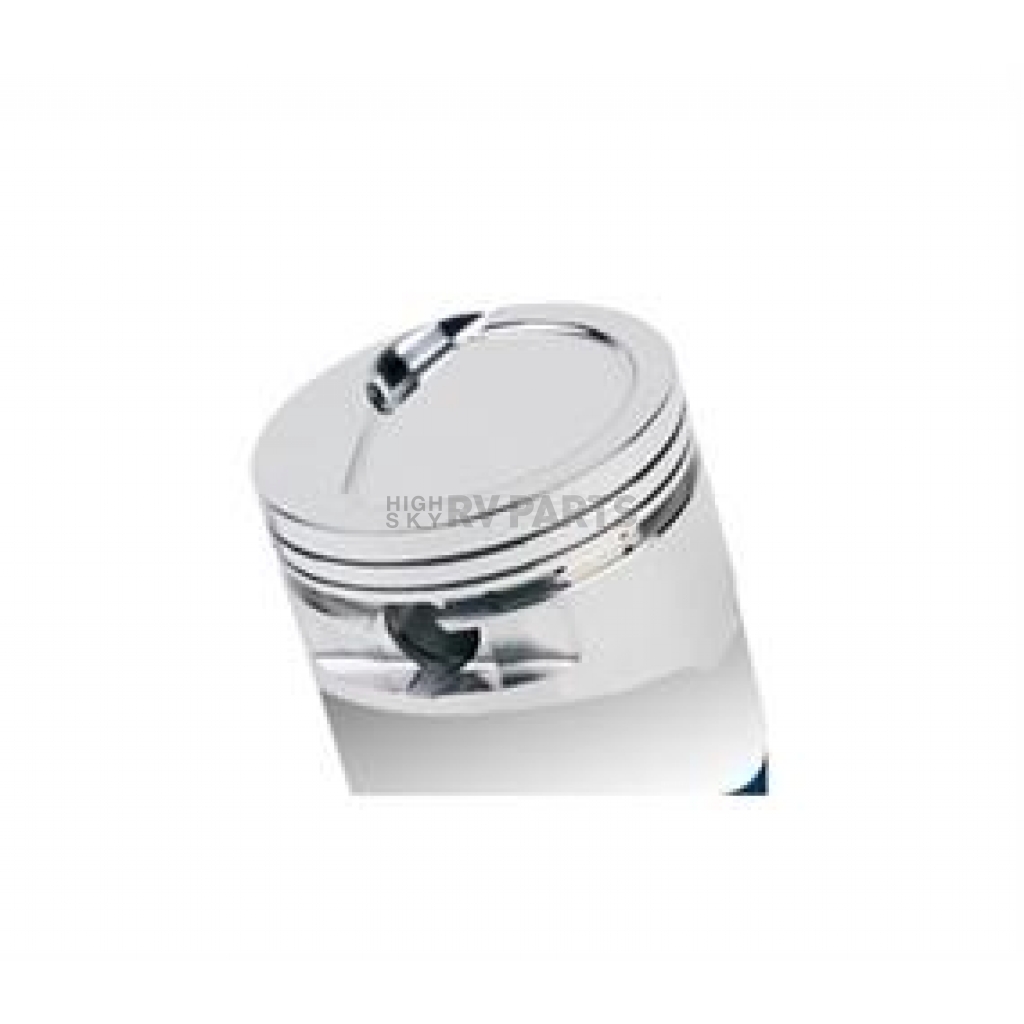

Piston; For Use With Big Block Chevy 548 Engines; Forged; 4.530 Inch Bore; 4.250 Inch Stroke/ 6.385 Inch Rod Length; 1.270 Inch Compression Distance; Dish Top/ 20 CC Volume; 8.9:1 Compression Ratio With 110 CC Heads/ 8.5:1 Compression Ratio With 118 CC Heads/ 8.2:1 Compression Ratio With 124 CC Heads; 580 Grams; Set Of 8 Pistons
MPN: 257943
Features
- Compatible With Forced Induction, Nitrous And Angle Milled Heads
- The Inverted Dome Shape Has Been Designed For Maximum Efficiency And Horsepower
- Valve Reliefs Will Accommodate Oversized Valves And Long Duration, Tight Lobe Separation Cams
- Compression Height Figured Using 9.780 Inch Block Height With Zero Deck Clearance
- Precision CNC Machined Ring Grooves
- Limited 30 Day Warranty
Specifications of JE Pistons Piston - 257943 | |
Bore Size (IN) | 4.53 Inch |
Connecting Rod Material | No Connecting Rod |
Dome Volume | 20 Cubic Centimeter |
Engine Compatibility | Chevy Big Block V8 427-454 Cubic Inch |
Includes Piston Rings | No |
Material | Aluminum Alloy |
Oversized | 0.064 Inch |
Piston Type | Forged |
Quantity | Set Of 8 |
Wrist Pin Style | Floating |
1900-1900 Chevrolet Big Block 1965-1990 Gen IV
1900-1900 Chevrolet Big Block 1991-1995 Gen V
