JE Pistons Piston - 231589

Authorized Dealer
Brand: JE Pistons JE Pistons
0 reviews
  • Have a product question? Ask us
  • Part Number: 231589
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by June 06
Retail: $950.24
Price: $904.99
You Save: $45.25
Bore Size (IN)
4-1/8 Inch
Dome Volume
-5 Cubic Centimeter
Engine Compatibility
Ford Small Block V8 5.0L 302 Cubic Inch
Includes Piston Rings
No
Material
Aluminum Alloy
Oversized
1/8 Inch
Piston Type
Flat Top
Quantity
Set Of 8
Share this page

JE Pistons Piston

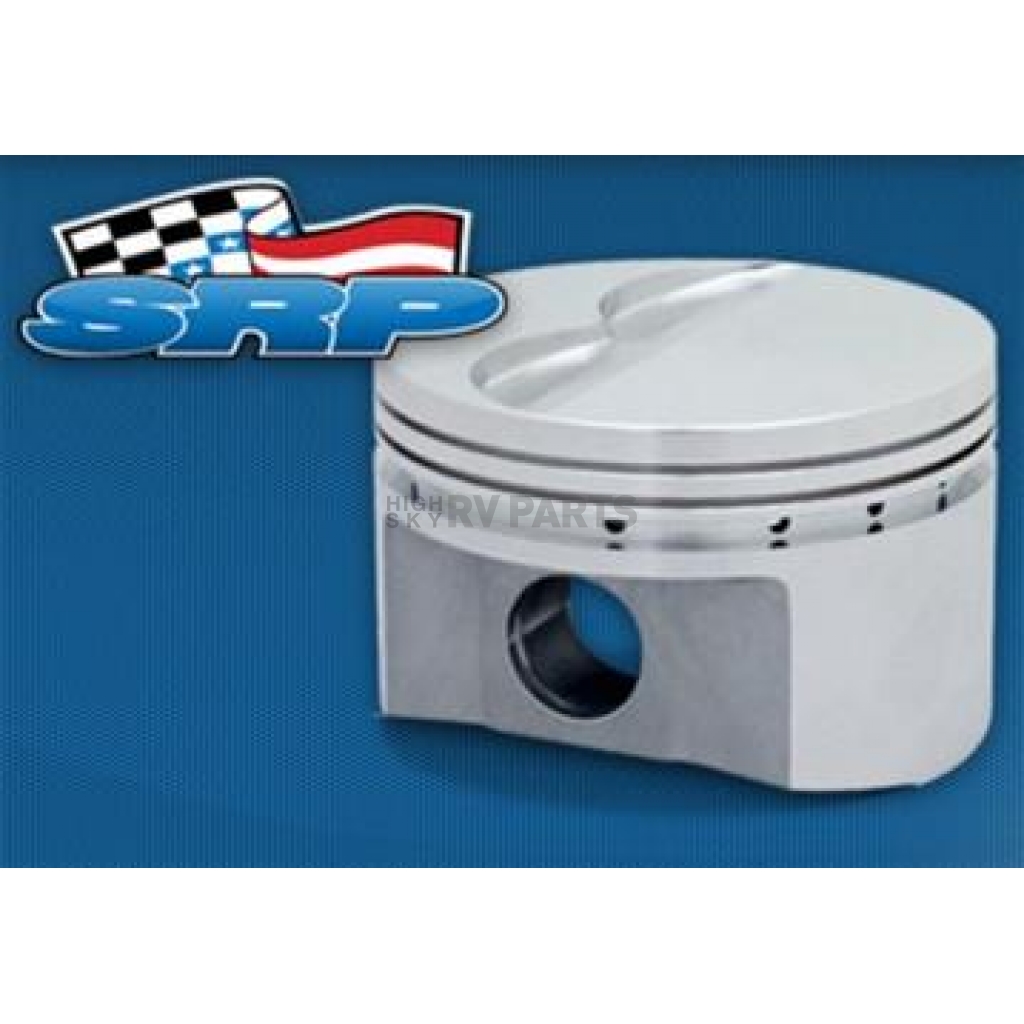

Piston; SRP; For Use With Ford 302 Stroker Engines; Forged; 4.125 Inch Bore; 3.400 Inch Stroke/ 5.400 Inch Rod Length; 1.100 Inch Compression Distance; Flat Top/ -5 CC Volume; 11.4:1 Compression Ratio With 58 CC Heads/ 10.6:1 Compression Ratio With 64 CC Heads/ 9.9:1 Compression Ratio With 70 CC Heads; 472 Grams; Set Of 8 Pistons

MPN: 231589

With over 60 Years of experience, JE Pistons is the leader in high performance forged pistons. We've built a reputation that the competition can only follow. JE has a history of manufacturing the highest quality pistons and components that professional engine builders, race teams, and high performance enthusiasts trust and rely on. JE's position at the forefront of performance piston manufacturing has been a result of continuous research and development of unique materials, piston designs and technologies. Utilizing State-Of-The-Art CNC machines for manufacturing along with purpose designed forgings, JE is able to maintain exacting specifications on each and every piston and hold tolerances to millionths of an Inch. Also available from JE is industry leading processes like Ultra Crown, a Digital Three Dimensional piston crown machining process and Finite Element Analysis. JE is the only performance piston manufacturer to earn the QS-9000 quality standard which confirms that JE provides customers the highest standards in quality control. Also have State-Of-The-Art inspection equipment and testing equipment which enables us to constantly bring you, the customer, the very latest in piston design configurations.
Engine Compatibility: Ford Small Block V8 5.0L 302 Cubic Inch
Piston Type: Flat Top
Dome Volume: -5 Cubic Centimeter
Compression Ratio: 11.4:1 CC/ 10.6:1 64 CC/ 9.9:1 70 CC
Oversized: 1/8 Inch
Bore Size (IN): 4-1/8 Inch
Material: Aluminum Alloy
Includes Piston Rings: No
Quantity: Set Of 8

Features

  • Low Expansion High Silicon Aluminum Alloy Heat Treated To SRP Specifications
  • CNC Machined Ring Grooves Accept 1/16, 3/16 Rings
  • Limited 90 Day Warranty
Specifications of JE Pistons Piston - 231589
Bore Size (IN) 4-1/8 Inch
Dome Volume -5 Cubic Centimeter
Engine Compatibility Ford Small Block V8 5.0L 302 Cubic Inch
Includes Piston Rings No
Material Aluminum Alloy
Oversized 1/8 Inch
Piston Type Flat Top
Quantity Set Of 8

1900 Ford Small Block 221-351W

1900 Ford Small Block 347
