Holley Performance Oil Pan - 302-50

Authorized Dealer
Brand: Holley Performance Holley Performance
0 reviews
  • Have a product question? Ask us
  • Part Number: 302-50
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: Up to 2 Weeks
  • If purchased before 12:00 EDT - estimated delivery by July 24
Retail: $608.99
Price: $579.99
You Save: $29.00
Baffled
Yes
Capacity
8 Quart
Color
Gold
Finish
Zinc Plated
Includes Crank Scraper
No

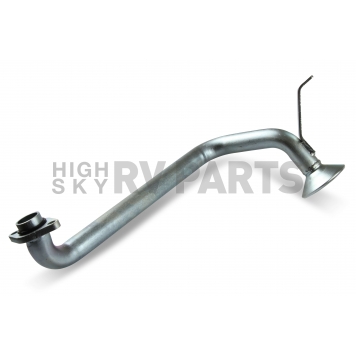

Includes Pickup
Yes
Includes Windage Tray
Yes
Material
Steel
Recommended Use
Racing/ Street
Stroker Clearance
No
Sump Position
Rear
Share this page

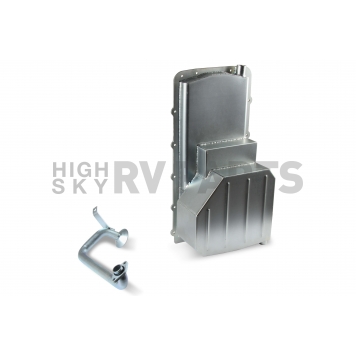

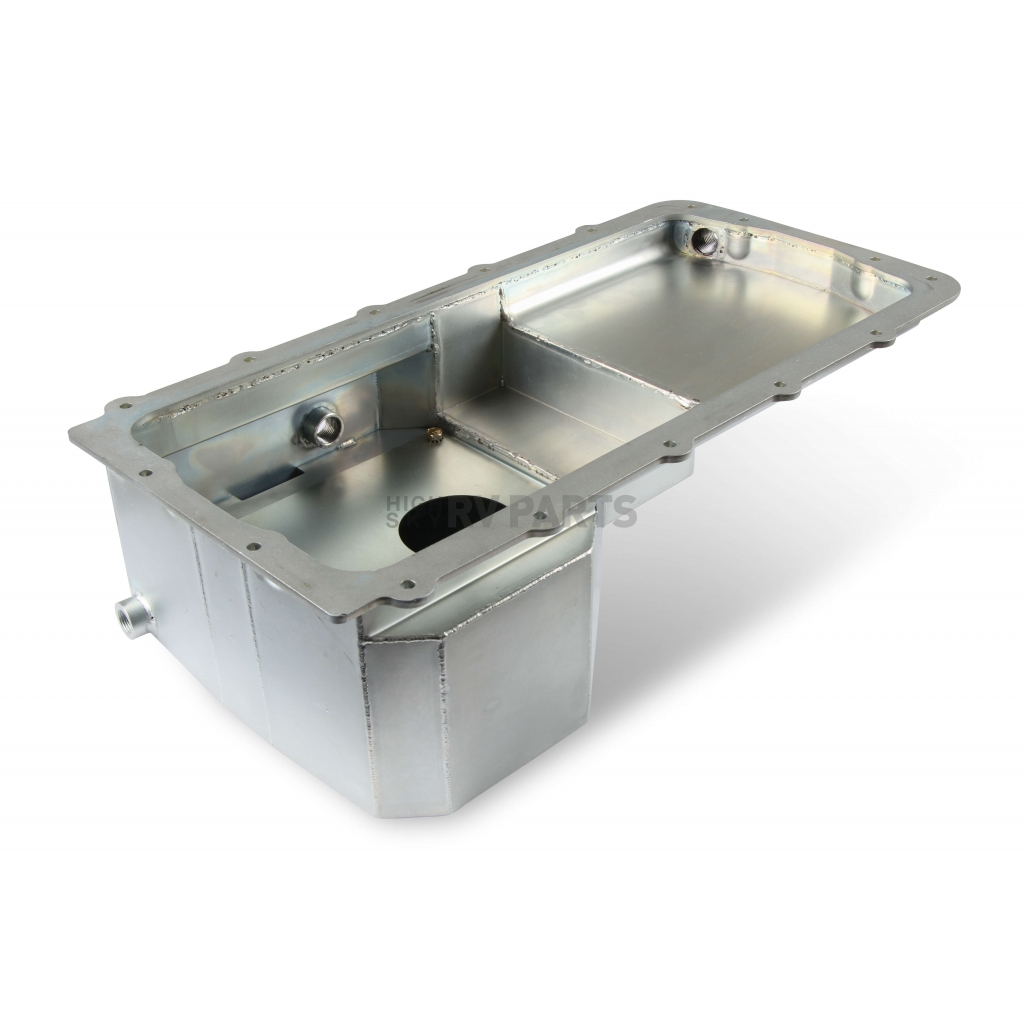

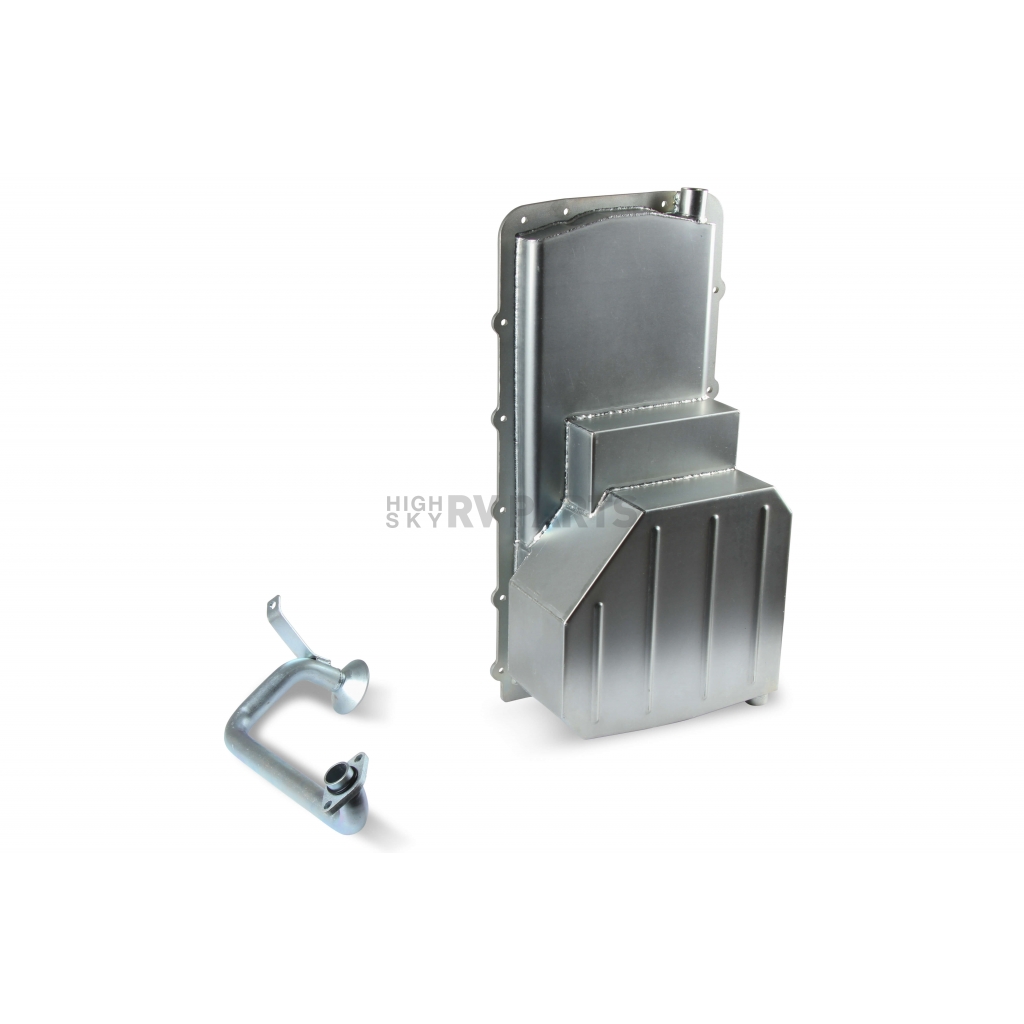

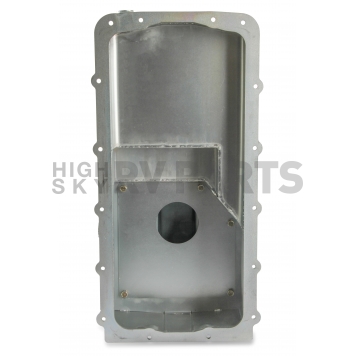

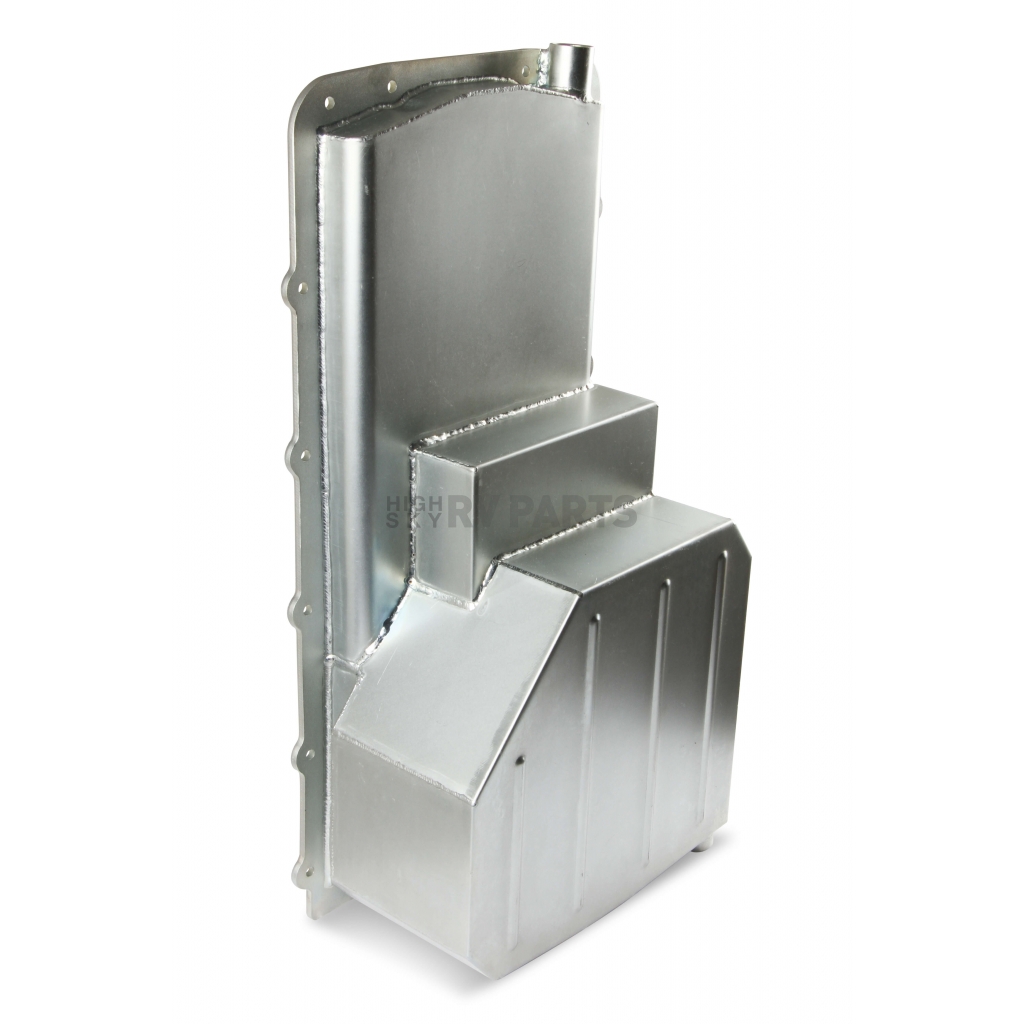

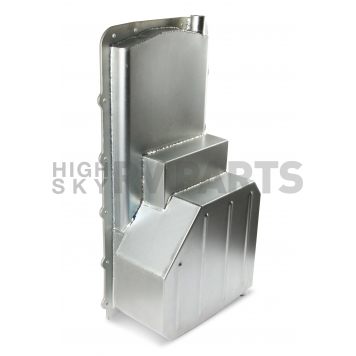

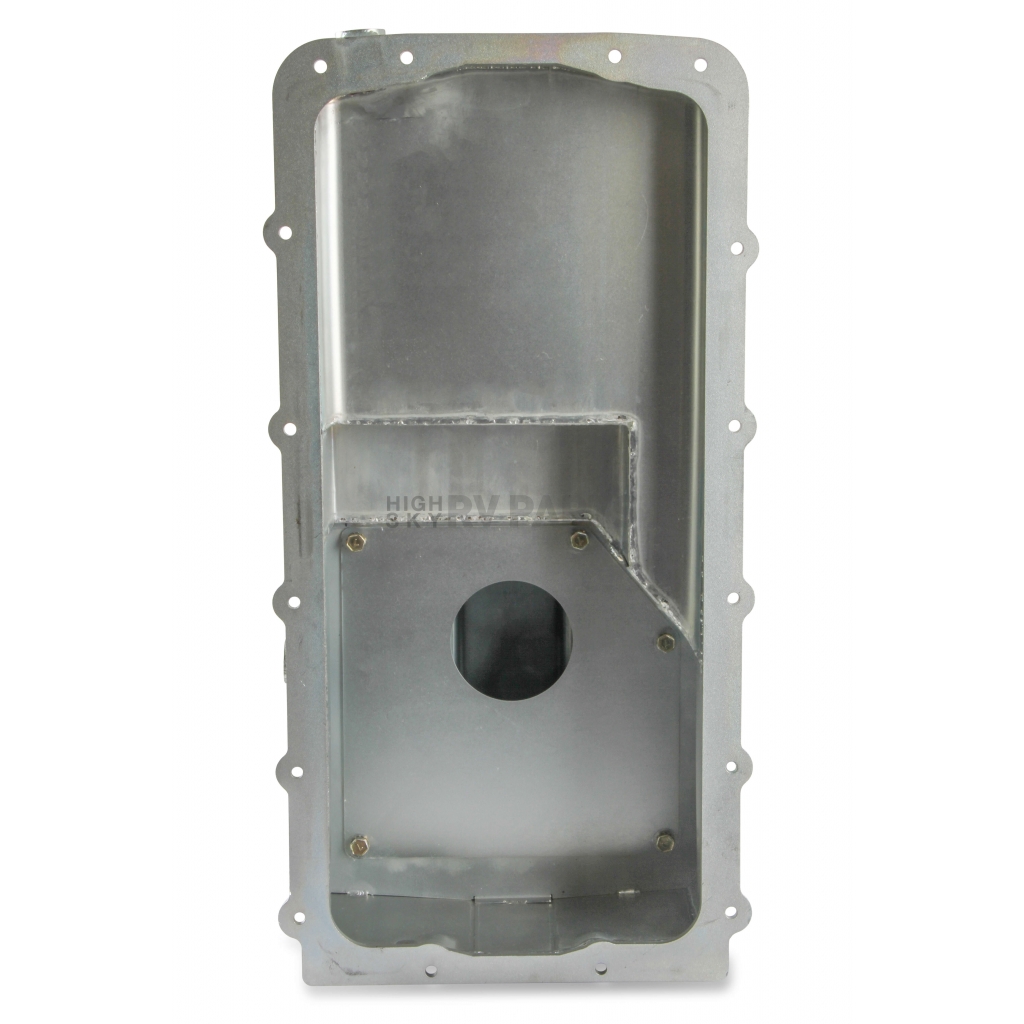

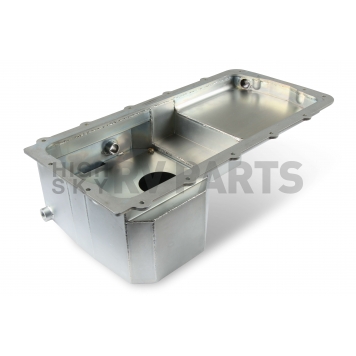

Holley Performance Oil Pan

Oil Pan; For Use With 1979-2004 Mustang 5.0L Coyote Engine; 8 Quart Capacity; Rear Sump; Gold Zinc Finish; Steel

MPN: 30250

Holley's new coyote oil pan makes your fox body mustang swap easier. The oil pan design maintains the oil capacity of stock mustang coyote oil pan to ensure adequate oil supply in all street performance and factory-stock type racing applications. The new design installs using stock coyote engine gasket/baffle assembly to provide factory-like sealing and baffling/windage characteristics. Comes equipped with -10 O-ring boss (ORB) port bung at front of pan for easy connection of turbo drain plumbing (fitting and/or plug is user-supplied as needed). The new low-profile front pan geometry permits Coyote engine installation on stock 1984-2004 Mustang K-members (1984-1995 K-members require the use of specific proprietary design Hooker Blackheart engine mounting brackets) and specific aftermarket K-members from AJE, Team Z, Maximum Motorsports, and UPR for 1979-2004 Mustangs. Application fitment is compatible with Hooker Blackheart and other brand Coyote swap headers for 1979-2004 Mustangs. The steel construction is hand-welded for strength, longevity and good looks. The zinc plated finish provides corrosion resistance on the inside and outside of the pan.
Recommended Use: Racing/ Street
Finish: Zinc Plated
Color: Gold
Material: Steel
Capacity: 8 Quart
Sump Position: Rear
Baffled: Yes
Stroker Clearance: No

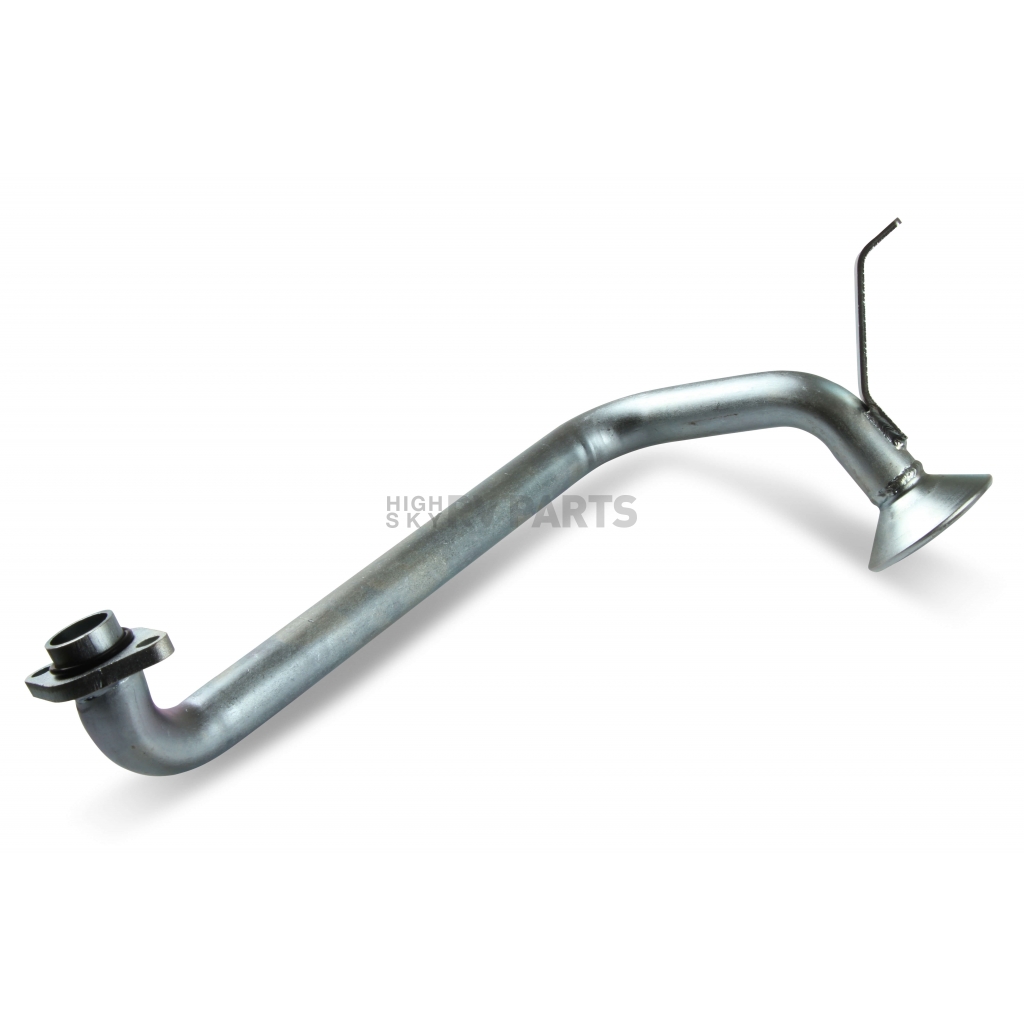

Includes Pickup: Yes
Includes Crank Scraper: No
Includes Windage Tray: Yes

Features

  • Low-Profile Front Pan Geometry Permits Coyote Engine Installation
  • Maintains Oil Capacity Of Stock Mustang Coyote Oil Pan To Ensure Adequate Oil Supply In All Street Performance And Factory-Stock Type Racing Applications
  • Installs Using Stock Coyote Engine Gasket/Baffle Assembly To Provide Factory-Like Sealing And Baffling/Windage Characteristics

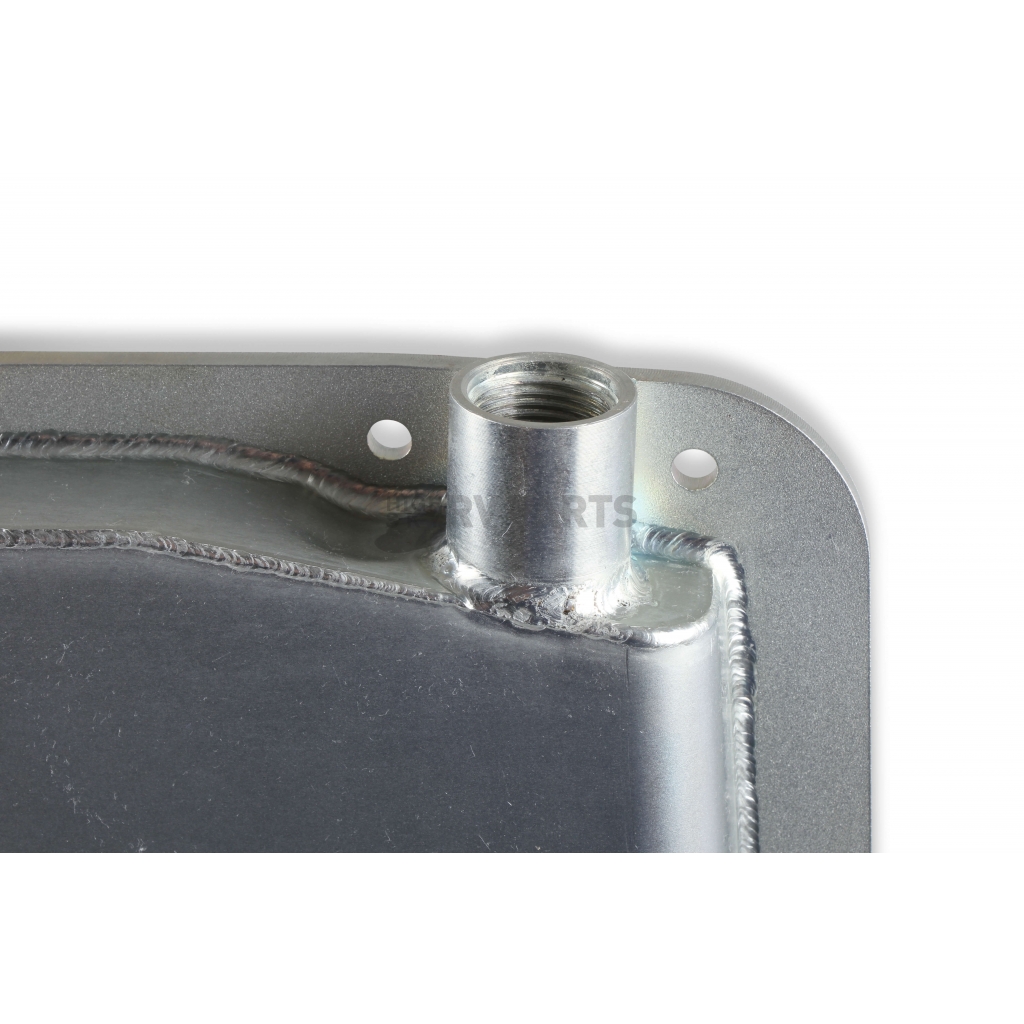

  • Equipped With -10 O-Ring Boss (ORB) Port Bung At Front Of Pan For Easy Connection Of Turbo Drain Plumbing
  • 100 Percent Quality Hand-Welded Construction For Strength, Longevity And Good Looks
  • Zinc Plated Finish Provides Corrosion Resistance On The Inside And Outside Of The Pan
  • Fitment Compatible With Hooker Blackheart And Other Brand Coyote Swap Headers For 1979-2004 Mustangs
  • Fits Specific Aftermarket K-Members From AJE, Team Z, Maximum Motorsports, And UPR.
  • Design Includes A Bung On The Left Side Of The Sump For The Stock Mustang Coyote Oil Level Sensor
  • Limited 90 Day Supplier Warranty
Specifications of Holley Performance Oil Pan - 302-50
Baffled Yes
Capacity 8 Quart
Color Gold
Finish Zinc Plated
Includes Crank Scraper No
Includes Pickup Yes
Includes Windage Tray Yes
Material Steel
Recommended Use Racing/ Street
Stroker Clearance No
Sump Position Rear

1979 Ford Mustang
1980 Ford Mustang
1981 Ford Mustang
1982 Ford Mustang
1983 Ford Mustang
1984 Ford Mustang
1985 Ford Mustang
1986 Ford Mustang
1987 Ford Mustang
1988 Ford Mustang
1989 Ford Mustang
1990 Ford Mustang
1991 Ford Mustang
1992 Ford Mustang
1993 Ford Mustang
1994 Ford Mustang
1995 Ford Mustang
1996 Ford Mustang
1997 Ford Mustang
1998 Ford Mustang
1999 Ford Mustang
2000 Ford Mustang
2001 Ford Mustang
2002 Ford Mustang
2003 Ford Mustang

1979 Mercury Capri
1980 Mercury Capri
1981 Mercury Capri
1982 Mercury Capri
1983 Mercury Capri
1984 Mercury Capri
1985 Mercury Capri
1986 Mercury Capri

1991 Mercury Capri
1992 Mercury Capri
1993 Mercury Capri
1994 Mercury Capri
