Holley Performance Oil Pan - 302-3

Authorized Dealer
Brand: Holley Performance Holley Performance
0 reviews
  • Have a product question? Ask us
  • Part Number: 302-3
  • Part Location: U.S.
  • Availability: 1 In Stock
  • Delivery: Ships Out in 1 - 2 Business Days
  • If purchased before 12:00 EDT - estimated delivery by June 25
Retail: $584.84
Price: $556.99
You Save: $27.85
Baffled
Yes
Capacity
5.9 Quart
Color
Silver
Dipstick Location
No Dipstick
Dipstick Provision
No
Drain Plug Thread Size
No Drain Plug
Finish
Natural
Includes Crank Scraper
No
Includes Pickup
Yes
Includes Windage Tray
No
Kicked Out
No
Share this page

Holley Performance Oil Pan

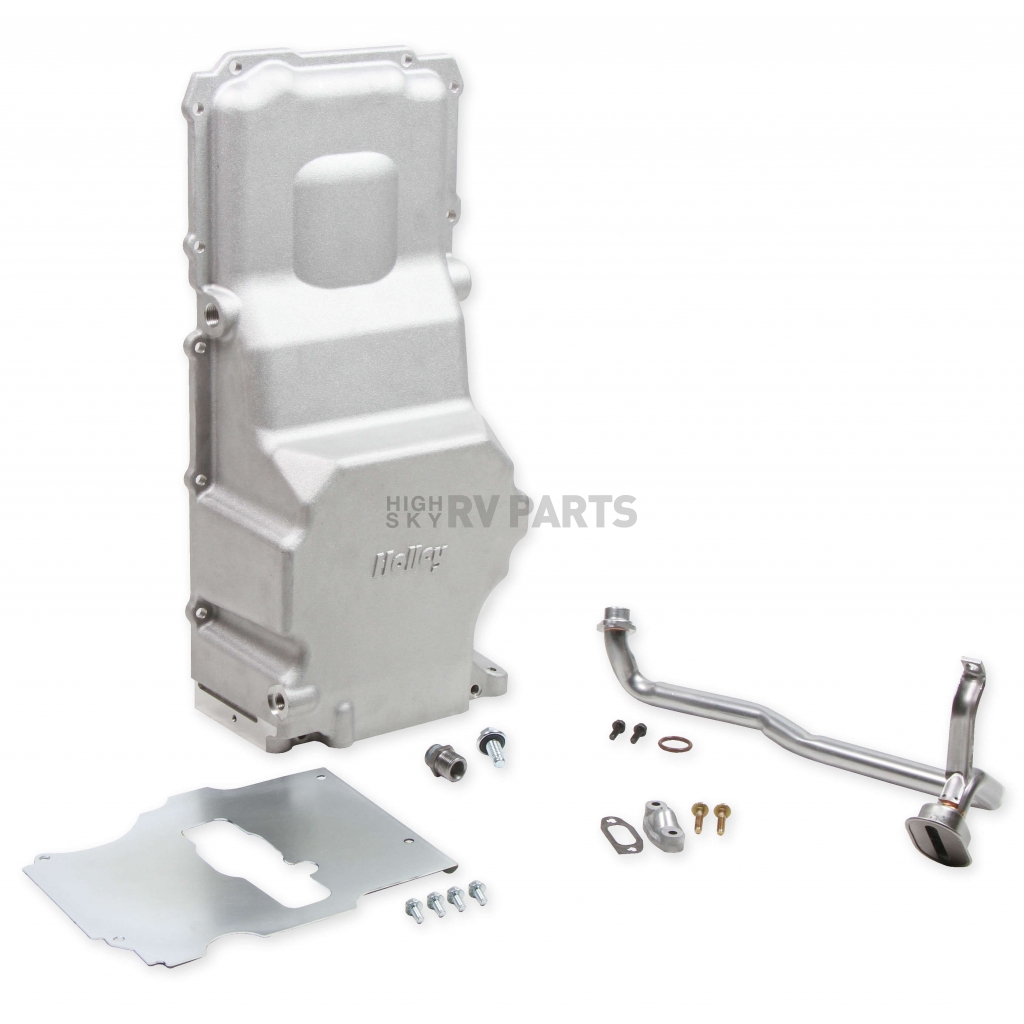

Oil Pan; For Retro Fit Of GM LS Series Engine Into 1955-1987 GM Muscle Car/ Classic Car/ Trucks; Will Clear Up To 4.00 Inch Stroke; 5.9 Quarts With Stock Filter; Without Windage Tray; Rear Sump; Natural; Aluminum; With Oil Pan/ Baffle/ Pickup Tube/ Plug/ Oil Filter Stud; Two 1/2 Inch NPT Oil Return Bosses

MPN: 3023

Holley engineering has taken their LS retro fit oil pans to the next level. The design has even more sump clearance. Designed to clear the Fox body rack and pinion too. It’s a win-win for more LS conversions.
Recommended Use: Classic Car/ Trucks
Finish: Natural
Color: Silver
Material: Aluminum
Capacity: 5.9 Quart
Drain Plug Thread Size: No Drain Plug
Sump Position: Rear
Sump Style: Wet
Baffled: Yes
Dipstick Provision: No
Dipstick Location: No Dipstick
Kicked Out: No
Kicked Out Position: No Kicked Out
Rear Main Seal Style: No Rear Main Seal
Stroker Clearance: No
Includes Pickup: Yes
Includes Crank Scraper: No
Includes Windage Tray: No

Features

  • Profile Of The Sump Has Been Revised To Provide Extra Chassis And Steering Rack Clearance
  • Traditional High Quality Cast Aluminum Appearance With Clean Exterior Styling
  • Provides Maximum Clearance For Vehicles Where The Steering Linkage Is Behind The Engine Cross Member
  • Provides OEM Fitment OEM Oil Filter Mounting, OEM Oil Cooler Port Provision, OEM Engine NVH Suppression, OEM Flange Gasket And Sealing, Proper Structural Rigidity And OEM Bell Housing Attachments
  • Designed For LS Engine Retrofit Installations In GM Muscle And Classic Car And Truck Chassis Requiring More Oil Pan To Chassis Clearance Around The Front Half Of The Oil Pan
  • Limited 90 Day Supplier Warranty
Specifications of Holley Performance Oil Pan - 302-3
Baffled Yes
Capacity 5.9 Quart
Color Silver
Dipstick Location No Dipstick
Dipstick Provision No
Drain Plug Thread Size No Drain Plug
Finish Natural
Includes Crank Scraper No
Includes Pickup Yes
Includes Windage Tray No
Kicked Out No
Kicked Out Position No Kicked Out
Material Aluminum
Rear Main Seal Style No Rear Main Seal
Recommended Use Classic Car/ Trucks
Stroker Clearance No
Sump Position Rear
Sump Style Wet

1900 Chevrolet LS Small Block Gen 3 1997-2007

1900 Chevrolet LS Small Block Gen 4 2005+
