Holley Performance Oil Pan - 302-2

Authorized Dealer
Brand: Holley Performance Holley Performance
0 reviews
  • Have a product question? Ask us
  • Part Number: 302-2
  • Part Location: U.S.
  • Availability: 9 In Stock
  • Delivery: Ships Out in 1 - 2 Business Days
  • If purchased before 12:00 EDT - estimated delivery by June 24
Retail: $571.19
Price: $543.99
You Save: $27.20
Baffled
Yes
Capacity
6.2 Quart
Color
Silver
Depth (IN)
5.463 Inch
Dipstick Location
No Dipstick
Dipstick Provision
No
Finish
Natural
Includes Crank Scraper
No
Includes Pickup
Yes
Includes Windage Tray
No
Kicked Out
No
Share this page

Holley Performance Oil Pan

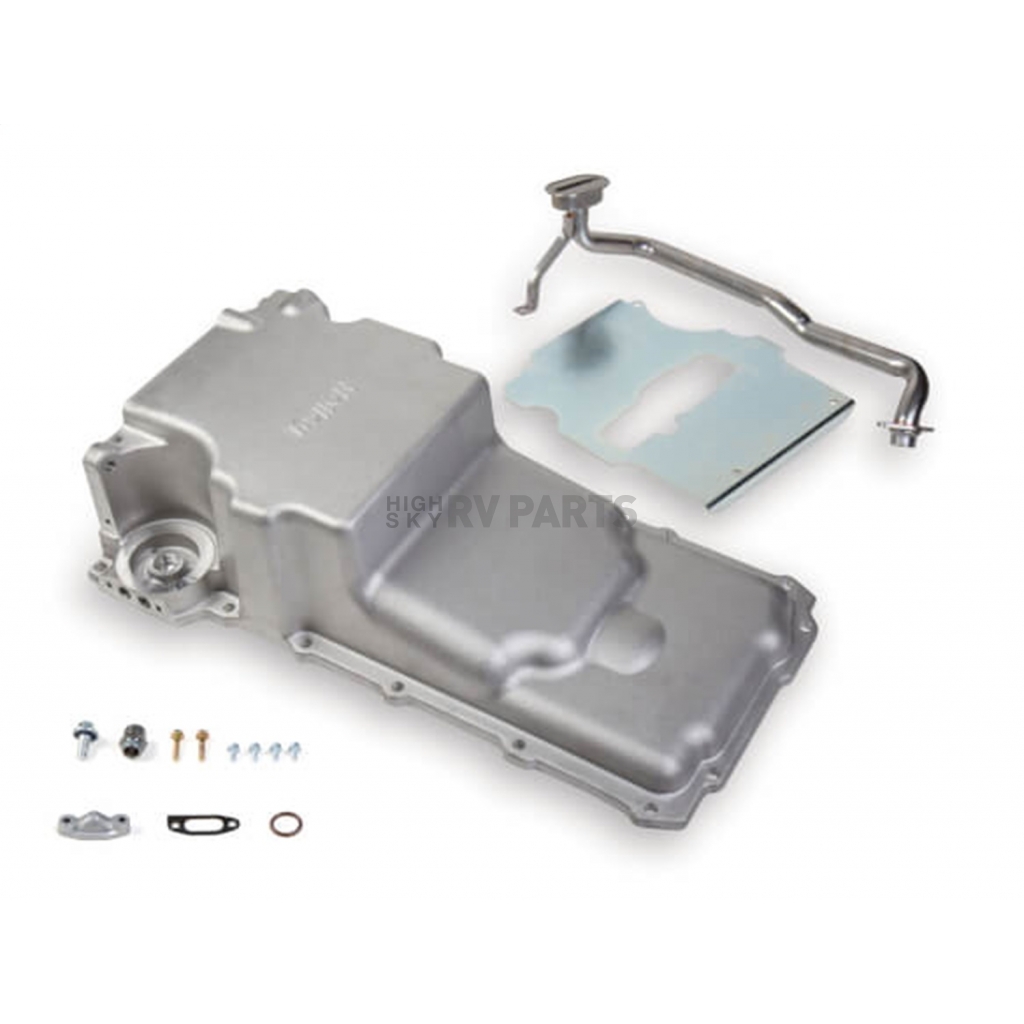

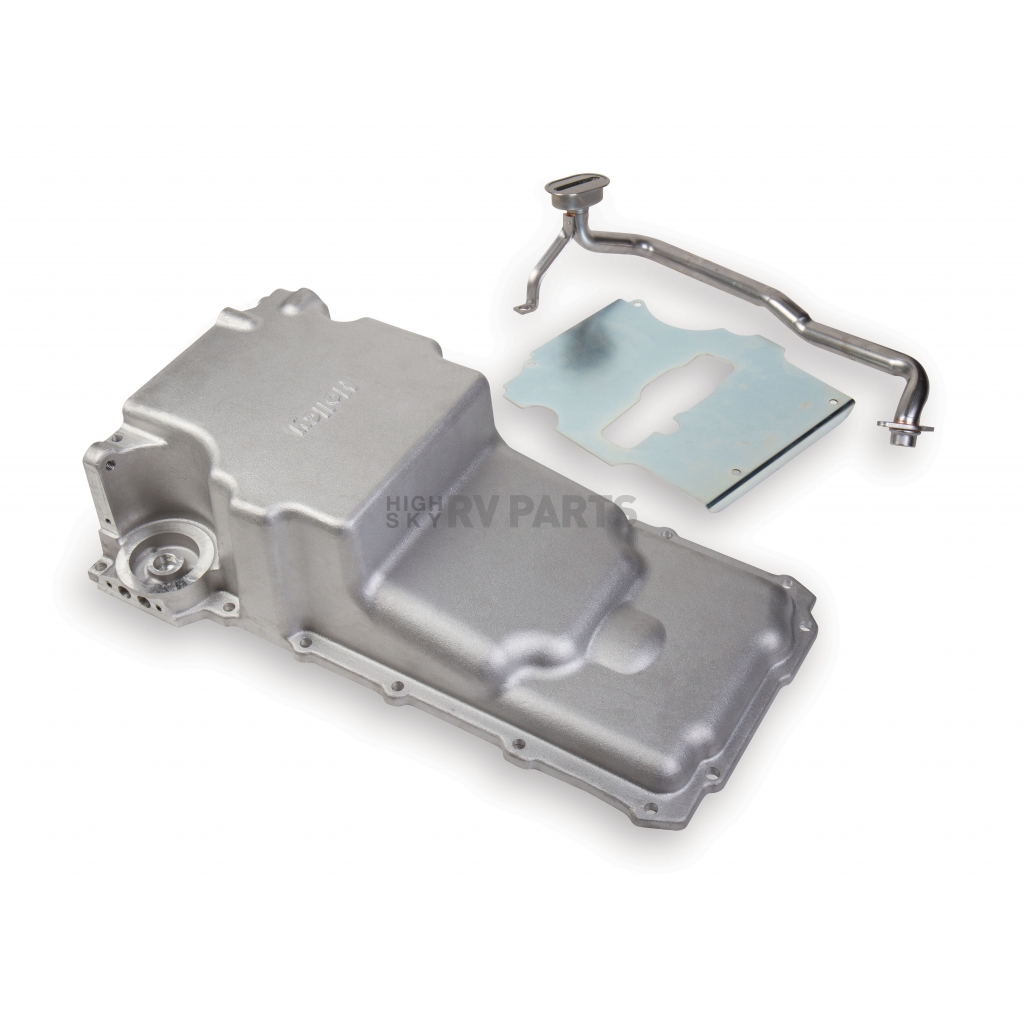

Oil Pan; For Retro Fit Of GM LS Series Engine Into 1955-1987 GM Muscle Car/ Classic Car/ Trucks; 6.2 Quarts With Stock Filter; Without Windage Tray; Rear Sump; Natural; Aluminum; With Oil Pan/ Baffle/ Pickup Tube/ Plug/ Oil Filter Stud

MPN: 3022

GM's popular LS engines are finding their way into a large variety of vehicles. They make great power, plus they're very durable and reliable. Unfortunately, the factory LS pans don't always fit or they hang too low for today's hot rods. Holley's new LS Retro-fit Engine Oil Pan is designed to help! It provides maximum clearance to the chassis and ground, plus provides an OEM fitment for durability and proper sealing.
Recommended Use: Retro Fit Of GM LS Series Engine Into 1955-1987 GM Muscle Car/ Classic Car/ Trucks
Finish: Natural
Color: Silver
Material: Aluminum
Capacity: 6.2 Quart

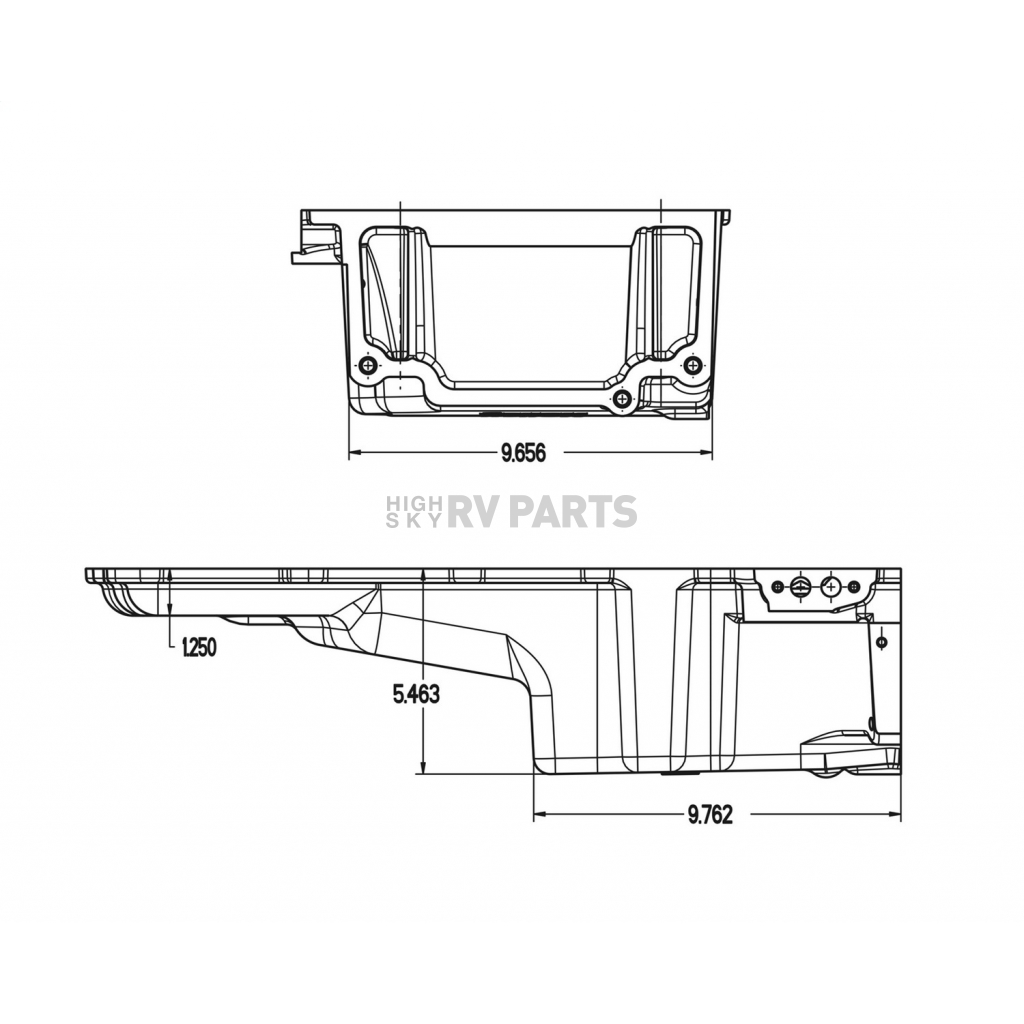

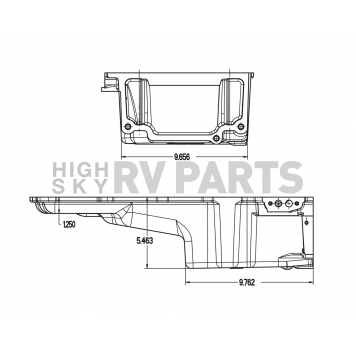

Depth (IN): 5.463 Inch
Sump Position: Rear
Sump Style: Wet
Baffled: Yes
Dipstick Provision: No
Dipstick Location: No Dipstick
Kicked Out: No
Kicked Out Position: No Kicked Out
Rear Main Seal Style: No Rear Main Seal
Stroker Clearance: Yes
Includes Pickup: Yes
Includes Crank Scraper: No
Includes Windage Tray: No

Please refer the Technical Bulletins attached to the Product Manual tab

Features

  • Designed For LS Engine Retrofit Installations In GM Muscle And Classic Car And Truck Chassis Requiring More Oil Pan To Chassis Clearance Around The Front Half Of The Oil Pan
  • Can Be Used Anywhere A GM F-Body Oil Pan Can Be Used
  • Provides OEM Fitment OEM Oil Filter Mounting, OEM Oil Cooler Port Provision, OEM Engine NVH Suppression, OEM Flange Gasket And Sealing, Proper Structural Rigidity And OEM Bell Housing Attachments
  • Traditional High Quality Cast Aluminum Appearance With Clean Exterior Styling
  • Provides Maximum Clearance For Vehicles Where The Steering Linkage Is Behind The Engine Cross Member
  • Cast And Machined Aluminum
  • Limited 90 Day Supplier Warranty
Specifications of Holley Performance Oil Pan - 302-2
Baffled Yes
Capacity 6.2 Quart
Color Silver
Depth (IN) 5.463 Inch
Dipstick Location No Dipstick
Dipstick Provision No
Finish Natural
Includes Crank Scraper No
Includes Pickup Yes
Includes Windage Tray No
Kicked Out No
Kicked Out Position No Kicked Out
Material Aluminum
Rear Main Seal Style No Rear Main Seal
Recommended Use Retro Fit Of GM LS Series Engine Into 1955-1987 GM Muscle Car/ Classic Car/ Trucks
Stroker Clearance Yes
Sump Position Rear
Sump Style Wet

1900 Chevrolet LS Small Block Gen 3 1997-2007

1900 Chevrolet LS Small Block Gen 4 2005+
