Holley Performance Fuel Pump Electric - 12-815-1
Estimated Install Time (Hours)
1
Free Flow Rate
140 Gallon Per Hour
Fuel Type
Alcohol/ Gasoline
Inlet Attachment
Female Threads
Inlet Quantity
1
Inlet Size
1/2 Inch NPT
Maximum Pressure (PSI)
14 Pounds Per Square Inch
Mounting Style
In-Line
Outlet Attachment
Female Threads
Outlet Quantity
1
Outlet Size
3/8 Inch NPT
Share this page

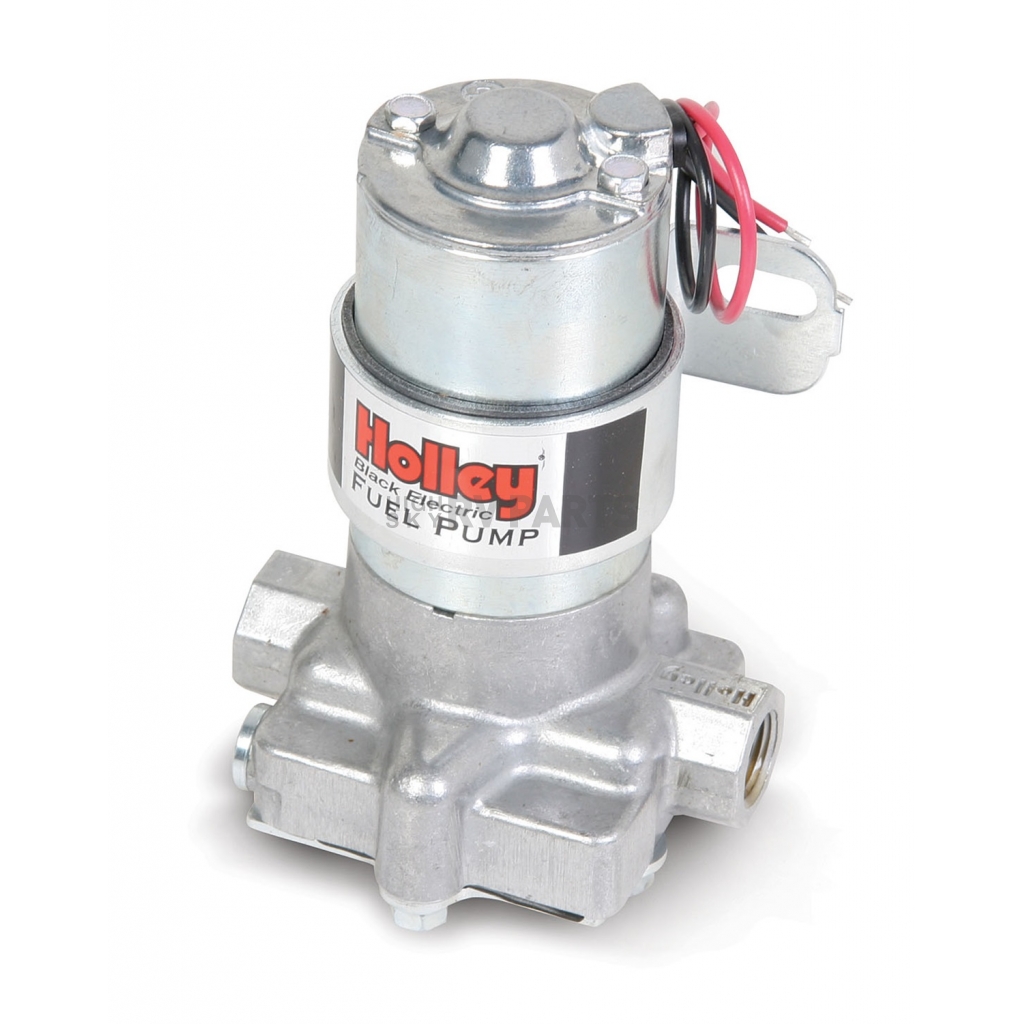

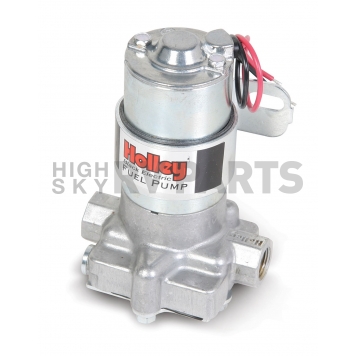

Holley Performance Fuel Pump Electric
Fuel Pump Electric; 140 GPH Free Flow; 14 PSI Maximum Pressure; Without Regulator; 1/2 Inch NPT Inlet; 3/8 Inch NPT Outlet; 12 Volts; Rotor/Vane
MPN: 128151
Holley’s billet fuel systems are designed to take the guesswork out of building the right fuel system for your project! The engineers at Holley® have designed the components in the billet fuel systems product line to work together in order to achieve peak performance from your vehicle and look great while doing it. The system includes fuel pumps, pre and post filters as well as billet regulators for carbureted and fuel injected applications. They’re available to cover stock street machines all the way up to 2,000 Horsepower race cars and anything in between! Refer to our easy-to-use selection chart and stop struggling with fuel system components today!
Mounting Style: In-Line
Fuel Type: Alcohol/ Gasoline
Voltage Rating: 12 Volt
Free Flow Rate: 140 Gallon Per Hour
Maximum Pressure (PSI): 14 Pounds Per Square Inch
Inlet Quantity: 1
Inlet Size: 1/2 Inch NPT
Inlet Attachment: Female Threads
Outlet Quantity: 1
Outlet Size: 3/8 Inch NPT
Outlet Attachment: Female Threads
With Sending Unit: No
With Mounting Hanger: Yes
Estimated Install Time (Hours): 1
Please refer the Technical Bulletins attached to the Product Manual tab
Features
- New Tumble Polished Billet Look
- Provides Constant Fuel Flow With No Pulsation
- New Lower Housing Casting For Enhanced Fuel Flow And Quieter Operation
- Include Mounting Bracket
- Distinctive Red Logo
- Limited 90 Day Supplier Warranty
| Specifications of Holley Performance Fuel Pump Electric - 12-815-1 | |
| Estimated Install Time (Hours) | 1 |
| Free Flow Rate | 140 Gallon Per Hour |
| Fuel Type | Alcohol/ Gasoline |
| Inlet Attachment | Female Threads |
| Inlet Quantity | 1 |
| Inlet Size | 1/2 Inch NPT |
| Maximum Pressure (PSI) | 14 Pounds Per Square Inch |
| Mounting Style | In-Line |
| Outlet Attachment | Female Threads |
| Outlet Quantity | 1 |
| Outlet Size | 3/8 Inch NPT |
| Voltage Rating | 12 Volt |
| With Mounting Hanger | Yes |
| With Sending Unit | No |
