Holley Performance Fuel Pump Electric - 12-800
Estimated Install Time (Hours)
1
Free Flow Rate
80 Gallon Per Hour
Fuel Type
Gasoline
Inlet Attachment
Female Threads
Inlet Quantity
1
Inlet Size
5/8 Inch (-10 AN)
Maximum Pressure (PSI)
80 Pounds Per Square Inch
Mounting Style
In-Line
Outlet Attachment
Female Threads
Outlet Quantity
1
Outlet Size
1/2 Inch (-8 AN)
Share this page

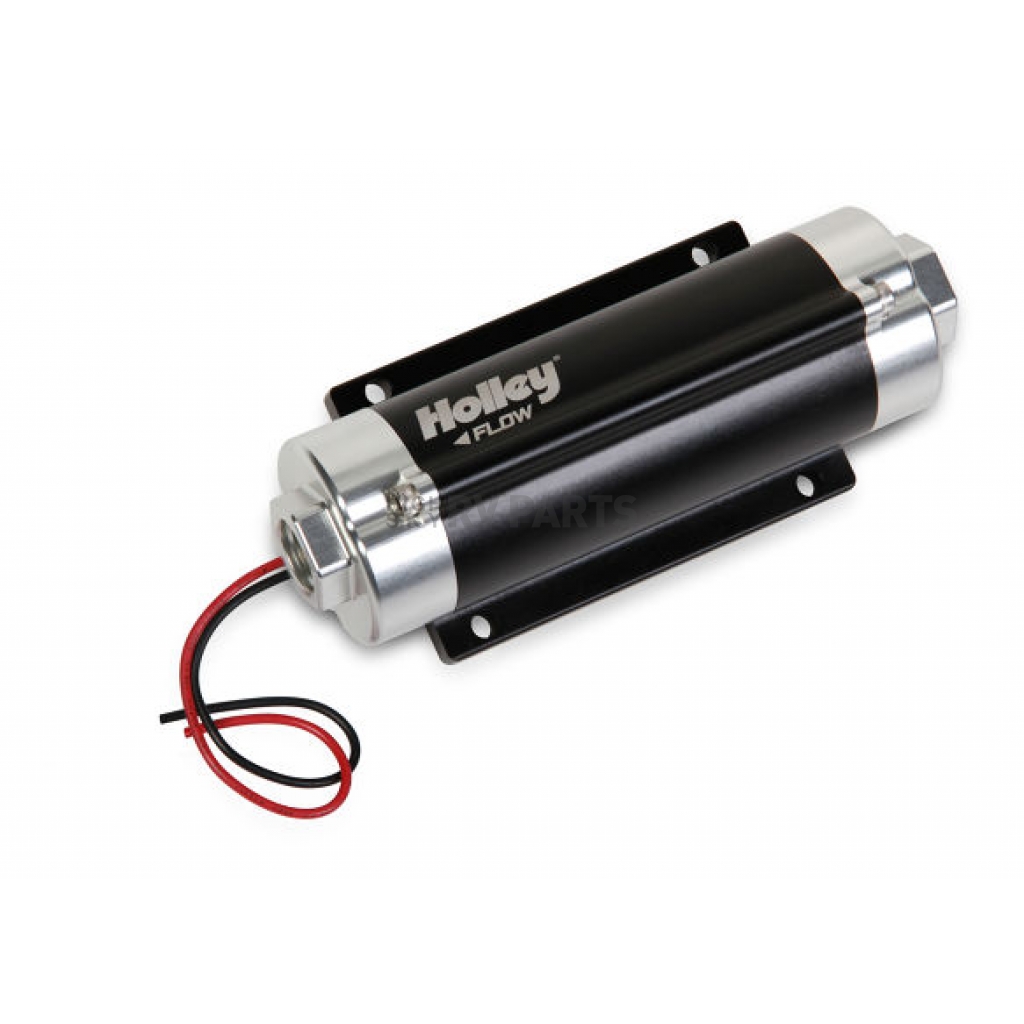

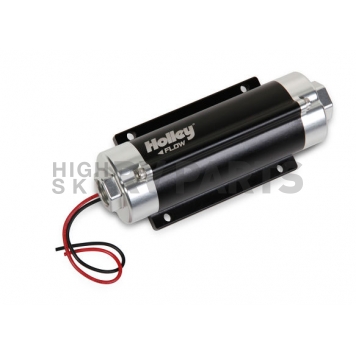

Holley Performance Fuel Pump Electric
Fuel Pump Electric; 80 GPH Free Flow; 80 PSI Maximum Pressure; Without Regulator; 10AN ORB Inlet/ 8AN ORB Outlet; 12 Volts; Anodized; Black; Aluminum
MPN: 12800
Holley’s HP™ In-Line Billet Fuel Pumps are designed to be the perfect companion to your carbureted or fuel injected race car, off-road truck or any engine needing fuel! The HP™ fuel pumps feature OEM gerotor technology which yields lightweight, quiet operation and 100,000+ mile durability in a cost effective, attractive package. The 12 to 800 features improved hot fuel handling capabilities and was designed to greatly reduce the negative effects of heated fuel now common with many of today’s pump gas blends. It is compatible for use with pump gas or race gas. If you are using E-85 or diesel, no need to worry, Holley has still got you covered with the 12 to 890 fuel pump. Horsepower fuel pumps work well on the street or in racing applications with up to 18.5 Volt charging systems and 80 PSI.
Mounting Style: In-Line
Fuel Type: Gasoline
Voltage Rating: 12 Volt
Free Flow Rate: 80 Gallon Per Hour
Maximum Pressure (PSI): 80 Pounds Per Square Inch
Inlet Quantity: 1
Inlet Size: 5/8 Inch (-10 AN)
Inlet Attachment: Female Threads
Outlet Quantity: 1
Outlet Size: 1/2 Inch (-8 AN)
Outlet Attachment: Female Threads
With Sending Unit: No
With Mounting Hanger: Yes
Estimated Install Time (Hours): 1
Please refer the Technical Bulletins attached to the Product Manual tab
Features
- Billet Aluminum Construction For Durability And Good Looks
- -10 An O-Ring Inlet And -8 An O-Ring Outlet For High Flow And Superior Sealing
- Excellent For Use With Carbureted Or EFI Applications
- Fully Submersible In-Tank For Custom Applications, Space Savings And Less Plumbing
- Compatible With 12 Volt To 18.5 Volt Systems For Street Or Race Use
- Compact For Easy Installation On Frame Rails Or Other Tight Areas
- Proven Durability Beyond 3,000 Hours In Gasoline
- Limited Lifetime Warranty
| Specifications of Holley Performance Fuel Pump Electric - 12-800 | |
| Estimated Install Time (Hours) | 1 |
| Free Flow Rate | 80 Gallon Per Hour |
| Fuel Type | Gasoline |
| Inlet Attachment | Female Threads |
| Inlet Quantity | 1 |
| Inlet Size | 5/8 Inch (-10 AN) |
| Maximum Pressure (PSI) | 80 Pounds Per Square Inch |
| Mounting Style | In-Line |
| Outlet Attachment | Female Threads |
| Outlet Quantity | 1 |
| Outlet Size | 1/2 Inch (-8 AN) |
| Voltage Rating | 12 Volt |
| With Mounting Hanger | Yes |
| With Sending Unit | No |
