Holley Performance Fuel Pump Electric - 12-170

Authorized Dealer
Brand: Holley Performance Holley Performance
0 reviews
  • Have a product question? Ask us
  • Part Number: 12-170
  • Part Location: U.S.
  • Availability: 9 In Stock
  • Delivery: Ships Out in 1 - 2 Business Days
  • If purchased before 12:00 EDT - estimated delivery by June 26
Retail: $243.59
Price: $231.99
You Save: $11.60
Estimated Install Time (Hours)
1
Free Flow Rate
105 Gallon Per Hour
Fuel Type
Gasoline/ Diesel/ E85
Inlet Size
-8 AN
Mounting Style
In-Line
Outlet Size
-6 AN
Voltage Rating
12 Volt
With Sending Unit
No
Share this page

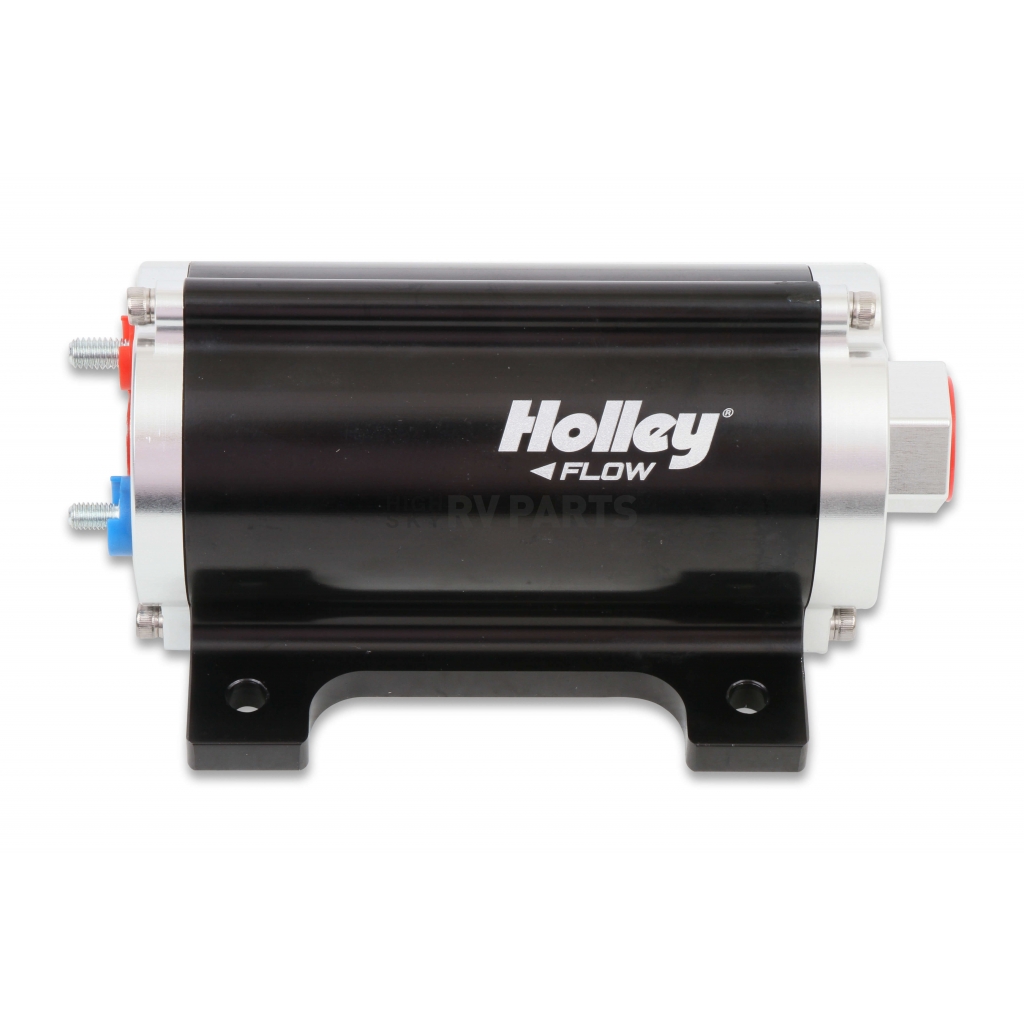

Holley Performance Fuel Pump Electric

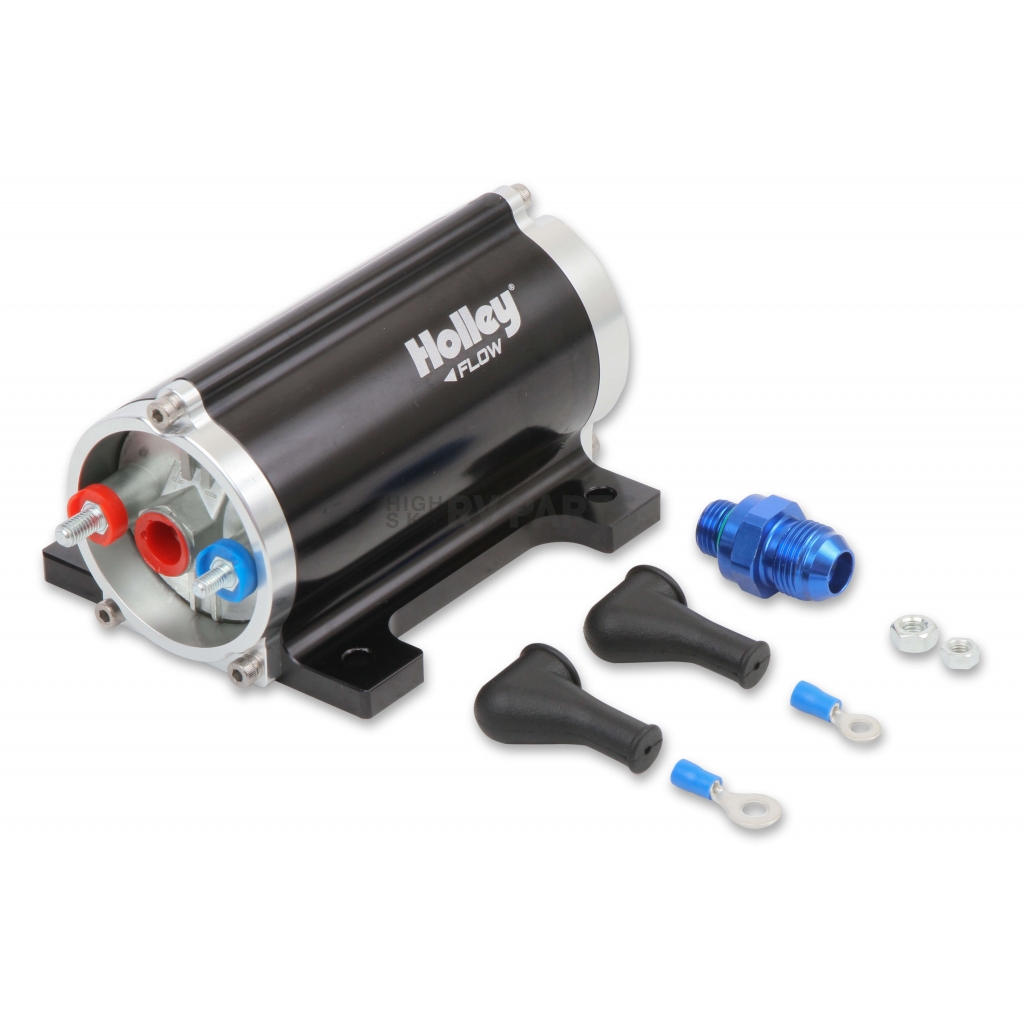

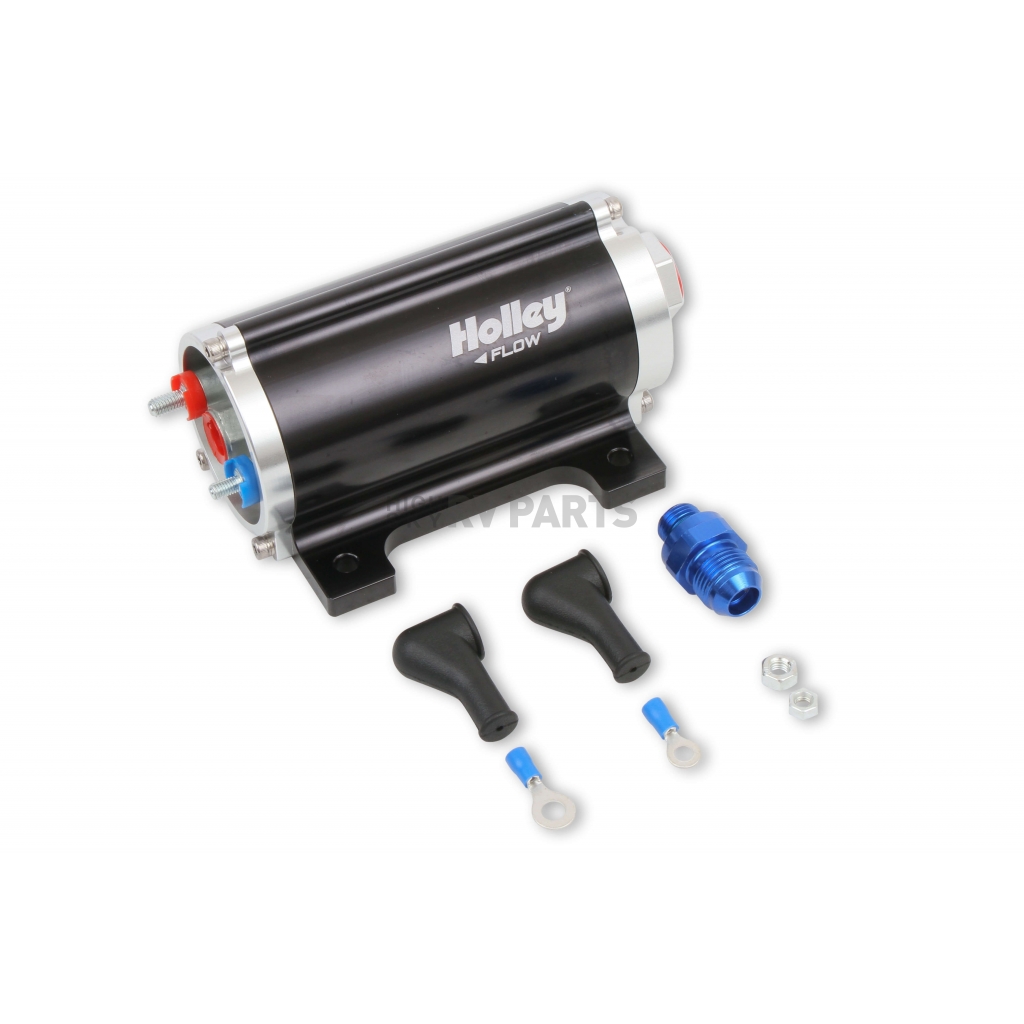

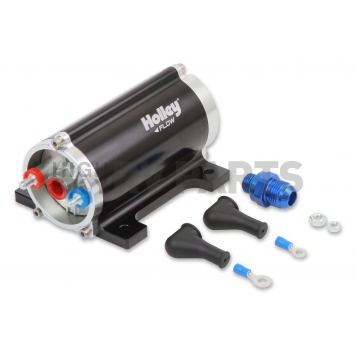

Fuel Pump Electric; Supports 700-800 Forced Induction HP At 60-8 PSI Or 96-105 GPH HP At 60-8 PSI Or 900-1050 Naturally Aspirated HP At 60-8 PSI; -8 AN Female ORB Inlet And -6 AN Female ORB Discharge; Black Anodized; Includes Fuel Pump/ -6 to -8 Male AN Discharge Fitting With Check Valve/ Terminal Nuts And Boots/ Installation Instructions

MPN: 12170

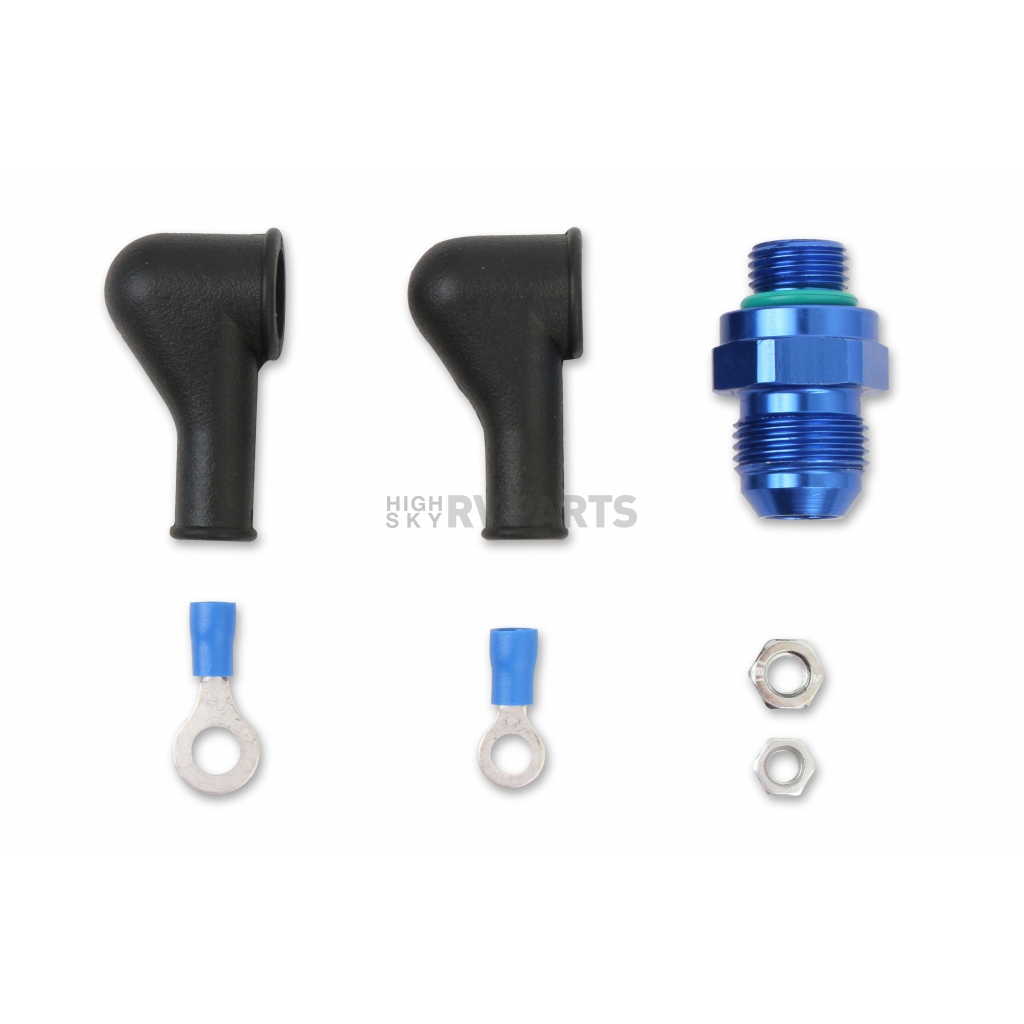

Holley's 100 GPH (gallons per hour) fuel pump is designed for high performance naturally aspirated and forced induction EFI vehicles It utilizes -8 AN female inlet and -6 AN female outlet connections for easy installation on new applications and for quick replacement of existing competitor fuel pumps. The pump supports up to 900 EFI or 1050 Carb HP Compatible with Pump Gas, Race gas, Diesel or E85. The 12-170 fuel pump is rated for use with ethanol-blended fuels, (E85/E90) and all types of gasoline, but pump life will be diminished if used with 100 percent ethanol fuels. The inlet thread is a -8 AN female ORB (O-ring port fitting) and the discharge is a female -6 AN ORB (O-ring port fitting). A male -6 to -8 AN discharge fitting with integral high-pressure check valve, terminal nuts, terminal boots and installation instructions are included.
Mounting Style: In-Line
Fuel Type: Gasoline/ Diesel/ E85
Voltage Rating: 12 Volt
Free Flow Rate: 105 Gallon Per Hour
Inlet Size: -8 AN
Outlet Size: -6 AN
With Sending Unit: No
Estimated Install Time (Hours): 1

Please refer the Technical Bulletins attached to the Product Manual tab

Features

  • Designed For High Output Naturally Aspirated And Forced Induction EFI And Carbureted Vehicles
  • The Roller Vane Design Pump Provides Fuel Pressure And Volume To Support Up To 900 EFI N/A Or 700 EFI Boosted Horsepower

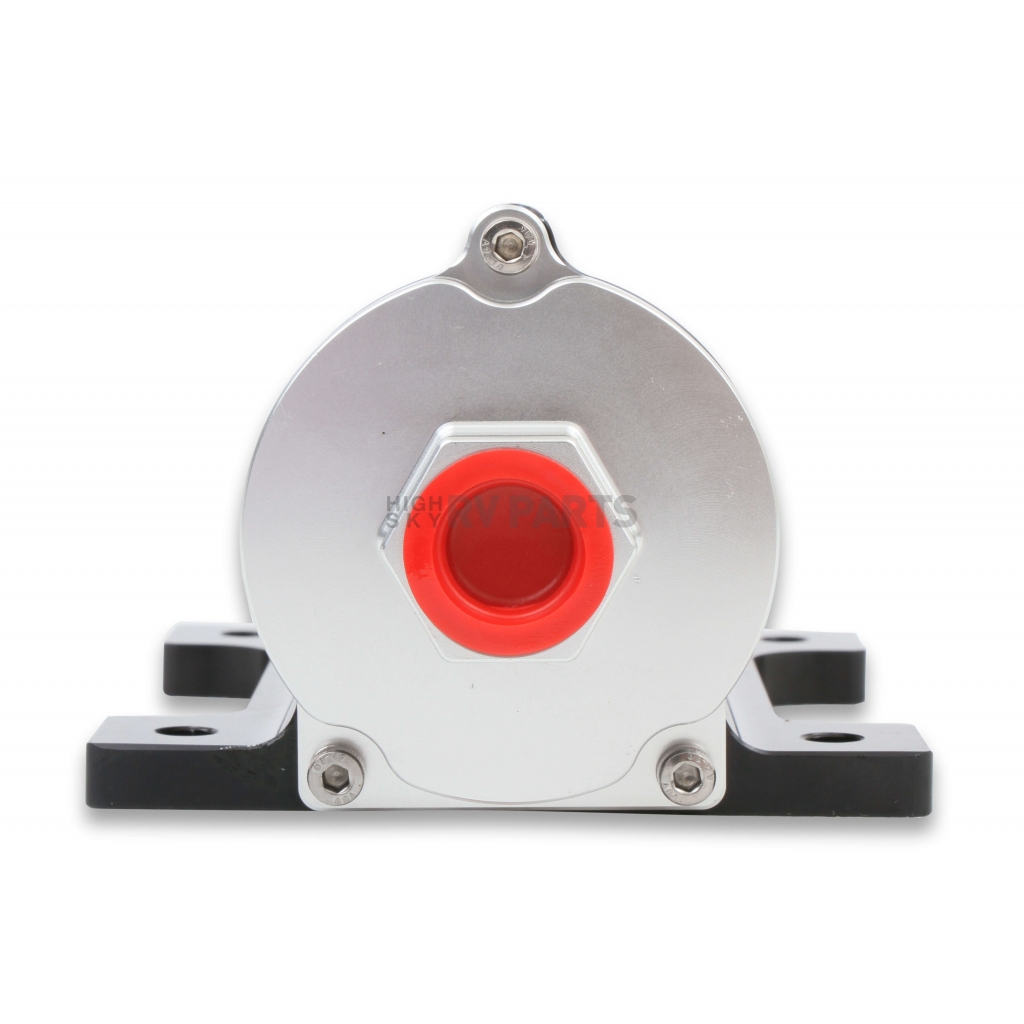

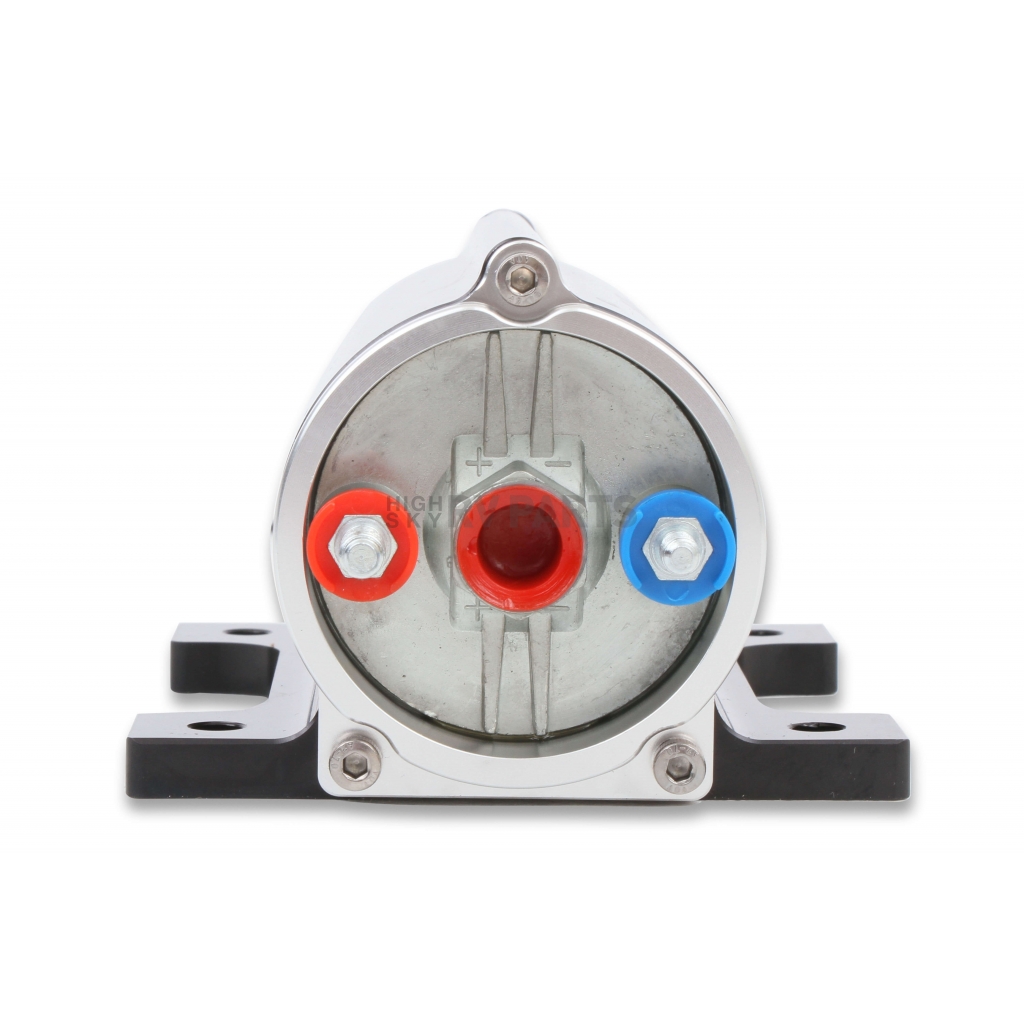

  • The Inlet Thread Is A -8 AN Female ORB (O-Ring Port Fitting) And The Discharge Is A Female -6 AN ORB (O-Ring Port Fitting)
  • Limited 90 Day Supplier Warranty
Specifications of Holley Performance Fuel Pump Electric - 12-170
Estimated Install Time (Hours) 1
Free Flow Rate 105 Gallon Per Hour
Fuel Type Gasoline/ Diesel/ E85
Inlet Size -8 AN
Mounting Style In-Line
Outlet Size -6 AN
Voltage Rating 12 Volt
With Sending Unit No
