Holley Performance Fuel Pump Electric - 12-1600
Estimated Install Time (Hours)
1
Free Flow Rate
160 Gallon Per Hour
Fuel Type
Gasoline
Inlet Attachment
Female Threads
Inlet Quantity
1
Inlet Size
5/8 Inch (-10 AN)
Maximum Pressure (PSI)
80 Pounds Per Square Inch
Mounting Style
In-Line
Outlet Attachment
Female Threads
Outlet Quantity
1
Outlet Size
5/8 Inch (-10 AN)
Share this page

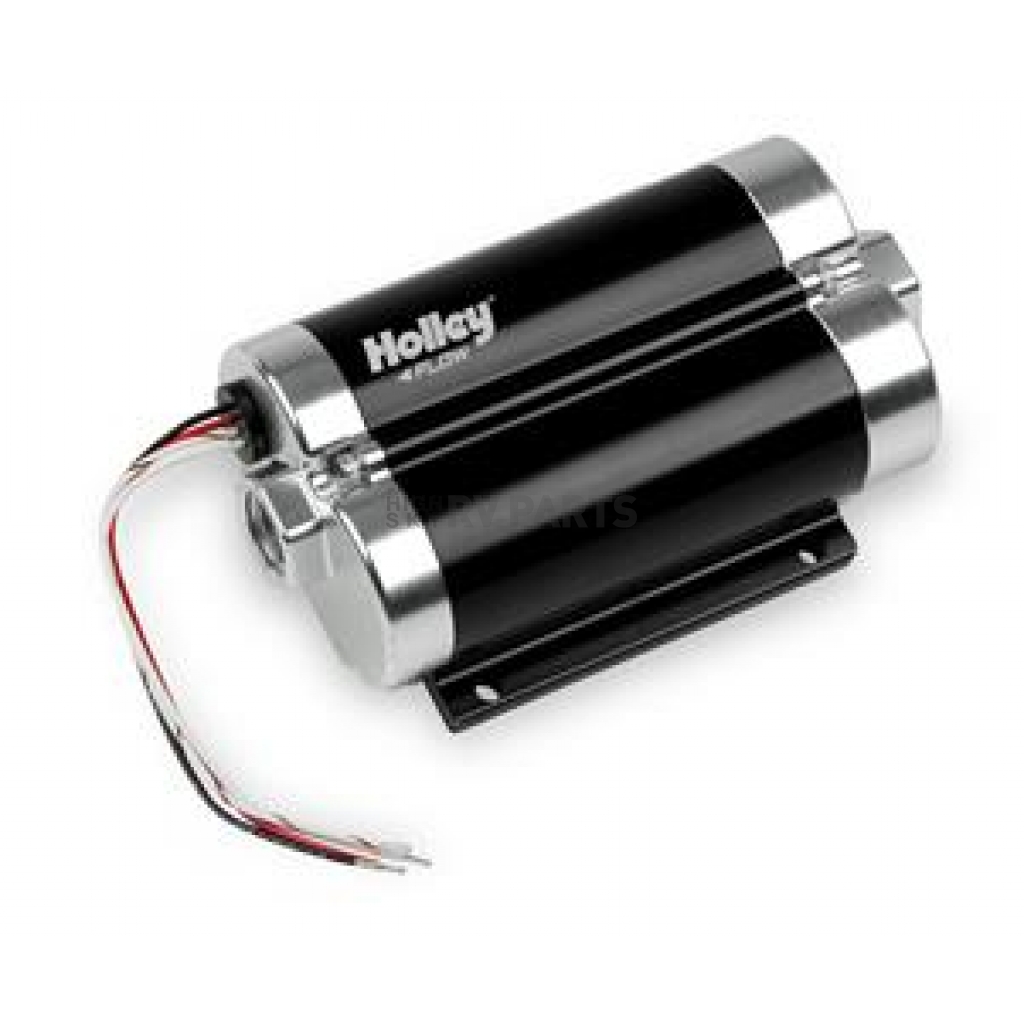

Holley Performance Fuel Pump Electric
Fuel Pump Electric; Dominator ™; Up To 1600 Horsepower EFI/ 1800 Horsepower Carburetor; 80 PSI Maximum Pressure; Without Regulator; 10AN O-Ring Inlet/Outlet; 12 Volts
MPN: 121600
Need to feed some serious horsepower? Have a nitrous or forced induction powerplant that also sees street duty? Holley’s Dominator™ in-line fuel pumps are the answer! The patent pending twin pump design allows you to use one pump for cruising and both pumps when you activate the nitrous switch or start building boost! By staging the second pump, you eliminate the unnecessary recirculating and heating of extra fuel which can lead to poor performance and hot fuel issues. As an added benefit for the hard core enthusiasts that run events like Hot Rod Power Tour and the Baja 1000, the extra pump offers the peace of mind that you will always finish what you start! For hard core race vehicles, both pumps can be wired for full time duty to get maximum performance and are proven with 18.5 Volt compatibility at pressures up to 80 PSI.
Mounting Style: In-Line
Fuel Type: Gasoline
Voltage Rating: 12 To 18.5 Volt
Free Flow Rate: 160 Gallon Per Hour
Maximum Pressure (PSI): 80 Pounds Per Square Inch
Inlet Quantity: 1
Inlet Size: 5/8 Inch (-10 AN)
Inlet Attachment: Female Threads
Outlet Quantity: 1
Outlet Size: 5/8 Inch (-10 AN)
Outlet Attachment: Female Threads
With Sending Unit: No
With Mounting Hanger: Yes
Estimated Install Time (Hours): 1
Features
- Improved Hot Fuel Handling
- Billet Aluminum Construction For Durability And Good Looks
- 10 AN O-Ring Inlet/Outlet For High Flow And Superior Sealing
- Excellent For Use With Carbureted Or EFI Applications
- Fully Submersible In-Tank For Custom Applications, Space Savings And Less Plumbing
- Twin Pump Design Allows The Use Of Both Pumps Simultaneously Or Independently - Second Pump Can Be Activated On Demand For Power Adders Such As Nitrous Or Boost
- Patent Pending Dual Pump Technology
- Proven Durability Beyond 3,000 Hours In Gasoline
- Easy Installation
- Limited 90 Day Warranty
| Specifications of Holley Performance Fuel Pump Electric - 12-1600 | |
| Estimated Install Time (Hours) | 1 |
| Free Flow Rate | 160 Gallon Per Hour |
| Fuel Type | Gasoline |
| Inlet Attachment | Female Threads |
| Inlet Quantity | 1 |
| Inlet Size | 5/8 Inch (-10 AN) |
| Maximum Pressure (PSI) | 80 Pounds Per Square Inch |
| Mounting Style | In-Line |
| Outlet Attachment | Female Threads |
| Outlet Quantity | 1 |
| Outlet Size | 5/8 Inch (-10 AN) |
| Voltage Rating | 12 To 18.5 Volt |
| With Mounting Hanger | Yes |
| With Sending Unit | No |
