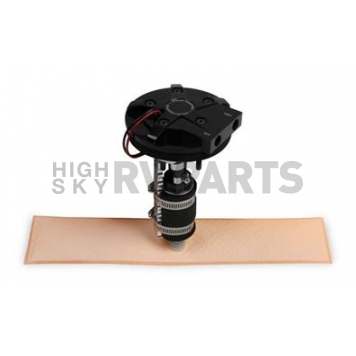

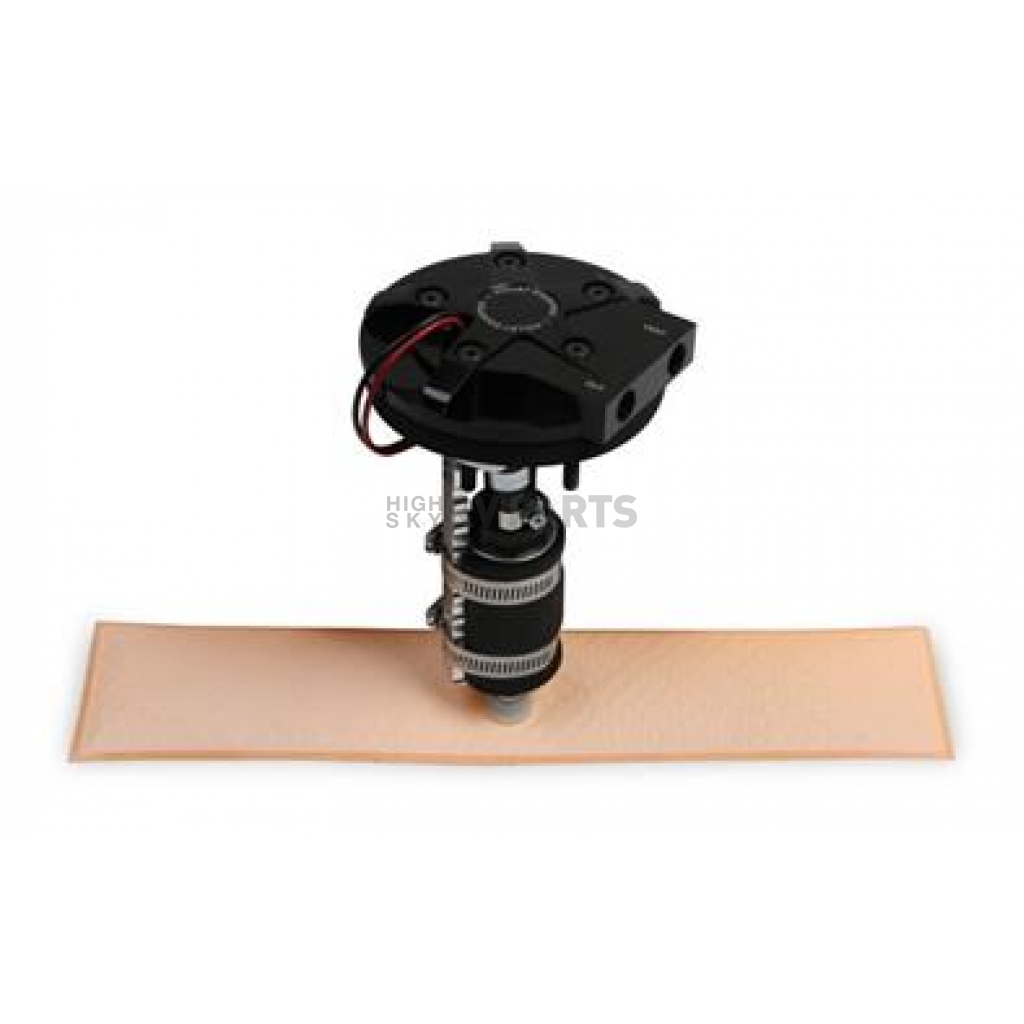

Holley Performance Fuel Pump Electric - 12-133
Estimated Install Time (Hours)
2
Free Flow Rate
450 Liter Per Hour
Fuel Type
Gasoline
Inlet Attachment
Female Threads
Inlet Quantity
1
Inlet Size
1/4 Inch
Maximum Pressure (PSI)
60 Pounds Per Square Inch
Mounting Style
In-Tank
Outlet Attachment
Female Threads
Outlet Quantity
1
Outlet Size
1/4 Inch
Share this page
Holley Performance Fuel Pump Electric
Fuel Pump Electric; EFI Retrofit Kit; For Converting To A In-Tank EFI Fuel System; Use In Fuel Tanks 7.25 Inch To 12 Inch Deep; 450 LPH Free Flow; Supports 875 Horsepower EFI At 60 PSI Or 1100 Horsepower Carbureted; With 60 PSI Internal Regulator; Returnless Style; 1/4 Inch NPT Ports; 12 Volts
MPN: 12133
Add the benefits of a Holley Hydramat in the process! The conversion is easily accomplished with basic tools and requires no welding or fabrication. The billet aluminum module design includes a billet pump hanger bracket to control pump vibration while also providing a low profile design to fit where space is at a premium. Holley’s innovative clamping system and integrated fuel pump makes it easy. Once installed, hook up your fuel lines and your power source/ground and you’re off and running! NO hassle.
Mounting Style: In-Tank
Fuel Type: Gasoline
Voltage Rating: 12 Volt
Free Flow Rate: 450 Liter Per Hour
Maximum Pressure (PSI): 60 Pounds Per Square Inch
Inlet Quantity: 1
Inlet Size: 1/4 Inch
Inlet Attachment: Female Threads
Outlet Quantity: 1
Outlet Size: 1/4 Inch
Outlet Attachment: Female Threads
With Sending Unit: No
With Mounting Hanger: Yes
Estimated Install Time (Hours): 2
Features
- 1/4 Inch NPT Ports For A Wide Variety Of Plumbing Options
- Black Anodized Aluminum Construction For Corrosion Resistance And Long Lasting Good Looks
- Innovative Clamping System Allows You To Locate The Module Anywhere In The Tank Beside Your Existing Sending Unit
- Clamping System Allows To Rotate The Unit 360 Degrees For Easier Clocking Of The Plumbing And Wiring Locations Under Your Ride
- Eliminates The Need For A Return Line And Conventional Fuel Pressure Regulator. Thus, Simplifying Your Installation
- Limited 90 Day Warranty
| Specifications of Holley Performance Fuel Pump Electric - 12-133 | |
| Estimated Install Time (Hours) | 2 |
| Free Flow Rate | 450 Liter Per Hour |
| Fuel Type | Gasoline |
| Inlet Attachment | Female Threads |
| Inlet Quantity | 1 |
| Inlet Size | 1/4 Inch |
| Maximum Pressure (PSI) | 60 Pounds Per Square Inch |
| Mounting Style | In-Tank |
| Outlet Attachment | Female Threads |
| Outlet Quantity | 1 |
| Outlet Size | 1/4 Inch |
| Voltage Rating | 12 Volt |
| With Mounting Hanger | Yes |
| With Sending Unit | No |
