Holley Performance Fuel Pressure Regulator - 12-846
Color
Black
Finish
Anodized
Fuel Type
Gasoline
Gauge Port
Yes
Includes Fittings
Yes
Includes Mounting Brackets
Yes
Inlet Attachment
Female Threads
Inlet Quantity
Single
Inlet Size
1/2 Inch (-8 AN)
Material
Aluminum
Outlet Attachment
Female Threads
Share this page

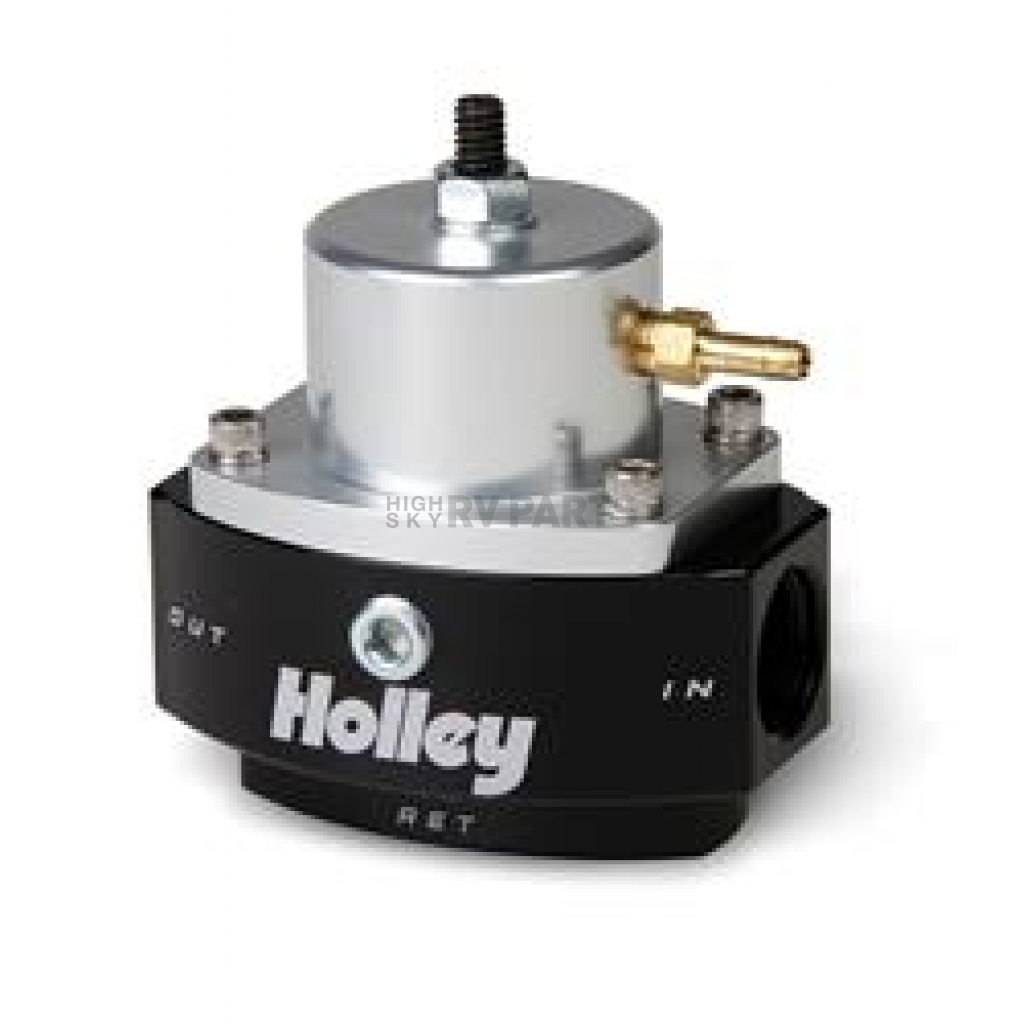

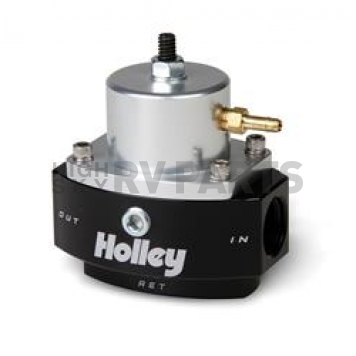

Holley Performance Fuel Pressure Regulator
Fuel Pressure Regulator; 40-70 PSI; One 8AN O-Ring Inlet/ One 8AN O-Ring Outlet/ One 6AN O-Ring Return; Gasoline; Black Anodized; Aluminum; With Mounting Hardware
MPN: 12846
Holley® billet fuel pressure regulators are part of a complete line of fuel system products from Holley®. They are precision machined from 6061–T6 billet Aluminum for strength and durability. They feature a black bright dip anodized body and a clear bright dip anodized top for corrosion resistance and good looks. Holley® billet fuel pressure regulators are available in a variety of configurations
Fuel Type: Gasoline
Pressure Range (PSI): 40 To 70 Pounds Per Square Inch
Regulator Location: Inline
Regulator Type: Return
Gauge Port: Yes
Inlet Attachment: Female Threads
Inlet Quantity: Single
Inlet Size: 1/2 Inch (-8 AN)
Outlet Attachment: Female Threads
Outlet Quantity: Single
Outlet Size: 1/2 Inch (-8 AN)
Shape: Round
Includes Fittings: Yes
Includes Mounting Brackets: Yes
Return Port Size: 3/8 Inch (-6 AN)
Finish: Anodized
Color: Black
Material: Aluminum
Features
- (1) 8AN O-Ring Inlet, (1) 8AN O-Ring Outlet, (1) 6AN O-Ring Return
- 1/8 Inch NPT Gauge Port
- Used In Systems With A Return Line Back To Tank
- Designed For Use With The Holley(R) HP™ In-Line Fuel Pumps Or Other High Pressure Pumps Where Return Line Is Needed
- Includes Fitting For Manifold Reference
- Adjustable From 40 To 70 PSI For Precise Fuel Pressure Adjustments
- Mounting Bracket Included
- Limited 90 Day Supplier Warranty
| Specifications of Holley Performance Fuel Pressure Regulator - 12-846 | |
| Color | Black |
| Finish | Anodized |
| Fuel Type | Gasoline |
| Gauge Port | Yes |
| Includes Fittings | Yes |
| Includes Mounting Brackets | Yes |
| Inlet Attachment | Female Threads |
| Inlet Quantity | Single |
| Inlet Size | 1/2 Inch (-8 AN) |
| Material | Aluminum |
| Outlet Attachment | Female Threads |
| Outlet Quantity | Single |
| Outlet Size | 1/2 Inch (-8 AN) |
| Pressure Range (PSI) | 40 To 70 Pounds Per Square Inch |
| Regulator Location | Inline |
| Regulator Type | Return |
| Return Port Size | 3/8 Inch (-6 AN) |
| Shape | Round |
