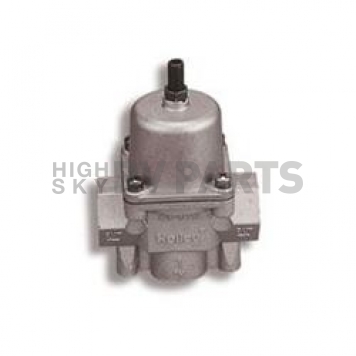

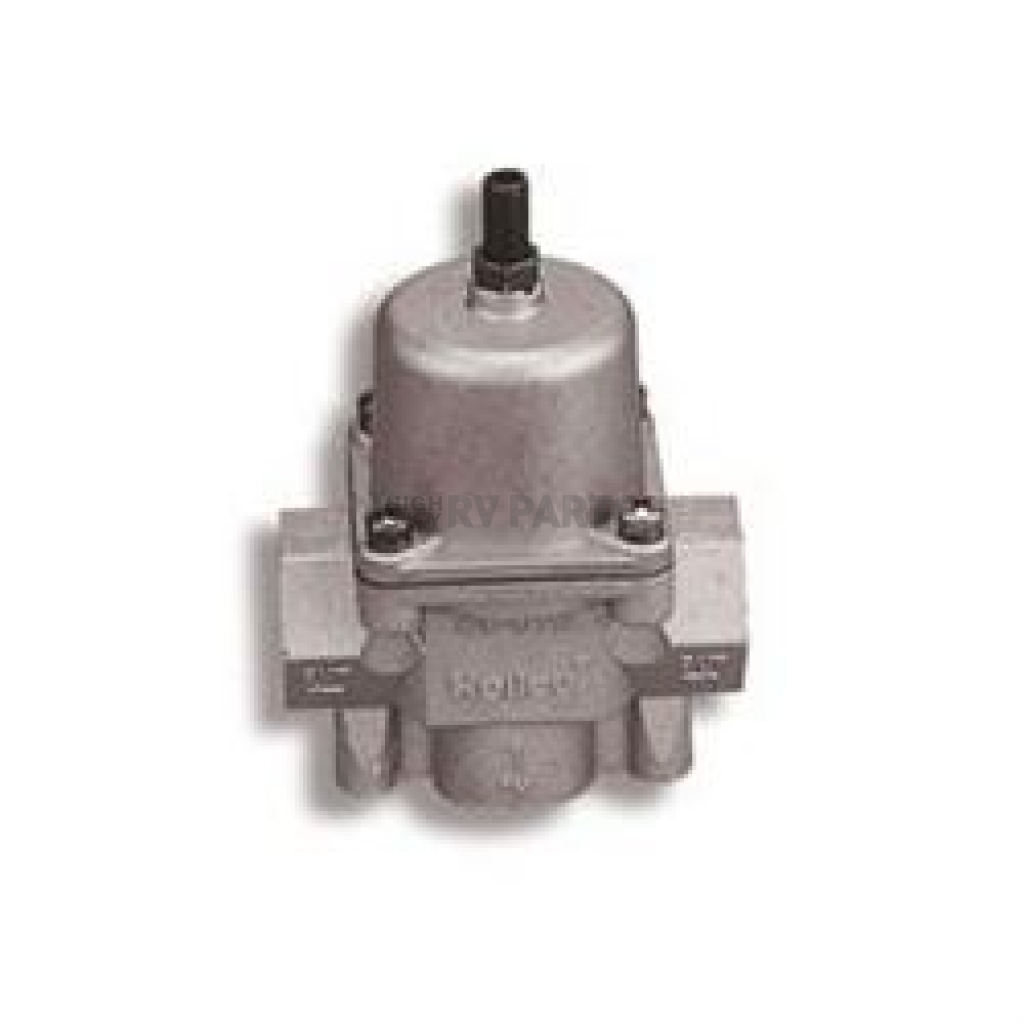

Holley Performance Fuel Pressure Regulator - 12-704

Authorized Dealer
Brand: Holley Performance Holley Performance
0 reviews
  • Have a product question? Ask us
  • Part Number: 12-704
  • Part Location: U.S.
  • Availability: Special Order
  • Delivery: 2 - 3 Weeks
Retail: $220.49
Price: $209.99
You Save: $10.50
Color
Silver
Finish
Natural
Fuel Type
Gasoline/ Alcohol
Gauge Port
No
Includes Fittings
Yes
Includes Mounting Brackets
Yes
Inlet Attachment
Female Threads
Inlet Quantity
Single
Inlet Size
1/2 Inch (-8 AN)
Material
Aluminum
Outlet Attachment
Female Threads
Share this page

Holley Performance Fuel Pressure Regulator

Fuel Pressure Regulator; 4-1/2-9 PSI; One 1/2 Inch NPT Inlet and Two 1/2 Inch Outlets; Gasoline/Alcohol; Natural; Aluminum; With Mounting Hardware and AN Style Fittings

MPN: 12704

The needle and seat assemblies that are installed in Holley performance Carburetors can satisfactorily control fuel pressure up to about 8 PSI. If the fuel pump is putting out more than 8 PSI, a regulator should be used to keep the fuel pressure within safe limits and avoid the possibility of flooding. Holley manufactures a number of regulators for most any need. A street regulator is available in chrome finish. A performance regulator is available in chrome finish. Both regulators feature a 3/8 Inch NPT inlet port and two 3/8 Inch NPT outlet ports with a 0.220 Inch restriction. The street version regulates pressure from 1 To 4 PSI while the performance version regulates pressure from 4-1/2 To 9 PSI.
Fuel Type: Gasoline/ Alcohol
Pressure Range (PSI): 4.5 To 9 Pounds Per Square Inch
Regulator Location: Inline
Regulator Type: Non-Return
Gauge Port: No
Inlet Attachment: Female Threads
Inlet Quantity: Single
Inlet Size: 1/2 Inch (-8 AN)
Outlet Attachment: Female Threads
Outlet Quantity: Dual
Outlet Size: 1/2 Inch (-8 AN)
Includes Fittings: Yes
Includes Mounting Brackets: Yes
Return Port Size: No Return Port
Finish: Natural
Color: Silver
Material: Aluminum

Features

  • Basically A Larger Version With More Flow Capacity
  • Without A Doubt Pro-Series Regulators Are The Least Restrictive, Highest Flowing, Production Regulators Currently Available
  • Designed To Precisely Control The Fuel Pressure From The Fuel Pump To The Carburetor
  • Fuel Pressure Regulator Is Fully Adjustable
  • Limited 90 Day Supplier Warranty
Specifications of Holley Performance Fuel Pressure Regulator - 12-704
Color Silver
Finish Natural
Fuel Type Gasoline/ Alcohol
Gauge Port No
Includes Fittings Yes
Includes Mounting Brackets Yes
Inlet Attachment Female Threads
Inlet Quantity Single
Inlet Size 1/2 Inch (-8 AN)
Material Aluminum
Outlet Attachment Female Threads
Outlet Quantity Dual
Outlet Size 1/2 Inch (-8 AN)
Pressure Range (PSI) 4.5 To 9 Pounds Per Square Inch
Regulator Location Inline
Regulator Type Non-Return
Return Port Size No Return Port
