Holley Performance Fuel Filter - 162-554

Authorized Dealer
Brand: Holley Performance Holley Performance
0 reviews
  • Have a product question? Ask us
  • Part Number: 162-554
  • Part Location: U.S.
  • Availability: Special Order
  • Delivery: 2 - 3 Weeks
Retail: $179.54
Price: $170.99
You Save: $8.55
Color
Black
Diameter (IN)
2 Inch
Element Material
Depth Media
Estimated Install Time (Hours)
0.5
Finish
Anodized
Fuel Type
Gasoline/ Alcohol
Height (IN)
5 Inch
Inlet Connection Size
1/2 Inch (-8 AN)
Inlet Connection Type
Female Threads
Length (IN)
Not Applicable
Location
In-Line
Share this page

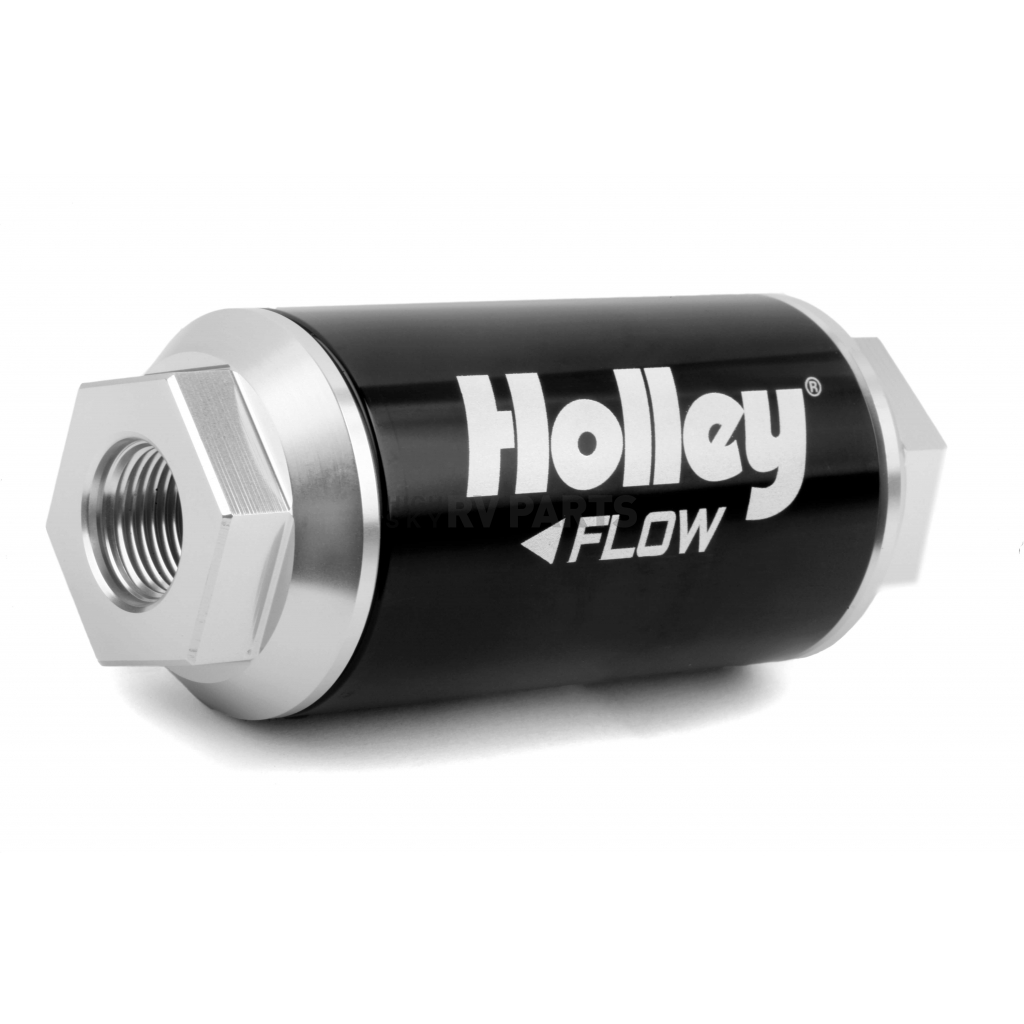

Holley Performance Fuel Filter

Fuel Filter; HP Series; In-Line; Gasoline/ Alcohol; -8 AN Inlet/ Outlet; 2 Inch Diameter x 5 Inch Length; 10 Micron Depth Media Element; Black Anodized; Billet Aluminum; For Use With Engines Up To 175 GPH

MPN: 162554

Holley's new HP billet fuel filters are part of the complete HP fuel systems product line. HP billet fuel filters are precision CNC machined from 6061–T6 billet Aluminum for strength and durability. They feature a black bright dip anodized body and clear bright dip anodized ends for superior corrosion resistance and good looks. Holley HP billet fuel filters are available 10, 40, 100 Micron rating and in 100 and 175 Gallon Per Hour flow ratings. Replacement elements are available
Type: Complete Assembly
Location: In-Line
Fuel Type: Gasoline/ Alcohol
Inlet Connection Size: 1/2 Inch (-8 AN)
Inlet Connection Type: Female Threads
Outlet Connection Size: 1/2 Inch (-8 AN)
Outlet Connection Type: Female Threads
Diameter (IN): 2 Inch
Length (IN): Not Applicable
Width (IN): Not Applicable
Height (IN): 5 Inch
Micron Rating: 10 Micron
Element Material: Depth Media
Finish: Anodized
Color: Black
Material: Aluminum
With Gasket: No
With Hose: No
With Mounting Hardware: No
Estimated Install Time (Hours): 0.5

Features

  • 175 Gallon Per Hour Filters Are Female -8 AN O-Ring Inlet And Outlet
  • 100 And 40 Micron Filters Are Stainless Steel Woven Mesh Element
  • 10 Micron Filters Are A Depth Media Element
  • Black Anodized Body And Clear Anodized End Caps For Corrosion Resistance And Good Looks
  • 175 Gallon Per Hour Filter Measures 5 Inch Long And 2 Inch Diameter
  • Limited 90 Day Supplier Warranty
Specifications of Holley Performance Fuel Filter - 162-554
Color Black
Diameter (IN) 2 Inch
Element Material Depth Media
Estimated Install Time (Hours) 0.5
Finish Anodized
Fuel Type Gasoline/ Alcohol
Height (IN) 5 Inch
Inlet Connection Size 1/2 Inch (-8 AN)
Inlet Connection Type Female Threads
Length (IN) Not Applicable
Location In-Line
Material Aluminum
Micron Rating 10 Micron
Outlet Connection Size 1/2 Inch (-8 AN)
Outlet Connection Type Female Threads
Type Complete Assembly
Width (IN) Not Applicable
With Gasket No
With Hose No
With Mounting Hardware No
