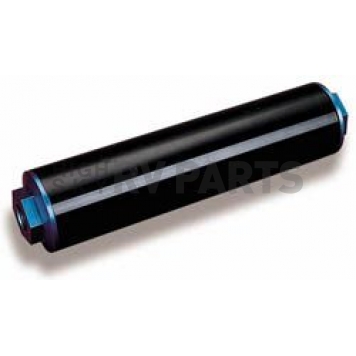

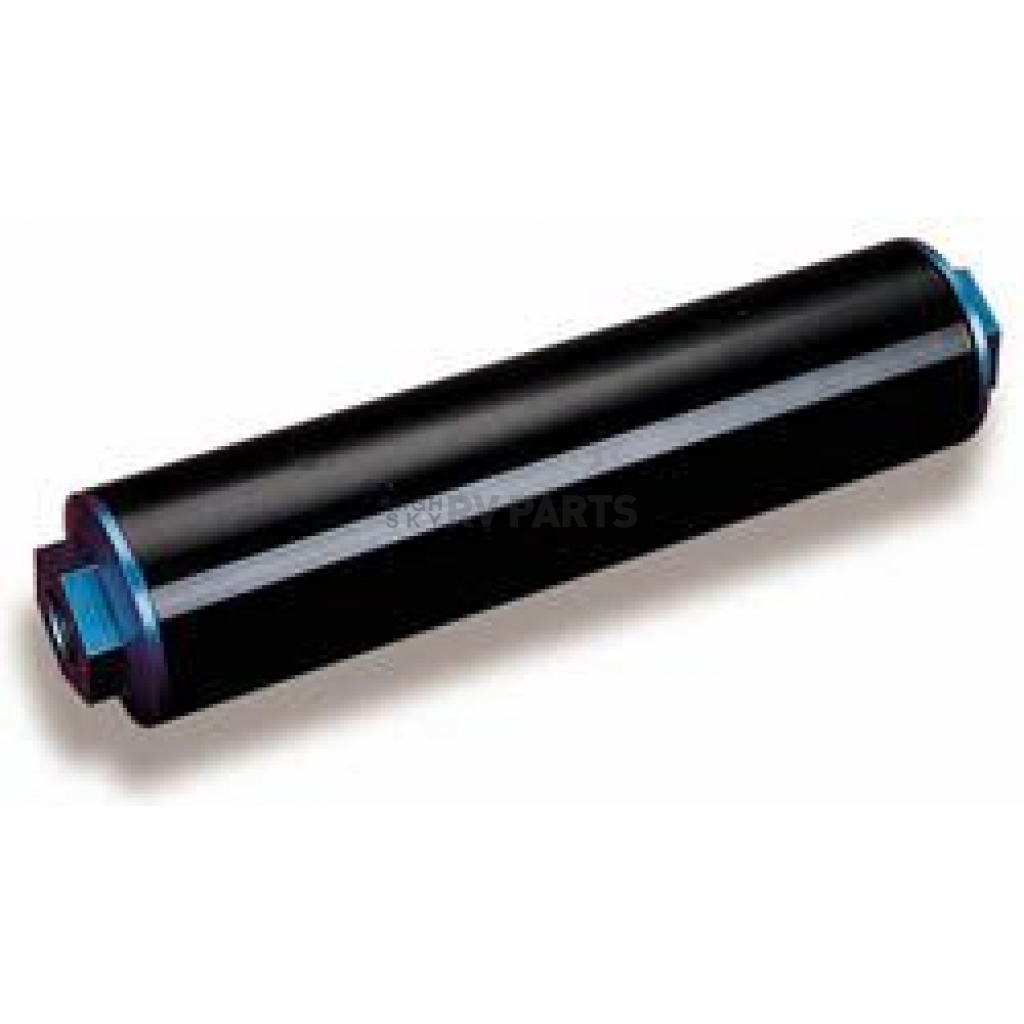

Holley Performance Fuel Filter - 162-517

Authorized Dealer
Brand: Holley Performance Holley Performance
0 reviews
  • Have a product question? Ask us
  • Part Number: 162-517
  • Part Location: U.S.
  • Availability: *Special Order
  • Delivery: 3 - 4 Weeks
Retail: $227.84
Price: $216.99
You Save: $10.85
Color
Black
Diameter (IN)
2-1/2 Inch
Element Material
Paper
Estimated Install Time (Hours)
0.5
Finish
Anodized
Inlet Connection Size
1/2 Inch NPT
Inlet Connection Type
Female Threads
Length (IN)
10 Inch
Location
In-Line
Material
Aluminum
Micron Rating
7 Micron
Share this page

Holley Performance Fuel Filter

Fuel Filter; Volumax; Tube Style; In-Line; 1/2 Inch NPT Inlet/ Outlet; 2-1/2 Inch Diameter x 10 Inch Length; 7 Micron Paper Element; Black Anodized; Aluminum; With Gasket

MPN: 162517

Filter features a tube style design. It holds a very fine 7 Micron paper element that’s capable of filtering up to 750 Gallons of fuel an hour. The filter is constructed of 0.150 Inch wall Aluminum tubing with an outer diameter of 2.5 Inch and a length of 10 Inch. Removable end caps have an pipe threads and are sealed with an O-ring. The caps have female 1/2 Inch pipe threads so any fitting can be installed. The filter is anodized for appearance and protection against corrosion.
Type: Complete Assembly
Location: In-Line
Inlet Connection Size: 1/2 Inch NPT
Inlet Connection Type: Female Threads
Outlet Connection Size: 1/2 Inch NPT
Outlet Connection Type: Female Threads
Diameter (IN): 2-1/2 Inch
Length (IN): 10 Inch
Width (IN): Not Applicable
Micron Rating: 7 Micron
Element Material: Paper
Finish: Anodized
Color: Black
Material: Aluminum
With Gasket: Yes
With Hose: No
With Mounting Hardware: No
Estimated Install Time (Hours): 0.5

Features

  • Filter Features A Tube Style Design. It Holds A Very Fine 7 Micron Paper Element That’s Capable Of Filtering Up To 750 Gallons Of Fuel An Hour
  • Removable End Caps Have An Pipe Threads And Are Sealed With An O-Ring
  • The Filter Is Anodized For Appearance And Protection Against Corrosion
  • Caps Have Female 1/2 Inch Pipe Threads So Any Fitting Can Be Installed
  • Limited 90 Day Warranty
Specifications of Holley Performance Fuel Filter - 162-517
Color Black
Diameter (IN) 2-1/2 Inch
Element Material Paper
Estimated Install Time (Hours) 0.5
Finish Anodized
Inlet Connection Size 1/2 Inch NPT
Inlet Connection Type Female Threads
Length (IN) 10 Inch
Location In-Line
Material Aluminum
Micron Rating 7 Micron
Outlet Connection Size 1/2 Inch NPT
Outlet Connection Type Female Threads
Type Complete Assembly
Width (IN) Not Applicable
With Gasket Yes
With Hose No
With Mounting Hardware No
