Holley Performance Fuel Filter - 16-103
Color
Tan
Diameter (IN)
Not Applicable
Fuel Type
Alcohol/ Ethanol/ Methanol/ E85
Inlet Connection Size
Not Applicable
Inlet Connection Type
Not Applicable
Length (IN)
8 Inch
Location
Fuel Tank
Micron Rating
15 Micron
Outlet Connection Size
Not Applicable
Outlet Connection Type
Not Applicable
Type
Element
Share this page

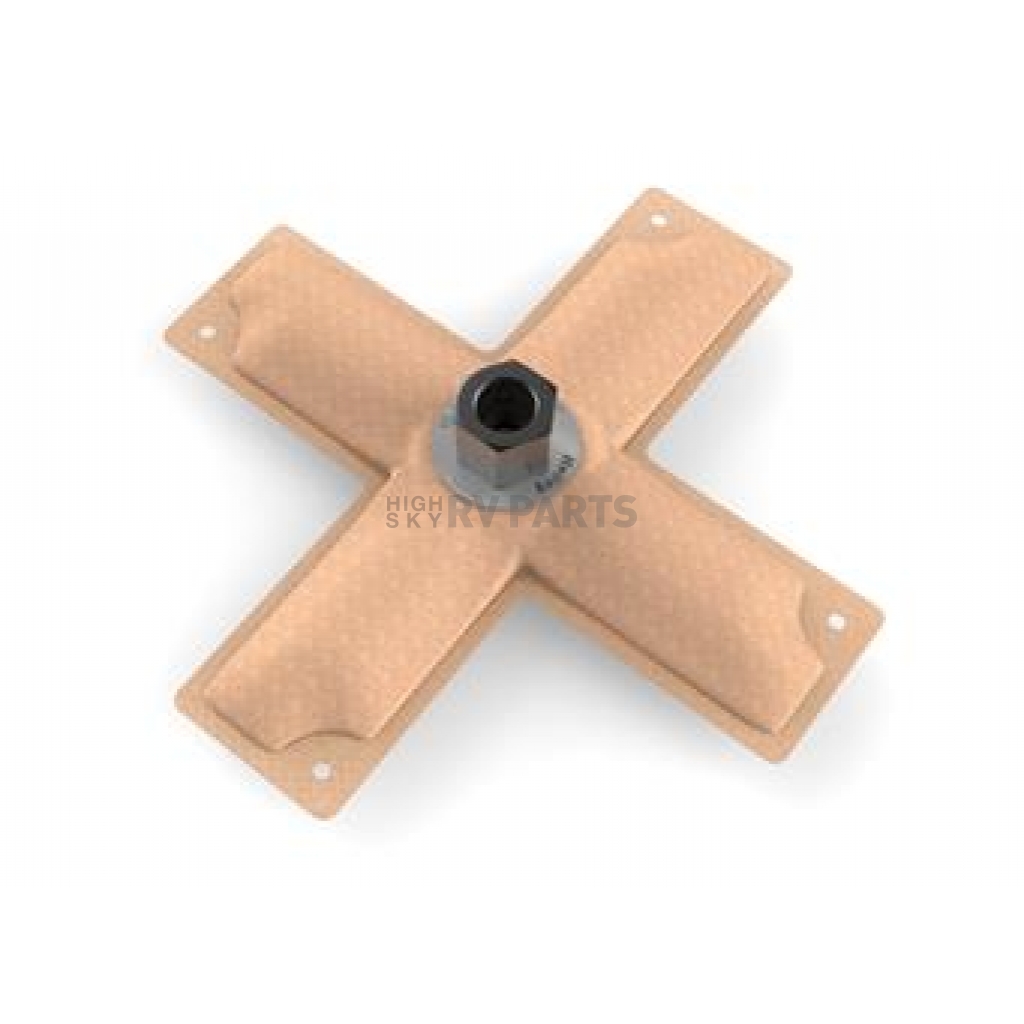

Holley Performance Fuel Filter
Fuel Filter; HydraMat; For Use In Fuel Cells With Minimum Dimensions Of 8 Inch Long X 8 Inch Wide; 3/8 Inch NPT Fitting/ Centered; 8 Inch X 8 Inch Cross Shape
MPN: 16103
Holley’s patent pending design solves the problems associated with traditional fuel pick-ups in stock fuel tanks as well as racing fuel cells. During hard cornering, acceleration, stopping, inclines, and low fuel conditions fuel runs away from the fuel pick up which introduces air into the system resulting in poor engine performance and even stalling. Surface tension and fluid wicking are the secrets of the HydraMat™’s amazing ability to draw fuel from nearly any area that has contact with fuel and store in the internal reservoir. As an area of the HydraMat™ is uncovered, the tiny pores of the media seal off through surface tension, forcing fuel to be contained in the reservoir and drawn from other areas of the mat where fuel continues to be available. The sheer size and coverage area of the HydraMat™ allows it to pull fuel from virtually any area in the tank or cell eliminating the need for specialty reservoirs and pick up pumps saving cost and greatly reducing complexity. HydraMats™ are available in various sizes and shapes to fit a variety of stock fuel tanks and/or race fuel cells.
Type: Element
Location: Fuel Tank
Fuel Type: Alcohol/ Ethanol/ Methanol/ E85
Inlet Connection Size: Not Applicable
Inlet Connection Type: Not Applicable
Outlet Connection Size: Not Applicable
Outlet Connection Type: Not Applicable
Diameter (IN): Not Applicable
Length (IN): 8 Inch
Width (IN): 8 Inch
Micron Rating: 15 Micron
Color: Tan
With Gasket: No
With Hose: No
With Mounting Hardware: No
Features
- Patent Pending Design That Solves The Problems Associated With Traditional Fuel Pick-Ups In Stock Fuel Tanks As Well As Racing Fuel Cells
- Greatly Reduces The Potential For Air To Enter Into The Fuel System Which Can Result In Poor Engine Performance And/Or Engine Stalling
- Perfect For Vehicles Experiencing Fuel Starvation During Hard Cornering, Acceleration, Stopping, Inclines, And Low Fuel Conditions
- Surface Tension And Fluid Wicking Allow The HydraMat™ To Continue To Draw Fuel From The Tank Or Cell Even When Part Of The Mat Uncovered
- Unique Internal Reservoir Assists In Keeping Fuel Available At The Pickup Even Under Extreme Fuel Slosh Conditions
- Eliminates The Need For Specialty Reservoirs, Sumps And Pick Up Pumps Saving Cost And Greatly Reducing Complexity
- Also Acts As A 15 Micron Pre-Filter Eliminating The Need For A Separate Filter Before The Fuel Pump
- Can Be Folded And Compressed For Easy Installation Through A Variety Of Fuel Cell Openings
- Limited 90 Day Warranty
| Specifications of Holley Performance Fuel Filter - 16-103 | |
| Color | Tan |
| Diameter (IN) | Not Applicable |
| Fuel Type | Alcohol/ Ethanol/ Methanol/ E85 |
| Inlet Connection Size | Not Applicable |
| Inlet Connection Type | Not Applicable |
| Length (IN) | 8 Inch |
| Location | Fuel Tank |
| Micron Rating | 15 Micron |
| Outlet Connection Size | Not Applicable |
| Outlet Connection Type | Not Applicable |
| Type | Element |
| Width (IN) | 8 Inch |
| With Gasket | No |
| With Hose | No |
| With Mounting Hardware | No |
